CIARRA CABBIH4-C Built-in Induction Hob

1. Important Safety Information

Please read this instruction manual carefully before installing or using your CIARRA CABBIH4-C induction hob. Keep this manual for future reference. Incorrect installation or use may cause injury or damage.

• Electrical Safety: This appliance must be installed by a qualified person. Ensure the electrical supply matches the rating plate.
• Child Safety: This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Children should be supervised to ensure they do not play with the appliance.
• Hot Surfaces: The hob surface will be hot after use. Do not touch hot surfaces until they have cooled down.
• Cookware: Only use suitable magnetic cookware for induction hobs.
• Overheating: Do not leave the hob unattended during cooking, especially when using high power settings.

Image: A child's hand reaching towards the hob controls, with a shield icon indicating child safety. The CIARRA CABBIH4-C features a child safety lock to prevent accidental operation.

2. Product Overview

The CIARRA CABBIH4-C is a 4-zone built-in induction hob designed for efficient and precise cooking. It features a sleek ceramic glass plate and intuitive touch controls.

Key Features:

• 4 Induction Cooking Zones
• Touch Control Panel
• 9 Power Levels
• Fast Heating Function
• Child Safety Lock
• Automatic Pan Detection
• Residual Heat Indicator

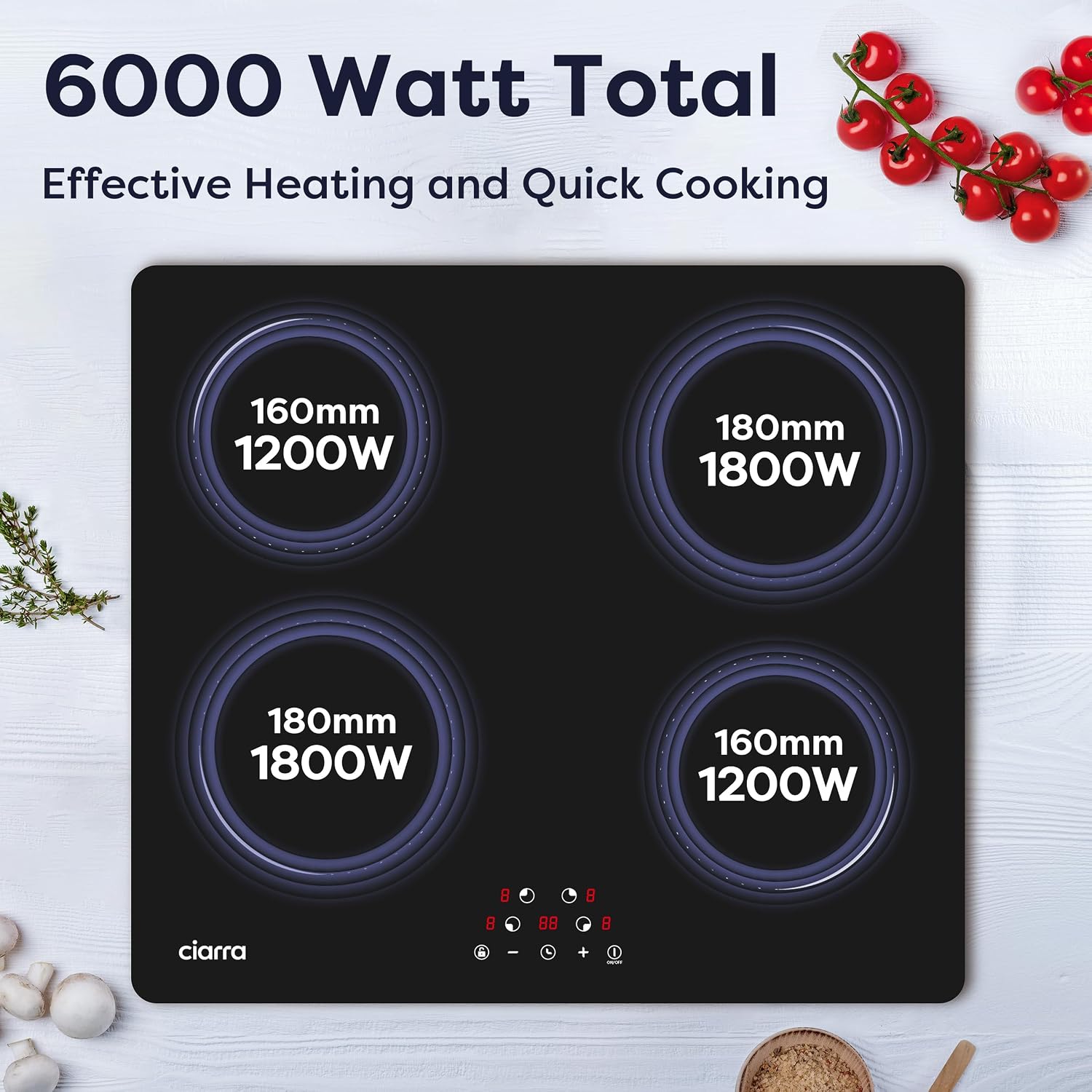

Image: Diagram showing the four cooking zones with their respective diameters and power outputs (160mm 1200W, 180mm 1800W). The hob provides a total of 6000 Watts for effective heating.

Compatible Cookware:

Induction hobs require cookware with a magnetic base. To check compatibility, hold a magnet to the bottom of your pot or pan. If it sticks, the cookware is suitable.

Image: Visual guide to cookware compatibility. Suitable types include stainless steel with magnetic bottom, magnetic pots, cast iron pans, and cast iron woks. Unsuitable types include enamel, copper/aluminum, ceramics, and glass.

3. Setup and Installation

The CIARRA CABBIH4-C is a built-in induction hob designed to integrate seamlessly into your kitchen countertop. Professional installation is recommended due to electrical requirements.

Dimensions:

• Product Dimensions (D x W x H): 52D x 59W x 5.8H centimetres
• Cut-out Dimensions (W x D): Approximately 560mm x 490mm

Electrical Connection:

The hob operates on 220 Volts and has a maximum wattage of 6000 watts. Ensure your electrical installation can support this load. A dedicated circuit may be required.

Image: Diagram illustrating the built-in design and dimensions of the hob, including the overall size (590mm width, 520mm depth, 62mm height) and the required countertop cut-out (560mm width, 490mm depth).

4. Operating Instructions

The CIARRA CABBIH4-C induction hob features intuitive touch controls for easy operation.

Basic Operation:

1. Power On/Off: Touch the power button (ON/OFF) to turn the hob on or off.
2. Select Cooking Zone: After powering on, select the desired cooking zone by touching its corresponding zone selection button.
3. Adjust Power Level: Use the '+' and '-' buttons to adjust the power level from 1 to 9.

Image: Close-up of the hob's touch control panel, showing the power buttons, zone selectors, and '+' / '-' controls for adjusting power levels.

Timer Function:

Each cooking zone can be set with an individual timer for up to 99 minutes. Once the set time expires, the cooking zone will automatically switch off.

Image: A pot cooking on the hob with a digital timer overlay showing '99 min', illustrating the timer function.

Child Safety Lock:

Activate the child safety lock to prevent accidental operation or changes to settings. Refer to the full manual for specific activation/deactivation steps.

Residual Heat Indicator:

After a cooking zone is turned off, an 'H' will appear on the display if the zone is still hot. Do not touch the surface until the 'H' disappears.

5. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your induction hob.

• Daily Cleaning: Wipe the ceramic glass surface with a damp cloth and mild detergent after each use, once the hob has cooled down.
• Stubborn Stains: For more stubborn stains, use a specialized ceramic hob cleaner. Avoid abrasive cleaners, scouring pads, or harsh chemicals.
• Control Panel: Keep the touch control area clean and dry to ensure proper functionality.

Image: A hand wiping the smooth glass surface of the induction hob with a blue cloth, demonstrating its easy-to-clean nature.

6. Troubleshooting

If you encounter any issues with your CIARRA CABBIH4-C induction hob, refer to the following common troubleshooting steps:

• Hob Not Turning On: Check if the hob is properly connected to the power supply. Ensure the child safety lock is not activated.
• No Heat/Pan Not Detected: Verify that the cookware is suitable for induction (magnetic base) and is correctly centered on the cooking zone. The pan detection system requires compatible cookware.
• Error Codes: If an error code appears on the display, consult the detailed troubleshooting section in the complete user manual for specific solutions.
• Unusual Noises: A low humming or clicking sound during operation is normal for induction hobs and is caused by the magnetic fields.

If the problem persists after attempting these steps, please contact CIARRA customer support.

7. Specifications

8. Warranty and Support

Product Warranty:

The CIARRA CABBIH4-C Built-in Induction Hob comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects under normal household use. Please retain your proof of purchase for warranty claims.

Customer Support:

For technical assistance, warranty claims, or any other inquiries, please contact CIARRA customer service. Contact details can typically be found on the CIARRA official website or on your purchase documentation.

When contacting support, please have your product model (CABBIH4-C) and proof of purchase readily available.
