Introduction
Thank you for choosing the Ledvion 9X RGBWW LED Garden Spike Spotlights. This product is designed to provide versatile and durable outdoor lighting for your garden, pathways, or landscape features. Each spotlight features a GU10 RGBWW LED bulb, a robust aluminum construction, and an IP65 rating for outdoor use. This manual provides essential information for safe installation, operation, and maintenance of your new lighting system.
Key Features:
- Smart RGBWW LED: Each 5W GU10 bulb offers a wide range of colors (RGB) and tunable white light (Warm White to Cool White), controllable via a compatible smart application (Tuya compatible).
- Durable Construction: Made from resistant aluminum, ensuring longevity and protection against rust and corrosion.
- Weatherproof Design: IP65 certified, providing protection against dust and water splashes, making it ideal for outdoor environments.
- Adjustable Lighting: The spotlight head can pivot up to 270 degrees, allowing precise direction of light.
- Easy Installation: Equipped with a ground spike for simple placement and a 2-meter cable for flexible positioning.
What's in the Box
Please check the contents of your package to ensure all components are present and undamaged.
Image: Contents of the Ledvion 9X RGBWW LED Garden Spike Spotlights package.
- 9x Ledvion Garden Spike Spotlights (with 2-meter cable each)
- 9x GU10 RGBWW LED Bulbs (5W)
- 9x Allen Keys
- 1x User Manual
Safety Information
Before installation and use, please read and understand all safety instructions. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Ensure the power supply is disconnected before installation, maintenance, or bulb replacement.
- This product is designed for outdoor use and has an IP65 rating. Do not submerge in water.
- Use only GU10 bulbs with a maximum wattage of 5W.
- For waterproof installation, it is recommended to use IP68 cable connectors (not included).
- Do not attempt to modify or disassemble the product. Contact qualified personnel for repairs.
- Keep packaging materials out of reach of children.
Installation
Follow these steps for proper installation of your Ledvion garden spike spotlights.
- Prepare the Installation Area: Choose a suitable location in your garden or landscape. Ensure the ground is soft enough to insert the spike without excessive force.
- Insert the Ground Spike: Firmly push the ground spike of each spotlight into the soil. Ensure the spotlight is stable and upright.
- Connect Power: Each spotlight comes with a 2-meter cable and an EU plug. Connect the plugs to a suitable outdoor power outlet. For multiple spotlights, you may need an outdoor extension cord or power strip with appropriate weather protection. For permanent, waterproof connections, consider using IP68 cable connectors (sold separately).
- Adjust Spotlight Angle: The spotlight head can be rotated up to 270 degrees. Use the included Allen key to loosen the adjustment screw, position the light to illuminate your desired object or area, and then tighten the screw to secure the angle.
Image: Plug and Play installation of the garden spike spotlight.

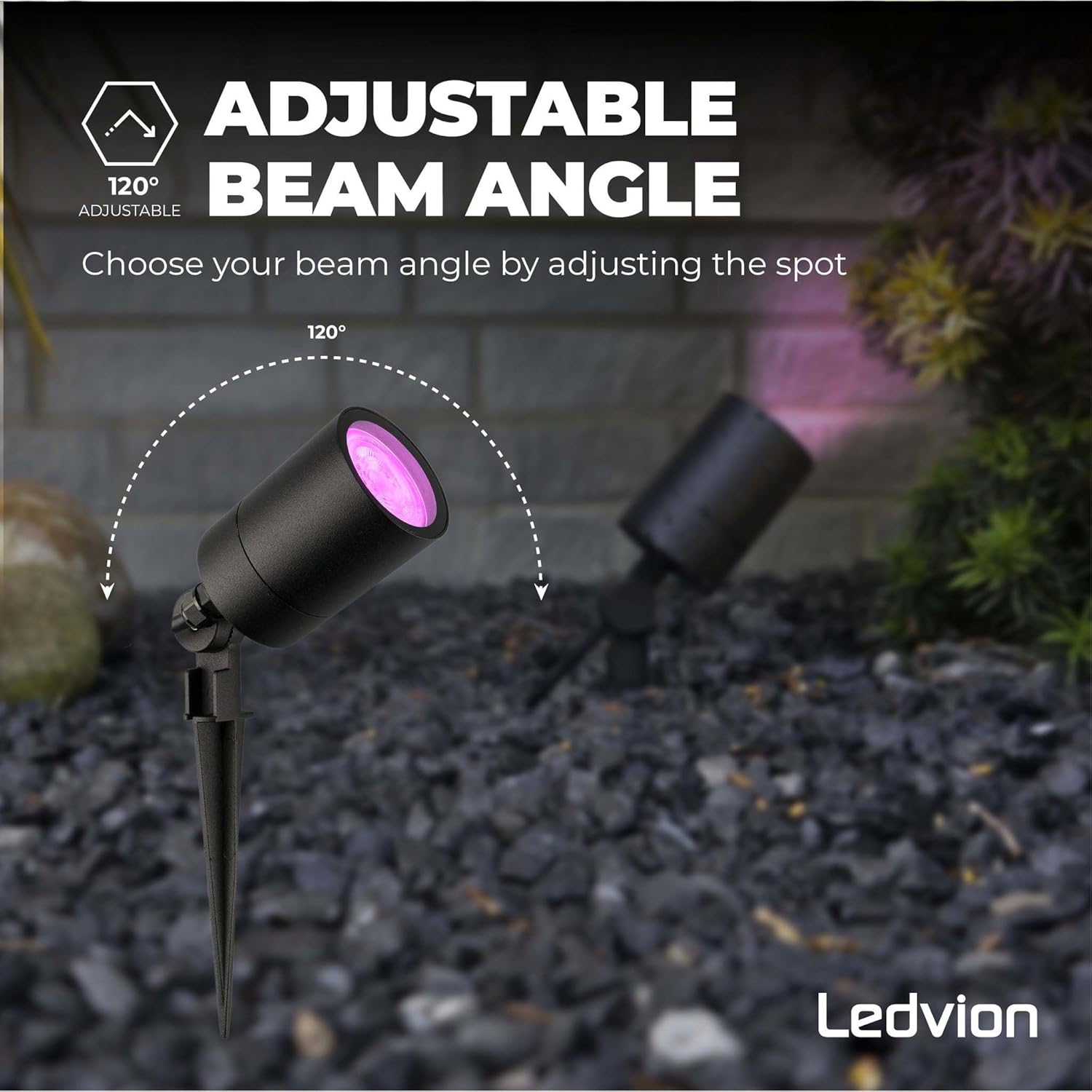

Image: Adjustable beam angle feature of the spotlight.
Operation
The Ledvion garden spike spotlights are equipped with smart RGBWW GU10 bulbs, offering advanced control options.
- Power On: Once installed and connected to power, switch on the power supply. The spotlights will illuminate.
- Smart Control (App): The included GU10 bulbs are compatible with various Tuya-based smart home applications. Download a compatible app (e.g., Tuya Smart, Smart Life) from your device's app store. Follow the in-app instructions to pair your spotlights.
- Adjusting Light Settings: Through the smart app, you can:
- Dimming: Adjust the brightness from 0% to 100%.
- Color Change: Select from a wide spectrum of RGB colors.
- White Light Adjustment: Tune the white light from warm white to cool white (RGBWW functionality).
- Scheduling & Scenes: Set timers, schedules, and create custom lighting scenes.
- GU10 Bulb Compatibility: The spotlights are designed for GU10 bulbs, allowing for easy replacement or customization with other GU10 bulbs (max 5W).

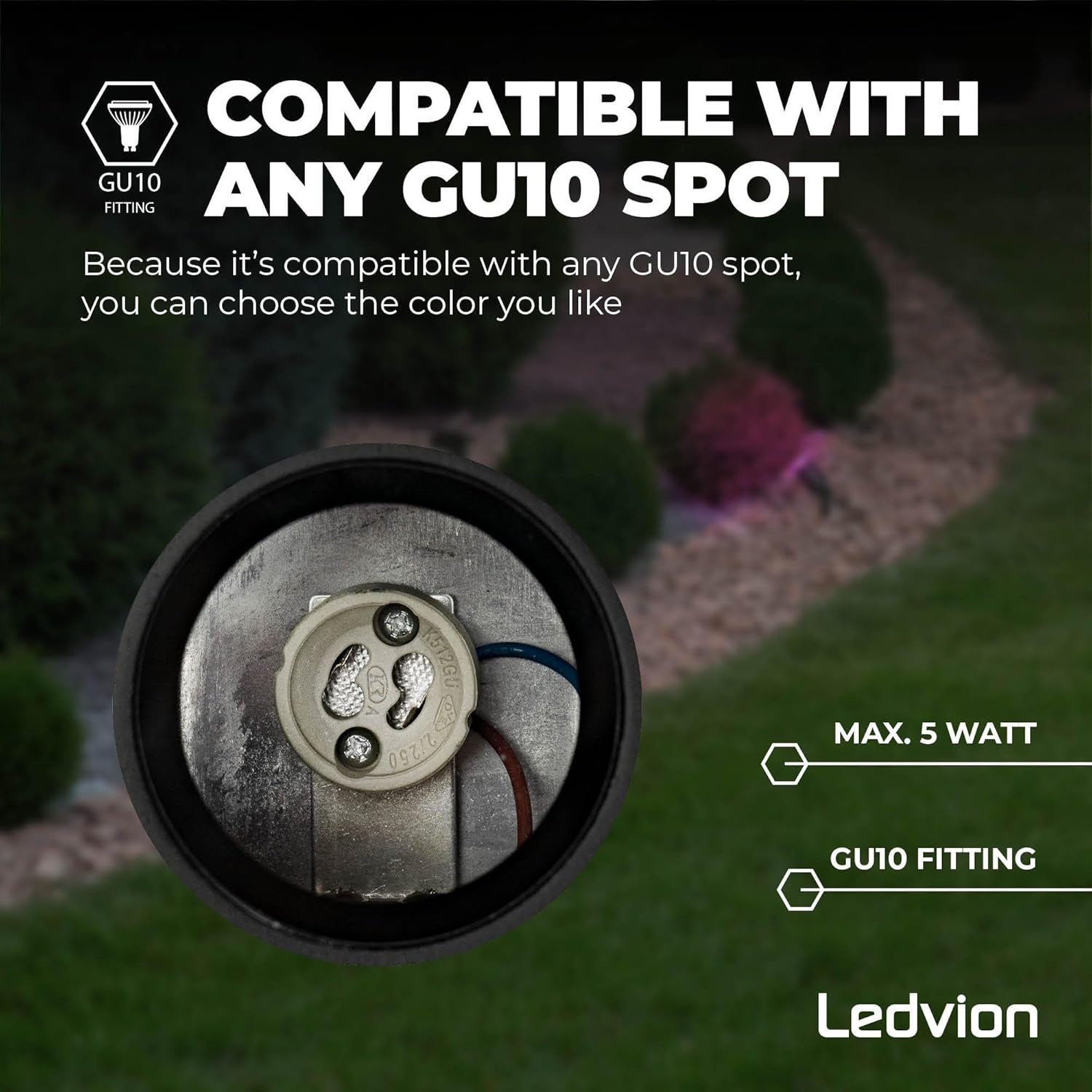

Image: GU10 fitting for bulb compatibility.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your Ledvion garden spike spotlights.
- Cleaning: Periodically clean the spotlight housing and lens with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Inspection: Regularly check the cables and connections for any signs of wear, damage, or corrosion. Ensure the ground spikes are still firmly in place.
- Bulb Replacement: To replace a GU10 bulb, ensure the power is off. Carefully remove the old bulb and insert the new one, ensuring it is securely seated.
- Weather Resistance: The IP65 rating protects against dust and water splashes. While designed for outdoor use, avoid prolonged submersion or high-pressure water jets directly on the unit.
Image: Spotlight demonstrating water and dust resistance (IP65 rated).
Troubleshooting
If you encounter issues with your spotlights, refer to the following common troubleshooting steps:
- Light Not Turning On:
- Check if the power supply is connected and switched on.
- Ensure the bulb is correctly inserted and not faulty.
- Verify that the smart app is connected and the light is not turned off or dimmed to 0%.
- Smart Control Issues:
- Ensure your Wi-Fi network is active and the spotlights are within range.
- Restart your Wi-Fi router and the spotlights.
- Try re-pairing the spotlights with the smart app.
- Inconsistent Lighting:
- Check for loose connections or damaged cables.
- Ensure all bulbs are functioning correctly.
If problems persist, please contact Ledvion customer support.
Specifications
| Feature | Specification |
|---|---|
| Model Number | LVO10054-RGB-9pack |
| Brand | Ledvion |
| Number of Spotlights | 9 |
| Bulb Type | GU10 LED (RGBWW) |
| Power per Bulb | 5W |
| Luminous Flux | 345 lumens per bulb (Total 3105 lumens for 9 bulbs) |
| Color Temperature | RGBWW (Tunable White up to 6500K) |
| Voltage | 230 Volts |
| Material | Aluminum |
| Color | Black |
| IP Rating | IP65 |
| Cable Length | 2 meters per spotlight |
| Product Dimensions (L x W x H) | 40 x 29 x 24 cm (package); Individual spotlight: 60mm diameter, 305mm height |
| Item Weight | 5.29 Kilograms (total package) |
| Special Features | Dimmable, Smart Control (Tuya compatible) |
Image: Detailed dimensions of the Ledvion garden spike spotlight.
Image: EU Energy Label for Ledvion LVW10001.
For more energy information, visit: https://eprel.ec.europa.eu/qr/694883
Warranty and Support
Ledvion provides a 2-year warranty on this product, covering manufacturing defects and material faults. This warranty ensures long-lasting usage due to the strong aluminum housing.
Image: 2-Year Warranty information.
For warranty claims, technical support, or any questions regarding your Ledvion garden spike spotlights, please contact your retailer or visit the official Ledvion website for customer service contact information.
