KOTLIE AC-513K/AC-513F Capsule Accessory for LAVAZZA BLUE Coffee Machines User Manual

1. Overview

This manual provides instructions for the proper use and maintenance of your KOTLIE AC-513K/AC-513F capsule accessory. This accessory is designed to enable your KOTLIE coffee machine to use LAVAZZA BLUE capsules.

Important Compatibility Note:

This capsule holder is exclusively designed for KOTLIE brand coffee machines.
It is not compatible with capsule coffee machines from other brands.
This accessory is specifically for LAVAZZA BLUE capsules.

KOTLIE capsule accessory next to a coffee machine, showing compatibility with various capsule types.

Image 1.1: KOTLIE capsule accessory designed for use with KOTLIE coffee machines, allowing for a choice of capsule coffee pods.

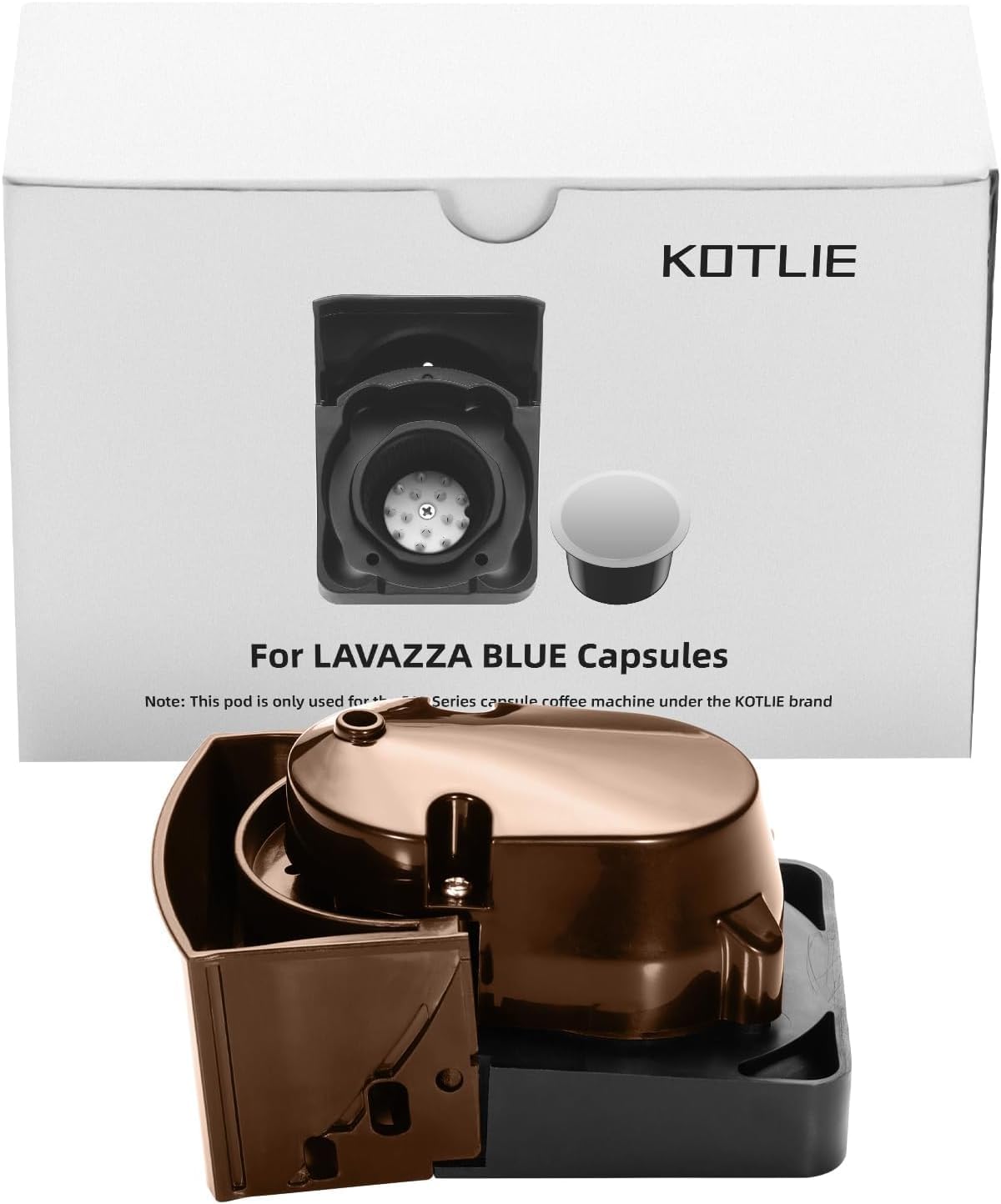

Image 1.2: Packaging of the KOTLIE capsule accessory, highlighting its compatibility with LAVAZZA BLUE capsules and KOTLIE coffee machines.

2. Important Safeguards

Read all instructions before using the capsule accessory.
Keep this manual for future reference.
Ensure the accessory is clean before first use and after each use.
Do not attempt to modify the accessory.
Always use a complete, undamaged capsule. Using a damaged or dented capsule may cause the coffee machine to malfunction.
If a malfunction occurs due to a damaged capsule, disconnect the coffee machine's power supply and allow it to rest for 6 hours before attempting to use it again.
This accessory is not dishwasher safe. Clean by hand.

3. Setup

Before first use, ensure the capsule holder is clean. Wash it with warm, soapy water and rinse thoroughly. Allow it to dry completely.

3.1 Installing the Capsule Holder

Ensure your KOTLIE coffee machine is turned off and unplugged.
Open the capsule compartment of your KOTLIE coffee machine.
Carefully insert the KOTLIE AC-513K/AC-513F capsule holder into the designated slot. Ensure it is securely seated.
Close the capsule compartment.

Close-up view of the internal mechanism of the KOTLIE capsule holder.

Image 3.1: Internal view of the capsule holder, showing the mechanism for capsule insertion.

4. Operating Instructions

4.1 Preparing Coffee with LAVAZZA BLUE Capsules

Ensure the KOTLIE AC-513K/AC-513F capsule holder is correctly installed in your KOTLIE coffee machine.
Open the capsule compartment.
Insert one LAVAZZA BLUE capsule into the capsule holder. Ensure the capsule is complete and undamaged.
Close the capsule compartment firmly.
Place a cup under the coffee dispenser.
Turn on your KOTLIE coffee machine and select your desired coffee setting according to your machine's instructions.
After brewing, wait for the machine to cool slightly before opening the compartment to remove the used capsule.

A hand inserting a Lavazza Blue capsule into the KOTLIE capsule holder.

Image 4.1: Proper insertion of a LAVAZZA BLUE capsule into the KOTLIE accessory.

5. Maintenance and Cleaning

Regular cleaning ensures optimal performance and longevity of your capsule accessory.

5.1 Cleaning Instructions

Always ensure the coffee machine is unplugged and the capsule holder has cooled down before cleaning.
Remove the capsule holder from the coffee machine.
Discard any used capsules.
Wash the capsule holder by hand using warm water and a mild detergent.
Rinse thoroughly under running water to remove all soap residue.
Allow the capsule holder to air dry completely before re-installing it or storing it.
Do not wash in a dishwasher.

6. Troubleshooting

Problem	Possible Cause	Solution
Coffee machine malfunctions after capsule insertion.	Damaged or dented capsule used.	Disconnect power, allow machine to rest for 6 hours. Ensure only complete, undamaged capsules are used.
Capsule holder does not fit correctly.	Incorrect insertion or incompatible machine.	Ensure the holder is aligned properly. Verify your coffee machine is a KOTLIE brand model.
Coffee flow is restricted or slow.	Capsule not properly pierced or residue buildup.	Ensure capsule is inserted correctly. Clean the capsule holder thoroughly.

If problems persist, please contact KOTLIE customer support.

7. Specifications

Model: AC-513K/AC-513F
Compatible Coffee Pods: LAVAZZA BLUE capsules
Material: Plastic, Metal
Product Dimensions (Depth x Width x Height): 8 cm x 10 cm x 8 cm (3.15 in x 3.94 in x 3.15 in)
Number of Items: 1
Dishwasher Safe: No
Country of Origin: China
UPC: 768534145504

Technical diagram showing the dimensions of the KOTLIE capsule accessory: 80mm depth, 100mm width, 80mm height.

Image 7.1: Dimensional diagram of the KOTLIE capsule accessory.

8. Warranty and Support

KOTLIE provides long-term after-sales service for this product. For any questions, issues, or support needs, please contact our customer service team.

Please refer to your original purchase documentation for specific warranty terms and contact information.

Manufacturer: KOTLIE

Brand Store: Visit KOTLIE Store
