Introduction
Thank you for choosing the INSPIRE YONKERS LED Outdoor Spotlight with Motion Sensor. This product is designed to provide optimal and functional brightness for your outdoor areas such as paths, facades, porches, and play areas. Constructed primarily from aluminum, it is lightweight and easy to install. This manual provides essential information for the safe installation, operation, and maintenance of your new outdoor spotlight.
The integrated LED system delivers a strong and intense illumination of 2700 lumens with a neutral white light (4000K), capable of lighting an outdoor surface of 39 to 49 square meters. The integrated motion sensor offers automatic and adjustable lighting, with a duration ranging from 10 seconds to 10 minutes and a detection range of up to 10 meters.
Safety Instructions
- Always disconnect the power supply before installation, maintenance, or repair.
- Installation should be performed by a qualified electrician in accordance with local wiring regulations.
- Ensure the mounting surface is suitable to support the weight of the fixture.
- Do not look directly into the LED light source when it is illuminated, as this may cause eye damage.
- This product is rated IP44 for outdoor use, meaning it is protected against solid objects larger than 1mm and splashing water from any direction. Do not immerse in water.
- Keep packaging materials out of reach of children.
Package Contents
Please check that all components are present and undamaged:
- INSPIRE YONKERS LED Outdoor Spotlight with Motion Sensor (x1)
- Mounting hardware (screws, wall plugs) (x1 set)
- Instruction Manual (this document)
Product Overview
The INSPIRE YONKERS LED Outdoor Spotlight features a modern design with an anthracite finish, making it a suitable addition to various outdoor settings. It integrates a powerful LED light source and a sensitive motion detector for automated illumination.

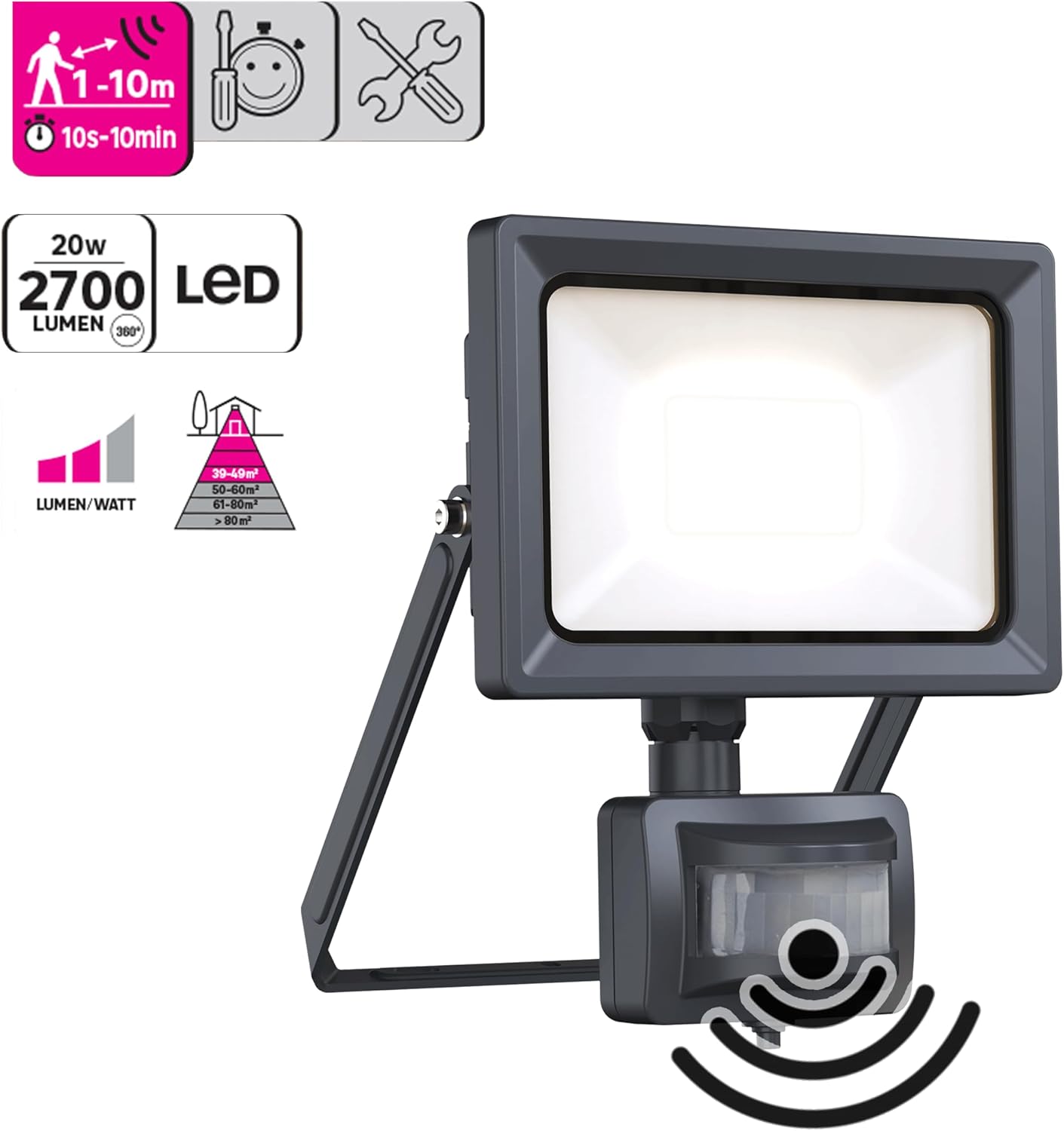

Image: INSPIRE YONKERS LED Outdoor Spotlight highlighting key features like motion detection range (1-10m), adjustable timer (10s-10min), 20W power, 2700 lumens, and recommended lighting area (39-49m²).
Image: Front view of the INSPIRE YONKERS LED Outdoor Spotlight, showcasing its sleek design and integrated motion sensor.
Specifications
| Feature | Specification |
|---|---|
| Brand | Inspire |
| Manufacturer | ADEO |
| Model Number | 3276007463903 |
| Product Dimensions | 8 x 14 x 19 cm; 200 g |
| Material | Aluminum |
| Finish Type | Untreated |
| Style | Modern |
| Light Source Type | LED (Light Emitting Diode) |
| Wattage | 20W |
| Luminous Flux | 2700 lumens |
| Color Temperature | 4000K (Neutral White) |
| Special Features | Motion Sensor, Adjustable Illumination |
| Motion Sensor Detection Range | Up to 10 meters |
| Motion Sensor Illumination Duration | Adjustable from 10 seconds to 10 minutes |
| Ingress Protection (IP) Rating | IP44 |
| Power Source | Corded Electric |
| Installation Type | Wall Mount |
| Energy Efficiency Class | D |
Setup (Installation)
This wall-mounted lamp is designed for easy installation thanks to its quick connection system. Ensure the installation location is suitable for outdoor use and provides a stable mounting surface.
Dimensions
- Choose Location: Select a suitable outdoor location for the spotlight, ensuring it is within reach of the power supply and provides the desired coverage area for the motion sensor.
- Mark Drilling Points: Hold the mounting bracket against the wall at the desired height and mark the drilling points.
- Drill Holes: Drill holes using an appropriate drill bit for your wall type. Insert wall plugs if necessary.
- Secure Mounting Bracket: Attach the mounting bracket to the wall using the provided screws.
- Electrical Connection: Disconnect power at the main circuit breaker. Connect the electrical wires to the quick connection terminal at the back of the projector. Ensure correct polarity (Live, Neutral, Earth).
- Attach Spotlight: Secure the spotlight fixture to the mounting bracket.
- Adjust Angle: Adjust the angle of the spotlight and the motion sensor to achieve the desired illumination and detection area.
- Restore Power: Restore power at the main circuit breaker.
Image: An INSPIRE YONKERS LED Outdoor Spotlight installed on a wall, providing illumination to an outdoor area.
Operating Instructions
The INSPIRE YONKERS spotlight features an integrated motion sensor with adjustable settings for optimal performance.
Motion Sensor Adjustments
The motion sensor has controls, typically located under the detector, to adjust its sensitivity and the duration of the light.
- Detection Range (Sensitivity): Adjust this setting to control how far the sensor detects motion. The range can be set up to 10 meters. Turning the dial towards the '+' symbol typically increases sensitivity/range, while '-' decreases it.
- Illumination Duration (Time): This setting determines how long the light remains on after motion is detected and no further motion is sensed. The duration is adjustable from 10 seconds to 10 minutes. Turning the dial towards the '+' symbol typically increases the duration, while '-' decreases it.
- Light Sensor (LUX): Some models may include a LUX setting to determine the ambient light level at which the motion sensor becomes active. For example, setting it to a low LUX value means the light will only activate in very dark conditions, while a high LUX value means it will activate even in dim light.
Experiment with these settings to find the optimal configuration for your specific outdoor environment.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your outdoor spotlight.
- Cleaning: Clean the exterior of the fixture periodically with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- Inspection: Periodically check the fixture for any signs of damage, loose connections, or wear. If any damage is found, disconnect power and contact a qualified technician for repair.
- No User-Serviceable Parts: The integrated LED light source is designed for long life and is not user-replaceable. Do not attempt to open or repair the fixture yourself.
Troubleshooting
If you encounter issues with your INSPIRE YONKERS LED Outdoor Spotlight, refer to the following common problems and solutions:
- Light does not turn on:
- Check the power supply and circuit breaker.
- Ensure the wiring connections are secure.
- Verify the motion sensor's LUX setting (if applicable) is not set too high for current ambient light conditions.
- Check the motion sensor's detection range and angle.
- Light stays on continuously:
- Ensure the motion sensor's duration setting is not set to its maximum or to a continuous mode (if available).
- Check for constant motion within the sensor's detection area (e.g., moving branches, pets).
- Verify the motion sensor is not obstructed or damaged.
- Light turns on/off too frequently or not at all:
- Adjust the motion sensor's sensitivity/detection range.
- Ensure the sensor is not facing direct sunlight or other strong light sources.
- Clean the sensor lens if it is dirty.
If the problem persists after trying these solutions, please contact customer support.
Warranty and Support
The INSPIRE YONKERS LED Outdoor Spotlight is manufactured by ADEO. For warranty information, please refer to the terms and conditions provided with your purchase documentation or contact your retailer. For technical support or further assistance, please reach out to the customer service department of your point of purchase.
You can also visit the Inspire Store for more information on Inspire products.
