ZhenBaoTian KH-515

ZhenBaoTian Mini Fascia Gun KH-515 User Manual

Model: KH-515 | Brand: ZhenBaoTian

1. Introduction

This manual provides detailed instructions for the safe and effective use of your ZhenBaoTian Mini Fascia Gun KH-515. Please read this manual thoroughly before operating the device and retain it for future reference.

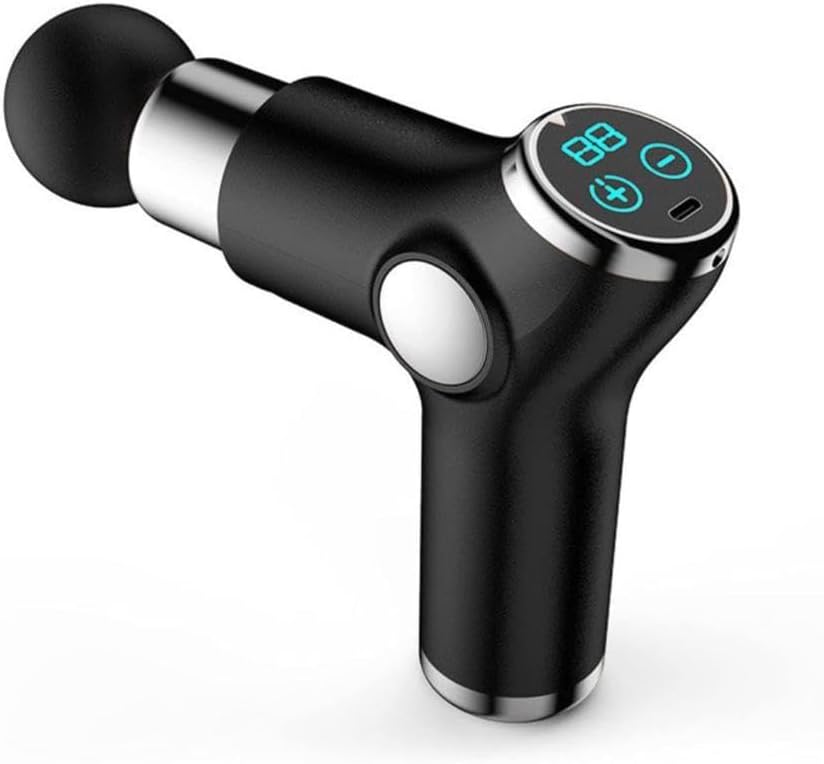

ZhenBaoTian Mini Fascia Gun KH-515

Image 1: ZhenBaoTian Mini Fascia Gun KH-515. A compact black handheld massage gun with a spherical attachment, digital display, and control buttons.

2. Important Safety Instructions

To reduce the risk of electric shock, fire, and injury, please observe the following precautions:

  • Do not immerse the device in water.
  • Keep away from heat sources and direct sunlight.
  • Do not operate if damaged.
  • Consult a physician before use if you have any medical conditions.
  • Keep out of reach of children.
  • The device will automatically stop after 15 minutes of continuous use to prevent overuse.

3. Package Contents

Verify that all items are present:

  • ZhenBaoTian Mini Fascia Gun KH-515
  • 4 Massage Head Attachments
  • USB Charging Cable
  • User Manual
ZhenBaoTian Mini Fascia Gun with 4 attachments

Image 2: ZhenBaoTian Mini Fascia Gun with four different massage head attachments displayed below it. The attachments include a spherical head, a U-shaped head, a flat head, and a bullet head.

4. Setup

4.1 Charging the Device

  1. Connect the USB charging cable to the charging port on the fascia gun.
  2. Connect the other end of the USB cable to a compatible 5V/2A USB power adapter (not included).
  3. The battery indicator on the display will show charging status. A full charge takes approximately 2 hours.
  4. Disconnect the charger once fully charged.
ZhenBaoTian Mini Fascia Gun battery indicator

Image 3: Close-up of the ZhenBaoTian Mini Fascia Gun's digital display showing battery level and speed settings. The display indicates energy consumption stability, enduring endurance, and safety circuit features.

4.2 Attaching Massage Heads

To attach a massage head, gently push the desired head into the front opening of the device until it is securely in place. To remove, pull the head straight out.

  • Spherical Head: Suitable for large muscle groups like arms, back, hips, thighs, calves.
  • U-shaped Head: Suitable for neck and spine.
  • Flat Head: Suitable for all parts of the body, for relaxation and shaping.
  • Bullet Head: Suitable for deep tissue, trigger points, and small muscle areas.

5. Operating Instructions

5.1 Power On/Off

  • To power on, press and hold the power button (usually marked with a circle or power symbol) for a few seconds.
  • To power off, press and hold the power button again.

5.2 Adjusting Speed Settings

The device features multiple speed settings. Use the '+' and '-' buttons on the control panel to increase or decrease the vibration intensity. The device supports up to 6 speed files, with some variants offering up to 32 files.

ZhenBaoTian Mini Fascia Gun in use on shoulder

Image 4: A person using the ZhenBaoTian Mini Fascia Gun on their shoulder, demonstrating its handheld operation and target area for muscle relief.

5.3 Usage Guidelines

  • Apply the massage head gently to the desired muscle area.
  • Move the device slowly over the muscle, avoiding bones and joints.
  • Do not apply excessive pressure.
  • The device has an intelligent timing protection feature and will automatically stop after 15 minutes of continuous use. Allow a short break before resuming use.

6. Maintenance and Care

  • Cleaning: Wipe the device with a soft, damp cloth. Do not use abrasive cleaners or immerse in water.
  • Storage: Store the fascia gun in a cool, dry place, away from direct sunlight and extreme temperatures.
  • Battery: For optimal battery life, charge the device regularly, even if not in frequent use.

7. Troubleshooting

ProblemPossible CauseSolution
Device does not turn on.Low battery.Charge the device fully.
Device stops during use.15-minute auto-shutoff activated.Wait a few moments, then restart if desired.
Weak vibration.Low battery or incorrect speed setting.Charge the device or increase speed setting.

8. Specifications

FeatureDetail
ModelKH-515
BrandZhenBaoTian
Output Voltage7.4V
Rated Power24W
Input Voltage5V / 2A
Speed Gears6 files (some variants up to 32 files)
MaterialABS (Acrylonitrile Butadiene Styrene)
Rotation SpeedUp to 3200R / m
Battery Capacity1800mA (approx. 2000mAh as per some visuals)
Charging TimeApproximately 2 hours
Automatic Shut-off15 minutes
Product Dimensions14.2cm x 14cm x 5.6cm (approx. 142mm x 140mm x 56mm)
WeightApproximately 460g
ZhenBaoTian Mini Fascia Gun dimensions

Image 5: Diagram showing the dimensions of the ZhenBaoTian Mini Fascia Gun, indicating a length of 142mm, height of 140mm, and width of 56mm.

9. Warranty Information

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. Keep your purchase receipt as proof of purchase.

10. Customer Support

For technical assistance, troubleshooting, or warranty claims, please contact ZhenBaoTian customer support through your retailer or the official brand website.

© 2023 ZhenBaoTian. All rights reserved.
