GoHawk RD8-X User Manual
Waterproof Motorcycle Bluetooth Stereo System
Introduction
Thank you for choosing the GoHawk RD8-X Waterproof Motorcycle Bluetooth Stereo System. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new audio system. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.
Safety Information
IMPORTANT NOTES:
- Ensure you have sufficient space for installation. The overall speaker size is 8.5" L x 2.75" Diameter. Mounting hardware with stem is 5.5" L.
- This product is designed to be water-resistant (IP56). While it can withstand splashes and light rain, it should not be submerged in water.
- Always ensure proper wiring connections (Red to Positive, Black to Negative) to prevent damage to the unit or your vehicle's electrical system.
- Do not attempt to disassemble or modify the unit. This may void the warranty and cause damage.
- Operate the system responsibly and ensure it does not distract you from safe riding.
Package Contents
Please verify that all items listed below are included in your package:
- 1 x Speaker Soundbar
- 2 x Mounting Clamp w/ Stem
- 1 x SAE Power Cord
- 1 x External Antenna
- 1 x AUX Cable
- 1 x User Manual

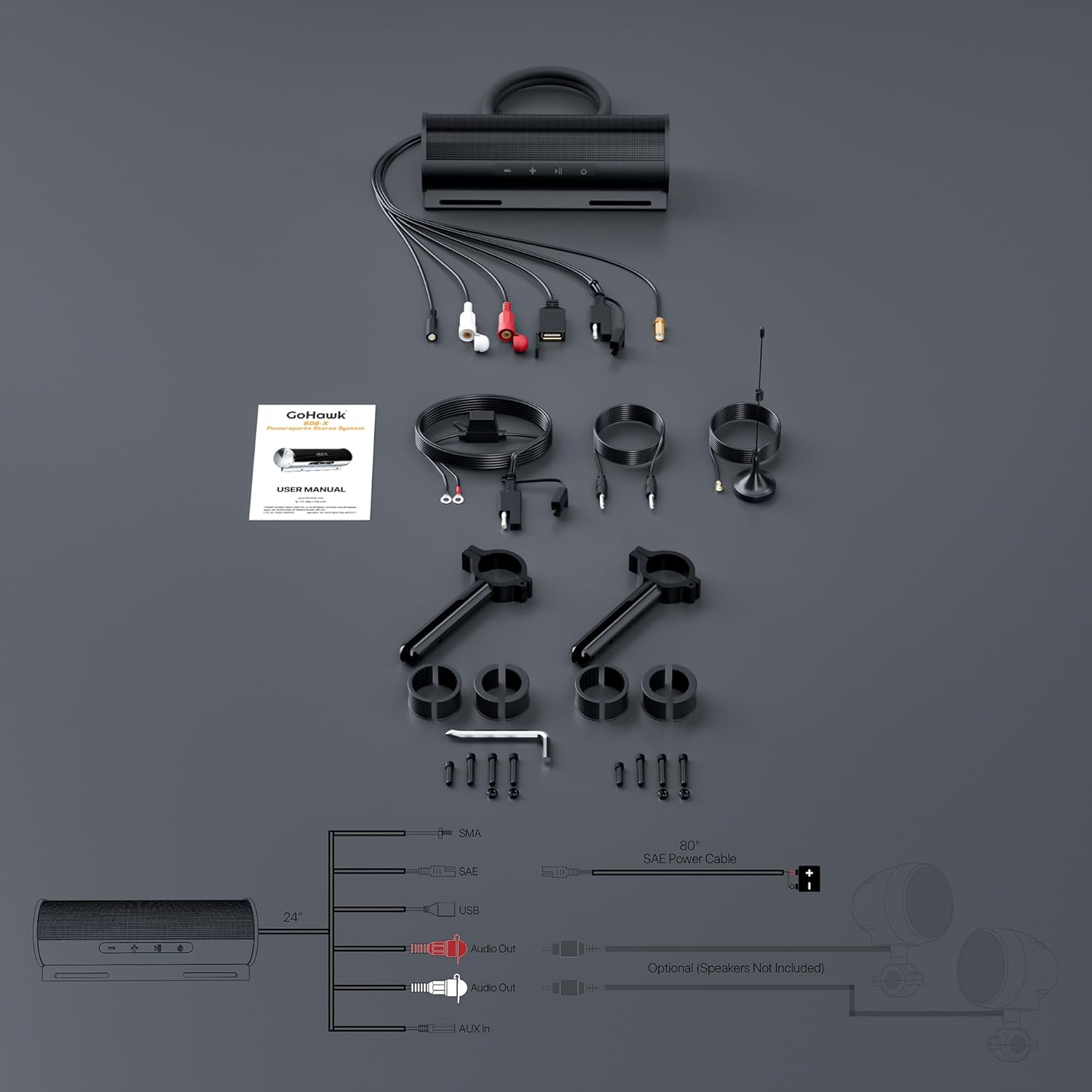

Image: All components included in the GoHawk RD8-X package, along with a wiring diagram.
Product Overview
The GoHawk RD8-X is a compact and powerful audio system designed for powersports vehicles. It features a full-body aluminum housing for durability and advanced IP56 water resistance. The system integrates two high-performance 2.5" full-range speakers and a 300W peak power amplifier. A hidden LED display shows FM radio frequency and mode functions.
Image: The GoHawk RD8-X soundbar mounted on a motorcycle handlebar, displaying a radio frequency.
Image: The GoHawk RD8-X unit with visual indicators for its key features: Bluetooth Wireless, FM Radio, USB Port, and AUX IN.
Image: A close-up view highlighting the durable aluminum housing of the GoHawk RD8-X speaker.
Setup
Mounting
The GoHawk RD8-X is designed for handlebar mounting. The mounting clamps support handlebar sizes from 7/8" to 1.25". The overall 5.5" long mounting hardware allows for horizontal and vertical adjustment to fit various handlebar shapes.
- Select a suitable position on your handlebar that does not obstruct your view or control of the vehicle.
- Attach the mounting clamps to the handlebar.
- Secure the speaker soundbar to the mounting stems using the provided hardware.
- Adjust the angle of the soundbar for optimal sound projection and visibility of the LED display.
Image: Diagram illustrating the adjustable mounting mechanism of the GoHawk RD8-X, showing how the speaker can be angled.

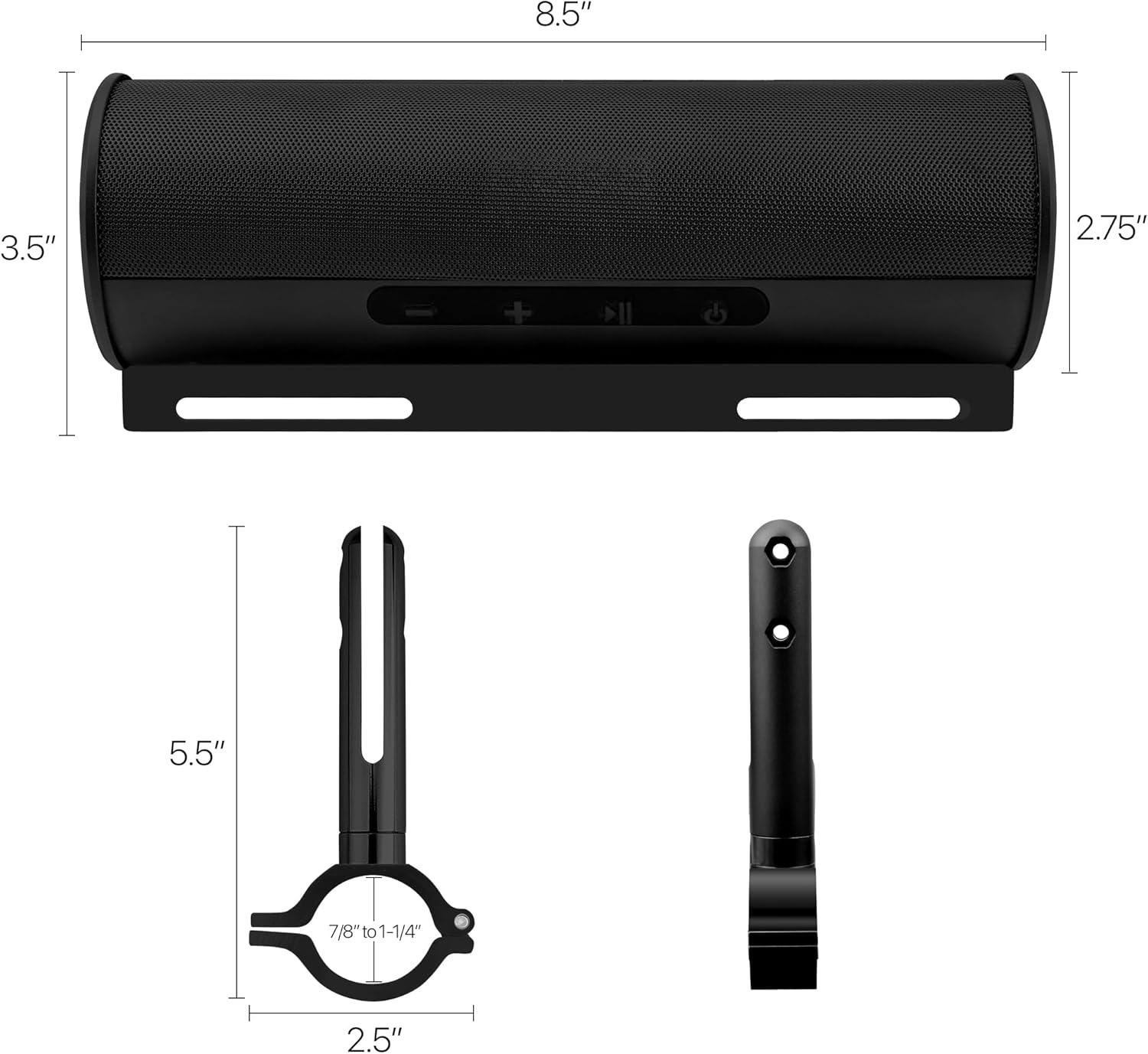

Image: Technical drawing showing the dimensions of the GoHawk RD8-X speaker (8.5" L x 2.75" Diameter) and its mounting hardware (5.5" L, clamps for 7/8" to 1 1/4" handlebars).
Wiring
The system comes with all necessary wiring for easy installation. It requires a standard 12V power connection.
- Connect the included 78" long SAE to Ring Terminal Power Cable to your vehicle's 12V power source.
- Connect the Red wire to the positive (+) terminal of your vehicle's battery.
- Connect the Black wire to the negative (-) terminal or a suitable ground point on your vehicle's chassis.
- Plug the SAE connector into the corresponding port on the speaker soundbar.
- Connect the external antenna to the SMA connector on the unit for improved FM radio reception.
Image: A close-up view of the braided cable connected to the GoHawk RD8-X, indicating durable wiring.
Operating Instructions
The GoHawk RD8-X features a backlit 4-button design for easy navigation of system functions.
Power On/Off
- Press and hold the Power button (⏻) to turn the unit on or off.
Mode Selection
- Short press the Power button (⏻) to cycle through available modes: Bluetooth, FM Radio, USB, and AUX.
Bluetooth Pairing
The system supports Bluetooth 5.0 for wireless music streaming.
- Ensure the unit is powered on and in Bluetooth mode (indicated on the LED display).
- On your smartphone or Bluetooth-enabled device, search for available Bluetooth devices.
- Select "GoHawk RD8-X" from the list to pair. A confirmation tone will sound upon successful connection.
- The Bluetooth transmission range is up to 15 meters.
FM Radio
The built-in FM radio allows you to listen to your favorite stations.
- Ensure the external antenna is connected for optimal reception.
- Switch to FM Radio mode. The LED display will show the current frequency.
- Use the Previous (⏮) and Next (⏭) buttons to tune to different stations.
USB Playback
The unit supports music playback from a USB drive.
- Insert a USB drive containing audio files into the USB port.
- Switch to USB mode. The unit will automatically begin playing music from the drive.
- Use the Previous (⏮) and Next (⏭) buttons to skip tracks.
- Note: The USB port does not support charging.
AUX Input
Connect external audio devices using the 3.5mm AUX-in jack.
- Connect your audio device (e.g., MP3 player) to the 3.5mm AUX-in port using the provided AUX cable.
- Switch to AUX mode. Audio from your connected device will now play through the speakers.
Volume Control
- Long-press the + button to increase volume.
- Long-press the - button to decrease volume.
Care and Maintenance
- Cleaning: Use a soft, damp cloth to clean the surface of the unit. Avoid using harsh chemicals or abrasive cleaners.
- Water Resistance: The RD8-X is IP56 water-resistant. While it can withstand splashes, avoid direct high-pressure water jets or prolonged submersion. Ensure all ports are properly sealed when not in use.
- Storage: If storing the unit for an extended period, disconnect it from the power source and store it in a cool, dry place.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power | Loose power connection; No 12V power from vehicle. | Check all power cable connections. Ensure vehicle's 12V power source is active. |
| No sound | Volume too low; Incorrect mode selected; Device not connected properly. | Increase volume. Verify correct mode (Bluetooth, FM, USB, AUX). Reconnect Bluetooth device or AUX cable. |
| Poor FM radio reception | Antenna not connected; Weak signal. | Ensure external antenna is securely connected. Try repositioning the antenna or moving to an area with better signal. |
| Bluetooth not pairing | Unit not in pairing mode; Device too far; Bluetooth already connected to another device. | Ensure unit is in Bluetooth mode. Move device closer to the unit. Disconnect from other Bluetooth devices. |
| USB playback not working | USB drive not formatted correctly; Incompatible file types; USB drive damaged. | Ensure USB drive is formatted to FAT32. Use supported audio file types. Try a different USB drive. |
Technical Specifications
| Feature | Specification |
|---|---|
| Model Name | RD8-X Black |
| Input Voltage | DC 12V |
| Rated Power | 2*12W @ 4Ω |
| Peak Power | 300W |
| Channel | 2.0 Stereo |
| Bluetooth Version | 5.0 |
| Bluetooth Transmission Range | >15m (49 ft) |
| USB Support | USB Drive (Music Playback) |
| USB Charging | No |
| Built-in FM Radio | Yes |
| Antenna Connector | SMA |
| 3.5mm AUX-in | Yes |
| Speaker Size | 2.5" Built-in Full-Range |
| Number of Speakers | 2 |
| Overall Speaker Dimensions | 8.5" L x 2.75" Diameter |
| Handlebar Clamp Size | 7/8" to 1 1/4" |
| Mounting Hardware Stem Length | 5.5" L |
| Material | Aluminum |
| Water Resistance Level | IP56 |
| Item Weight | 2 Pounds |
Warranty Information
The GoHawk RD8-X comes with a limited warranty. Please refer to the warranty card included in your package or contact GoHawk customer support for specific details regarding warranty coverage and terms.
Customer Support
For any questions, technical assistance, or warranty claims, please contact GoHawk USA customer support. Refer to the contact information provided in your product packaging or visit the official GoHawk website for support resources.
