CAPHAUS NSF Commercial Grade Heavy Duty Wire Shelving User Manual

1. Introduction

Thank you for choosing the CAPHAUS NSF Commercial Grade Heavy Duty Wire Shelving. This versatile and durable storage unit is designed to help you organize your space efficiently, whether in a garage, kitchen, office, or living room. This manual provides essential information for safe assembly, operation, and maintenance of your new shelving unit. Please read it thoroughly before beginning assembly or use.

2. Safety Information

WARNING: Do not exceed the weight limit of 450 lbs per shelf or 1800 lbs in total. Always secure the unit using the leveling feet to prevent tipping. Keep the area around the unit clear to prevent tripping on the wheels. Ensure all components are securely fastened before loading the shelves. Do not climb on the shelving unit.

3. Package Contents

Please verify that all parts are included in your package before beginning assembly. If any parts are missing or damaged, please contact customer service.

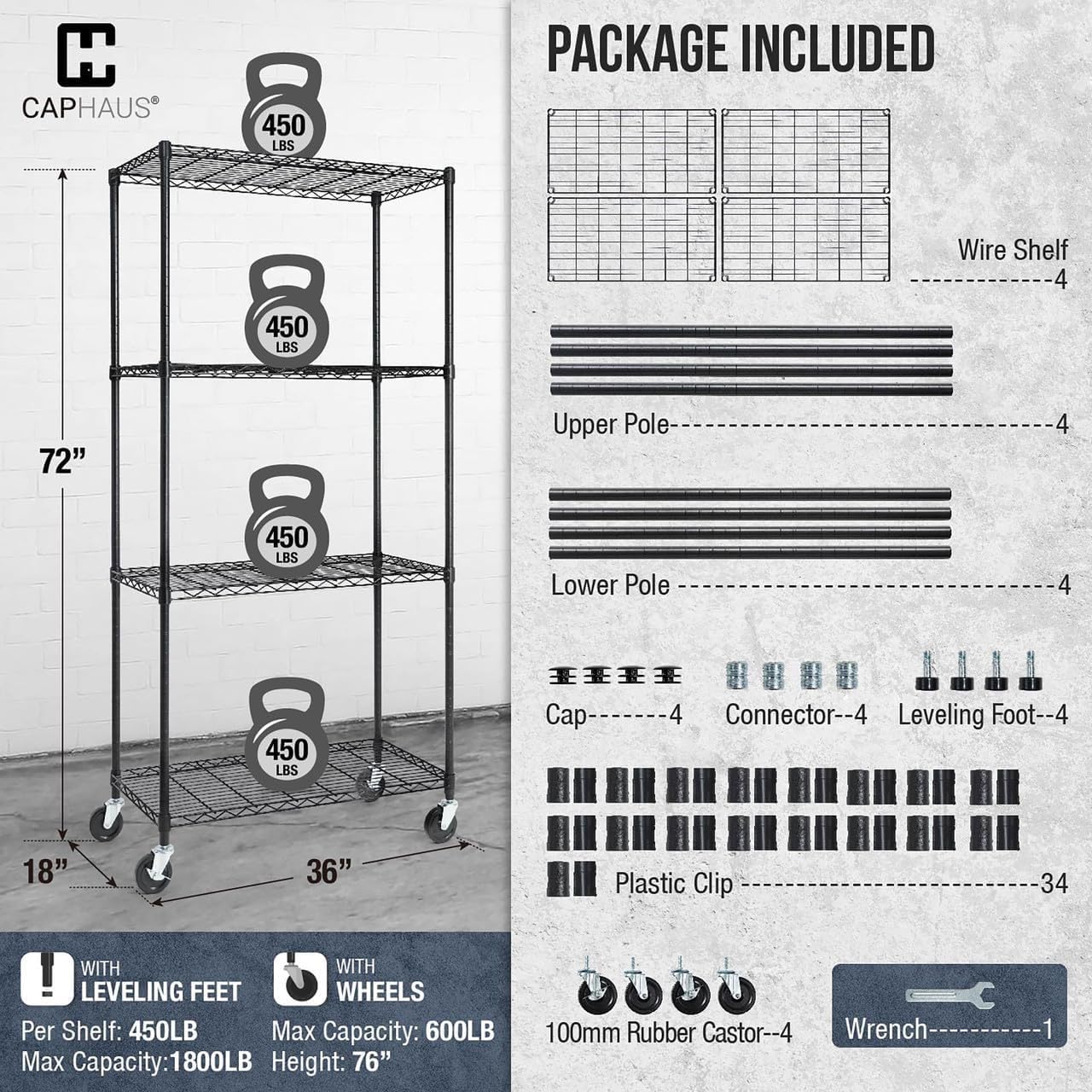

Figure 3.1: All components included in the package. This includes 4 wire shelves, 4 upper poles, 4 lower poles, 4 caps, 4 connectors, 4 leveling feet, 34 plastic clips, 4 rubber casters (100mm), and 1 wrench.

• Wire Shelf (4 pcs)
• Upper Pole (4 pcs)
• Lower Pole (4 pcs)
• Cap (4 pcs)
• Connector (4 pcs)
• Leveling Foot (4 pcs)
• Plastic Clip (34 pcs)
• 100mm Rubber Castor (4 pcs)
• Wrench (1 pc)

4. Setup and Assembly

Follow these steps to assemble your CAPHAUS wire shelving unit:

1. Attach Leveling Feet or Wheels: Decide whether you want to use the leveling feet for stationary stability or the rubber casters for mobility. Screw the chosen components into the bottom of the lower poles. If using wheels, ensure the locking mechanisms are engaged during assembly for stability.
2. Connect Poles: Screw the upper poles into the connectors on top of the lower poles to create the full height support columns.
3. Install Plastic Clips: Snap the plastic clips onto the grooves of the poles at your desired shelf height. Ensure both halves of each clip are securely fastened around the pole and that they are at the same height on all four poles for a level shelf.
4. Place Shelves: Slide a wire shelf down over the poles until it rests firmly on the plastic clips. Apply even pressure to all four corners to ensure it seats properly.
5. Repeat for Remaining Shelves: Continue installing plastic clips and shelves at your desired intervals. The shelves are adjustable in 1-inch increments, allowing for customized storage space.

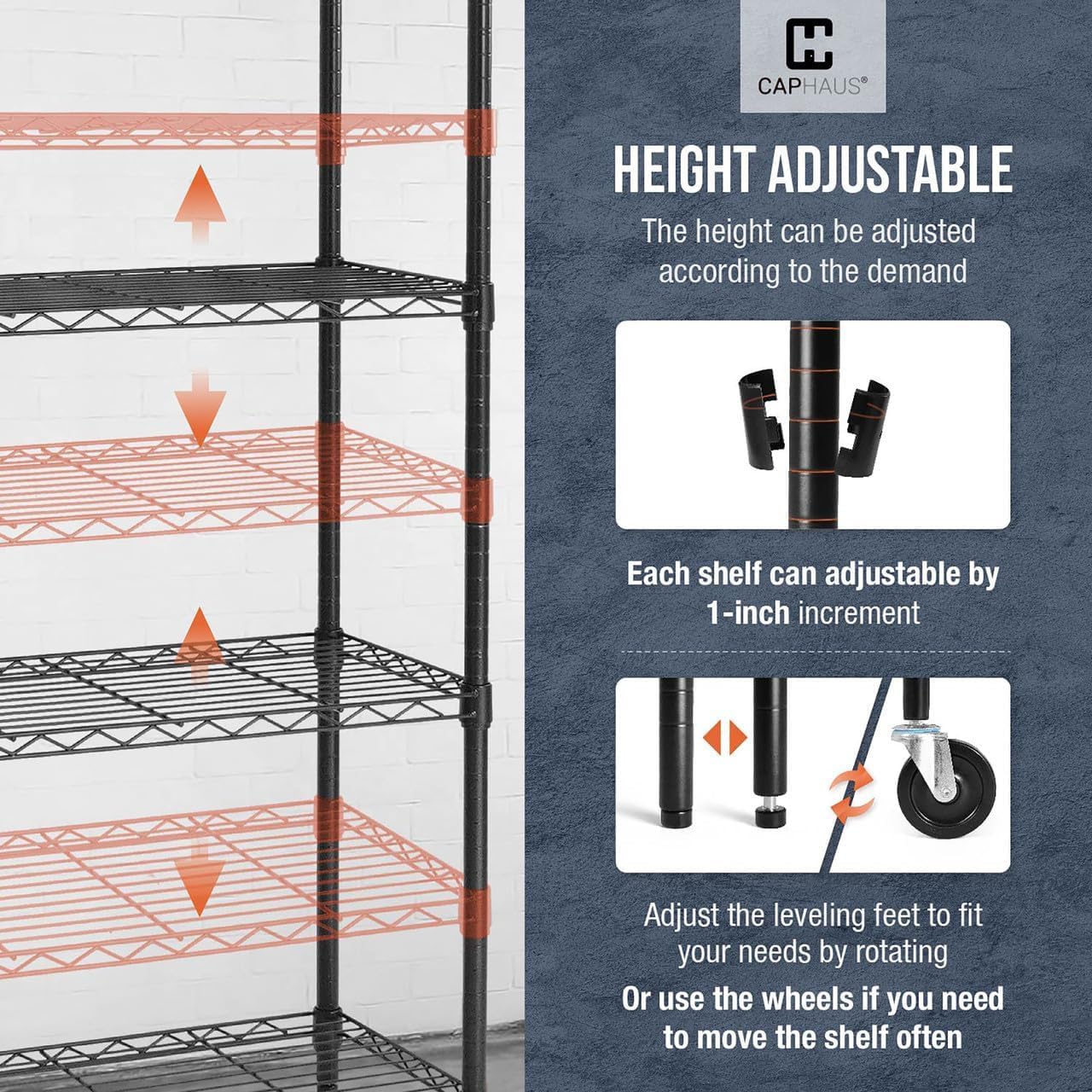

Figure 4.1: The shelving unit features adjustable shelves, allowing you to customize the height of each shelf in 1-inch increments to accommodate items of various sizes.

Figure 4.2: The shelving unit offers both durable wheels with locking mechanisms for easy mobility and leveling feet for stationary stability, along with a V-shaped mesh design for enhanced strength.

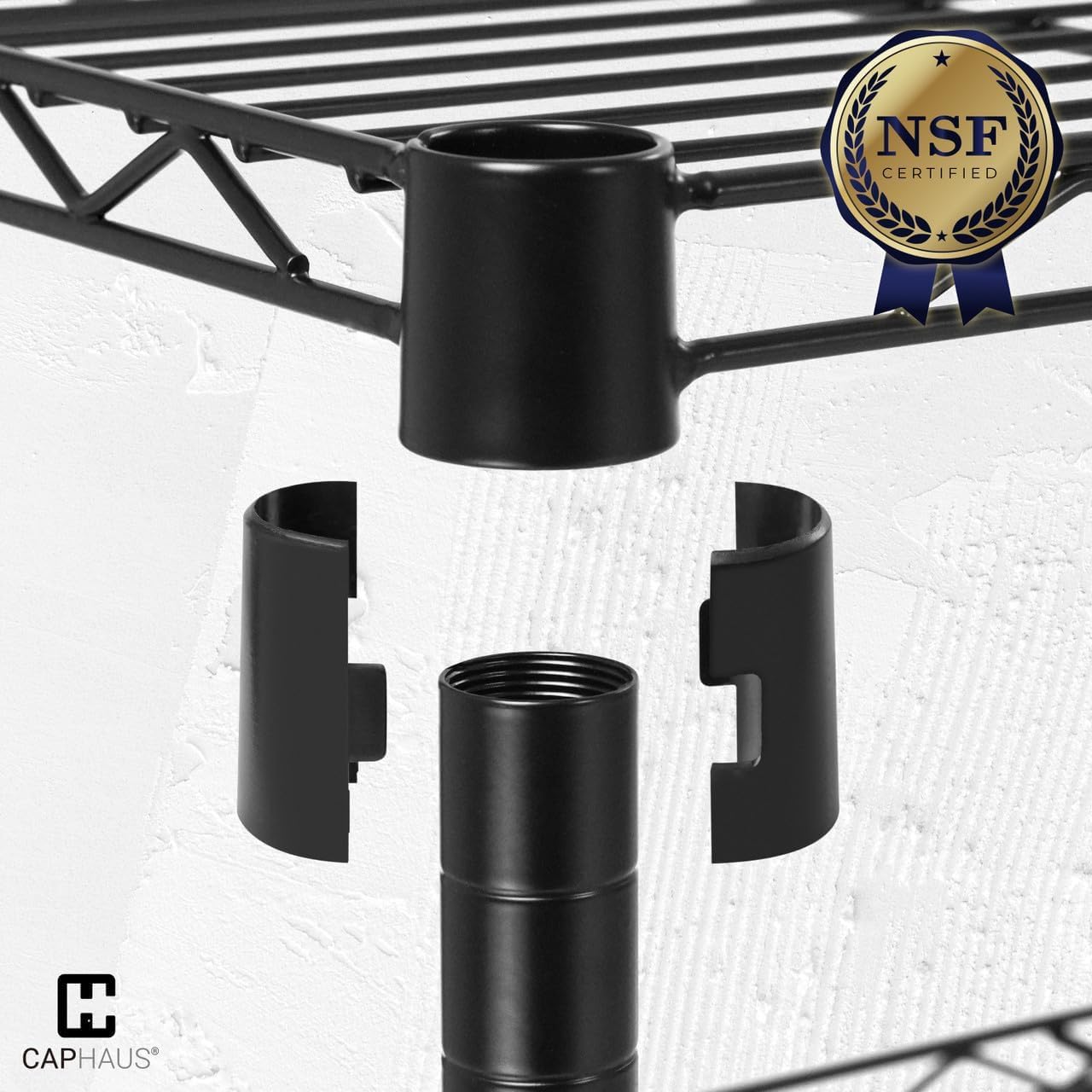

Figure 4.3: The shelving unit is NSF certified, indicating compliance with public health and safety standards. The image also shows the secure connection point for the poles and shelves using plastic clips.

5. Operating Instructions

Your CAPHAUS wire shelving unit is designed for versatile storage in various environments. To ensure optimal performance and longevity:

• Load Distribution: Distribute weight evenly across each shelf to maximize stability and prevent warping. Each shelf can hold up to 450 lbs when evenly distributed with leveling feet.
• Adjustability: Utilize the adjustable shelf heights to accommodate items of different sizes. This allows for efficient use of vertical space.
• Mobility (with wheels): If using the casters, unlock them when moving the unit. Always lock the wheels once the unit is in its desired position to prevent accidental movement.
• Placement: This shelving unit is suitable for various rooms including kitchens, garages, offices, and living rooms, providing organized storage for a wide range of items.

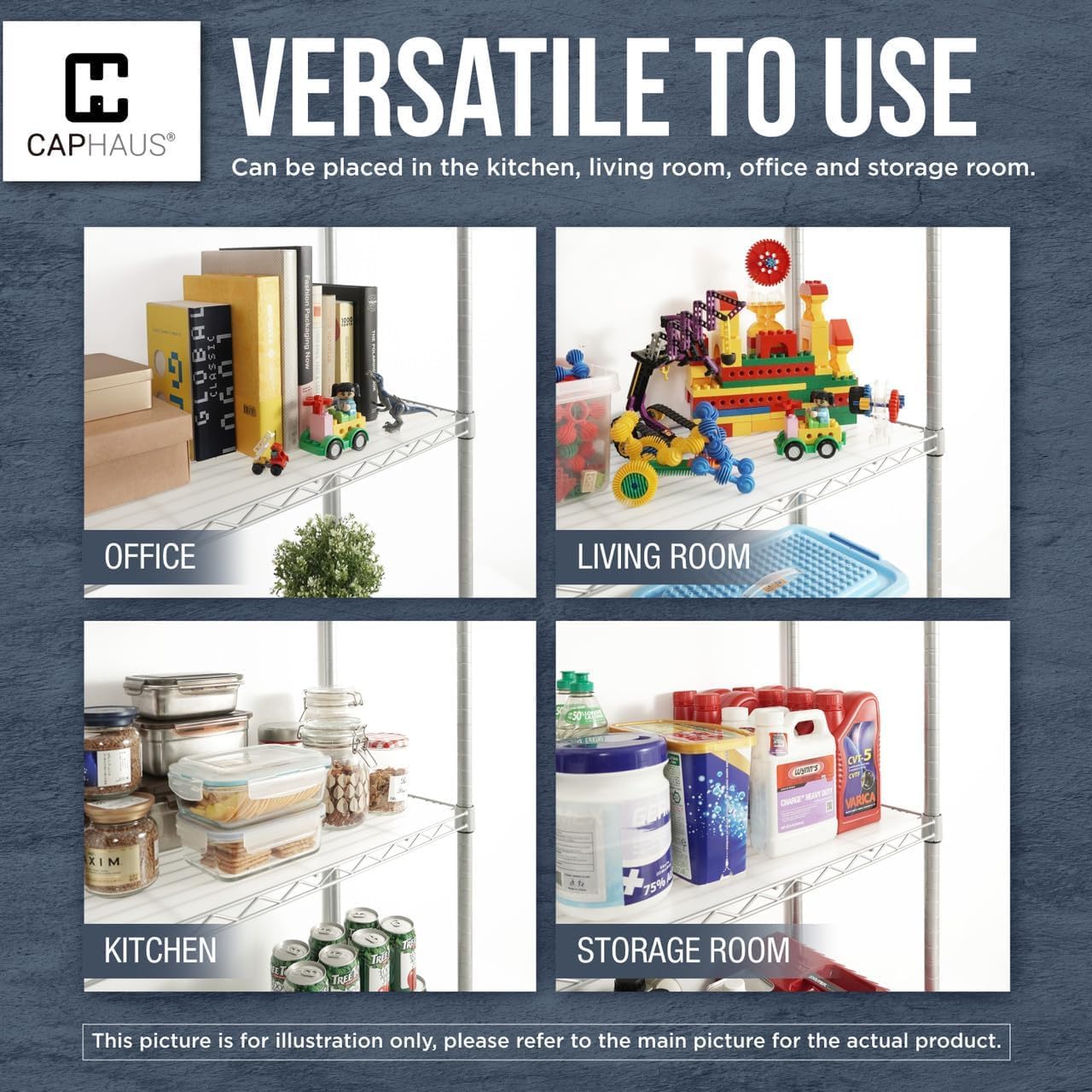

Figure 5.1: The shelving unit's versatile design makes it suitable for various applications, including organizing office supplies, displaying items in a living room, storing kitchen essentials, or tidying up a storage room.

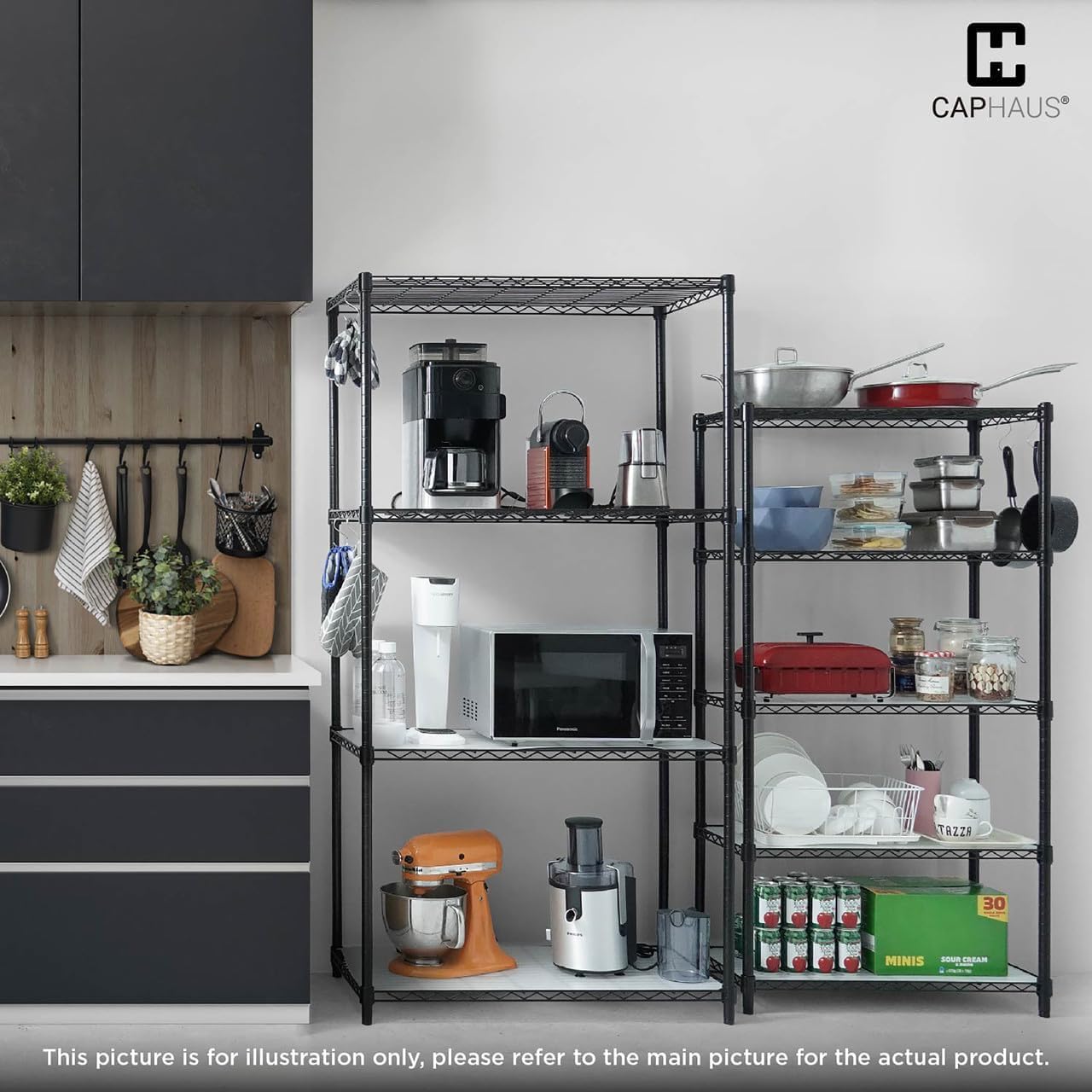

Figure 5.2: Example of the shelving unit in a kitchen, demonstrating its capacity to hold appliances, dishes, and pantry items.

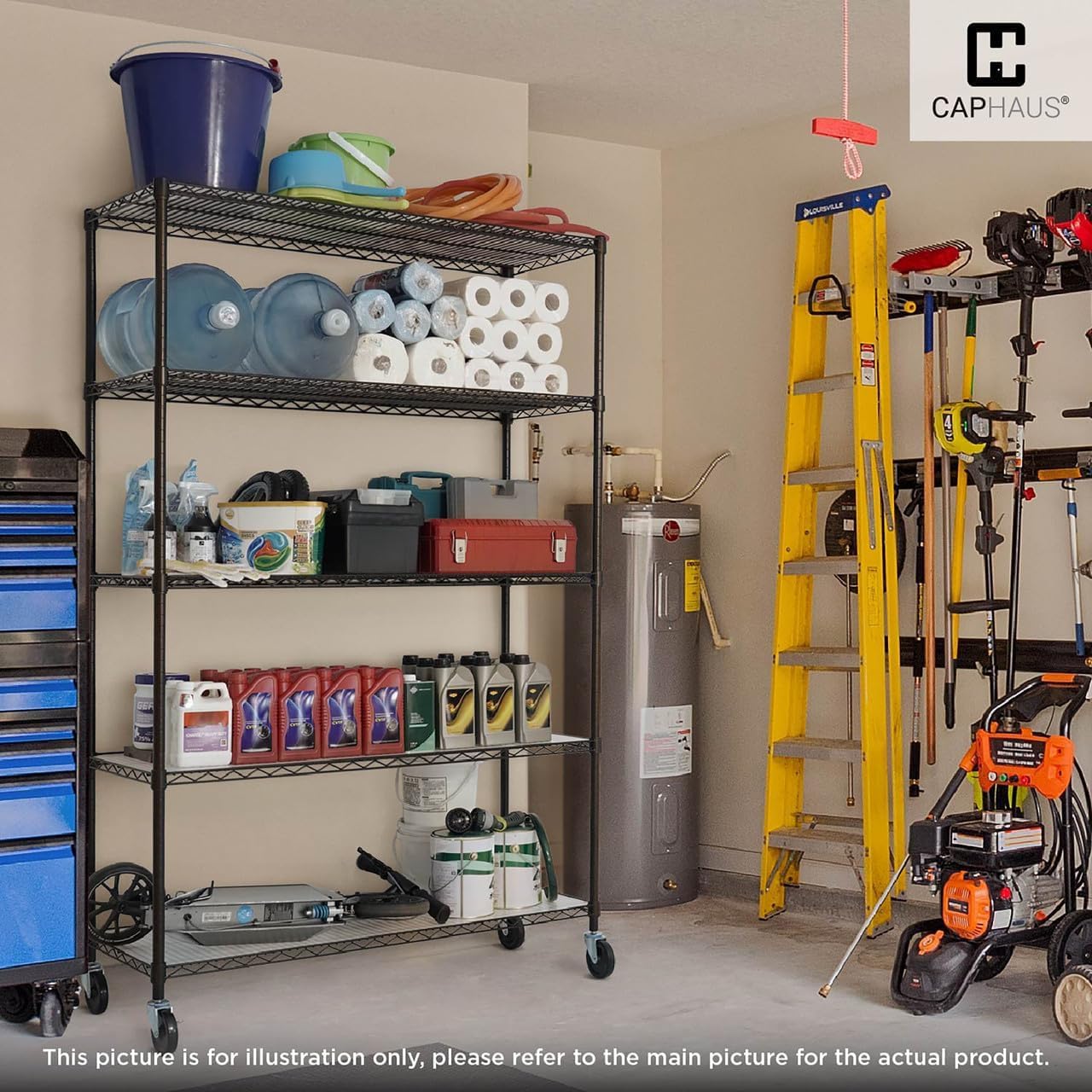

Figure 5.3: Example of the shelving unit in a garage, showcasing its utility for organizing tools, automotive supplies, and other garage items.

6. Maintenance

To keep your CAPHAUS wire shelving unit in optimal condition:

• Cleaning: Wipe the shelves and poles with a dry cloth to remove dust and debris. For stubborn dirt, use a damp cloth with mild soap and water, then dry immediately to prevent rust.
• Inspection: Periodically check all connections, especially the plastic clips and pole joints, to ensure they remain secure.
• Weight Limits: Always adhere to the stated weight limits per shelf and for the entire unit to prevent damage and ensure safety.

7. Troubleshooting

If you encounter any issues with your shelving unit, refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

At CAPHAUS, we are committed to providing high-quality products and excellent customer service. If you have any issues with your shelving unit, require assistance with assembly, or have questions regarding its use or maintenance, please do not hesitate to contact our dedicated customer service team. We are here to assist you and ensure your complete satisfaction.

For support, please visit the official CAPHAUS store or contact us through the platform where you purchased the product. Your feedback is valuable to us.
