VICASKY Gb405 Single Coil Pickup Mounting Ring Instruction Manual

Introduction

This manual provides detailed instructions for the installation, maintenance, and general use of the VICASKY Gb405 Single Coil Pickup Mounting Ring. This product is designed to provide a secure and aesthetic frame for single coil pickups on electric guitars. Please read these instructions carefully before proceeding with installation.

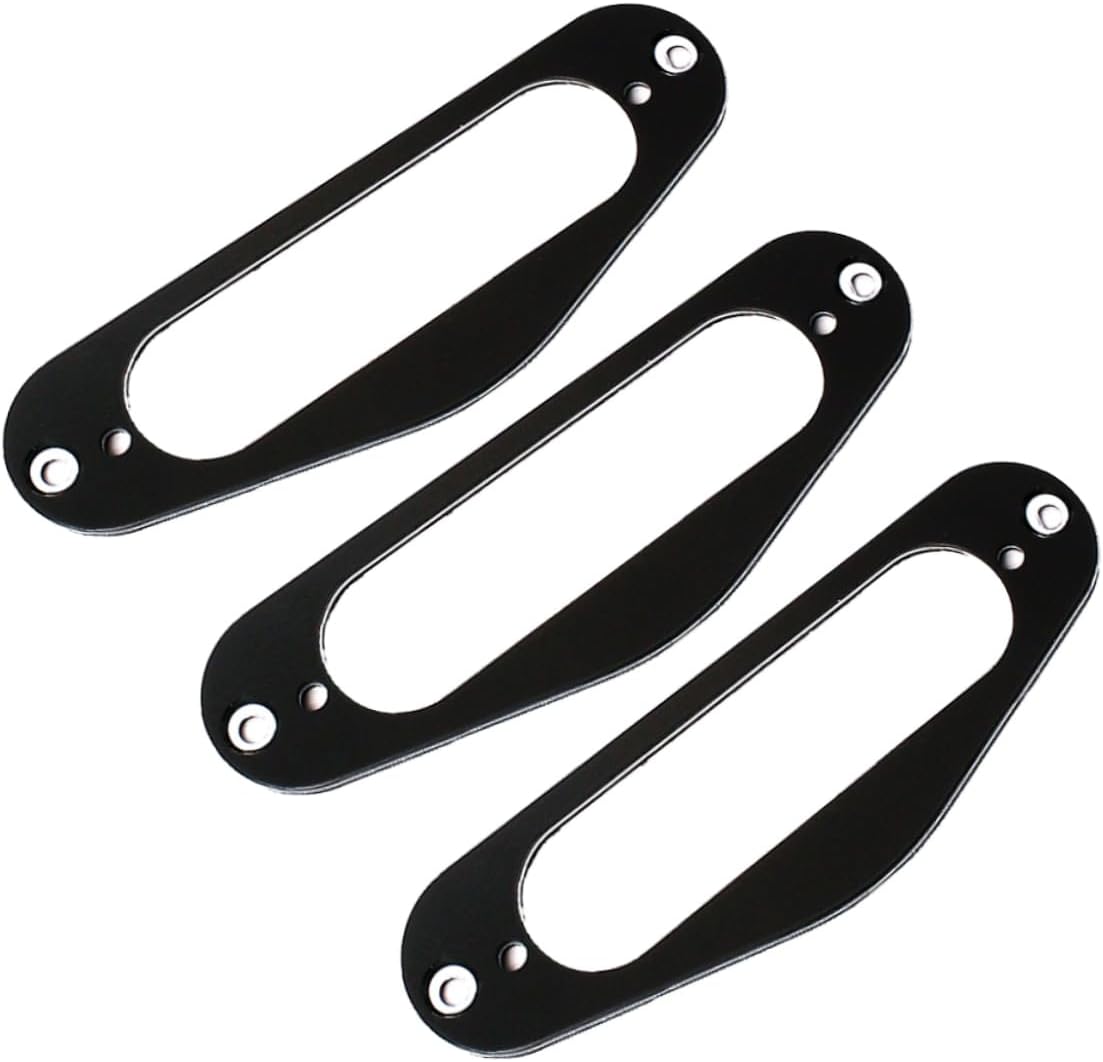

Image 1: Overview of three VICASKY Gb405 Single Coil Pickup Mounting Rings.

Setup and Installation

The VICASKY Gb405 Single Coil Pickup Mounting Ring is designed for straightforward installation. Ensure you have the necessary tools before beginning.

Required Tools:

• Small Phillips head screwdriver
• Appropriate mounting screws (typically included with pickups or guitar hardware)
• Measuring tape or ruler (for alignment)

Installation Steps:

1. Prepare the Guitar: Ensure the guitar is unplugged and placed on a stable, padded surface to prevent damage. If replacing an existing ring, carefully remove the old ring and any associated screws.
2. Position the Pickup: Place your single coil pickup into the cavity on your guitar body.
3. Align the Mounting Ring: Carefully place the VICASKY Gb405 mounting ring over the single coil pickup, ensuring the pickup fits correctly within the ring's opening. Align the screw holes on the ring with the corresponding holes on the guitar body.
4. Secure the Ring: Insert the mounting screws into the holes on the ring and gently tighten them. Do not overtighten, as this can strip the wood or crack the ring. Ensure the ring is flush with the guitar body and the pickup is securely held in place.

Image 2: Dimensional diagram of the VICASKY Gb405 mounting ring, showing key measurements for fitment.

Refer to Image 2 for precise dimensions to ensure compatibility with your guitar and pickup.

Function and Purpose

The VICASKY Gb405 Single Coil Pickup Mounting Ring serves two primary functions:

• Aesthetic Enhancement: It provides a clean, finished look around the single coil pickup, covering the edges of the pickup cavity and any minor imperfections.
• Pickup Stabilization: It helps to securely hold the single coil pickup in its intended position within the guitar body, contributing to stable performance.

Image 3: Close-up of a single VICASKY Gb405 mounting ring, highlighting its contours and screw holes.

Maintenance

Proper maintenance ensures the longevity and appearance of your pickup mounting ring.

• Cleaning: Use a soft, dry, or slightly damp cloth to wipe down the surface of the ring. Avoid abrasive cleaners or solvents, as these can damage the finish.
• Inspection: Periodically check the mounting screws to ensure they remain snug. If the ring appears loose, gently tighten the screws. Avoid overtightening.
• Protection: While durable, avoid exposing the ring to harsh impacts or extreme temperatures to prevent warping or damage.

Troubleshooting

Most issues related to pickup mounting rings are minor and easily resolved.

Common Issues and Solutions:

• Loose Ring: If the mounting ring feels loose, gently tighten the mounting screws. If the screw holes are stripped, consider using slightly larger screws or a wood filler to secure them.
• Pickup Not Fitting: Ensure you have the correct size and type of mounting ring for your single coil pickup. Refer to the dimensions provided in Image 2.
• Scratches or Dents: Minor cosmetic damage can sometimes be buffed out with appropriate guitar polishing compounds, but deep scratches may require replacement for aesthetic reasons.

Specifications

The following specifications apply to the VICASKY Gb405 Single Coil Pickup Mounting Ring (Model: 19W41VFM2K21X):

Warranty and Support

For warranty information or technical support regarding your VICASKY Gb405 Single Coil Pickup Mounting Ring, please refer to the retailer where the product was purchased or visit the official VICASKY website. Keep your proof of purchase for any warranty claims.
