Dibea Handheld Bed Vacuum Cleaner Instruction Manual

1. Introduction and Overview

Thank you for choosing the Dibea Handheld Bed Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. This powerful handheld vacuum is designed for deep cleaning various fabric surfaces, including mattresses, sofas, couches, carpets, and pet beds, effectively removing fur, hair, dust, and allergens.

Image 1: The Dibea Handheld Bed Vacuum Cleaner, showcasing its compact design and transparent dust cup.

2. Important Safety Instructions

To reduce the risk of fire, electric shock, or injury, please read all instructions carefully before using this appliance.

• Always unplug the vacuum cleaner from the electrical outlet before cleaning or performing any maintenance.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not use without dust cup and/or filters in place.
• The UV light feature includes a gravity sensor switch to prevent UV leakage. Do not attempt to bypass or disable this safety mechanism. The UV light will automatically turn off if the vacuum is lifted too far from the surface.
• Store the appliance indoors in a cool, dry area.

3. Product Components

The Dibea Handheld Bed Vacuum Cleaner consists of the following main components:

• Main Unit (with handle and motor)
• Transparent Dust Cup (0.4 liter capacity)
• HEPA Filter
• Cotton Filter
• Cyclone Filter
• Anti-tangle Brushroll
• Brushroll Case
• Power Cord (14.8 ft long)

Image 2: Detailed view of the washable components: 400 mL dust cup, cyclone filter, anti-tangle brushroll, brushroll case, cotton filter, and HEPA filter.

4. Setup

The Dibea Handheld Bed Vacuum Cleaner comes largely pre-assembled. Before first use, ensure all components are securely in place.

1. Unpack: Carefully remove all components from the packaging.
2. Check Filters: Ensure the HEPA filter, cotton filter, and cyclone filter are correctly installed within the transparent dust cup. The dust cup should be securely attached to the main unit.
3. Power Connection: Unwind the power cord and plug it into a standard electrical outlet.

5. Operating Instructions

The Dibea Handheld Bed Vacuum Cleaner is designed for ease of use and effective cleaning.

• Power On/Off: Locate the power button on the handle. Press it to turn the vacuum cleaner on. Press it again to turn it off.
• UV Light Operation: The high-efficiency UV (254nm) light activates automatically when the vacuum head is pressed against a surface. Blue indicator lights on either side of the vacuum head confirm the UV light is active. This feature helps eliminate over 99% of allergens.
• Safety Sensor: The UV light is equipped with a gravity sensor. If the vacuum is lifted too far from the surface during operation, the UV light will automatically turn off to prevent accidental exposure. The brushroll also stops as a safety mechanism.
• Cleaning Surfaces:
  • Place the vacuum head flat against the surface you wish to clean (e.g., mattress, sofa, carpet).
  • Move the vacuum slowly and steadily across the surface. The 1200 rpm roller brush and high-frequency pulsating pad will loosen dust, fur, hair, and dander, while the powerful 15KPa suction (driven by a 300W motor) collects them into the dust cup.
  • The corded design (14.8ft long) provides extended reach for thorough cleaning without needing to frequently change outlets.

Image 3: The vacuum's powerful suction (15KPa) and 1200 tr/min vibration for deep cleaning.

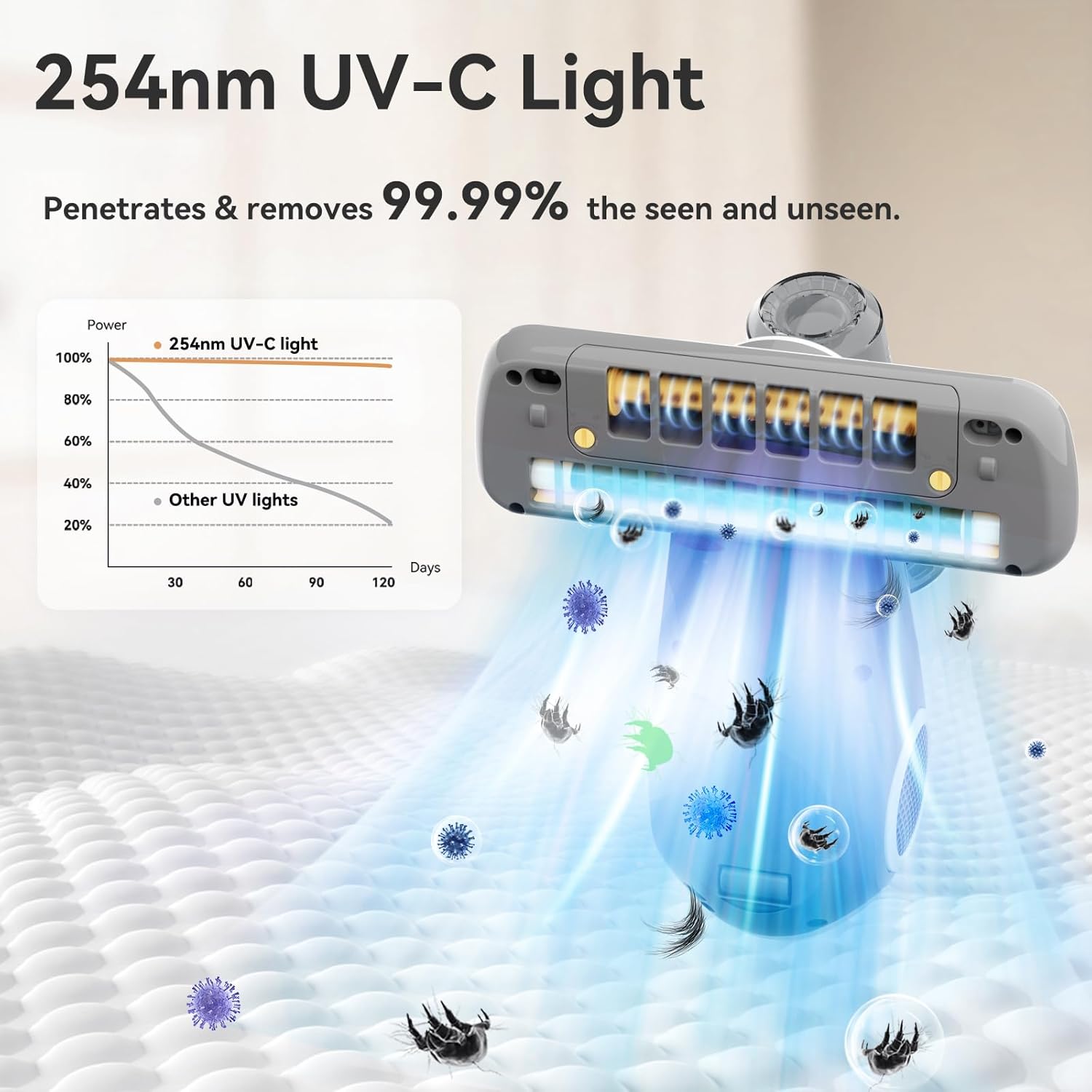

Image 4: Illustration of the 254nm UV-C light's effectiveness in penetrating and removing 99.99% of unseen allergens.

Image 5: The Dibea vacuum is ideal for pet owners, effectively cleaning pet fur and dander from beds and other fabric surfaces.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your Dibea Handheld Bed Vacuum Cleaner.

• Emptying and Cleaning the Dust Cup:
  1. Ensure the vacuum is unplugged.
  2. Detach the dust cup from the main unit.
  3. Empty collected debris into a trash bin.
  4. Remove the filters (HEPA, cotton, cyclone) from the dust cup.
  5. Wash the dust cup and all filters with cool tap water.
  6. Allow all components to air dry completely before reassembling. Ensure they are completely dry to prevent damage and maintain suction power.
• Filter Replacement: Filters are recommended to be changed every six months for optimal performance. Replacement filters are available for purchase from the Dibea store.
• Brushroll Cleaning: Periodically check the anti-tangle brushroll for tangled hair or debris. Remove any obstructions to ensure effective cleaning.

7. Troubleshooting

If you encounter issues with your Dibea Handheld Bed Vacuum Cleaner, refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

For warranty information, technical support, or to purchase replacement parts and filters, please visit the official Dibea store on Amazon or refer to the full user guide.
