Introduction
Thank you for choosing the Decaura Kitchen Faucet with Pull-Out Sprayer. This manual provides detailed instructions for the installation, operation, and maintenance of your new kitchen faucet. Please read this manual thoroughly before installation and keep it for future reference to ensure safe and efficient use of the product.
This elegant and modern kitchen faucet is designed to enhance your kitchen space with its classic design and practical features. It is suitable for most kitchen sinks and styles, offering convenience and efficiency for your daily tasks.
Safety Information
- Always turn off the main water supply before beginning any installation or maintenance.
- Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
- Ensure all connections are secure and leak-free before restoring water supply.
- Do not use abrasive cleaners or harsh chemicals on the faucet's finish, as this may damage the surface.
- If you are unsure about any part of the installation process, consult a qualified plumber.
Package Contents
Please verify that all components are present before beginning installation.

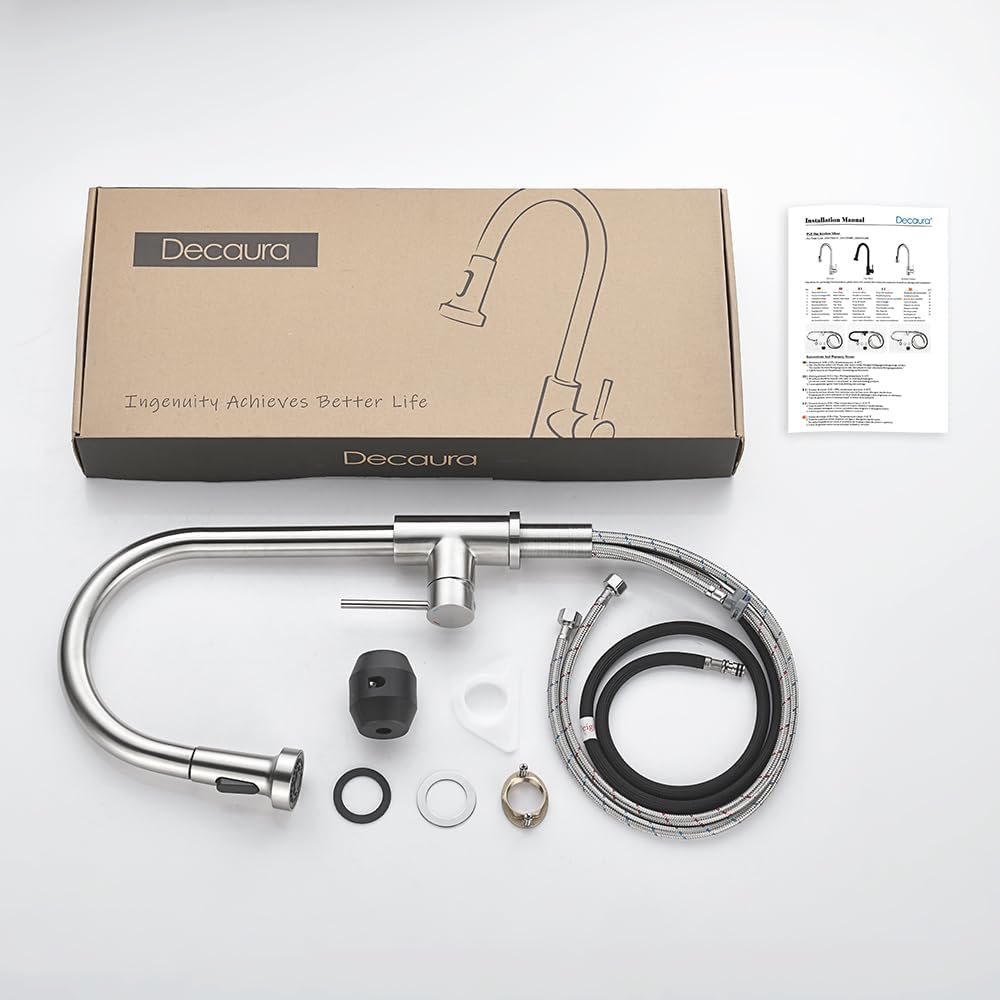

Image: All components included in the Decaura Kitchen Faucet package, laid out for inspection. This includes the main faucet body, hot and cold water supply lines, mounting hardware, and the instruction manual.
- Kitchen Faucet Body with Pull-Out Sprayer
- Hot and Cold Water Supply Hoses
- Mounting Hardware (nut, washer, gasket)
- Gravity Ball
- Installation Manual
Setup and Installation
Follow these steps for proper installation of your Decaura kitchen faucet.
1. Prepare the Sink
- Ensure the mounting hole on your sink or countertop is between 32mm and 54mm in diameter.
- Clean the area around the mounting hole.

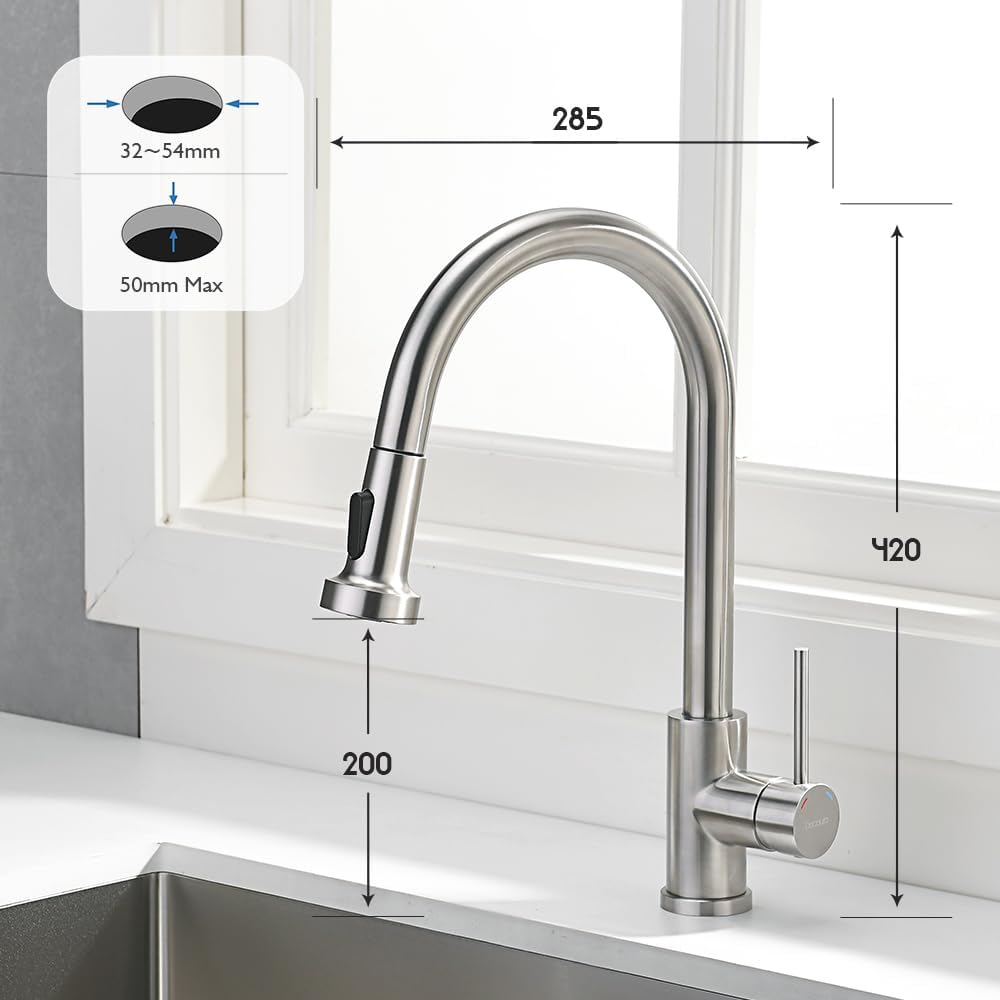

Image: A technical diagram illustrating the dimensions of the faucet, including spout height (200mm), spout reach (285mm), and overall height (420mm). It also shows the compatible sink hole diameter range (32-54mm) and maximum countertop thickness (50mm).
2. Install the Faucet Body
- Insert the faucet body into the mounting hole.
- From underneath the sink, secure the faucet using the rubber gasket, metal washer, and mounting nut. Tighten firmly but do not overtighten.
3. Connect Water Supply Lines
- Connect the hot and cold water supply hoses to your angle stops. Ensure the hot water line is connected to the 'H' marked inlet and the cold water line to the 'C' marked inlet on the faucet.
- Connect the pull-out sprayer hose to the designated outlet on the faucet body.
4. Install the Gravity Ball
The gravity ball ensures the pull-out sprayer retracts smoothly after use.
- Attach the gravity ball to the pull-out hose approximately 54cm (21.2 inches) from the sprayer head.
- Adjust the position of the gravity ball upwards or downwards to optimize the retraction experience.
Image: A diagram illustrating the correct placement of the gravity ball on the pull-out hose, approximately 54cm from the sprayer head, to ensure smooth and effortless retraction of the pull-out sprayer.
5. Test for Leaks
- Slowly turn on the main water supply.
- Check all connections for any signs of leaks. Tighten connections if necessary.
- Run water through the faucet for a few minutes to flush out any debris.
Operating Instructions
Your Decaura kitchen faucet is designed for ease of use and versatility.
Water Flow and Temperature Control
- The single lever handle controls both water flow and temperature.
- Lift the handle to increase water flow.
- Move the handle left for hot water and right for cold water.
Image: The Decaura kitchen faucet demonstrating its 360-degree swivel spout, allowing for greater flexibility and reach in the sink area.
Pull-Out Sprayer Function
The pull-out sprayer extends up to 60cm (23.6 inches) for extended reach and flexibility.
Image: The pull-out sprayer of the Decaura kitchen faucet extended from its housing, demonstrating its reach and flexibility for various kitchen tasks like filling large containers.
Switching Spray Modes
The sprayer head features a button to switch between two distinct spray modes:
- Classic Stream Mode: Ideal for filling pots and pans, offering water efficiency and minimal splashing. This is the default mode.
- Spray Mode: Provides a powerful spray for thorough cleaning, reducing wiping time.
To switch modes, press the button on the sprayer head. Note: The sprayer can only be switched to spray mode when water is flowing. When the tap is turned off, the mode will reset to classic stream mode.
Image: A close-up view of the Decaura faucet's pull-out sprayer head, highlighting the button used to easily switch between the classic stream and powerful spray modes. The image also shows examples of both water flow patterns.
Maintenance
Proper maintenance will ensure the longevity and optimal performance of your faucet.
- Cleaning: Clean the faucet regularly with a soft cloth and mild soap. Rinse thoroughly with water and dry with a soft cloth to prevent water spots.
- Avoid Harsh Cleaners: Do not use abrasive cleaners, ammonia, bleach, or other harsh chemicals, as these can damage the brushed nickel finish.
- Aerator Maintenance: If water flow decreases, the aerator may be clogged. Unscrew the aerator from the sprayer head, clean any debris, and reattach.
- Hose Inspection: Periodically inspect the pull-out hose for any signs of wear or damage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed shut-off valve; kinked supply line. | Clean aerator; fully open shut-off valves; straighten supply lines. |
| Leaking from Faucet Base | Loose mounting nut; damaged gasket. | Tighten mounting nut; inspect and replace gasket if damaged. |
| Leaking from Sprayer Head | Loose connection; damaged O-ring. | Tighten sprayer hose connection; inspect and replace O-ring if damaged. |
| Sprayer Does Not Retract Fully | Gravity ball improperly positioned; obstruction in hose path. | Adjust gravity ball position; clear any obstructions under the sink. |
| Difficulty Switching Spray Modes | Insufficient water pressure; debris in sprayer mechanism. | Ensure adequate water pressure; clean sprayer head. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Decaura |
| Model Number | DE557052 |
| Color | Brushed Nickel |
| Material | Stainless Steel (faucet body), Zinc (handle) |
| Product Dimensions (L x W x H) | 58 x 26 x 7.5 cm (22.8 x 10.2 x 3 inches) |
| Item Weight | 2.32 kilograms (5.11 lbs) |
| Installation Method | Single Hole / Deck Mounted |
| Number of Handles | 1 |
| Number of Holes Required | 1 |
| Spout Height | 200 mm (7.87 inches) |
| Spout Reach | 282.98 mm (11.14 inches) |
| Hose Length (Pull-Out) | 60 cm (23.6 inches) max extension |
| Flow Rate | 5.5 Liters per minute |
| Special Feature | Pull-Out Sprayer with 2 Spray Modes, 360° Swivel Spout |
| Cartridge Type | Ceramic Disc Cartridge |
Warranty and Support
Decaura stands behind the quality of its products. For warranty information, technical support, or replacement parts, please contact Decaura customer service through the retailer where you purchased the product or visit the official Decaura website.
Please have your model number (DE557052) and purchase date ready when contacting support.
