EasyAcc 3000ml Electric Dehumidifier User Manual

1. Introduction

Thank you for choosing the EasyAcc 3000ml Electric Dehumidifier. This device is designed to reduce humidity in your environment, helping to prevent mold, mildew, and unpleasant odors. It also features an air purification function for improved air quality. Please read this manual carefully before operating the dehumidifier to ensure safe and efficient use.

2. Important Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow these basic precautions:

• Read all instructions before using the appliance.
• Do not operate the dehumidifier with a damaged cord or plug.
• Ensure the power outlet voltage matches the rating label on the dehumidifier.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Keep the dehumidifier away from heat sources, direct sunlight, and flammable materials.
• Always place the unit on a stable, level surface.
• Do not block air inlets or outlets. Maintain at least 10 cm clearance around the unit.
• Unplug the dehumidifier before cleaning, maintenance, or when not in use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not use the dehumidifier in extremely cold environments (below -10°C) or extremely hot environments (above 45°C).

3. Product Overview

The EasyAcc 3000ml Electric Dehumidifier is a compact and efficient device designed to improve your indoor air quality by reducing excess moisture and filtering airborne particles.

Figure 3.1: EasyAcc 3000ml Electric Dehumidifier with water tank.

Key Features:

• Smart Touch Screen Display: Shows real-time temperature and humidity.
• Dual Semiconductor Technology: Enhanced dehumidification capacity for faster and stronger moisture removal.
• 2-in-1 Dehumidifier & Air Purifier: Integrated filter captures 99.97% of fine particles (up to 0.1 micron) and larger pollutants like dust and pet dander.
• Multiple Operating Modes: High-speed, Night, and Auto modes to suit various needs.
• 48-Hour Timer: Allows scheduled operation.
• Automatic Defrost Function: Ensures efficient operation even in lower temperatures (below 15°C).
• 3000ml Water Tank: Large capacity reduces frequency of emptying.
• Automatic Shut-off: Unit turns off when the water tank is full, indicated by a red light.
• Quiet Operation: Operates at less than 30dB in Night mode.
• Colorful Night Lights: Integrated ambient lighting feature.

Components:

• Main Dehumidifier Unit
• Removable Water Tank (3000ml capacity)
• Power Adapter
• Built-in HEPA Filter (pre-installed)

4. Setup

1. Unpacking: Carefully remove the dehumidifier from its packaging. Retain packaging for future storage or transport.
2. Filter Preparation: The dehumidifier comes with a built-in HEPA filter. Before first use, you must remove the plastic bag from the filter.

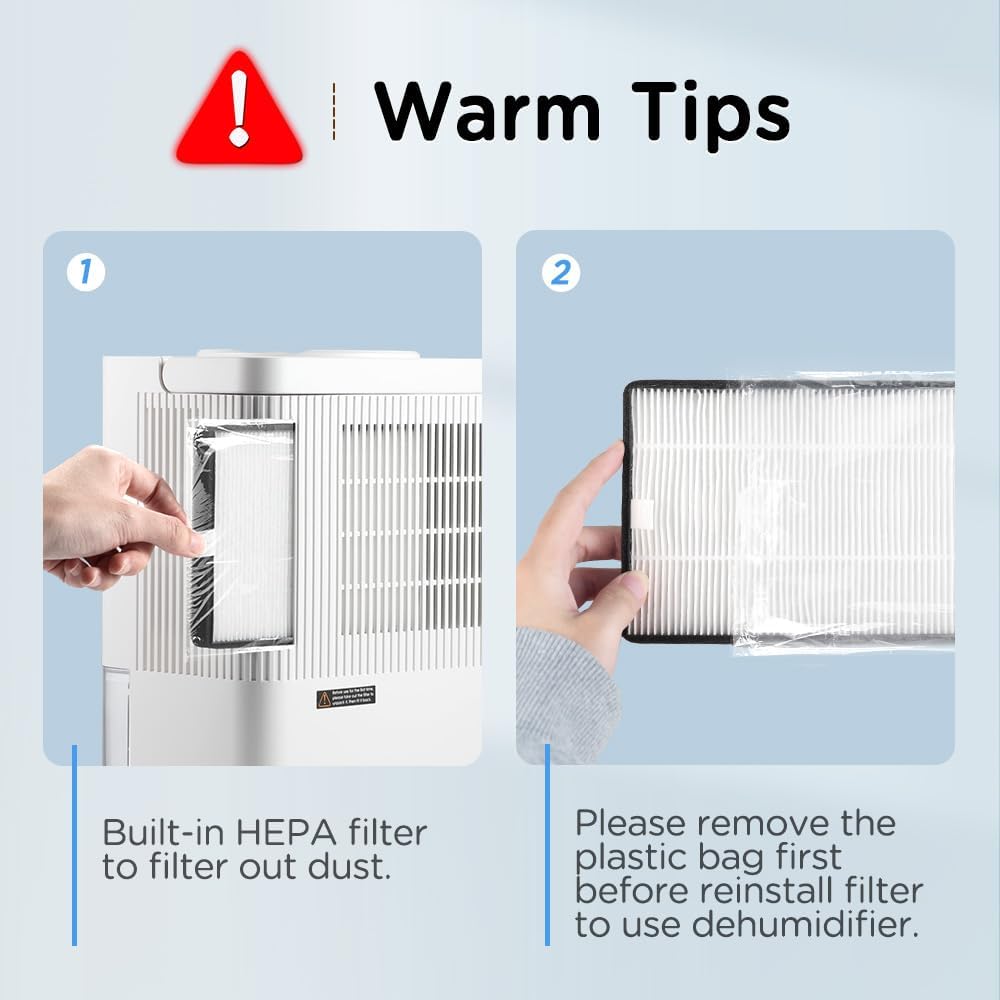

Figure 4.1: Remove the plastic bag from the HEPA filter before use.

3. Placement: Place the dehumidifier on a firm, level surface in the desired location. Ensure there is at least 10 cm of clear space around all sides of the unit for proper airflow. Avoid placing it near walls, furniture, or curtains that could obstruct the air intake or outlet.
4. Power Connection: Plug the power adapter into the dehumidifier's power port, then plug the adapter into a suitable electrical outlet.

5. Operating Instructions

The dehumidifier features an intuitive touch screen control panel.

Figure 5.1: Touch screen control panel and operating modes.

Control Panel Functions:

• Power Button (On/Off): Press to turn the unit on or off.
• Mode Selection: Cycle through available operating modes.
• Timer Button: Set the operating duration.
• LED Lights Button: Control the ambient night lights.
• Humidity Setting: Adjust target humidity level (available in certain modes).
• Display: Shows real-time temperature, humidity, and selected settings.

Operating Modes:

• Auto Mode (A): The dehumidifier automatically turns on or off based on the ambient humidity to maintain a comfortable level. Ideal for high humidity environments.
• Strong Mode: Provides powerful and efficient dehumidification for rapid moisture reduction.
• Night Mode (Sleep Mode): Operates at a low noise level (less than 30dB) for undisturbed rest. The display lights may dim or turn off in this mode.


Figure 5.2: Sleep Mode with night light and colorful light options.

Timer Function:

The smart timer function allows you to set the dehumidifier to operate for a specific duration (2 to 48 hours). The unit will automatically shut off once the set time has elapsed.

Automatic Defrost:

When the ambient temperature drops below 15°C, the dehumidifier's automatic defrost function activates to prevent ice buildup on the condensation sheets, ensuring continuous and efficient operation even in cooler conditions.

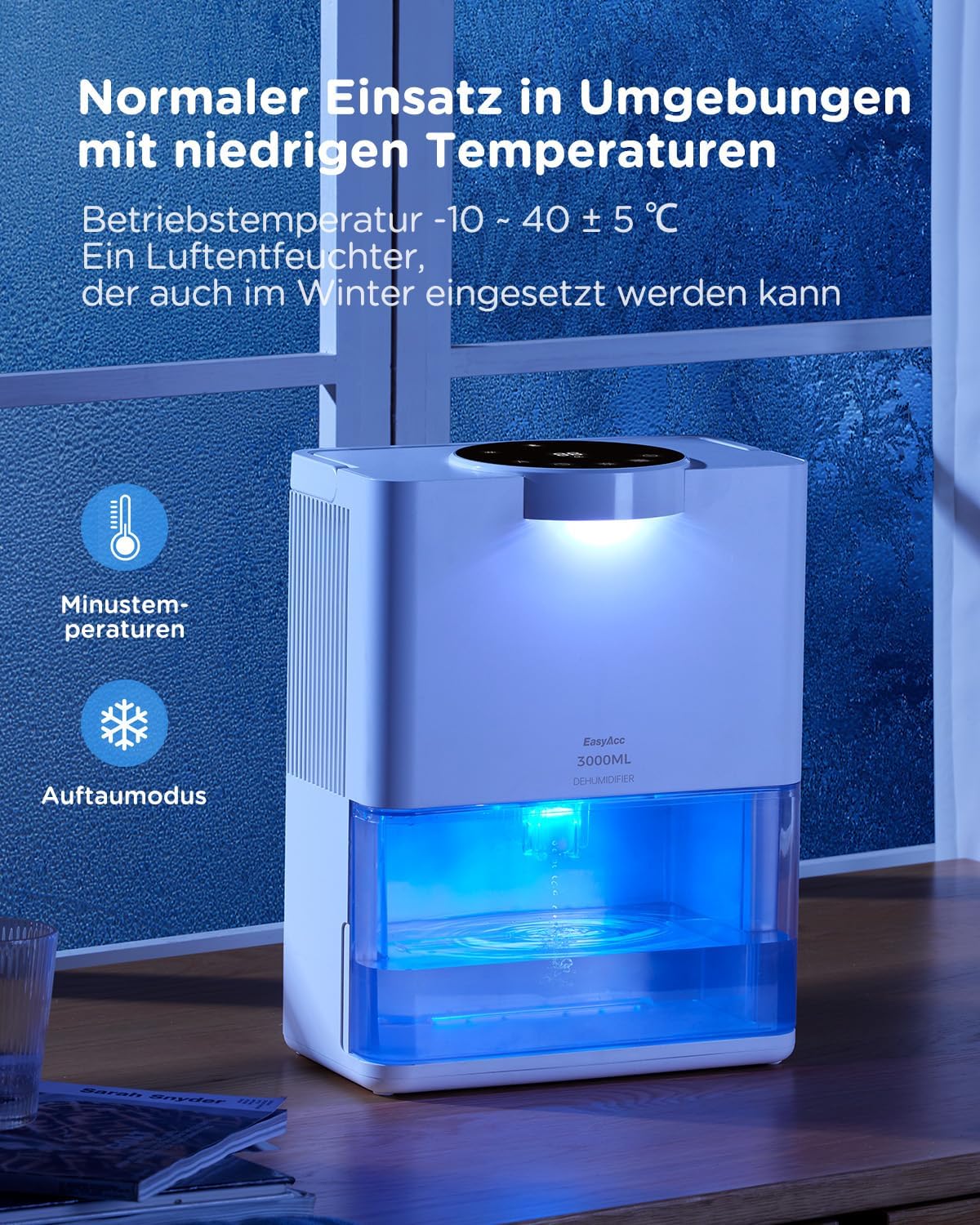

Figure 5.3: Dehumidifier operating in low temperatures with automatic defrost.

Water Tank Full Indicator & Auto Shut-off:

The dehumidifier is equipped with a 3000ml water tank. When the tank is full, the unit will automatically shut off, and a red light will illuminate to remind you to empty the water tank.

Figure 5.4: 3000ml water tank capacity and automatic shutdown feature.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your dehumidifier.

Emptying the Water Tank:

1. When the water tank is full, the dehumidifier will stop operating and a red indicator light will appear.
2. Carefully pull out the water tank from the front of the unit.
3. Pour out the collected water.
4. Rinse the tank with clean water if necessary. Do not use harsh detergents.
5. Slide the empty water tank back into the dehumidifier until it clicks into place. The unit will resume operation.

Cleaning the Air Filter:

The built-in HEPA filter helps purify the air. Regular cleaning is recommended to maintain air purification efficiency.

1. Turn off and unplug the dehumidifier.
2. Locate the filter cover (usually on the back or side of the unit).
3. Remove the filter.
4. Gently clean the filter with a soft brush or vacuum cleaner to remove dust and debris. Do not wash the HEPA filter with water.
5. Reinsert the clean filter and close the cover.

Figure 6.1: The dehumidifier filters dust for cleaner air.

General Cleaning:

Wipe the exterior of the dehumidifier with a soft, damp cloth. Do not use abrasive cleaners or solvents.

7. Troubleshooting

If you encounter issues with your dehumidifier, please refer to the following table:

8. Specifications

Figure 8.1: Efficient dehumidification and air purification for optimal room sizes.

9. Warranty and Support

EasyAcc is committed to providing quality products. If you have any questions or require assistance with your dehumidifier, please contact EasyAcc customer support. We are dedicated to resolving any issues you may encounter.

Please refer to your purchase documentation for specific warranty terms and contact information.
