1. Introduction
Thank you for choosing the Yaheetech Bathroom Cabinet. This versatile and functional storage solution is designed to enhance organization in various spaces, including bathrooms, living rooms, entryways, hallways, balconies, and kitchens. Featuring four spacious drawers, a cabinet with an adjustable shelf, and a durable construction, this unit provides ample storage while maintaining a clean aesthetic. Please read this manual carefully before assembly and use to ensure safe and proper operation.
2. Safety Instructions
- Always assemble the cabinet on a clean, flat, and soft surface to prevent scratches.
- Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
- Do not overload drawers or shelves. Refer to the specifications section for weight capacities.
- Install the provided anti-tip devices to securely anchor the cabinet to a wall. This is crucial for preventing accidental tipping, especially in households with children or pets.
- Keep small parts and packaging materials away from children to prevent choking hazards.
- Avoid exposing the cabinet to excessive moisture or direct sunlight, which can damage the material.
3. Package Contents
Please verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, please contact Yaheetech customer support.
- Cabinet panels (top, bottom, sides, back, door, drawer fronts)
- Adjustable shelf
- Drawers and drawer slides
- Hardware pack (screws, dowels, cam locks, hinges, knobs, magnetic catches)
- Anti-tip safety kit
- Assembly instructions (this manual)
4. Assembly Instructions
Tools required (not included): Phillips head screwdriver, hammer, measuring tape, pencil.
- Unpack and Identify Parts: Carefully unpack all components and lay them out on a soft, clean surface. Refer to the parts list in your separate assembly diagram (if provided) to identify each piece.
- Assemble Cabinet Frame: Follow the numerical steps in the provided assembly diagram to connect the side panels, bottom panel, and fixed internal panels using the designated screws and dowels. Ensure all connections are snug.
- Install Back Panel: Attach the back panel to the cabinet frame using the small nails or screws provided. Ensure the panel is flush and square. The image below shows the corner connectors for added stability.

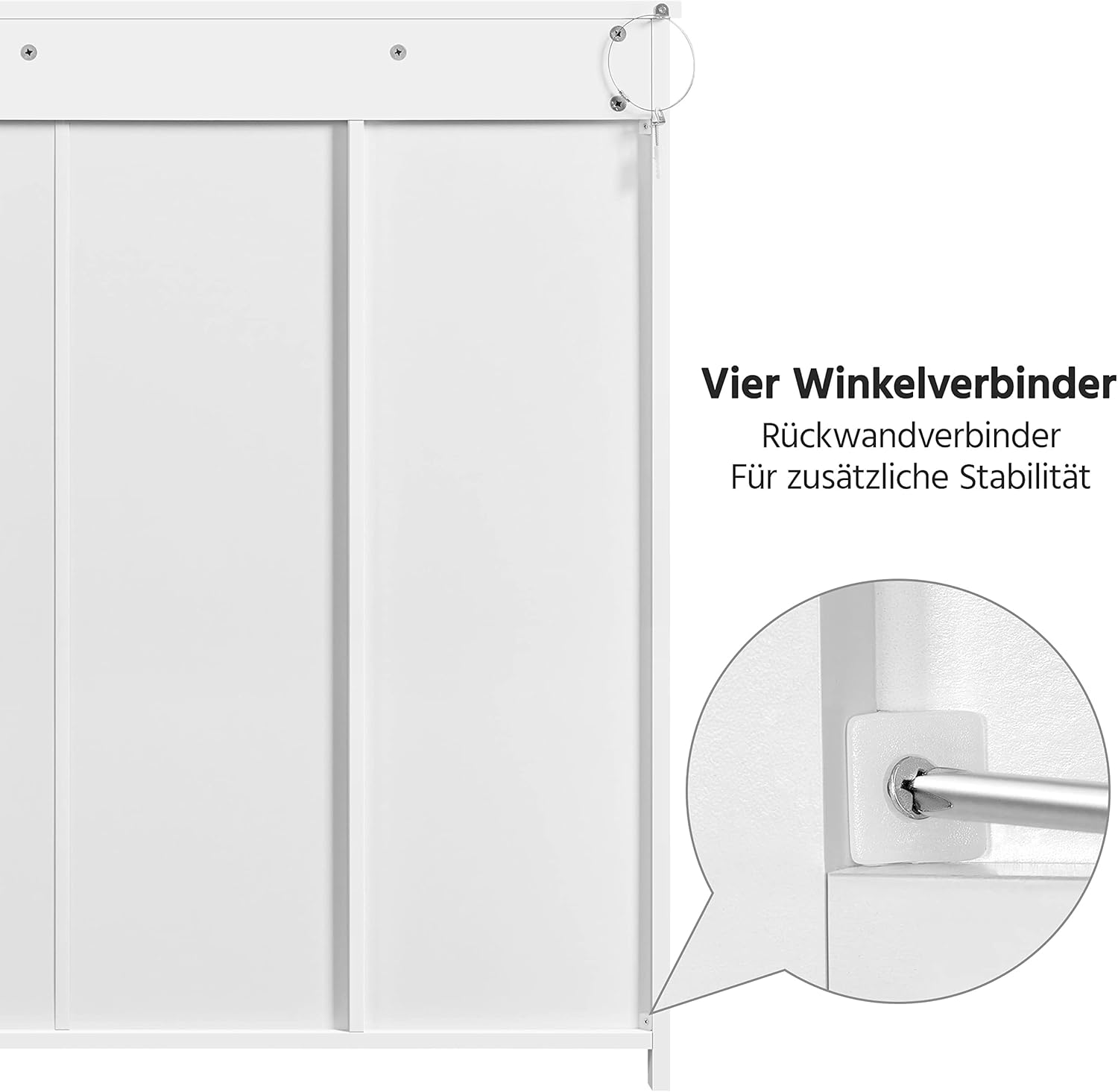

Image: Detail of back panel corner connectors for enhanced stability.
- Assemble Drawers: Construct the four drawers by attaching the side panels to the front and back panels. Install the drawer bottoms into the grooves. Attach the drawer slides to the sides of the drawers and the corresponding cabinet sections. The drawers feature a cut-out design for easy pulling.
Image: Close-up of drawer pull design and other hardware details.
- Install Cabinet Door: Attach the hinges to the cabinet door and then to the cabinet frame. Ensure the door opens and closes smoothly. Install the magnetic catch inside the cabinet to keep the door securely closed. Attach the metal knobs to the door and the top drawer.
- Insert Adjustable Shelf: Place the adjustable shelf into the cabinet section. The shelf can be set at three different heights (25.4 cm, 19 cm, 12.6 cm) to accommodate items of various sizes. The image below illustrates the adjustable shelf positions.
Image: Adjustable shelf with three height options.
- Install Anti-Tip Device: This is a critical safety step. Securely attach the anti-tip straps to the top rear of the cabinet and then to a wall stud using the provided hardware. This prevents the cabinet from tipping over. The image below shows the anti-tip device installation.
Image: Double anti-tip devices for enhanced stability and safety.
- Final Check: Ensure all parts are correctly assembled and all fasteners are tightened. The cabinet should be stable and level.
Below are images of the assembled cabinet in various settings, demonstrating its design and functionality.
Image: Front view of the Yaheetech Bathroom Cabinet.
Image: Cabinet in a bathroom with the door open, showcasing interior storage.
Image: Cabinet in a living room, demonstrating its versatile placement.
Image: Cabinet in an entryway, providing practical storage.
5. Operating Instructions
5.1 Using the Drawers
The cabinet features four smooth-gliding drawers. To open, gently pull the recessed handle. To close, push the drawer back until it is fully seated. Avoid forcing the drawers, and ensure they are not overloaded to maintain smooth operation.
5.2 Adjusting the Shelf
The upper shelf inside the cabinet door is adjustable to three different heights. To adjust, remove any items from the shelf. Carefully lift the shelf and reposition the shelf pins into the desired holes on the cabinet sides. Ensure the shelf is level and securely seated on all four pins before placing items on it.
6. Maintenance and Care
- Cleaning: Wipe the cabinet surfaces with a soft, damp cloth. For stubborn marks, a mild soap solution can be used, followed by wiping with a clean, dry cloth. Avoid abrasive cleaners, harsh chemicals, or excessive water, as these can damage the finish.
- Hardware Check: Periodically check all screws, bolts, and connections to ensure they remain tight. Re-tighten if necessary to maintain stability and prevent wobbling.
- Spills: Immediately wipe up any spills to prevent water damage or staining, especially on the MDF surfaces.
- Placement: Avoid placing the cabinet in direct sunlight or near heat sources, which can cause discoloration or warping over time.
7. Troubleshooting
7.1 Cabinet is Wobbly
- Solution: Check all assembly screws and ensure they are fully tightened. Make sure the cabinet is placed on a level surface. If necessary, use shims under the feet to stabilize. Confirm the anti-tip device is properly installed and secured to the wall.
7.2 Drawers Do Not Slide Smoothly
- Solution: Ensure the drawer slides are correctly aligned and installed. Check for any obstructions in the drawer tracks. Do not overload the drawers beyond their capacity.
7.3 Cabinet Door Does Not Close Properly
- Solution: Check the hinge alignment and adjust if necessary. Ensure the magnetic catch is properly installed and aligned with the metal plate on the door. Verify that the cabinet frame is square and not warped.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | YA-00121168 |
| Brand | Yaheetech |
| Overall Dimensions (L x W x H) | 81 x 30 x 81.5 cm (31.9 x 11.8 x 32.1 inches) |
| Weight | 23 kg (50.7 lbs) |
| Material | E1 Grade MDF Wood Panels, Metal |
| Color | White |
| Adjustable Shelf Heights | 25.4 cm, 19 cm, 12.6 cm (from bottom of shelf to cabinet base) |
| Number of Drawers | 4 |
| Number of Cabinet Doors | 1 |
Below is an image illustrating the key dimensions of the cabinet.
Image: Cabinet dimensions overview.
9. Warranty and Support
Yaheetech is committed to providing high-quality products and excellent customer service. For any questions regarding assembly, missing parts, product defects, or general inquiries, please contact Yaheetech customer support through the retailer's platform or the official Yaheetech website. Please have your model number (YA-00121168) and purchase information ready when contacting support.
We appreciate your business and hope you enjoy your new Yaheetech Bathroom Cabinet.
