1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Voohek YC1582-2 Queen Canopy Bed Frame. This modern bed frame features a built-in headboard and footboard, wooden slat support, and canopy rails. Please read these instructions carefully before beginning assembly and retain them for future reference.
2. Setup and Assembly
2.1 Safety Information
- Ensure all parts are present before assembly.
- Assemble on a soft, clean surface to prevent scratches.
- Two adults are recommended for assembly.
- Do not overtighten screws during initial assembly; tighten fully once all parts are aligned.
- Keep small parts away from children.
- Periodically check all connections to ensure they remain tight.
2.2 Package Contents
Verify that all components listed below are included in your package. If any parts are missing or damaged, please contact Voohek customer support.
- Headboard Panel
- Footboard Panel
- Side Rails (2)
- Canopy Posts (4)
- Canopy Rails (4)
- Center Support Legs (1-2, depending on design)
- Wooden Slats
- Hardware Pack (screws, bolts, Allen wrench)
2.3 Assembly Steps
- Unpack and Identify: Carefully unpack all components and hardware. Lay them out on a clean, soft surface. Refer to the parts list to identify each piece.
- Attach Side Rails to Headboard and Footboard: Connect the side rails to the headboard and footboard using the provided bolts and an Allen wrench. Ensure the connections are secure but do not fully tighten yet.
- Install Canopy Posts: Attach the four canopy posts to the corners of the bed frame. Secure them with the appropriate hardware.
- Connect Canopy Rails: Place the four canopy rails on top of the canopy posts, forming the upper frame. Secure them with the provided hardware.
- Install Center Support Legs (if applicable): Attach any center support legs to the main support beam or directly to the side rails as indicated in the specific diagram.
- Place Wooden Slats: Evenly space and secure the wooden slats across the bed frame. Many slats will have pre-drilled holes for screws or will simply rest in place. Ensure they are firmly seated.
- Final Tightening: Once all components are assembled and aligned, go back and fully tighten all bolts and screws.
Figure 1: Overall dimensions of the assembled bed frame.
Figure 2: View of the assembled bed frame, illustrating the headboard, footboard, side rails, and slat support system.

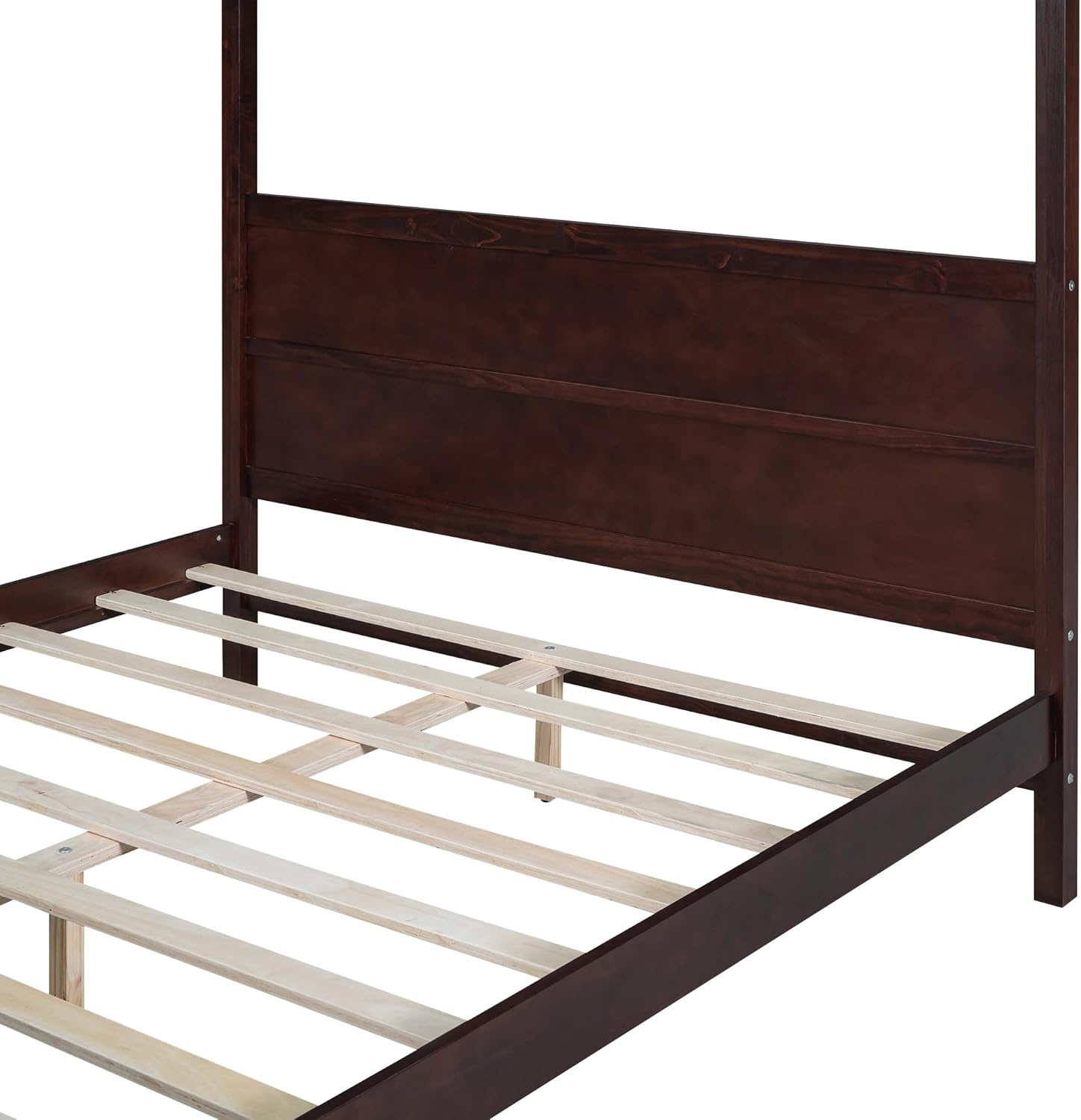

Figure 3: Detail of the wooden slat support system, showing how slats are positioned to support the mattress.
3. Operating Instructions
3.1 Mattress Placement
Once the bed frame is fully assembled and all connections are secure, carefully place your queen-sized mattress directly onto the wooden slats. No box spring is required for this bed frame. The recommended mattress thickness is 6 inches.
3.2 Weight Capacity
The Voohek YC1582-2 Queen Canopy Bed Frame has a maximum weight capacity of 500 LBS (pounds), including the mattress and occupants. Do not exceed this weight limit to ensure structural integrity and safety.
3.3 Customization
The canopy rails allow for customization with decorative curtains or fabric. Ensure any added decorations do not obstruct movement or create a fire hazard.
4. Maintenance
4.1 Cleaning
To clean the bed frame, wipe surfaces with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or polishes that may damage the finish. Dry immediately with a clean cloth.
4.2 Regular Inspection
Periodically (e.g., every 3-6 months), inspect all bolts, screws, and connections to ensure they are tight. Retighten any loose hardware to maintain stability and prevent squeaking.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or unstable. | Loose bolts or screws. Uneven assembly. | Ensure all bolts and screws are fully tightened. Disassemble and reassemble if necessary, ensuring all parts are correctly aligned. |
| Squeaking noises. | Loose connections. Slats rubbing against frame. | Tighten all hardware. Check slat placement; ensure they are seated correctly and not rubbing. Applying felt pads between slats and frame can help. |
| Parts do not fit together. | Incorrect orientation of parts. Missing hardware. | Refer to the assembly diagrams and ensure parts are oriented correctly. Verify all hardware is present and used in the correct locations. Contact customer support if parts are defective. |
6. Specifications
- Model: YC1582-2 Canopy Platform Bed
- Brand: Voohek
- Size: Queen (U.S. Standard)
- Overall Product Dimensions: 80.7"L x 61"W x 78.7"H
- Color: Espresso
- Material: Plywood, MDF, Pinewood
- Weight Capacity: 500 LBS
- Recommended Mattress Thickness: 6 inches
- Assembly Required: Yes
- Item Weight: 108.5 pounds
- UPC: 741541362348
7. Warranty and Support
For any questions, missing parts, or concerns regarding your Voohek YC1582-2 Queen Canopy Bed Frame, please contact Voohek customer support. Please have your model number and purchase information ready when contacting support.
