1. Introduction
This manual provides essential instructions for the safe and efficient operation of your KOTLIE AC-513K 4-in-1 Espresso Coffee Machine. This versatile appliance is designed to brew coffee using Nespresso capsules, Dolce Gusto capsules, ESE pods, and ground coffee, offering a wide range of brewing options.
Please read this manual thoroughly before first use and retain it for future reference. Proper use and maintenance will ensure optimal performance and longevity of your coffee machine.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:
- Read all instructions.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
3. Product Components
Your KOTLIE AC-513K coffee machine comes with several key components and adapters to support its 4-in-1 functionality. Familiarize yourself with these parts before operation.
Figure 1: Main unit of the KOTLIE AC-513K Espresso Coffee Machine shown with its interchangeable adapters for different coffee types. The machine is brown and silver, brewing into a glass cup.
Package Contents:
- KOTLIE AC-513K Coffee Machine Main Unit
- Water Reservoir (removable)
- Nespresso Capsule Adapter
- Dolce Gusto Capsule Adapter
- ESE Pod Adapter
- Ground Coffee Adapter (with filter basket)
- Piercing Needle (for cleaning)
- Drip Tray and Grid
- User Manual
Figure 2: Close-up view of the four different coffee adapters: Nespresso capsule adapter, K-cup (Dolce Gusto) capsule adapter, ground coffee adapter, and ESE coffee pod adapter.
4. Initial Setup
Before using your coffee machine for the first time, follow these steps:
- Unpack: Carefully remove all packaging materials and ensure all components are present and undamaged.
- Clean: Wash the water reservoir, drip tray, and all adapters with warm, soapy water. Rinse thoroughly and dry.
- Position: Place the machine on a stable, flat, heat-resistant surface, away from water sources and heat.
- Fill Water Reservoir: Remove the water reservoir from the back of the machine. Fill it with fresh, cold drinking water up to the MAX level indicated. Reattach the reservoir securely.
- First Rinse Cycle:
- Ensure the water reservoir is filled.
- Place an empty cup on the drip tray.
- Do not insert any coffee adapter or capsule.
- Plug the machine into a grounded power outlet.
- Press the power button to turn on the machine. It will preheat.
- Once preheated, press the large cup button to run a full cycle of hot water through the system. Repeat this process 2-3 times to clean the internal components.
Figure 3: Visual guide illustrating the initial steps of preparing coffee: adding water to the reservoir, inserting a capsule or ground coffee, locking the capsule box, and selecting the desired brew size.
5. Operation
Your KOTLIE AC-513K offers four brewing methods. Ensure the water reservoir is filled before each use.
General Brewing Steps:
- Power On: Plug in the machine and press the power button. Wait for the machine to preheat (indicator light will stabilize).
- Select Adapter: Choose the appropriate adapter for your desired coffee type (Nespresso, Dolce Gusto, ESE Pod, or Ground Coffee).
- Prepare Coffee:
- For Nespresso/Dolce Gusto Capsules: Insert the capsule into its respective adapter.
- For ESE Pods: Place the ESE pod into the ESE pod adapter.
- For Ground Coffee: Fill the ground coffee adapter with your preferred coffee grounds (do not overfill or tamp too hard).
- Insert Adapter: Place the filled adapter into the machine's brewing chamber and close the lever firmly until it clicks.
- Place Cup: Position your coffee cup on the drip tray.
- Select Brew Volume: Press the small cup button for a shorter, stronger brew (e.g., espresso) or the large cup button for a longer brew (e.g., lungo). The machine will automatically stop when the selected volume is dispensed.
- Enjoy: Your coffee is ready.
- Remove Adapter: After brewing, lift the lever, remove the adapter, and dispose of the used capsule/pod/grounds. Clean the adapter.
Figure 4: Illustration of the KOTLIE AC-513K's versatility, demonstrating its compatibility with ESE coffee pods, Nespresso-style capsules, and Dolce Gusto-style capsules, in addition to ground coffee.
Brewing Features:
- 19 Bar Pressure: The machine operates at 19 bars of pressure to ensure optimal extraction of flavor and aroma from your coffee.
- Optimal Temperature: Brews at an optimal temperature of 85°C for a balanced coffee experience.
- Dense Crema: Designed to produce a rich, dense crema on top of your espresso.
- 15-Minute Auto Power Off: For energy saving and safety, the machine automatically turns off after 15 minutes of inactivity.
- Fast Brew: Capable of brewing a cup of coffee in approximately 15 seconds after preheating.
Figure 5: Key features of the KOTLIE AC-513K, including 19 Bar pressure for extraction, 85°C optimal brewing temperature, dense crema production, and an automatic power-off function after 15 minutes.

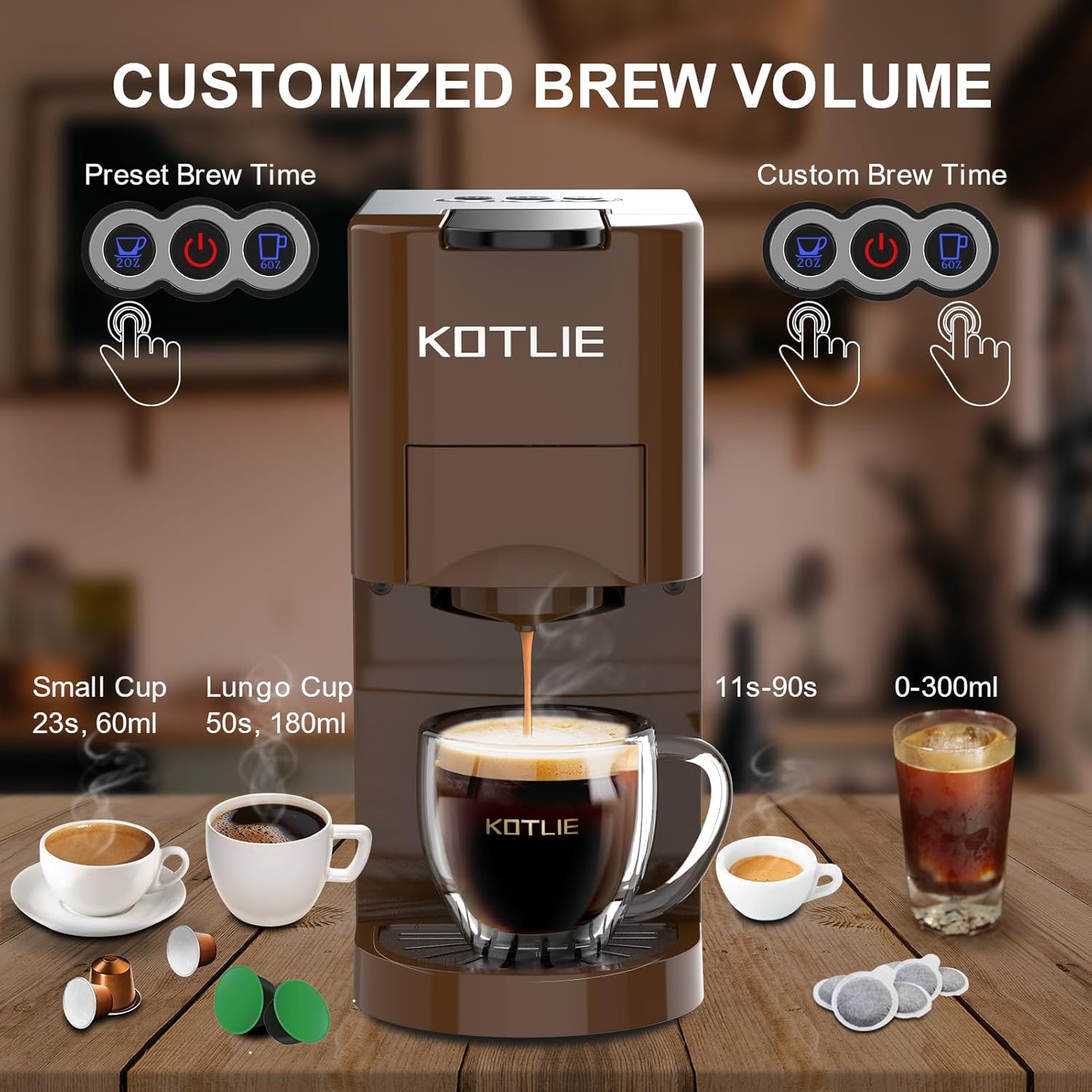

Figure 6: Display of the customized brew volume options, including preset times for small (60ml, 23s) and lungo (180ml, 50s) cups, and a custom brew time range of 11-90 seconds or 0-300ml.
6. Cleaning and Maintenance
Regular cleaning and maintenance are crucial for the performance and lifespan of your coffee machine.
Daily Cleaning:
- Drip Tray: Empty and rinse the drip tray and grid after each use or when the indicator floats up.
- Water Reservoir: Empty any remaining water and rinse the reservoir daily. Refill with fresh water before each use.
- Adapters: After each use, remove and clean the used adapter. For ground coffee, discard grounds and rinse the filter basket.
- Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or immerse the machine in water.
Descaling:
Descaling is recommended every 2-3 months, or more frequently in areas with hard water, to prevent mineral buildup. Use a descaling solution specifically designed for coffee machines.
- Empty the water reservoir.
- Fill the reservoir with descaling solution mixed with water according to the descaler manufacturer's instructions.
- Place a large container under the coffee spout.
- Run several brewing cycles without coffee until the reservoir is empty.
- Rinse the reservoir thoroughly and fill it with fresh water.
- Run several cycles with fresh water to rinse out any descaling solution residue.
7. Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on. | No power supply. | Check if the power cord is securely plugged into a working outlet. |
| No coffee is dispensed. | Water reservoir empty; machine not preheated; clogged needle. | Fill water reservoir; wait for preheating; use piercing needle to clear blockage. |
| Coffee is too weak or watery. | Insufficient coffee grounds; incorrect grind size; too much water. | Use more coffee grounds; use finer grind; select smaller brew volume. |
| Water leaks from the machine. | Water reservoir not properly seated; adapter not correctly inserted; overfilled ground coffee adapter. | Ensure reservoir is secure; ensure adapter is locked; do not overfill ground coffee adapter. |
| Machine makes unusual noise. | Air in the system; descaling needed. | Run a few cycles of plain water; perform descaling. |
8. Technical Specifications
| Feature | Detail |
|---|---|
| Brand | KOTLIE |
| Model Number | AC-513K |
| Power | 1450 Watts |
| Voltage | 230 Volts |
| Pressure | 19 Bar |
| Product Dimensions (L x W x H) | 19 x 25 x 34 cm (7.5 x 9.8 x 13.4 inches) |
| Item Weight | 4 Kilograms (8.8 pounds) |
| Material | Metal, Plastic |
| Automatic Shut-off | Yes (after 15 minutes) |
| Special Features | Automatic shut-off, One-cup brewing, Removable reservoir |
Figure 7: Dimensions of the KOTLIE AC-513K coffee machine, highlighting its compact design suitable for various kitchen spaces.
9. Warranty and Support
KOTLIE products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or visit the official KOTLIE website.
For technical support, troubleshooting assistance, or to inquire about spare parts, please contact KOTLIE customer service. Contact details can typically be found on the product packaging or the official brand website.
Please have your model number (AC-513K) and purchase date available when contacting support.
