ThreeH Digital Wall Clock H-HD19 Instruction Manual

Product Overview

The ThreeH Digital Wall Clock H-HD19 is a versatile device designed to display time, day of the week, date, temperature, and humidity. It functions as both a wall-mounted and desk clock, featuring a large, clear display for easy readability. This battery-operated alarm clock is suitable for various indoor environments.

Key Features

Large, Clear Display: TN high-resolution screen clearly shows time, day, date, temperature, and humidity. Functions as a digital temperature and humidity monitor.
Silent Operation: Unlike mechanical alarm clocks, this clock operates silently, ensuring a peaceful sleeping environment.
Versatile Placement: Can be hung on a wall or used as a desktop alarm clock with its integrated stand.
User-Friendly Controls: Easily switch between 12/24 hour modes and utilize the snooze function by pressing the button on the back.

Setup Guide

Battery Installation

The clock requires three AAA batteries (not included). Locate the battery compartment on the back of the device. Insert the batteries, ensuring correct polarity (+/-). Close the compartment cover securely.

Back view of the ThreeH Digital Wall Clock showing control buttons, battery compartment, and integrated kickstand. — Back view of the ThreeH Digital Wall Clock, highlighting the battery compartment and control buttons. The image also shows insets of the kickstand and wall-mount holes.

Initial Power On

Once batteries are installed, the display will activate. The clock will typically start with a default time and date, which will need to be adjusted.

Operating Instructions

Setting Time and Date

Press and hold the "SET" button on the back of the clock to enter time setting mode. Use the "UP" and "DOWN" buttons to adjust the hour, minute, year, month, and day. Press "SET" again to confirm each selection and move to the next setting. The clock supports 12-hour and 24-hour formats.

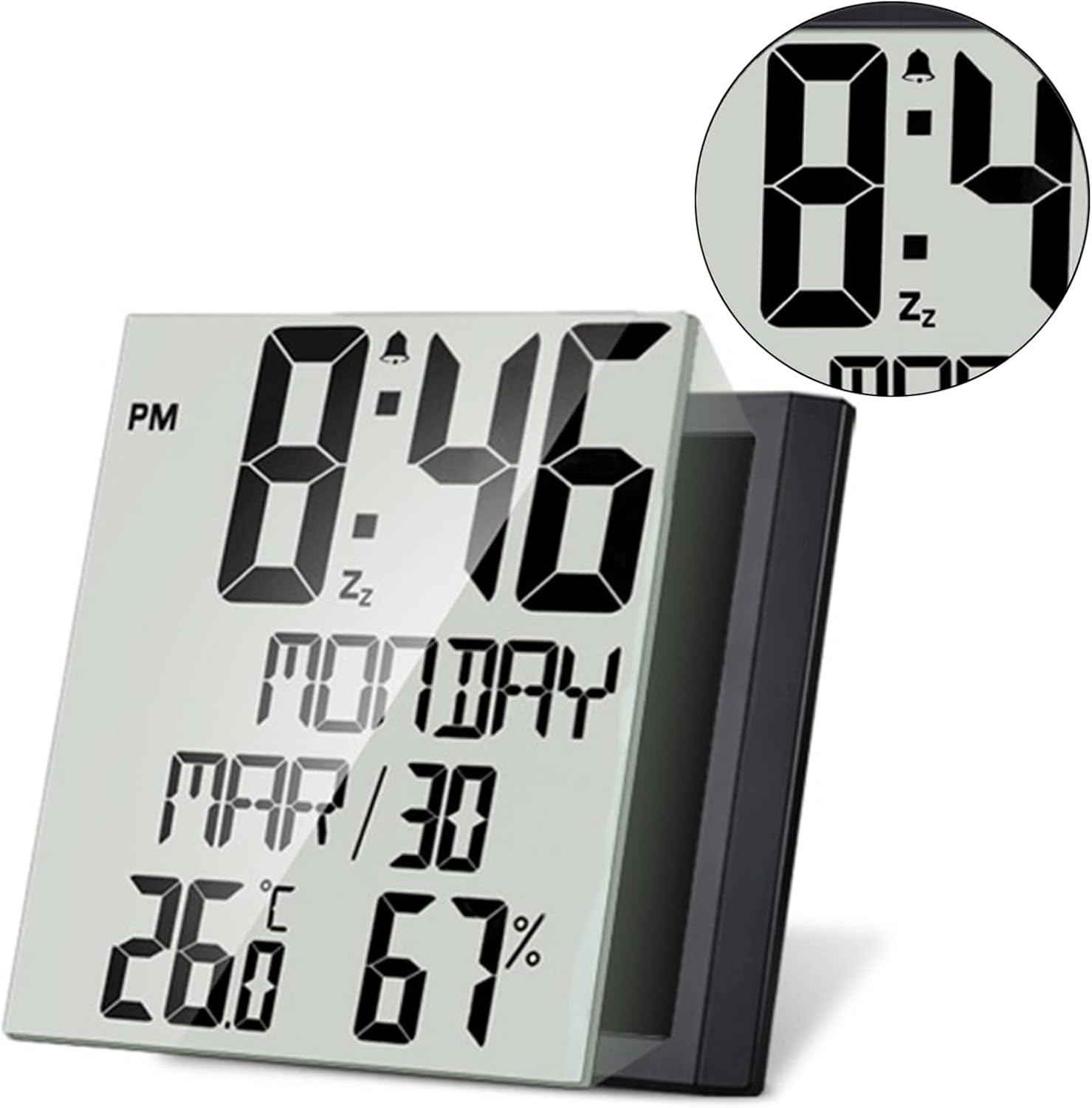

Front view of the ThreeH Digital Wall Clock displaying time, day, date, temperature, and humidity. — The clock's large display showing current time, day of the week, date, temperature, and humidity.

Setting the Alarm

Press the "ALARM" button to view the current alarm time. To set the alarm, press and hold the "ALARM" button. Use the "UP" and "DOWN" buttons to adjust the alarm hour and minute. Press "ALARM" again to confirm. To activate or deactivate the alarm, press the "ALARM" button once briefly.

Snooze Function

When the alarm sounds, press the "SNOOZE" button on the back of the clock to temporarily silence the alarm. The alarm will sound again after a short interval.

Temperature and Humidity Display

The clock continuously displays indoor temperature and humidity. To switch between Celsius (°C) and Fahrenheit (°F) temperature units, locate the dedicated button (often labeled "°C/°F" or integrated with another button, refer to the small instruction sheet for exact location if not obvious).

Six different display modes of the ThreeH Digital Wall Clock, showing 12-hour, 24-hour, Celsius, Fahrenheit, minimum temperature & humidity, and maximum temperature & humidity. — Various display modes of the clock, including 12-hour/24-hour time formats and Celsius/Fahrenheit temperature units.

Maintenance

Cleaning

Wipe the clock's surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these may damage the display or casing.

Battery Replacement

When the display dims or functions become erratic, it's time to replace the batteries. Follow the battery installation steps outlined in the "Setup Guide". Always replace all three AAA batteries at the same time for optimal performance.

Troubleshooting

Display is Blank or Dim: Check if batteries are correctly installed and not depleted. Replace with fresh AAA batteries if necessary.
Alarm Does Not Sound: Ensure the alarm is activated (look for an alarm icon on the display). Verify the alarm time is set correctly.
Incorrect Time/Date: Re-enter time and date settings as per the "Operating Instructions".
Temperature/Humidity Readings Seem Inaccurate: Ensure the clock is placed in a stable indoor environment, away from direct sunlight, heat sources, or drafts that could affect readings.

Specifications

Brand	ThreeH
Model Number	H-HD19
Display Type	Digital
Power Source	Battery Powered (3 AAA batteries, not included)
Product Dimensions	7.8"W x 7.8"H
Item Weight	370 Grams
Material Type	Plastic
Mounting Type	Desk Clock, Wall Mount
Special Features	Large Display, Temperature, Humidity, Date, Week, Alarm Clock, Snooze Function

Warranty and Support

For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official ThreeH website. Keep your purchase receipt for warranty claims.
