Introduction
Thank you for choosing the Yaheetech Kitchen Storage Cabinet. This versatile sideboard is designed to provide ample storage and enhance the aesthetics of your kitchen, dining room, or living space. Featuring adjustable shelves and smooth-gliding sliding doors, it offers practical storage solutions for various items. Please read this manual carefully before assembly and use to ensure proper installation and long-term enjoyment of your product.

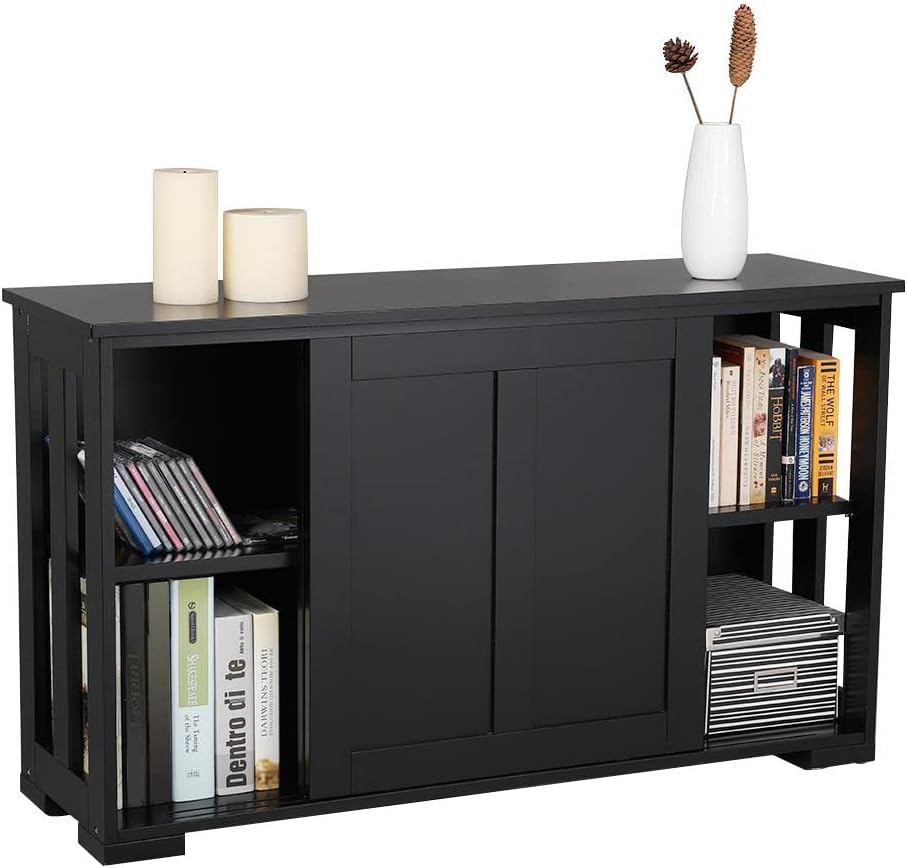

Image: Front view of the Yaheetech Kitchen Storage Cabinet, showcasing its design and storage capabilities.
Safety Information
Please observe the following safety guidelines to prevent injury or damage to the product:
- Maximum Load Capacity: The cabinet has a maximum load capacity of 50 kg (110 lbs). Do not exceed this weight limit.
- Even Weight Distribution: Avoid uneven loading of the cabinet to prevent tipping. Distribute weight evenly across shelves and within compartments.
- Assembly: Ensure all screws and fasteners are securely tightened during assembly. Periodically check for loose connections.
- Stability: For households with children or in areas prone to earthquakes, consider anchoring the cabinet to the wall using appropriate anti-tip hardware (not included).
- Material: This cabinet is constructed from robust E1-grade MDF wood panels. Handle with care during assembly to avoid damage.
Setup and Assembly
Before beginning assembly, ensure all parts are present and undamaged. It is recommended to assemble the cabinet on a soft, clean surface to prevent scratches.
Package Contents:
- All necessary MDF panels (labeled A, B, C, etc.)
- Hardware kit (screws, dowels, cam locks, etc.)
- Adjustable shelves
- Sliding door components
- Assembly instructions (refer to the included diagram)
Assembly Steps:
- Unpack and Identify: Carefully unpack all components and identify each part using the provided labels and the assembly diagram.
- Assemble Base: Attach the feet to the bottom panel of the cabinet. Ensure they are securely fastened.

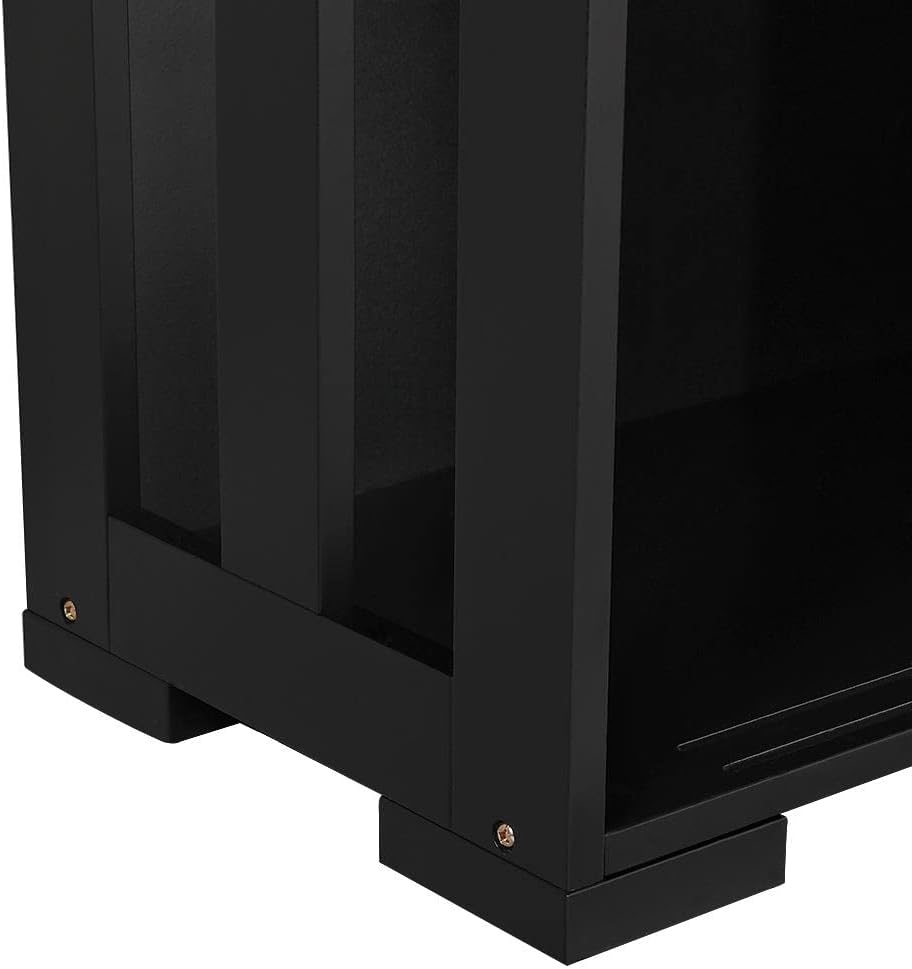

Image: Detail of the cabinet's sturdy base and feet.
- Construct Frame: Connect the side panels to the base and top panel using the provided hardware. Ensure all connections are tight and the frame is stable.
Image: Detail of the cabinet's top corner joint, indicating secure assembly.
- Install Back Panel: Secure the back panel to the frame. This adds rigidity to the structure.
- Insert Adjustable Shelf: Place the adjustable shelf into the desired height setting. The shelf can be adjusted to 3 different heights (22 cm, 27 cm, 32 cm) to accommodate items of various sizes.
Image: Detailed view of the adjustable shelf mechanism and other features.
- Attach Sliding Doors: Carefully install the sliding doors onto their tracks. Ensure they glide smoothly.
Image: Detail of the smooth-gliding sliding door mechanism.
- Final Check: Verify that all components are securely assembled and the cabinet is stable.
Operating Instructions
Adjusting the Shelf:
The internal shelf can be adjusted to three different heights: 22 cm, 27 cm, and 32 cm. To adjust, simply lift the shelf, align it with the desired peg holes on the side panels, and lower it into place. Ensure the shelf is level and securely seated before placing items on it.
Using the Sliding Doors:
The cabinet features two smooth-gliding sliding doors. To open or close a compartment, gently slide the door along its track. The doors can be positioned to cover either the central compartment or one of the side open shelves, allowing for flexible storage and display options.

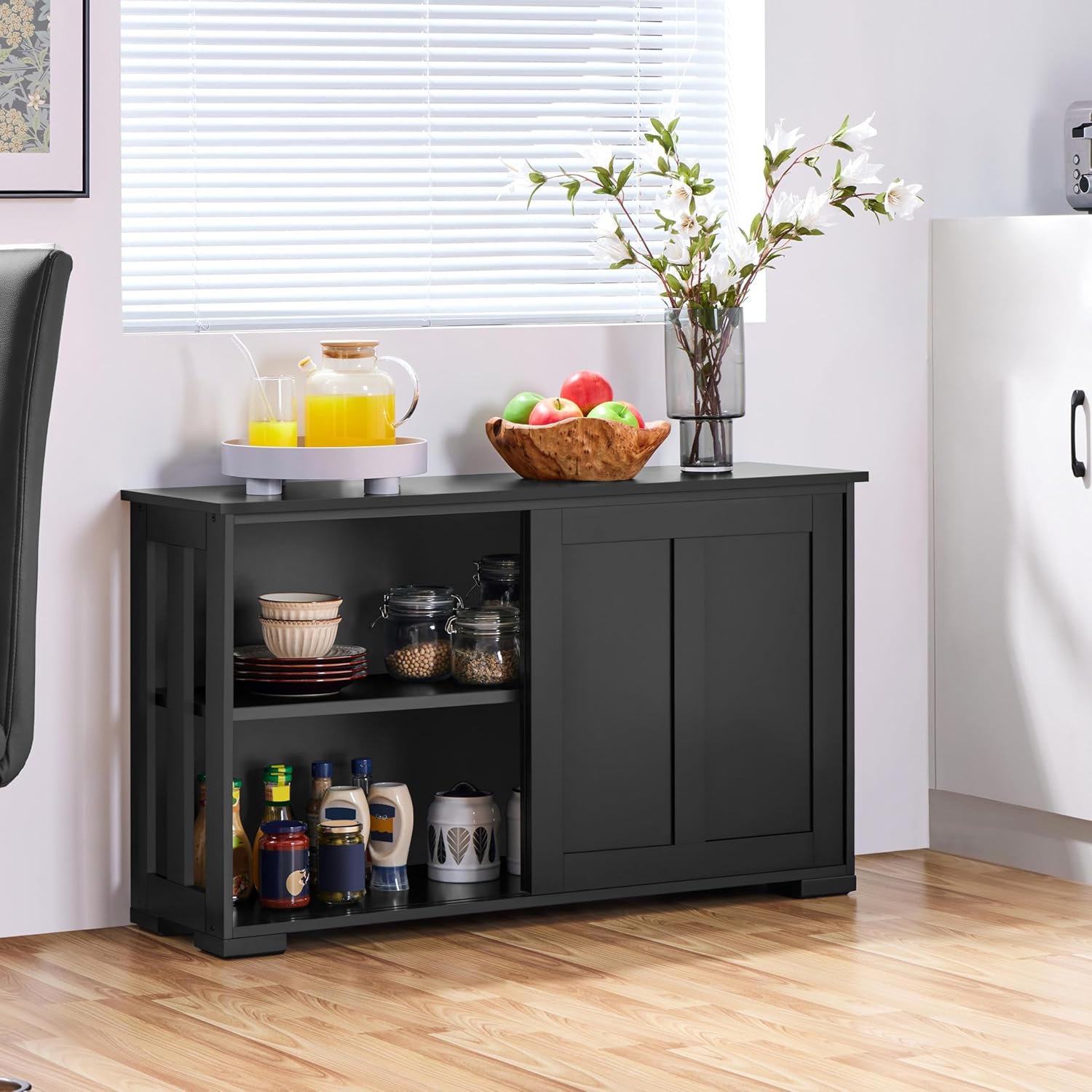

Image: Cabinet in a kitchen environment, demonstrating its use for storing kitchen items.
Maintenance and Care
To ensure the longevity and appearance of your Yaheetech Kitchen Storage Cabinet, follow these maintenance guidelines:
- Cleaning: Wipe the cabinet surfaces with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the finish.
- Spills: Immediately wipe up any spills to prevent staining or damage to the wood panels.
- Sunlight and Heat: Avoid placing the cabinet in direct sunlight or near heat sources, which can cause fading, warping, or cracking.
- Moving: When moving the cabinet, always lift it rather than dragging it to prevent damage to the feet and structural integrity.
- Hardware Check: Periodically check all screws and fasteners to ensure they remain tight. Retighten if necessary.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cabinet is wobbly or unstable. | Loose screws or uneven floor. | Ensure all assembly screws are tightened. Place shims under the feet if the floor is uneven. |
| Sliding doors do not move smoothly. | Debris in the track or misaligned doors. | Clean the tracks of any dust or debris. Check if the doors are properly seated in their grooves. Ensure the cabinet is level. |
| Screws are too long and protrude. | Incorrect screw used or over-tightening. | Verify you are using the correct screws for each step as per the assembly diagram. Do not over-tighten screws. If damage has occurred, contact customer support. |
| Missing parts. | Packaging error. | Contact Yaheetech customer support with your purchase details and a list of missing parts. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Yaheetech |
| Model Number | YA-00120263 |
| Color | Black |
| Material | E1-grade MDF Wood Panels |
| Overall Dimensions (L x W x H) | 106.7 cm x 33 cm x 63 cm (42 in x 13 in x 24.8 in) |
| Internal Dimensions (L x W x H) | 100.5 cm x 27 cm x 55 cm (39.6 in x 10.6 in x 21.7 in) |
| Adjustable Shelf Heights | 22 cm, 27 cm, 32 cm (8.7 in, 10.6 in, 12.6 in) |
| Maximum Load Capacity | 50 kg (110 lbs) |
| Net Weight | 20.5 kg (45.2 lbs) |
Image: Dimensional diagram of the cabinet, illustrating key measurements.
Warranty and Support
Yaheetech products are manufactured with quality and customer satisfaction in mind. For any questions, concerns, or assistance with your product, please contact Yaheetech customer support. Please have your model number (YA-00120263) and purchase details ready when contacting support.
Return Policy: This product is subject to a 30-day refund/replacement return policy from the date of purchase, as per standard retail terms.
For further assistance, visit the official Yaheetech store: Yaheetech Store on Amazon
