1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Liebherr CNbdd 5733 refrigerator-freezer. Please read it thoroughly before using the appliance and keep it for future reference.
The Liebherr CNbdd 5733 is a combi refrigerator-freezer unit, featuring a refrigerator compartment above and a freezer compartment below, designed for household use. It comes in an Inox Graphite finish.
2. Safety Instructions
Always observe the following safety precautions to prevent personal injury or damage to the appliance.
2.1 General Safety
- Ensure the appliance is properly grounded.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments.
- Keep ventilation openings clear of obstruction.
- Unplug the appliance before cleaning or maintenance.
2.2 Installation Safety
- Place the appliance on a firm, level surface.
- Ensure adequate ventilation around the appliance.
- Do not install near heat sources or in direct sunlight.
- Allow sufficient space for door opening.
3. Setup and Installation
Follow these steps for proper setup and installation of your Liebherr CNbdd 5733.
3.1 Unpacking
Carefully remove all packaging materials. Inspect the appliance for any transport damage. Report any damage immediately to your supplier.
3.2 Positioning
Place the appliance in a suitable location, away from direct sunlight and heat sources. Ensure there is sufficient space for air circulation around the back and sides of the unit. The product dimensions are approximately 50 x 50 x 28 cm.
Figure 3.2.1: The Liebherr CNbdd 5733 refrigerator-freezer positioned in a kitchen, showing its overall size and appearance with the door open.
Figure 3.2.2: A wider view of the Liebherr CNbdd 5733 refrigerator-freezer in a kitchen environment, illustrating its design and how it fits into a modern living space.
3.3 Electrical Connection
Connect the appliance to a properly installed and grounded power outlet. The voltage and frequency must match the specifications on the rating plate.
3.4 Initial Start-up
After connecting, allow the appliance to stand for at least 4 hours before switching it on. This allows the refrigerant to settle. Once switched on, allow it to cool for several hours before loading with food.
4. Operating Instructions
This section details how to operate your Liebherr CNbdd 5733 refrigerator-freezer.
4.1 Temperature Control
The appliance features separate temperature controls for the refrigerator and freezer compartments. Use the digital display on the door to adjust settings. The recommended refrigerator temperature is 5°C, and the freezer temperature is -18°C.
Figure 4.1.1: The Liebherr CNbdd 5733 refrigerator-freezer with its door closed, highlighting the integrated digital display for temperature control and settings.
4.2 Interior Features
The refrigerator compartment includes adjustable glass shelves, door bins, and a BioFresh compartment for optimal storage of fruits and vegetables. The freezer compartment has multiple drawers for organized storage.

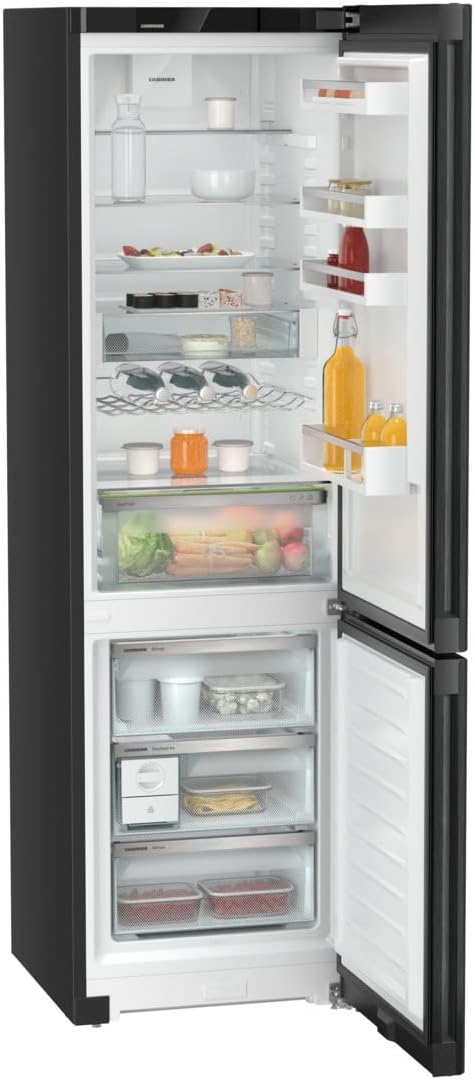

Figure 4.2.1: An interior view of the Liebherr CNbdd 5733 refrigerator-freezer, showcasing its various shelves, drawers, and door compartments filled with food items.
Figure 4.2.2: A clear interior view of the Liebherr CNbdd 5733 refrigerator-freezer, showing the empty shelves, drawers, and door storage, highlighting the internal layout.
4.3 SmartDevice Functionality (if applicable)
If your model is equipped with SmartDevice, you can connect it to the Liebherr SmartDevice app for remote control and monitoring. Refer to the separate SmartDevice manual for detailed instructions.
5. Maintenance and Cleaning
Regular maintenance ensures optimal performance and longevity of your appliance.
5.1 Cleaning the Interior
Before cleaning, unplug the appliance. Clean the interior with a soft cloth and a mild, non-abrasive cleaning solution. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners or sharp objects.
5.2 Defrosting
The freezer compartment features a hot gas defrost system, minimizing the need for manual defrosting. However, if ice buildup occurs, manually defrost by unplugging the unit and allowing ice to melt naturally. Do not use sharp objects to remove ice.
5.3 Cleaning the Exterior
Clean the exterior surfaces, especially the Inox Graphite finish, with a soft, damp cloth. For stainless steel parts, use a specialized stainless steel cleaner. Avoid harsh chemicals.

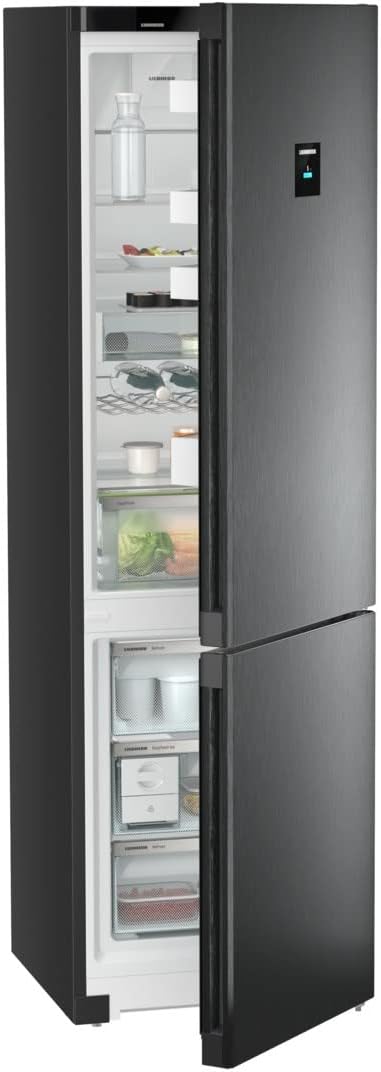

Figure 5.3.1: The Liebherr CNbdd 5733 refrigerator-freezer with its door slightly open, providing a closer look at the Inox Graphite exterior finish.
Figure 5.3.2: A side view of the Liebherr CNbdd 5733 refrigerator-freezer, illustrating the depth and design of the appliance from an angle.
6. Troubleshooting
Before contacting customer service, consult this table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance not cooling | No power; temperature setting too high; door not closed properly. | Check power supply; adjust temperature; ensure door is sealed. |
| Excessive noise | Appliance not level; objects vibrating against the unit. | Adjust leveling feet; remove vibrating objects. |
| Water on floor | Drain hole blocked; excessive humidity. | Clear drain hole; ensure proper ventilation. |
7. Technical Specifications
Key technical data for the Liebherr CNbdd 5733.
- Model: CNbdd 5733
- Brand: Liebherr
- Configuration: Freezer-on-Bottom
- Colour: Silver (Inox Graphite)
- Installation Type: Freestanding
- Number of Doors: 2
- Defrost System: Hot gas defrost
- Finish Type: Stainless steel
- Product Dimensions: 50 x 50 x 28 cm (approximate)
- Item Weight: 190 g (Note: This weight seems unusually low for a refrigerator-freezer and might be a data entry error in the source. Please refer to the product's official specifications for accurate weight.)
- Manufacturer: LIEBHERR
8. Warranty and Support
Your Liebherr CNbdd 5733 appliance comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty period and coverage.
For technical support, spare parts, or service requests, please contact Liebherr customer service or your authorized dealer. Have your model number (CNbdd 5733) and serial number ready when contacting support.
You can find more information and contact details on the official Liebherr website: home.liebherr.com
