LLIVEKIT Dual-Basket Air Fryer User Manual

Important Safety Information

Please read this manual thoroughly before operating the appliance and retain it for future reference. Always follow basic safety precautions to reduce the risk of fire, electric shock, and injury.

• Do not immerse the appliance, cord, or plug in water or other liquids.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
• Keep the appliance and its cord out of reach of children.
• Do not operate the appliance if the plug, power cord, or the appliance itself is damaged.
• Always unplug the appliance after use and before cleaning.
• Do not block the air inlet and outlet openings.
• The appliance operates at high temperatures; use oven mitts when handling hot parts.
• This appliance is for household use only.

Product Overview

The LLIVEKIT Dual-Basket Air Fryer is designed for healthy and efficient cooking, utilizing rapid hot air circulation. It features two independent cooking zones, allowing you to prepare different foods simultaneously.

Figure 1: Front view of the LLIVEKIT Dual-Basket Air Fryer, showcasing its sleek black design, dual baskets with viewing windows, and the LED touch control panel.

Key Components:

• LED Touch Control Panel: For selecting programs, adjusting time and temperature, and activating special functions.
• Dual Cooking Baskets (4.5L each): Two independent non-stick baskets for versatile cooking.
• Viewing Windows: Allows monitoring of food without opening the baskets.
• Integrated Lighting: Illuminates the interior of the baskets for clear visibility.
• Air Inlet & Outlet: For proper air circulation during cooking.
• Power Cord: For connecting to an electrical outlet.

Figure 2: Diagram illustrating the dimensions of the air fryer (40x36.1x32cm) and the capacity of each basket (4.5L, totaling 9L). Also shows the frying grill dimensions.

Setup and First Use

1. Unpacking: Carefully remove the air fryer and all accessories from the packaging. Retain the packaging for future storage or transport if needed.
2. Initial Cleaning: Before first use, clean the cooking baskets and frying grills with warm soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the appliance with a damp cloth. Do not immerse the main unit in water.
3. Placement: Place the air fryer on a stable, heat-resistant, and level surface. Ensure there is adequate space (at least 10 cm) around the appliance for proper air circulation. Do not place it near walls or other appliances that could be damaged by steam.
4. Power Connection: Plug the power cord into a grounded electrical outlet.
5. First Run (Burn-in): For the first use, it is recommended to run the air fryer empty for about 10-15 minutes at 180°C (356°F) to eliminate any manufacturing odors. A slight odor or smoke may be present, which is normal. Ensure the area is well-ventilated.

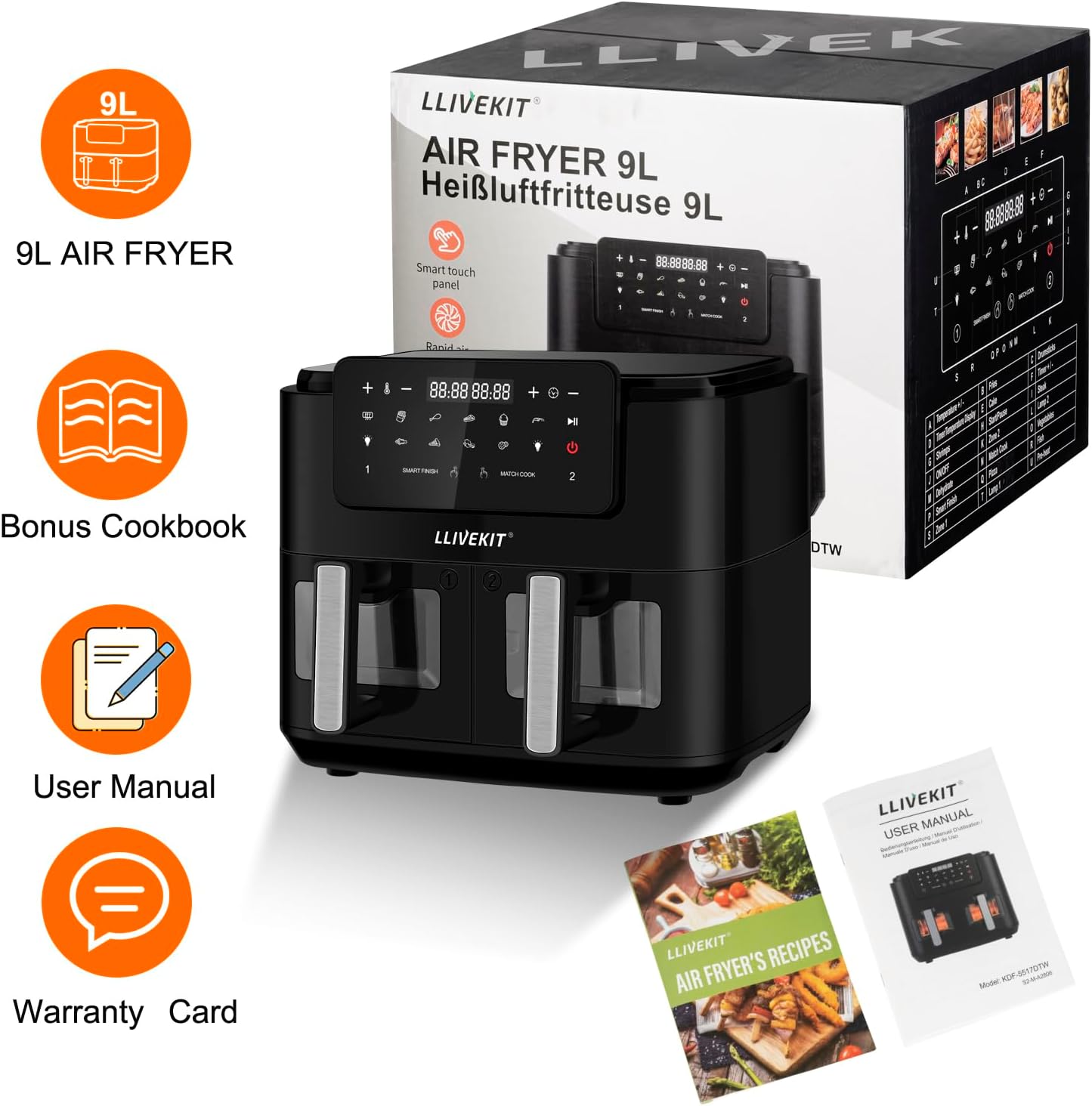

Figure 3: Image showing the LLIVEKIT Air Fryer packaging and included accessories: the 9L air fryer unit, a bonus cookbook, a user manual, and a warranty card.

Operating Instructions

Control Panel Overview:

Figure 4: Detailed view of the LED touch control panel, showing temperature and time displays, preset program icons, and the "Match Cook" and "Smart Finish" buttons.

• Power Button: Turns the appliance on/off.
• Temperature Controls (+/-): Adjusts cooking temperature (50°C - 200°C).
• Time Controls (+/-): Adjusts cooking time (up to 60 minutes).
• Preset Programs: Icons for various food types (e.g., fries, chicken, steak, cake) for one-touch cooking.
• Basket Selectors (1 & 2): Choose which basket to control.
• Smart Finish: Synchronizes cooking times for different foods in both baskets to finish simultaneously.
• Match Cook: Applies the same cooking settings to both baskets.
• Light Button: Activates the internal light for viewing food.

Cooking with Preset Programs:

Figure 5: Graphic highlighting the 9 cooking programs, emphasizing faster cooking, healthier results with less oil, and ease of use for serving 6-10 people.

1. Place food in the desired basket(s).
2. Press the Power button to turn on the appliance.
3. Select the basket (1 or 2) you wish to program.
4. Press the icon corresponding to your desired food type. The air fryer will automatically set the optimal time and temperature.
5. Press the Start/Pause button to begin cooking.
6. You can adjust the time and temperature manually during a preset program if needed.

Using Smart Finish & Match Cook:

These functions enhance the versatility of the dual baskets.

• Match Cook: If you want both baskets to cook with the exact same settings (temperature and time), simply load both baskets and press the "Match Cook" button. This will synchronize the settings for both zones.
• Smart Finish: This feature is ideal when cooking two different foods that require different cooking times but you want them to finish simultaneously.
  1. Load food into both baskets.
  2. Set the desired time and temperature for Basket 1.
  3. Set the desired time and temperature for Basket 2.
  4. Press the "Smart Finish" button. The air fryer will automatically adjust the start times for each basket so they complete cooking at the same moment.

Figure 6: A hand interacting with the touch control panel, specifically pressing the "Match Cook" button to synchronize cooking settings across both baskets.

Figure 7: The air fryer positioned in a kitchen, surrounded by various cooked dishes such as chicken legs, fries, and vegetables, demonstrating its cooking capabilities.

Figure 8: A close-up view of the air fryer's dual baskets, one containing potato wedges and the other containing small pastries, illustrating the ability to cook different items simultaneously.

Figure 9: An illustration of the "Work Smart" feature, showing a basket being pulled out mid-cooking to check the food. The air fryer automatically pauses and resumes when the basket is reinserted.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your air fryer.

• Before Cleaning: Always unplug the air fryer and allow it to cool completely before cleaning.
• Baskets and Grills: The non-stick baskets and frying grills are dishwasher safe. For manual cleaning, wash them with warm water, a mild dish soap, and a non-abrasive sponge. Do not use metal utensils or abrasive cleaning materials as they can damage the non-stick coating.
• Interior: Wipe the interior of the appliance with a damp cloth. For stubborn food residue, use a soft brush and warm soapy water. Ensure the interior is completely dry before next use.
• Exterior: Clean the exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the air fryer in a cool, dry place when not in use.

Figure 10: An image depicting the ease of cleaning the air fryer basket, showing water being splashed into it, indicating its washability.

Troubleshooting

If you encounter issues with your LLIVEKIT Air Fryer, refer to the table below for common problems and solutions.

Specifications

Warranty and Support

LLIVEKIT products are manufactured to high-quality standards. For any questions regarding your product, warranty claims, or technical support, please contact the seller or manufacturer directly through the platform where you purchased the item. Please refer to your purchase receipt for specific warranty terms and conditions.

While spare parts availability information is not explicitly provided, please reach out to the seller for any inquiries regarding replacement parts or service.
