1. Safety Instructions
Always observe the following safety precautions when operating the Bosch AXT 22 D Silent Garden Shredder to prevent injury and damage to the machine.
- Read the Manual: Thoroughly read and understand all instructions before operating the shredder.
- Personal Protective Equipment (PPE): Always wear safety glasses, hearing protection, sturdy gloves, and appropriate footwear. Avoid loose clothing that could get caught in moving parts.
- Work Area: Operate the shredder on a firm, level surface. Keep the work area clear of bystanders, children, and pets. Ensure adequate lighting.
- Electrical Safety: Connect the shredder to a properly grounded outlet. Do not operate in wet conditions. Inspect the power cord for damage before each use.
- Material Handling: Only feed appropriate materials (wood, hedges, thorny shrubs) into the shredder. Do not feed metal, plastic, stones, or other non-organic materials. Never reach into the feeding hopper or discharge chute while the machine is running.
- Emergency Stop: Familiarize yourself with the location and operation of the emergency stop switch.
- Maintenance: Disconnect the power supply before performing any maintenance, cleaning, or clearing jams.
2. Product Overview
The Bosch AXT 22 D is a powerful and quiet garden shredder designed for efficient processing of garden waste. It features a robust 2200W motor and a milled roller cutting system capable of handling branches up to 38 mm in diameter.
Image 2.1: The Bosch AXT 22 D Silent Garden Shredder, showcasing its compact design and integrated collection box.
Key Features:
- 2200 W brushless induction motor for powerful and quiet operation.
- Milled roller cutting system for shredding hard branches up to 38 mm.
- Automated fast-feed hopper for safe and easy material input.
- Integrated 53-liter collection box for reduced emptying frequency.
- Compact design for easy storage.
3. Setup
The Bosch AXT 22 D is designed for straightforward assembly. Follow these steps to prepare your shredder for use.
3.1 Unpacking and Assembly
- Carefully remove all components from the carton. The package includes the AXT 22 D shredder unit and the integrated collection box.
- Place the main shredder unit on a stable, flat surface.
- Slide the integrated 53-liter collection box into its designated slot at the base of the shredder. Ensure it clicks securely into place. The shredder will not operate if the collection box is not correctly inserted.
- Check that all safety guards and covers are properly installed and secured.
3.2 Placement and Power Connection
- Position the shredder on a firm, level, and dry surface in your garden, away from any obstacles or flammable materials.
- Ensure the power switch is in the 'OFF' position.
- Connect the shredder's power cord to a suitable outdoor-rated, grounded electrical outlet. Use an extension cord rated for outdoor use and appropriate for the shredder's power requirements (2200W).
4. Operating Instructions
Follow these steps for safe and effective operation of your Bosch AXT 22 D Silent Garden Shredder.
4.1 Starting the Shredder
- Ensure the collection box is correctly installed and empty.
- Press the 'ON' button to start the shredder. The motor will begin to run quietly.
4.2 Feeding Material
Image 4.1: A user safely feeding branches into the shredder's hopper, wearing appropriate safety gear.
- Carefully feed branches and garden waste into the automated fast-feed hopper. The shredder is designed to pull material in automatically.
- The maximum branch diameter for effective shredding is 38 mm. Do not force larger branches into the hopper.
- Feed material gradually to avoid overloading the motor.
- For bushy material, feed the thicker ends first.

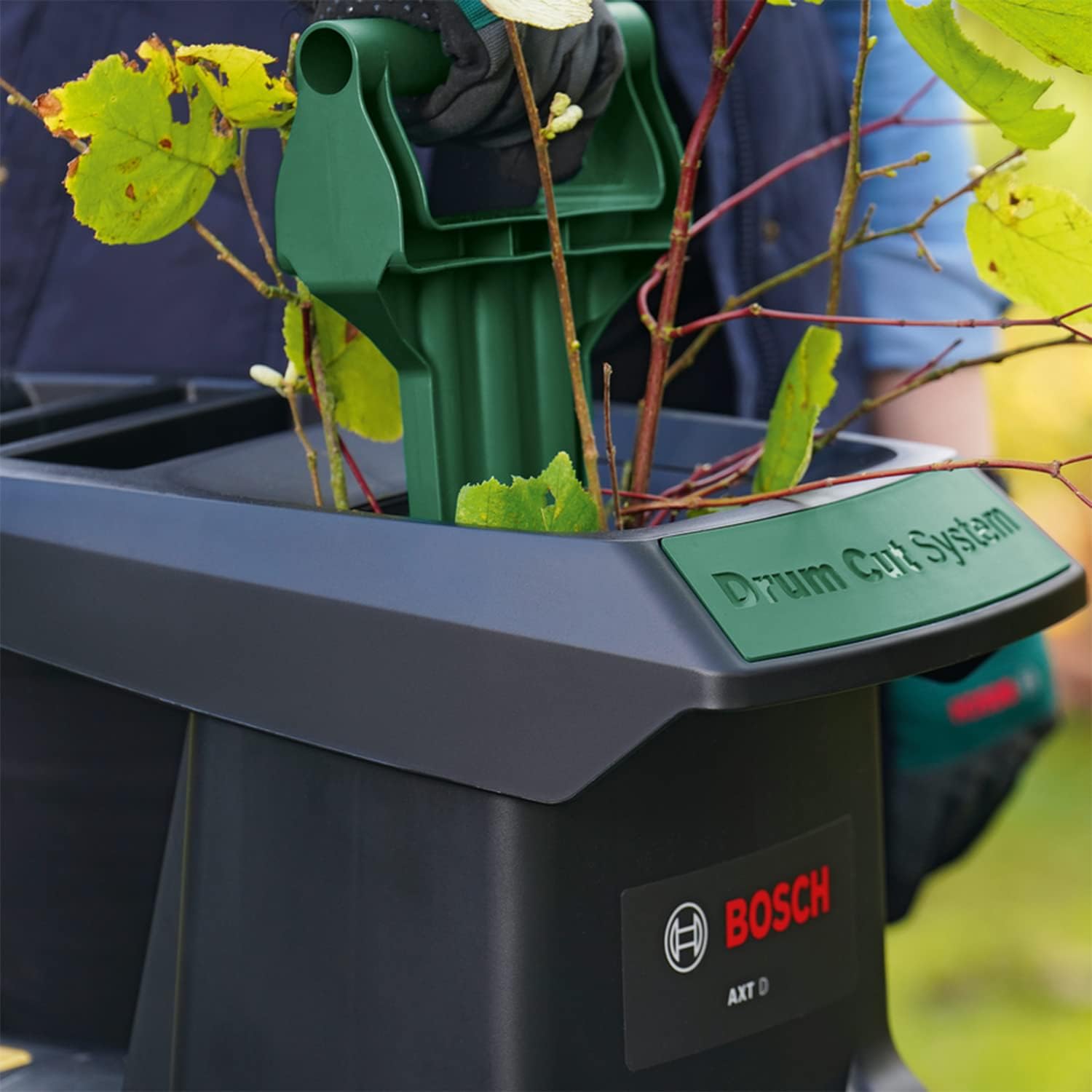

Image 4.2: A close-up view of the shredder's feeding hopper, highlighting the 'Drum Cut System' for efficient material intake.
4.3 Emptying the Collection Box
Image 4.3: The integrated collection box filled with finely shredded garden waste, ready for composting or disposal.
- Monitor the collection box level. When full, the shredder may automatically stop or material may back up in the hopper.
- Turn off the shredder and disconnect it from the power supply before removing the collection box.
- Carefully slide out the collection box.
- Empty the shredded material into a compost bin or designated area.
Image 4.4: A user emptying the contents of the collection box, demonstrating the ease of handling the shredded material.
4.4 Stopping the Shredder
To stop the shredder, press the 'OFF' button. Always disconnect the power supply when finished operating or before performing any adjustments or maintenance.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Bosch AXT 22 D shredder.
5.1 Cleaning
- After each use, disconnect the shredder from the power supply.
- Use a brush or damp cloth to clean the exterior of the machine. Do not use water jets or harsh chemicals.
- Clear any debris from the feeding hopper and discharge chute.
5.2 Checking the Cutting Mechanism
Periodically inspect the milled roller cutting system for wear or damage. If the cutting performance decreases, the cutting gap may need adjustment or the roller may need servicing by a qualified technician.
5.3 Storage
Store the shredder in a dry, secure location, out of reach of children. Its compact design allows for convenient storage.
6. Troubleshooting
This section addresses common issues you might encounter with your shredder.
| Problem | Possible Cause | Solution |
|---|---|---|
| Shredder does not start | No power supply Collection box not correctly inserted Overload protection activated | Check power connection and circuit breaker Ensure collection box is fully engaged Turn off, disconnect, wait 5 minutes, then restart |
| Material is not shredded effectively | Blades are dull or worn Cutting gap needs adjustment Material is too soft/wet | Contact service for blade inspection/replacement Refer to service manual for cutting gap adjustment Allow material to dry slightly before shredding |
| Shredder jams frequently | Overfeeding material Material too large or unsuitable Cutting mechanism clogged | Feed material more slowly Ensure material is within specified limits (max 38mm) Turn off, disconnect, and carefully clear the jam (wear gloves) |
| Excessive noise or vibration | Loose components Unbalanced cutting mechanism Foreign object inside | Check all fasteners are tight Turn off, disconnect, inspect for foreign objects. If problem persists, contact service. |
If you encounter a problem not listed here or if the suggested solutions do not resolve the issue, please contact Bosch customer service.
7. Specifications
Technical data for the Bosch AXT 22 D Silent Garden Shredder.
| Feature | Specification |
|---|---|
| Model | AXT 22 D |
| Manufacturer | Bosch |
| Power Input | 2200 W |
| Cutting System | Milled Roller Cutting System |
| Max. Cutting Diameter | 38 mm |
| Collection Box Volume | 53 Liters |
| Product Dimensions (L x W x H) | 50 x 50 x 28 cm |
| Weight | 31.3 kg |
| Power Type | AC (Mains Powered) |
| Batteries Required | No |
| Item Model Number | 0600803003 |
8. Warranty and Support
Bosch provides a manufacturer's warranty for this product. Please refer to the warranty card included with your purchase or visit the official Bosch website for detailed warranty terms and conditions specific to your region.
For technical assistance, spare parts, or service inquiries, please contact Bosch customer support. You can find contact information on the official Bosch website or through your local retailer.
Online Resources:
- Visit the official Bosch website: www.bosch-garden.com
- For product registration and extended warranty options (if available), check the Bosch DIY website: Bosch DIY Store
