1. Introduction
Thank you for choosing the Cecotec EnergySilence Aero 5270 Ceiling Fan. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read these instructions thoroughly before use and retain them for future reference.
The EnergySilence Aero 5270 is designed to provide efficient air circulation with its 40W DC motor, offering 6 speeds and a reversible function for both summer and winter use. It features a 132 cm diameter and comes with a convenient remote control and timer functions.
2. Important Safety Instructions
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these basic precautions:
- Read all instructions before installing and operating the fan.
- Installation must be performed by a qualified electrician and in accordance with all local and national electrical codes.
- Ensure the installation site can support the fan's weight (approximately 4.47 kg) and that the ceiling joist or structure is securely anchored.
- Disconnect power at the main circuit breaker before installation, maintenance, or cleaning.
- Do not operate the fan with a damaged power cord or plug.
- Keep hands, clothing, and other objects away from the fan blades during operation.
- Do not use the fan in wet or damp locations.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
3. Package Contents
Carefully unpack your ceiling fan and ensure all items are present and undamaged. If any parts are missing or damaged, contact Cecotec customer service.
- Ceiling Fan Motor Assembly
- Fan Blades (3x)
- Downrod (adjustable height 15 cm or 25 cm options)
- Canopy and Mounting Bracket
- Remote Control
- Mounting Hardware (screws, washers, wire nuts)
- User Manual
4. Setup and Installation
Before beginning installation, ensure the power is turned off at the circuit breaker. Refer to the safety instructions in Section 2.
4.1 Mounting the Bracket
- Locate a suitable ceiling joist or a fan-rated electrical junction box capable of supporting the fan's weight.
- Attach the mounting bracket to the ceiling using the provided screws and washers. Ensure it is securely fastened.
4.2 Assembling the Fan
- Insert the downrod through the canopy and then into the motor assembly. Secure with the provided pin and screw.
- Carefully lift the fan assembly and hang it on the mounting bracket hook.
Figure 1: Ceiling mount and downrod connection.
4.3 Wiring
- Connect the fan's electrical wires to the household wiring according to local electrical codes (typically black to black, white to white, and green/bare copper to ground). Use the provided wire nuts.
- Tuck all wires neatly into the junction box.
4.4 Attaching the Blades
- Attach each fan blade to the motor hub using the screws provided. Ensure all screws are tightened securely.
Figure 2: Fan blades attached to the motor hub.
4.5 Final Assembly
- Slide the canopy up to the ceiling and secure it to the mounting bracket with the designated screws.
- Restore power at the circuit breaker.
5. Operating Instructions
Your Cecotec EnergySilence Aero 5270 ceiling fan is operated via the included remote control.

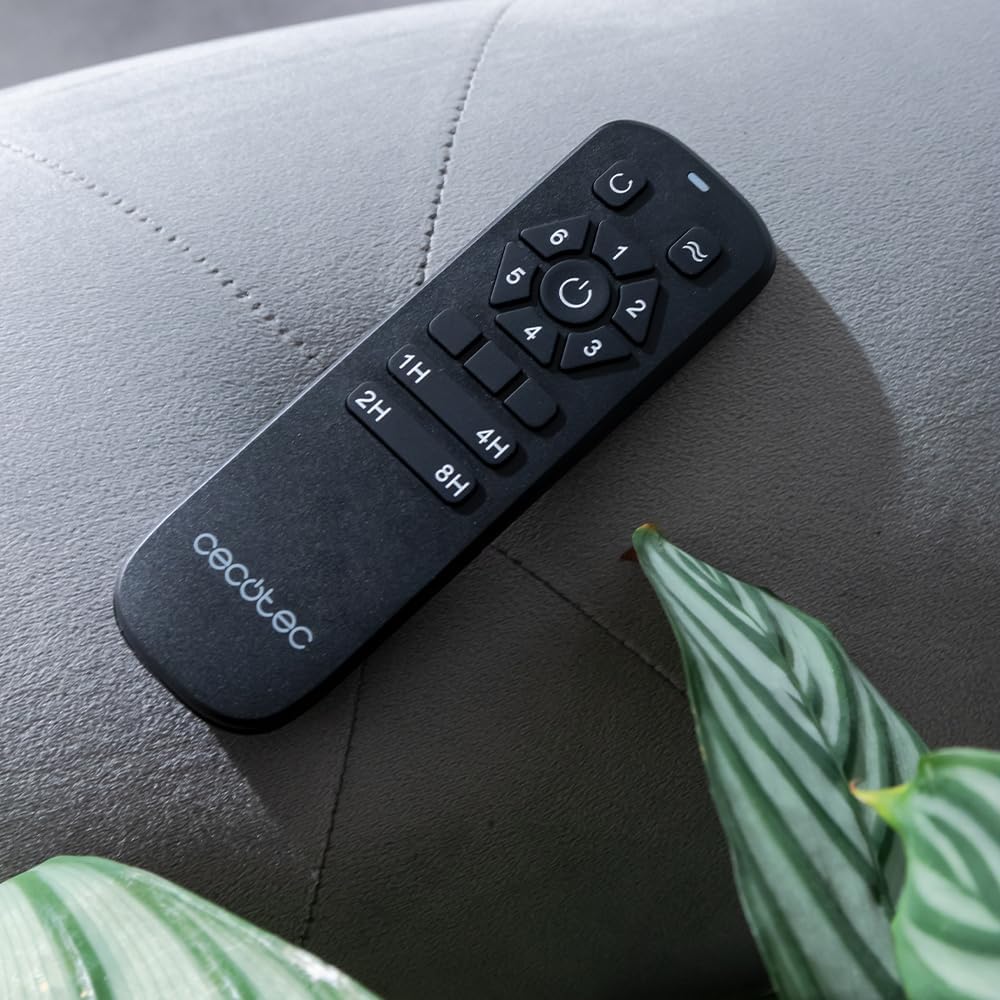

Figure 3: Remote Control Layout.
5.1 Remote Control Functions
- ON/OFF Button: Press to turn the fan on or off.
- Speed Buttons (1-6): Select desired fan speed from 1 (lowest) to 6 (highest).
- MODE Button: Cycles through different fan modes (e.g., natural breeze simulation, sleep mode).
- TIMER Buttons (1H, 2H, 4H, 8H): Set the fan to automatically turn off after 1, 2, 4, or 8 hours.
- Summer/Winter Mode Button (Reversible Rotation): Changes the direction of blade rotation.
5.2 Summer and Winter Modes
The fan features a reversible motor to optimize air circulation for different seasons.
- Summer Mode (Counter-clockwise rotation): Creates a downward airflow, generating a cooling breeze.
- Winter Mode (Clockwise rotation): Creates an upward airflow, circulating warm air trapped near the ceiling downwards, helping to distribute heat more evenly.
Figure 4: Summer and Winter Mode Airflow.
To switch between modes, ensure the fan is operating, then press the Summer/Winter mode button on the remote control. The fan will briefly stop and then resume rotation in the opposite direction.
6. Maintenance
WARNING: Always disconnect power at the circuit breaker before performing any maintenance or cleaning.
6.1 Cleaning
- Use a soft, damp cloth to wipe down the fan blades and motor housing.
- Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Ensure no moisture enters the motor housing.
6.2 General Care
- Periodically check all connections and screws to ensure they remain tight.
- The DC motor is designed for long-term, maintenance-free operation and does not require lubrication.
7. Troubleshooting
If you experience issues with your fan, consult the following table before contacting customer service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power supply Loose wiring Remote control battery depleted | Check circuit breaker Verify wiring connections (power off first!) Replace remote control batteries |
| Fan makes excessive noise | Loose screws on blades or mounting Unbalanced blades | Tighten all screws Ensure blades are securely attached and balanced |
| Remote control not working | Battery depleted Obstruction between remote and receiver | Replace remote control batteries Ensure clear line of sight to fan receiver |
8. Technical Specifications
- Model: EnergySilence Aero 5270
- Product Number: 08551
- Brand: Cecotec
- Motor Type: DC Motor
- Power: 40 W
- Voltage: 230 V
- Diameter: 132 cm
- Speeds: 6
- Control: Remote Control
- Timer: 1H, 2H, 4H, 8H
- Modes: Summer (cooling), Winter (heat circulation)
- Adjustable Height: 15 cm or 25 cm downrod options
- Material: Wood (blades), Metal (housing)
- Color/Finish: Black & Light Wood
- Item Weight: 4.47 kg
- Product Dimensions (assembled): Approximately 132.1D x 132.1W x 20H cm (excluding downrod length)
9. Warranty and Support
Cecotec products are manufactured to the highest quality standards. This product is covered by a manufacturer's warranty, subject to the terms and conditions specified at the time of purchase. Please retain your proof of purchase for any warranty claims.
For technical support, spare parts, or warranty inquiries, please contact your local retailer or visit the official Cecotec website for customer service contact information.
