Moimhear House Bed 90x200cm with Trundle Bed Instruction Manual

Introduction

This instruction manual provides comprehensive guidance for the assembly, safe operation, and maintenance of your Moimhear House Bed 90x200cm. Please read this manual thoroughly before assembly and use to ensure proper installation and to maximize the lifespan of your product. Keep this manual for future reference.

Important: This product requires assembly. Ensure all parts are present and undamaged before beginning assembly.

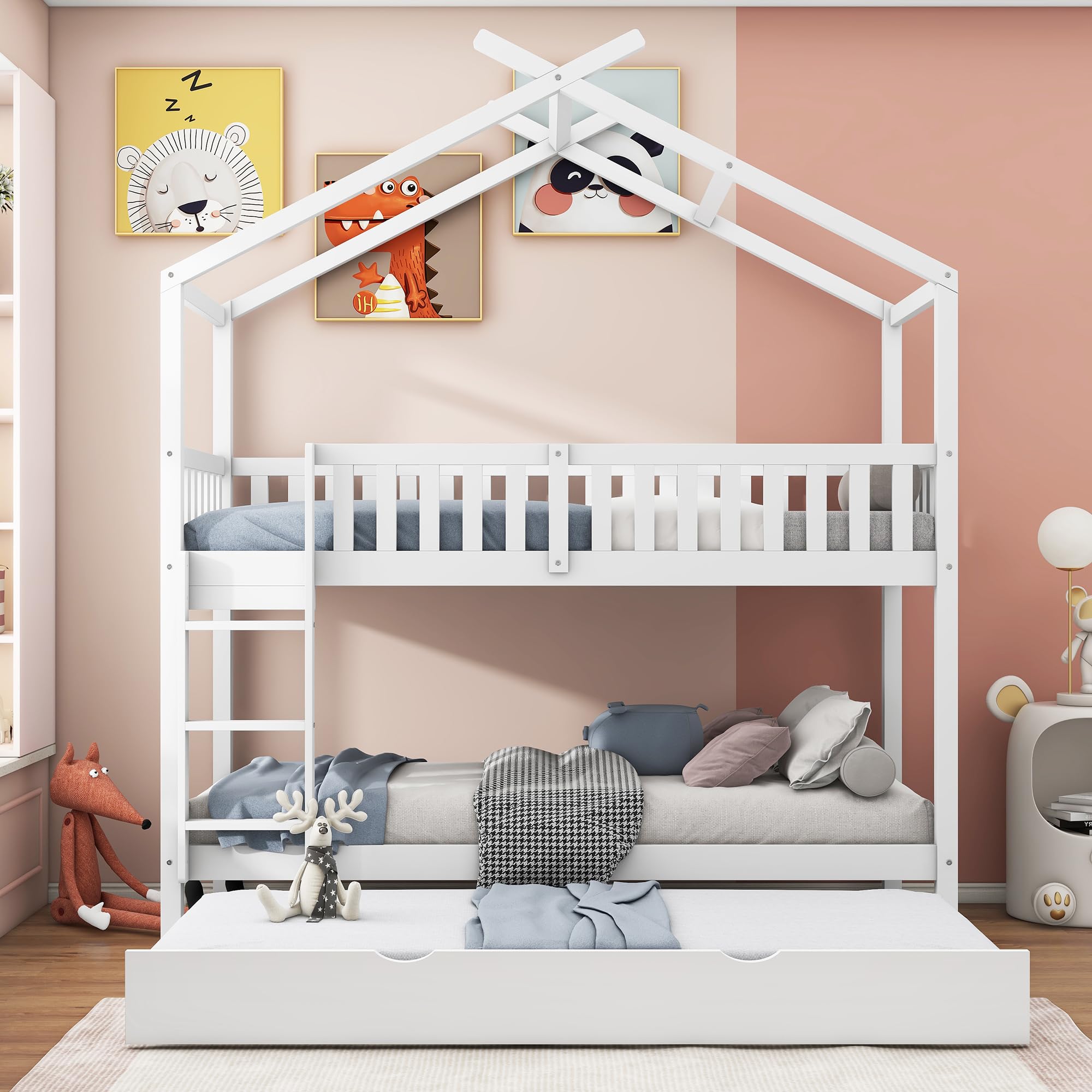

Image: The Moimhear House Bed 90x200cm, featuring a bunk bed design with an integrated pull-out trundle bed.

Safety Information

• Maximum Weight Capacity: Do not exceed the maximum weight limit of 275 pounds (approximately 125 kg) for any single sleeping surface.
• Cleaning: Use only damp cloths for cleaning. Avoid harsh chemicals, abrasive cleaners, or strong detergents, as these can damage the wood finish.
• Assembly Precautions: Exercise caution with protruding parts during assembly and use to prevent injury. Ensure all screws and fasteners are securely tightened.
• Supervision: Children should be supervised when using the bed, especially the ladder and trundle bed.
• Mattress Compatibility: Use mattresses compatible with 90x200cm dimensions. Ensure the mattress thickness for the upper bunk and trundle bed allows for safe use and clearance.
• Ventilation: Ensure adequate ventilation around the bed.

Product Features

• Convertible Design: This bunk bed can be configured into three separate single beds, offering flexibility for various needs.
• Integrated Trundle Bed: A pull-out trundle bed is located at the bottom, providing an additional sleeping surface ideal for guests or families with multiple children, optimizing space utilization.
• Solid Wood Construction: Crafted from high-quality, environmentally friendly solid pine wood and MDF panels, with integrated reinforced wooden slats, ensuring strong support and durability.
• Safety Rail: The upper bunk features a continuous safety rail to enhance child safety.
• Integrated Ladder: A sturdy ladder is designed to assist children in safely climbing to the upper bunk.
• Space-Saving: The multi-functional design is ideal for accommodating guests or larger families in a compact footprint.
• House-Shaped Frame: The cross-shaped roof design adds a decorative element, allowing for personalization and creating a cozy atmosphere.

Package Contents

Your Moimhear House Bed package typically includes the following components. Please verify all parts are present and undamaged before proceeding with assembly. The product is shipped in two separate packages, which may arrive on different days.

• Wooden frame components (pine wood, MDF panels)
• Wooden slats for all three beds
• Safety rails
• Ladder components
• Trundle bed frame and slats
• Hardware kit (screws, bolts, nuts, dowels, etc.)
• Assembly instructions (included in the package)

Note: Mattresses are not included with this product.

Setup and Assembly Instructions

Assembly is required for this Moimhear House Bed. The estimated assembly time is approximately 3 hours for two people. It is recommended to have two adults for assembly. Follow the detailed instructions provided in the included assembly manual. Ensure you have adequate space and the necessary tools (e.g., screwdriver, hammer) before starting.

General Assembly Tips:

• Unpack all components and lay them out on a clean, soft surface to prevent scratches.
• Identify all parts and hardware using the provided parts list in the separate assembly manual.
• Do not fully tighten screws until all components are loosely assembled, then tighten them securely.
• Pay close attention to the orientation of each piece as shown in the diagrams.
• If any parts are missing or damaged, contact customer service immediately.

Key Assembly Steps (Refer to separate manual for details):

1. Frame Assembly: Begin by assembling the main bed frames (upper and lower) according to the diagrams.
2. Ladder Attachment: Securely attach the ladder to the designated side of the bunk bed.
3. Safety Rail Installation: Install the safety rails on the upper bunk.
4. Slat Installation: Carefully install the wooden slats for both the upper and lower bunks. This step can be laborious.
5. Trundle Bed Assembly: Assemble the trundle bed frame and install its slats.
6. House Frame Assembly: Attach the decorative house-shaped roof frame to the top of the bunk bed.
7. Final Tightening: Once all components are in place, go back and securely tighten all screws and fasteners.

Image: Detailed dimensions of the Moimhear House Bed, showing height, length, width, and trundle bed measurements.

Image: Close-up view of the integrated ladder and the pull-out trundle bed mechanism.

Operating Instructions

Using the Trundle Bed:

1. Pulling Out: Gently pull the trundle bed frame from underneath the lower bunk. It is designed to slide out smoothly on its casters.
2. Pushing In: To store, push the trundle bed back underneath the lower bunk until it is fully recessed. Ensure no bedding or objects obstruct its movement.

Converting to Three Single Beds:

The Moimhear House Bed offers the flexibility to be separated into three individual single beds. Refer to your detailed assembly manual for specific instructions on how to safely disassemble the bunk bed configuration and reassemble the components into three standalone beds. This process typically involves removing the upper bunk from the lower bunk and detaching the trundle bed.

Image: The Moimhear House Bed with trundle bed extended, shown in a decorated child's room.

Maintenance

• Cleaning: Wipe surfaces regularly with a soft, damp cloth. Dry immediately with a clean, dry cloth. Avoid using furniture polish, wax, or oil-based cleaners.
• Hardware Check: Periodically check all screws, bolts, and fasteners to ensure they remain tight. Re-tighten as necessary to maintain structural integrity and safety.
• Avoid Harsh Chemicals: Do not use harsh chemicals, abrasive cleaners, or solvents on any part of the bed, as this can damage the finish and material.
• Environmental Conditions: Avoid placing the bed in direct sunlight or near heat sources, which can cause wood to dry out, crack, or warp. Maintain a stable room temperature and humidity.
• Moving the Bed: When moving the bed, always lift it rather than dragging it to prevent damage to the frame and floor.

Troubleshooting

Issue: Bed feels wobbly or unstable after assembly.

Solution: Ensure all screws and fasteners are fully tightened. Go over each connection point and tighten securely. Avoid over-tightening, which can strip screws or damage wood. Check that all components are correctly aligned according to the assembly manual.

Issue: Missing parts or damaged components upon delivery.

Solution: If your package arrived in two separate boxes, confirm both have been received. If parts are still missing or damaged, contact Moimhear customer service immediately with your purchase details and a list of the affected parts. Do not attempt to assemble with missing or damaged parts.

Issue: Assembly takes longer than expected.

Solution: Assembly time estimates are approximate. Take your time and follow the instructions carefully. Having a second person assist can significantly speed up the process, especially for larger components and slat installation. Ensure you have the correct tools.

Issue: Trundle bed does not slide smoothly.

Solution: Check for any obstructions underneath the bed. Ensure the casters are clean and free of debris. Verify that the trundle bed frame was assembled correctly and is not warped.

Specifications

Image: Front view of the Moimhear House Bed, showcasing the bunk bed structure and trundle bed.

Image: End view of the Moimhear House Bed, highlighting the ladder and overall structure.

Warranty and Customer Support

Warranty Information:

Specific warranty details for the Moimhear House Bed are typically provided with your purchase documentation or can be obtained from the retailer. Please retain your proof of purchase for any warranty claims.

Customer Support:

For assistance with assembly, missing parts, or any other product-related inquiries, please contact Moimhear customer service or the retailer from whom you purchased the product. Have your model number (2925812AAW) and purchase date ready when contacting support.

You can often find contact information on the retailer's website or within your order details.
