Introduction
The LEKATO Multi Effects Pedal for Acoustic Guitar is a versatile and compact effects processor designed for acoustic guitarists. It integrates multiple effects, amplifier models, and IR cabinet simulations, offering a wide range of tonal possibilities. This pedal also features Bluetooth connectivity for audio input and USB connectivity for recording to a computer or mobile phone, along with a built-in rechargeable battery for portable use.
Image: The LEKATO Multi Effects Pedal, showcasing its compact design and various control knobs and footswitches. Included are USB and audio cables.
Key Features
- 9 AMP Models & 8 IR CAB: Features 9 amplifier preamps and 8 classic IR cabinet body models, providing diverse sound options.
- Supports Third-Party IR Files: Allows importing up to 8 third-party IR files via USB using the "Cube-Suite" software from the official LEKATO website.
- PRESET/EDIT/LIVE MODE: Offers three operational modes for flexible sound management. Preset mode allows switching between three saved presets. Live mode enables real-time improvisation of tone parameters. Edit mode facilitates fine-tuning and saving of presets.
- Built-in Battery: Equipped with a rechargeable battery, providing 6-8 hours of continuous operation after a 2-hour charge. Supports simultaneous charging and use.
- 3.5mm Headphone Output: Includes a dedicated headphone jack for private practice and monitoring.
- PC/Phone Recording: Supports direct recording to a PC or mobile phone using the included USB cable.
- Bluetooth Function: Enables wireless audio input for playing along with backing tracks from a Bluetooth-enabled device.
Image: An overview of the pedal's classic tone presets and modules, including the AMP module (Compressor, 3-band EQ, Anti-Feedback), Tuner module, Volume adjustment, and IR Cabinet module (8 classic cabinet simulations).
Setup Guide
1. Initial Charging
Before first use, fully charge the pedal using the provided USB cable. Connect the USB cable to the pedal's charging port and a standard USB power adapter (not included) or a power bank. A full charge takes approximately 2 hours and provides 6-8 hours of use.
Image: The pedal highlighting its built-in battery, capable of 6-8 hours of operation on a full charge.
2. Connecting to Guitar and Amplifier
- Connect your acoustic guitar to the pedal's INPUT jack using a standard 1/4-inch instrument cable.
- Connect the pedal's OUTPUT jack to your amplifier or audio interface using another 1/4-inch instrument cable.
- For private practice, connect headphones to the 3.5mm headphone output jack.
Image: A visual guide illustrating the various connection points of the pedal: input from guitar, output to amplifier, headphone output, and USB port for recording or charging.
3. Powering On
Press and hold the power button (usually located on the side or top of the unit) until the indicator lights illuminate. The pedal will typically start in Preset mode.
Operating Instructions
Modes of Operation
The pedal features three primary modes, controlled by the footswitches and specific button combinations:
- Preset Mode: Allows quick switching between three pre-saved tones (Lead, Rhythm, Clean, or user-defined). Use footswitches A, B, and C to select presets.
- Live Mode: Enables real-time adjustment of effect parameters using the control knobs. This mode is ideal for on-the-fly sound shaping during performance.
- Edit Mode: Used to fine-tune and save your custom presets. Enter this mode to adjust individual effect parameters and store them to one of the three preset slots.
Image: The pedal illustrating its LIVE, PRESET, and EDIT modes, with descriptions of how each mode functions for tone management.
Effect Parameters and Controls
The pedal features several knobs and footswitches for controlling various effects and parameters:
- VOLUME: Adjusts the overall output volume.
- IR CAB: Selects or adjusts the Impulse Response cabinet simulation.
- TIME: Controls the delay time for time-based effects.
- SPACE: Adjusts parameters related to reverb or spatial effects.
- MOD: Controls modulation effects like Chorus or Tremolo.
- ANTI-FB: Adjusts the anti-feedback function.
- COMP: Controls the compressor effect.
- BASS, MID, TREB: Equalizer controls for low, mid, and high frequencies.
- FB-EQ: Feedback equalizer control.
- Footswitches A, B, C: Used for preset selection, mode switching, and tuner activation (hold B+C).
- HOLD BT: Button to activate Bluetooth pairing.
- HOLD TUNER: Button to activate the built-in tuner.
Bluetooth Connectivity
To play music accompaniment through the pedal:
- Press and hold the "HOLD BT" button until the Bluetooth indicator light flashes.
- On your mobile device (phone, tablet), search for Bluetooth devices and select "cube baby" to pair.
- Once connected, audio from your device will play through the pedal's output, allowing you to play along.
Image: The pedal demonstrating its wireless audio input capability, showing a smartphone connected via Bluetooth for playing accompaniment.
Recording Function
The pedal supports direct recording to a computer or mobile phone:
- Connect the pedal to your computer or mobile phone using the included USB cable.
- Ensure your recording software or application is properly configured to recognize the pedal as an audio input device.
- Start recording in your chosen software. The pedal will send its processed audio signal to your device.

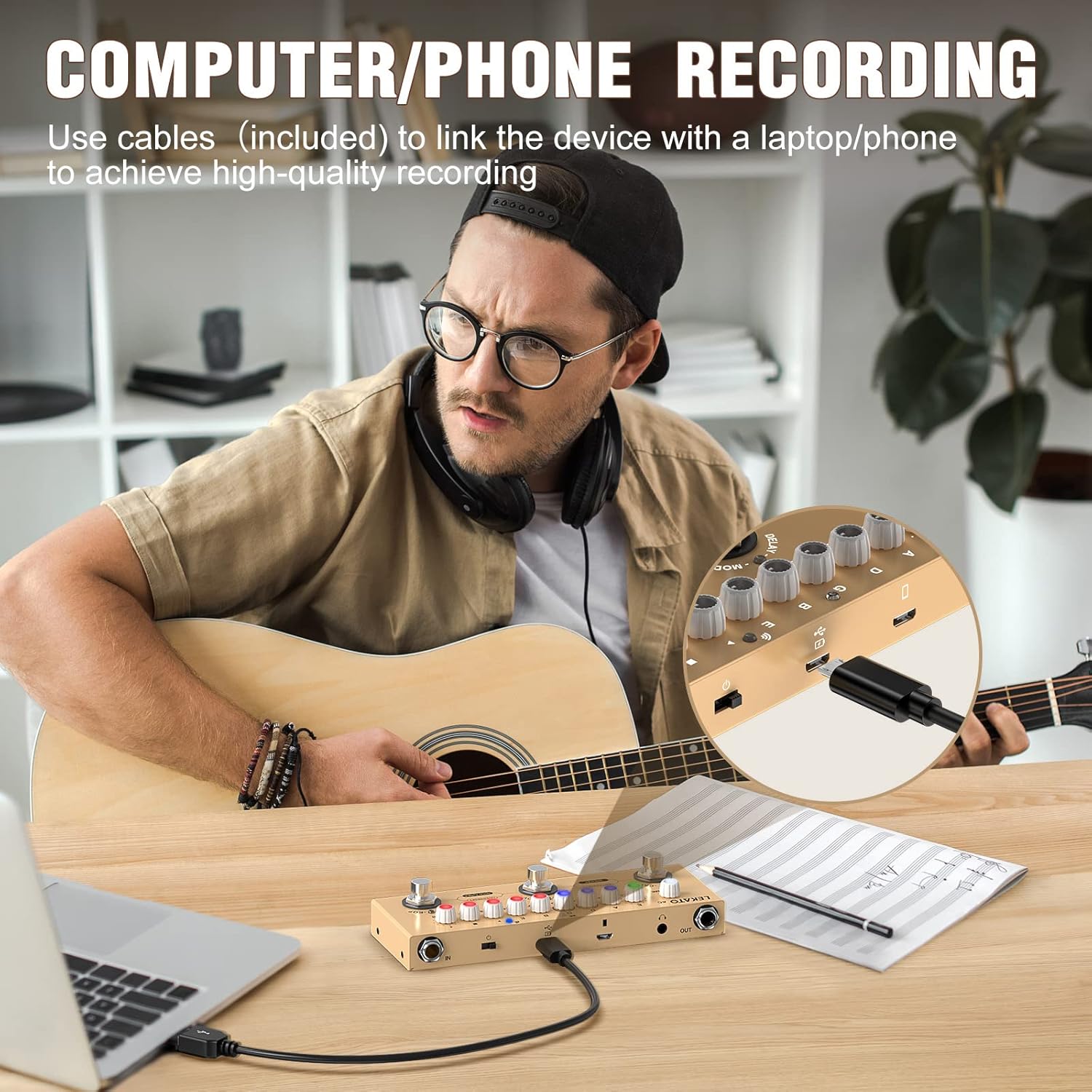

Image: A user demonstrating the computer/phone recording feature, with the pedal connected to a laptop via USB for high-quality audio capture.
IR Loading
To load or replace third-party IR files, download the "Cube-Suite" software from the official LEKATO website. Connect the pedal to your computer via USB and follow the software instructions to manage your IR files.
Maintenance
- Cleaning: Use a soft, dry cloth to clean the pedal's surface. Avoid using abrasive cleaners or solvents.
- Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Charge the pedal regularly, even if not in constant use. If storing for an extended period, charge the battery to about 50% capacity.
- Storage: Store the pedal in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity.
- Handling: Handle the pedal with care to prevent damage from drops or impacts.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound output | Incorrect cable connections; Pedal not powered on; Amplifier/guitar volume too low; Effect bypass engaged. | Check all cable connections (input/output); Ensure pedal is powered on; Increase amplifier/guitar volume; Check pedal's mode and ensure an effect is active. |
| Poor sound quality / Noise | Incorrect gain staging; Damaged cables; Interference from other electronics; Low battery. | Adjust input/output levels; Try different cables; Move pedal away from power supplies or other electronic devices; Recharge the battery. |
| Bluetooth connection issues | Pedal not in pairing mode; Device too far; Interference. | Ensure pedal is in Bluetooth pairing mode (flashing light); Bring device closer to the pedal; Restart both pedal and Bluetooth device. |
| Pedal not charging | Faulty USB cable/adapter; Charging port issue. | Try a different USB cable and power adapter; Ensure the charging port is clean and undamaged. |
Technical Specifications
- Model Number: BC-01421AN
- Dimensions: 6.33 x 2.36 x 1.18 inches (16.08 x 5.99 x 3.00 cm)
- Weight: 12 ounces (340 grams)
- Battery Type: 1 Lithium Polymer battery (included)
- Battery Life: 6-8 hours (approx.)
- Charging Time: 2 hours (approx.)
- Power Source: Battery Powered
- Voltage: 9 Volts
- Hardware Interface: Bluetooth, USB
- Signal Format: Analog
- Effects Included: Chorus, Tremolo, Delay, Reverb, Compressor, EQ, Anti-Feedback
- AMP Models: 9
- IR CAB Models: 8 (supports third-party IR loading)
