XINDUM Wireless Interlinked Smoke and Heat Alarm System User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your XINDUM Wireless Interlinked Smoke and Heat Alarm System. This system is designed to provide early warning of fire hazards, enhancing the safety of your home. Please read this manual thoroughly before installation and keep it for future reference.

2. Safety Information

• Do not paint the alarm. Paint can block the openings and interfere with the sensor's ability to detect smoke or heat.
• Do not install in areas with high humidity, excessive dust, or extreme temperatures.
• Test the alarms regularly, at least once a month, to ensure proper operation.
• Never ignore an alarm. Investigate the cause immediately.
• Ensure all family members know what to do in case of a fire alarm.
• The alarms are sealed units with a 10-year battery. Do not attempt to open or replace the battery.

3. Package Contents

Verify that all items are present in your package:

• 2 × Wireless Interlinked Smoke Alarms
• 1 × Wireless Interlinked Heat Alarm
• 1 × Remote Controller
• Adhesive Pads for mounting
• Screw Kits for mounting
• User Manual (this document)

4. Product Overview

4.1 Smoke Alarm

The smoke alarm features a photoelectric sensor for rapid detection of smoldering fires. It includes a power/test/mute button, an 85dB audible alarm, and a 10-year sealed lithium battery. The casing is made from fire-resistant ABS material.

Key components include the buzzer for the alarm sound, a combined power/test/mute button, an LED indicator for status, and smoke entrance vents. It is powered by two CR14505 lithium batteries with a total capacity of 3200mAh, providing a 10-year lifespan.

4.2 Heat Alarm

The heat alarm uses a thermistor sensor to detect rapid temperature increases or temperatures above 54℃. Similar to the smoke alarm, it features a buzzer, a power/test/mute button, an LED indicator, and a 10-year sealed lithium battery (2x CR14505, 3200mAh).

4.3 Remote Controller

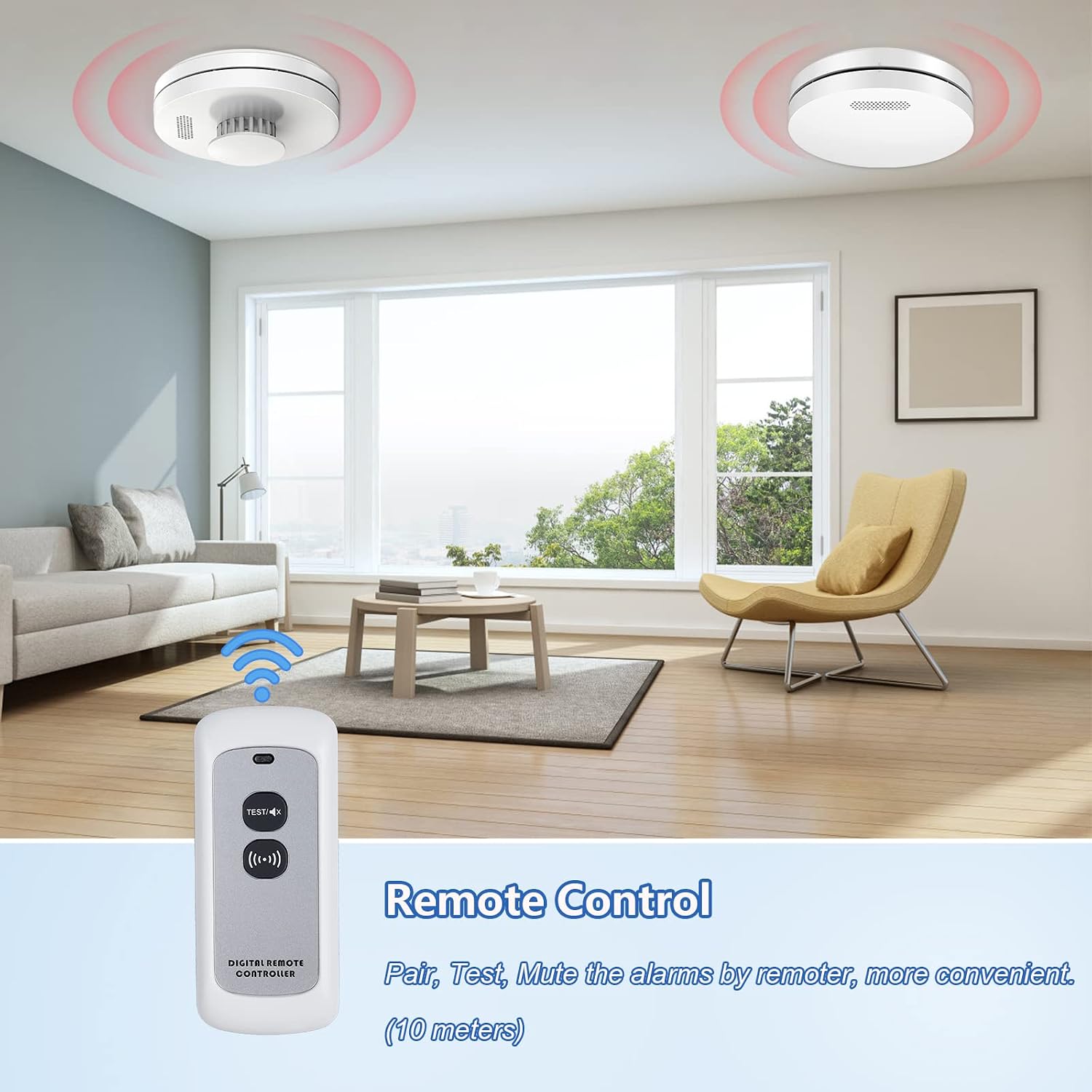

The remote controller allows for convenient pairing, testing, and muting of the alarms from a distance of up to 10 meters. This eliminates the need to reach the alarms directly, especially when mounted on high ceilings.

5. Setup

5.1 Battery Activation

The alarms come with pre-installed, sealed 10-year lithium batteries. Upon first use, the alarms are typically activated by removing a small plastic tab or by rotating the alarm onto its mounting bracket. Refer to the specific instructions on the alarm unit for activation.

5.2 Mounting the Alarms

You can mount the alarms using either the provided screw kits or double-sided adhesive pads. For a secure and permanent installation, screw mounting is recommended.

1. Choose a suitable location (refer to Section 6: Placement Guidelines).
2. For screw mounting: Mark the drill holes using the mounting bracket. Drill holes, insert wall plugs (if necessary), and secure the bracket with screws. Attach the alarm to the bracket by twisting it clockwise until it clicks into place.
3. For adhesive pad mounting: Ensure the mounting surface is clean, dry, and smooth. Peel the protective film from one side of the adhesive pad and attach it to the back of the alarm. Peel the other side and firmly press the alarm onto the desired ceiling or wall location for at least 30 seconds.

The smoke alarm has a diameter of 120mm and a height of 31.5mm. The heat alarm has a diameter of 120mm and a height of 47mm.

5.3 Interlinking the Alarms

Your alarms are typically pre-linked from the factory. If you need to add more alarms or re-link them, follow these steps:

1. Ensure all alarms are powered on.
2. Press the 'Pair' button on the remote controller. The LED indicators on the alarms should flash, indicating they are in pairing mode.
3. Once paired, the alarms will confirm with a beep or a specific LED pattern.
4. The maximum interlink quantity is 30 alarms per group, with a linkable distance of up to 100m in open outdoor areas.

6. Placement Guidelines

Proper placement is crucial for effective fire detection.

• Smoke Alarms: Install in bedrooms, hallways, living rooms, and on every level of your home. For optimal protection, place one inside each sleeping area and outside each separate sleeping area.
• Heat Alarms: Ideal for kitchens, garages, and other areas where smoke alarms might trigger false alarms due to cooking fumes, steam, or vehicle exhaust. Heat alarms are less prone to nuisance alarms in these environments.
• Avoid: Placing alarms near windows, doors, or air vents where drafts could interfere with smoke/heat reaching the sensor. Also avoid dead air spaces, such as the peak of a vaulted ceiling or corners where walls and ceilings meet.

7. Operating Instructions

7.1 Testing the Alarms

Test your alarms weekly or at least monthly to ensure they are functioning correctly.

• Manual Test: Press and hold the Power/Test/Mute button on each alarm for a few seconds. The alarm will sound, and the LED will flash. If interlinked, all connected alarms should also sound.
• Remote Control Test: Press the 'Test' button on the remote controller. All interlinked alarms will sound.

7.2 Mute/Silent Function

In case of a nuisance alarm (e.g., from cooking fumes), you can temporarily silence the alarm.

• Manual Mute: Press the Power/Test/Mute button on the alarming unit.
• Remote Control Mute: Press the 'Mute' button on the remote controller.

The alarm will silence for a short period (e.g., 5-10 minutes) and then automatically reset. If the smoke/heat is still present, the alarm will sound again.

7.3 Alarm Indications

• Alarm State: Loud 85dB pulsating sound and rapid flashing LED.
• Normal Operation: LED flashes briefly every 60 seconds.
• Low Battery: The alarm will chirp periodically (e.g., every 60 seconds) and the LED will flash. Since these are 10-year sealed batteries, this indicates the end of the product's life and the unit should be replaced.

8. Maintenance

8.1 Cleaning Your Alarms

Dust and debris can accumulate on the alarms and affect their performance. Clean your alarms at least once a month.

• Gently vacuum the alarm's cover and vents using a soft brush attachment.
• Do not use water, cleaning solutions, or solvents, as these can damage the unit.

8.2 Battery Life

The alarms are equipped with a sealed 10-year lithium battery. This means the battery is designed to last for the entire lifespan of the alarm. When the low battery warning sounds, the entire alarm unit must be replaced.

9. Troubleshooting

10. Specifications

• Brand: XINDUM
• Model: Wireless Interlinked Smoke and Heat Alarm System
• Power Source: Battery Powered (2 × CR14505 Lithium battery, 3200mAh, sealed for 10 years)
• Voltage: 3 Volts (DC)
• Sound Level: 85 Decibels
• Smoke Sensor Type: Photoelectric
• Heat Sensor Type: Thermistor (triggers above 54℃)
• Interlink Quantity: Up to 30 units per group
• Interlink Distance: Up to 100m (open outdoor)
• Remote Control Range: 10m
• Smoke Alarm Dimensions: 120mm (diameter) × 31.5mm (height)
• Heat Alarm Dimensions: 120mm (diameter) × 47mm (height)
• Weight: Approximately 452 Grams (total package)
• Compliance: EN14604:2005/AC2008, BS 5446-2:2003

11. Warranty and Support

For warranty information or technical support, please refer to the retailer or contact XINDUM customer service through the platform where the product was purchased. Keep your purchase receipt as proof of purchase.
