1. Safety Information
Please read and understand all instructions before beginning installation. Failure to follow these instructions could result in electric shock, fire, or personal injury.
- Ensure the power is turned off at the circuit breaker before installation or maintenance.
- All wiring must be in accordance with national and local electrical codes.
- Consult a qualified electrician if you are unsure about wiring procedures.
- The mounting structure must be capable of supporting the weight of the fan (approximately 25 lbs).
- Do not bend the blade holders during installation or cleaning.
- Keep children away from the fan during operation.
2. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- Ceiling Fan Unit (with integrated DC motor and blades)
- Light Kit (with E26 bulb sockets)
- Remote Control
- Downrods (12.5cm and 20cm lengths)
- Mounting Bracket
- Hardware Pack (screws, wire nuts, washers)
- User Manual
- 5 x E26 LED Bulbs (Complimentary)
Image: Detailed view of the fan's internal structure, showing the double-layer design, reversible motor, electroplated finish, and the five included E26 LED bulbs.
3. Installation
Follow these steps carefully for proper installation. It is recommended to have two people for installation.
3.1 Pre-Installation
- Turn off power at the main circuit breaker.
- Identify the mounting location. Ensure it is structurally sound and can support the fan.
- Unpack all components and lay them out on a soft surface to prevent scratches.
3.2 Mounting Options
This fan supports both standard downrod mount and sloped ceiling mount (up to 15 degrees).
Image: Examples of the fan installed with a sloped ceiling mount (up to 15 degrees) and a standard downrod mount.
3.3 Wiring
- Connect the fan's electrical wires to the household wiring according to the provided wiring diagram in the detailed instructions.
- Ensure all connections are secure using wire nuts.
3.4 Final Assembly
- Attach the fan body to the mounting bracket.
- Install the E26 LED bulbs into the light kit sockets.
- Secure any decorative covers.
For a visual guide, refer to the official installation video:
Video: SHIHOT Caged ceiling fan with white bulbs. This video demonstrates the appearance and basic functionality of the fan with white bulbs.
4. Operating Instructions
The SHIHOT ceiling fan is operated using the included remote control or a compatible mobile application.
4.1 Remote Control Functions

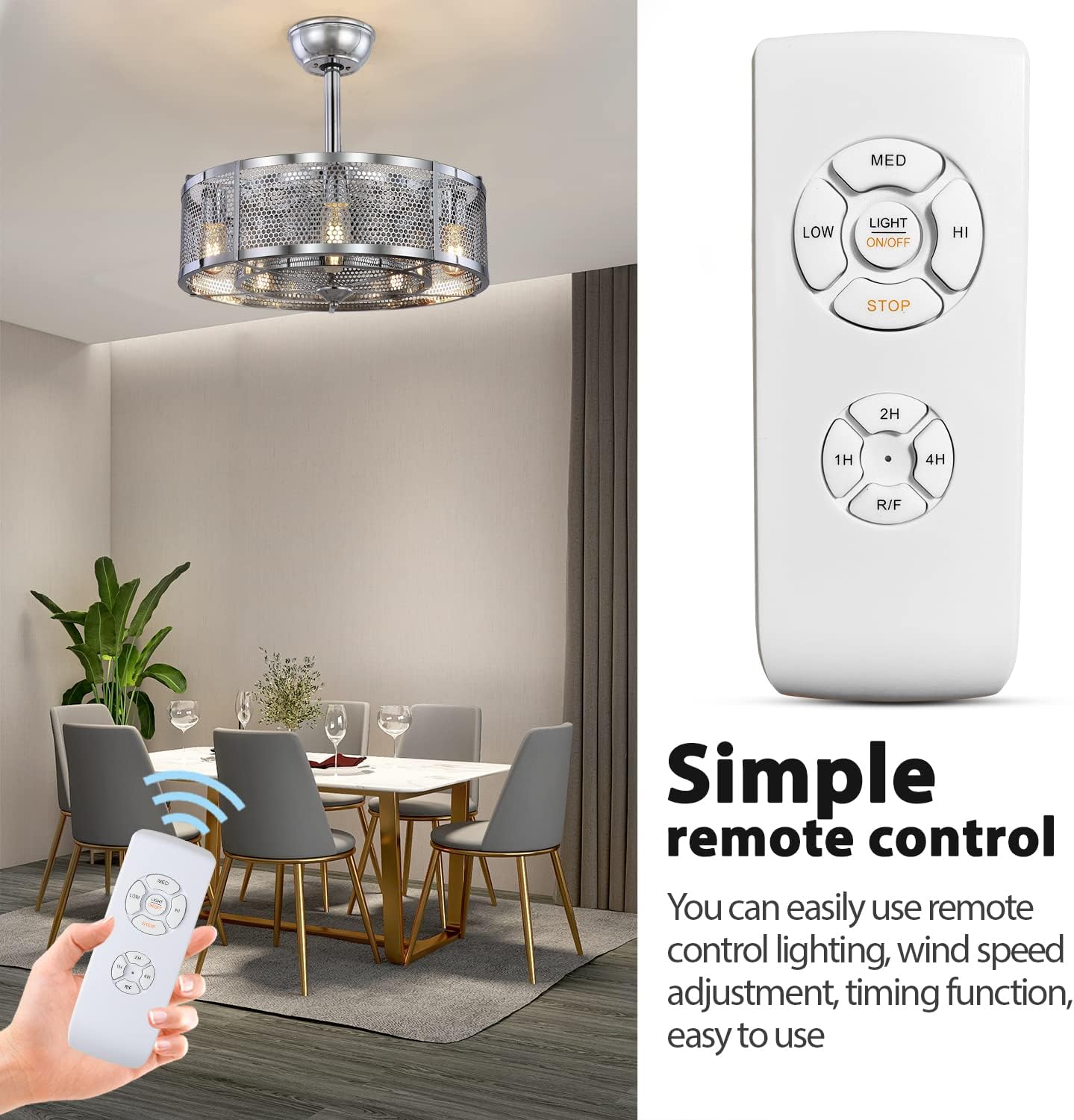

Image: The remote control for the SHIHOT ceiling fan, illustrating buttons for light control, fan speed, timer, and reverse function.
- Light ON/OFF: Press to turn the light on or off.
- Light Color Temperature: Adjusts between 3000K (warm light) and 6000K (white light).
- Fan Speed: Select from 6 speeds (Low, Mid, High). Press 'STOP' to turn off the fan.
- Timer Setting: Set the fan to turn off automatically after 1 hour, 2 hours, or 4 hours.
- Reverse Function (R/F): Changes the direction of the fan blades.
Image: Comparison of the fan's lighting, showing both white light and warm light options.
4.2 Reversible Function (Summer/Winter Modes)
The fan features a reversible motor for year-round comfort.
- Summer Mode (Downdraft): Blades rotate counter-clockwise, pushing cool air down to create a cooling effect.
- Winter Mode (Updraft): Blades rotate clockwise, drawing air up to circulate warm air trapped near the ceiling, helping to warm the room.
Image: Visual representation of the fan's summer (downdraft) and winter (updraft) modes.
Video: SHIHOT silver caged ceiling fans. This video showcases the fan's operation and design in a silver finish.
5. Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: Periodically clean the fan with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure power is off before cleaning.
- Blade Cleaning: Due to the caged design, cleaning the internal blades may require a soft brush or compressed air.
- Tightening Screws: Check all screws and connections annually to ensure they are secure.
- Light Bulb Replacement: Replace E26 bulbs as needed. Ensure the power is off and bulbs have cooled before handling.
6. Troubleshooting
If you encounter issues, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power supply; Loose wire connections; Remote control battery low. | Check circuit breaker; Verify all wiring connections; Replace remote control battery. |
| Light does not work | Loose wire connections; Faulty bulb; No power supply. | Check wiring; Replace bulb; Check circuit breaker. |
| Fan is noisy | Loose screws; Improper mounting; Motor issue. | Tighten all screws; Re-check mounting for stability; Contact customer support if motor noise persists. |
| Remote control not working | Battery low/dead; Remote not paired; Obstruction. | Replace battery; Refer to pairing instructions in the full manual; Ensure clear line of sight to fan receiver. |
If the problem persists after attempting these solutions, please contact SHIHOT customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | 8203 |
| Size | 42 inches (diameter) |
| Material | Iron |
| Color | Silver |
| Motor Type | DC Noiseless Motor |
| Fan Speeds | 6 (Low, Mid, High) |
| Light Source | LED (E26 sockets) |
| Light Color Temperature | 3000K - 6000K (Dimmable) |
| Voltage | 120 Volts (AC) |
| Wattage | 25 watts |
| Control Method | Remote Control / APP |
| Mounting Type | Ceiling Mount (Downrod, Sloped up to 15 degrees) |
| Boom Lengths | 12.5cm, 20cm |
Image: Dimensional drawing of the fan, showing its overall size and recommended room dimensions.
8. Warranty and Support
For warranty information or technical support, please contact SHIHOT customer service.
- Refer to your purchase documentation for specific warranty terms and conditions.
- When contacting support, please have your model number (8203) and purchase date available.
For additional information and product registration, visit the official SHIHOT store: SHIHOT Store on Amazon
