1. Introduction
Thank you for choosing the KOTLIE AC-513K Single-Serve Coffee Maker. This versatile appliance is designed to brew your favorite coffee using K-cups, Nespresso capsules, or ground coffee. Please read this manual thoroughly before operating the machine to ensure safe and efficient use. Keep this manual for future reference.
2. Important Safety Instructions
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet.
- Do not use appliance for other than intended use.
3. Package Contents
Verify that all items are present and in good condition:
- KOTLIE AC-513K Coffee Maker Main Unit
- K-Cup Adapter
- Nespresso Capsule Adapter
- Ground Coffee Filter Basket
- Coffee Scoop with Tamper
- Removable Drip Tray
- Instruction Manual (this document)
4. Product Overview
Familiarize yourself with the components of your KOTLIE coffee maker.
Figure 1: KOTLIE AC-513K Coffee Maker in operation, showing coffee dispensing into a cup.

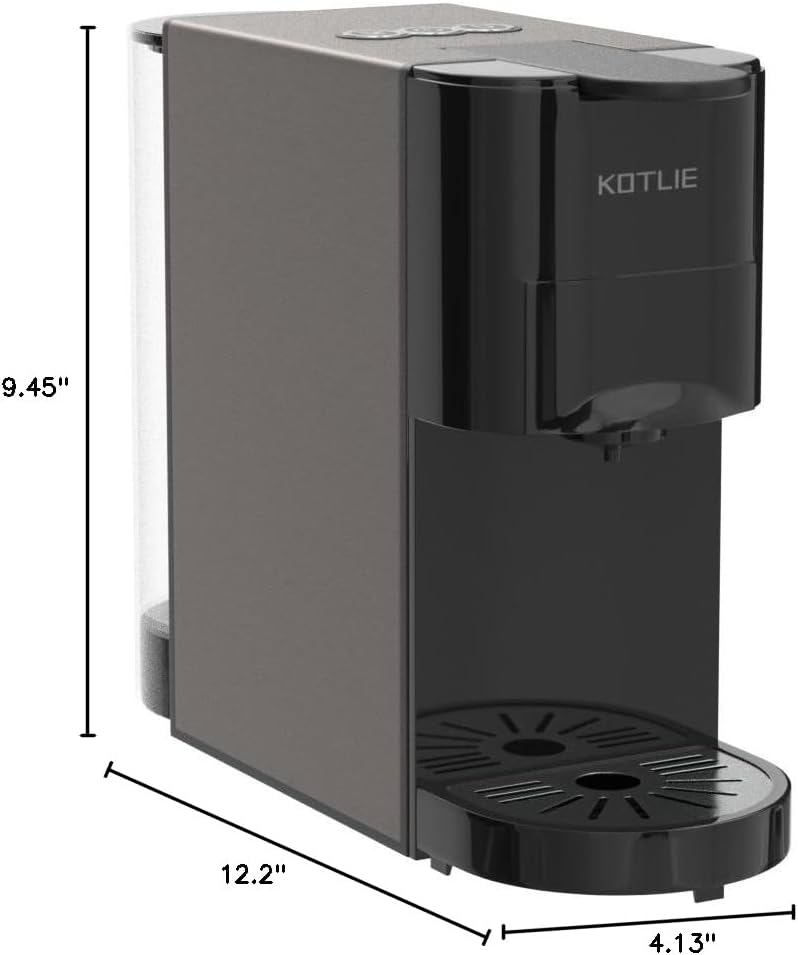

Figure 2: Side view of the KOTLIE AC-513K Coffee Maker with key dimensions.
Key Components:
- Water Tank: Located at the back, easily removable for filling and cleaning.
- Control Panel: Features three buttons for power, small cup brew, and large cup brew.
- Brew Head: Where the coffee capsule or ground coffee filter is inserted.
- Drip Tray: Removable for cleaning and to accommodate taller cups.
- Adapters: Separate adapters for K-cups, Nespresso capsules, and ground coffee.
5. Initial Setup
- Unpack: Carefully remove all packaging materials and ensure all components are present.
- Clean Components: Wash the water tank, drip tray, and all adapters/filter baskets with warm, soapy water. Rinse thoroughly and dry.
- Fill Water Tank: Remove the water tank from the back of the machine. Fill it with fresh, cold water up to the MAX line. Replace the tank securely.
- Initial Rinse Cycle: Before first use, perform a rinse cycle without any coffee. Place a large cup on the drip tray. Press the power button to turn on the machine. Once the indicator lights are steady, press the large cup brew button. Allow the machine to dispense a full cup of hot water. Discard the water. Repeat this process 2-3 times to clean the internal system.
6. Operating Instructions
General Operation:
- Ensure the water tank is filled with fresh water.
- Place your cup on the drip tray. For taller cups, the drip tray can be removed.
- Press the power button (red indicator) to turn on the machine. The indicator lights for brew sizes will flash while heating, then become steady when ready.
Brewing with K-Cups:
- Lift the brew head lever.
- Insert the K-cup adapter into the brew head.
- Place a K-cup into the adapter.
- Close the brew head lever firmly until it clicks.
- Select your desired brew size (small or large cup button). The machine will begin brewing.
Brewing with Nespresso Capsules:
- Lift the brew head lever.
- Insert the Nespresso capsule adapter into the brew head.
- Place a Nespresso capsule into the adapter.
- Close the brew head lever firmly until it clicks.
- Select your desired brew size (small or large cup button). The machine will begin brewing.
Video 1: Demonstration of brewing with a Nespresso capsule in the KOTLIE AC-513K coffee maker. The video shows the process of inserting the capsule and initiating the brew cycle, resulting in a rich espresso shot.
Brewing with Ground Coffee:
- Lift the brew head lever.
- Insert the ground coffee filter basket into the brew head.
- Add your desired amount of ground coffee to the filter basket. Use the provided scoop and tamper to level the grounds.
- Close the brew head lever firmly until it clicks.
- Select your desired brew size (small or large cup button). The machine will begin brewing.
Video 2: A user demonstrates the ease of brewing espresso with the KOTLIE AC-513K coffee maker, highlighting its functionality for different coffee types.
Adjusting Cup Size:
The KOTLIE AC-513K features a removable drip tray. If your mug is too tall to fit under the dispenser, simply remove the drip tray to create more space.
7. Maintenance
Daily Cleaning:
- Drip Tray: Empty and rinse the drip tray after each use. It is designed to catch any drips or spills.
- Brew Head & Adapters: After brewing, carefully remove the used capsule/filter and rinse the adapter/filter basket under running water. Wipe the brew head area with a damp cloth.
Water Tank:
The water tank can be easily removed for refilling and cleaning. Wash it periodically with warm, soapy water and rinse thoroughly.
Descaling:
Over time, mineral deposits can build up in your coffee maker, affecting performance. Descale your machine every 3-6 months, or more frequently if you have hard water. Follow these general steps:
- Empty the water tank and fill it with a descaling solution (e.g., white vinegar and water, or a commercial descaling agent) according to the solution's instructions.
- Place a large container under the dispenser.
- Run several large cup brew cycles until the water tank is empty.
- Rinse the water tank and fill it with fresh water.
- Run several large cup brew cycles with fresh water to rinse out any remaining descaling solution.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on. | Not plugged in; power outlet malfunction. | Ensure the power cord is securely plugged into a working outlet. |
| No water dispenses. | Water tank is empty; airlock in the system. | Fill the water tank. Run a rinse cycle without a capsule/filter to prime the pump. |
| Coffee is weak or watery. | Insufficient coffee grounds/incorrect capsule; machine needs descaling. | Use more coffee grounds or a stronger capsule. Perform a descaling cycle. |
| Leaking from the machine. | Capsule/filter not properly seated; water tank not secure. | Ensure the capsule/filter is correctly inserted and the brew head is fully closed. Check that the water tank is securely in place. |
9. Specifications
- Brand: KOTLIE
- Model Name: AC-513K
- Product Dimensions: 12.2"D x 4.13"W x 9.45"H
- Item Weight: 7.19 pounds
- Capacity: 800 Milliliters
- Coffee Maker Type: Espresso Machine
- Operation Mode: Manual
- Included Components: Filter
- Color: Red (Note: Product images show black/silver, but specifications list Red. Please refer to your specific product packaging.)
10. Warranty and Support
For warranty information or technical support, please refer to the contact details provided on your product packaging or visit the official KOTLIE website. Keep your proof of purchase for warranty claims.
