CLEANmaxx Carpet Cleaner User Manual

1. Introduction

Thank you for choosing the CLEANmaxx Carpet Cleaner. This 3-in-1 device is engineered to provide thorough washing, cleaning, and vacuuming for your carpets, rugs, and upholstery. With its powerful 800W motor, vibrating brushes, and convenient dual-tank system, it simplifies the process of removing dirt and refreshing your home's textiles. Please read this manual carefully before first use to ensure safe and optimal operation of your appliance.

Figure 1: The CLEANmaxx Carpet Cleaner main unit, showcasing its upright design and integrated tanks.

2. Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.

• Read all instructions before using the appliance.
• Do not immerse the appliance in water or other liquids.
• Do not use outdoors or on wet surfaces.
• Unplug from outlet when not in use and before cleaning or servicing.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without tanks in place.

3. Package Contents

Please check the contents of your package to ensure all parts are present and undamaged:

• CLEANmaxx Carpet Cleaner Main Unit
• Handle Assembly
• Clean Water Tank (1.5 L capacity)
• Dirty Water Recovery Tank (1.4 L capacity)
• User Manual

Figure 2: The CLEANmaxx Carpet Cleaner shown with its retail packaging, indicating the complete product.

4. Setup and Assembly

Follow these steps to assemble your CLEANmaxx Carpet Cleaner before first use:

1. Unpack the Appliance: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
2. Assemble the Handle: Insert the handle assembly into the main unit until it clicks securely into place. Ensure it is firmly attached to prevent wobbling during operation.
3. Fill the Clean Water Tank: Detach the clean water tank (upper tank) from the main unit. Open the cap and fill it with clean water. For enhanced cleaning, you may add a suitable carpet cleaning solution as per the solution manufacturer's instructions. Do not overfill.
4. Attach Tanks: Ensure both the clean water tank and the dirty water recovery tank (lower tank) are correctly seated and locked into their respective positions on the main unit.

Figure 3: Illustration of the clean water tank (1.5 L) and dirty water tank (1.4 L) on the CLEANmaxx Carpet Cleaner.

5. Operating Instructions

The CLEANmaxx Carpet Cleaner offers 3-in-1 functionality for comprehensive carpet care.

5.1. Washing and Cleaning

This mode is ideal for deep cleaning and removing stubborn stains.

1. Ensure the clean water tank is filled and the dirty water tank is empty and correctly installed.
2. Plug the appliance into a suitable power outlet.
3. Turn on the power switch. The vibrating brushes will activate.
4. Slowly push the cleaner forward over the carpet while pressing the solution trigger (if applicable) to dispense cleaning solution.
5. Pull the cleaner backward over the same area without pressing the trigger to allow the powerful suction to remove the dirty water.
6. Repeat passes as necessary until the area is clean.

Figure 4: The CLEANmaxx Carpet Cleaner actively cleaning, illustrating the removal of dirt particles from carpet fibers.

5.2. Vacuuming (Dry Suction)

While primarily a wet cleaner, the powerful suction can also be used for dry vacuuming light debris, though it is optimized for wet extraction.

1. Ensure both tanks are empty and clean for dry use.
2. Plug in and turn on the appliance.
3. Move the cleaner over the desired area. The suction will pick up loose dirt.

5.3. Versatile Application

The CLEANmaxx Carpet Cleaner is designed for use on various carpet types, rugs, and even stairs.

• Carpets and Rugs: Ideal for refreshing and deep cleaning large carpeted areas and individual rugs.
• Stairs: Its maneuverable design allows for effective cleaning of carpeted stairs.

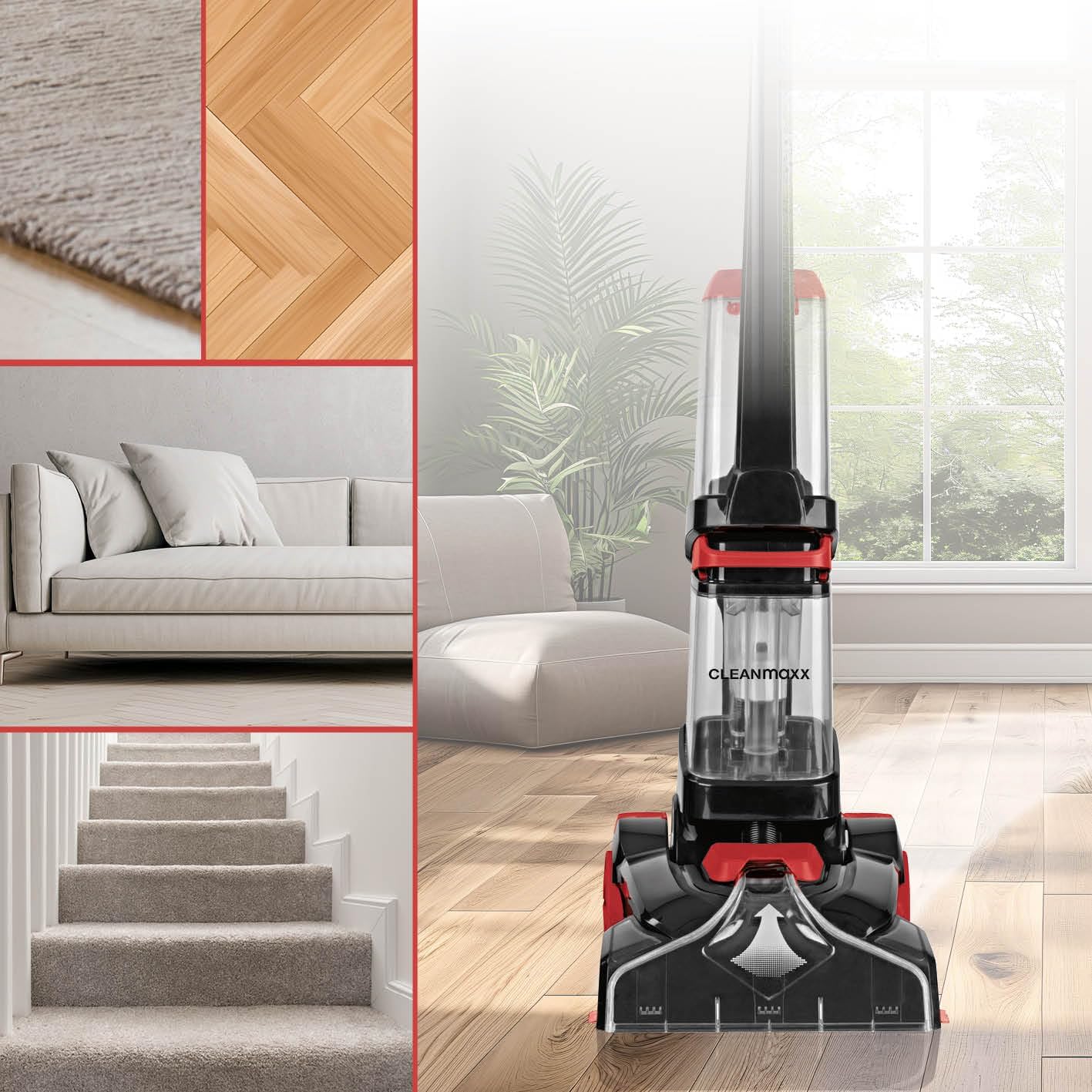

Figure 5: The CLEANmaxx Carpet Cleaner is suitable for various floor types, including carpets, wood floors, and stairs.

Figure 6: The cleaner effectively tackles common household stains such as coffee spills, muddy paw prints, and general dirt.

6. Maintenance and Care

Regular maintenance ensures the longevity and optimal performance of your CLEANmaxx Carpet Cleaner.

6.1. After Each Use

1. Empty Dirty Water Tank: Detach the dirty water recovery tank and empty its contents into a sink or drain. Rinse the tank thoroughly with clean water.
2. Clean Brushes: Inspect the vibrating and side brushes for any tangled hair or debris. Remove any obstructions carefully. You may use a damp cloth to wipe the brush area.
3. Rinse Clean Water Tank: If any cleaning solution remains, empty and rinse the clean water tank.
4. Wipe Down Exterior: Use a soft, damp cloth to wipe the exterior of the appliance. Do not use abrasive cleaners.

Figure 7: Close-up view of the CLEANmaxx Carpet Cleaner's brush mechanism, highlighting its deep cleaning capabilities.

6.2. Storage

Store the CLEANmaxx Carpet Cleaner in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure both tanks are empty and dry before storage to prevent mold or mildew growth.

7. Troubleshooting

If you encounter issues with your CLEANmaxx Carpet Cleaner, refer to the following table for common problems and solutions:

8. Product Specifications

9. Warranty and Customer Support

For information regarding warranty coverage, returns, or technical support, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your proof of purchase for any warranty claims.

For further assistance, please visit the official CLEANmaxx website or contact their customer service department.
