1. Introduction
Thank you for choosing the KIBI Cube Floor Mount Tub Filler with Hand Shower. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new faucet. Please read these instructions thoroughly before installation and retain them for future reference.
Image 1.1: KIBI Cube Floor Mount Tub Filler with Hand Shower in Matte Black.
2. Product Overview
The KIBI Cube Floor Mount Tub Filler is designed for durability and functionality, featuring a solid brass construction and a modern matte black finish. It includes a 360° swivel spout and a convenient hand shower.
Key Features:
- Premium Solid Brass Construction: Ensures durability and stability with a robust floor-mount design.
- 360° Swivel Spout: Offers flexibility for various bathing needs.
- Integrated Hand Shower: Includes a 60-inch stainless steel hand shower for targeted rinsing.
- Ceramic Cartridge: Equipped with a Citec or Sedal ceramic cartridge for smooth, leak-free operation.
- Precision Aerator: Features a high-performance Swiss aerator for efficient, splash-free water flow.
- High Flow Rate: Delivers a maximum water flow rate of 5.5 gallons per minute for quick tub filling.
Components:

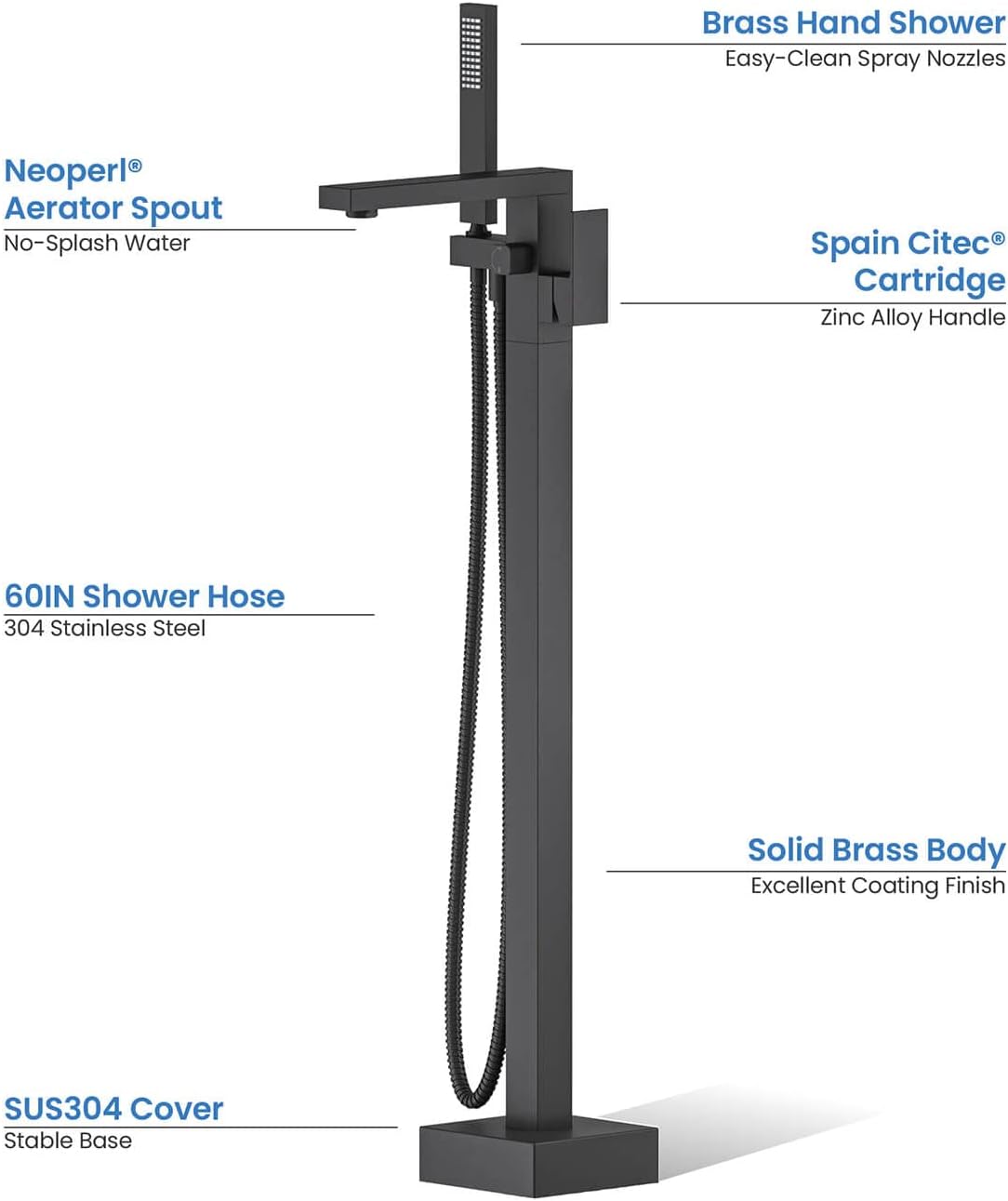

Image 2.1: Diagram illustrating the main components of the KIBI Cube Tub Filler, including the brass hand shower with easy-clean spray nozzles, Neoperl aerator spout for no-splash water, Spain Citec cartridge with zinc alloy handle, 60-inch 304 stainless steel shower hose, solid brass body with excellent coating finish, and SUS304 cover for a stable base.
Image 2.2: Detail of the solid brass body construction, highlighting the high-quality structure and Neoperl check valves designed to prevent water reflow, ensuring durability and corrosion resistance.
Image 2.3: Close-up of the Neoperl Aerator spout, demonstrating how it infuses air into the water stream to provide a no-splash, comfortable filling experience for the tub.

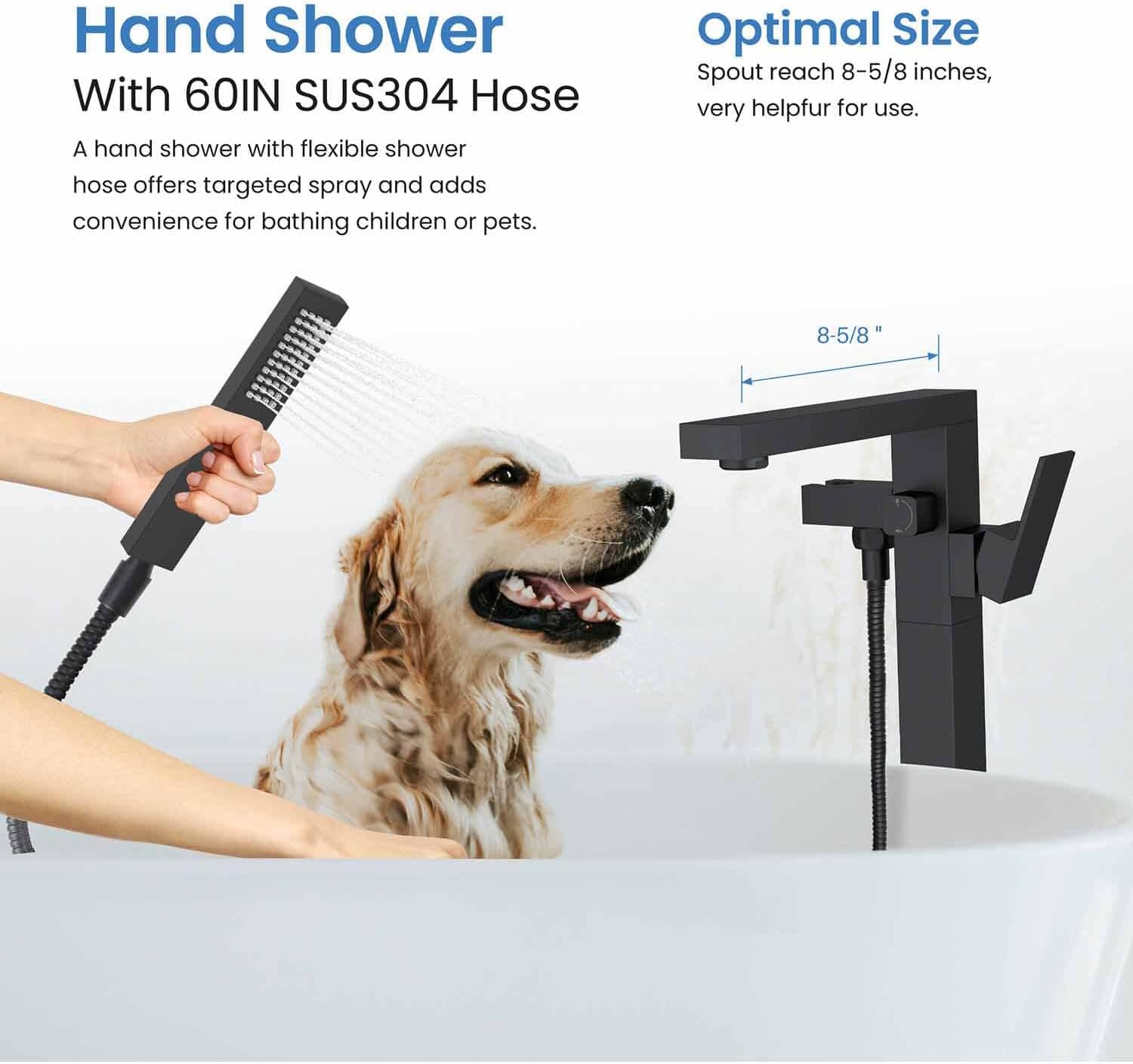

Image 2.4: The flexible hand shower with its 60-inch SUS304 hose, shown providing a targeted spray for tasks such as bathing pets.
Image 2.5: The brass hand shower features speed-clean silicone nozzles that deliver a fine, dense, and uniform spray, suitable for gentle use, such as bathing infants.
3. Specifications
Detailed specifications for the KIBI Cube Floor Mount Tub Filler (Model KTF302).
| Feature | Detail |
|---|---|
| Brand | KIBI |
| Model Number | KTF302 |
| Color | Matte Black |
| Material | Brass, Stainless Steel |
| Finish Type | Matte |
| Number of Handles | 1 |
| Mounting Type | Floor Mount |
| Included Components | 1/2-Inch Collet, Tripod Bracket |
| Item Weight | 16 pounds |
| Product Dimensions | 5.88 x 10.25 x 40.88 inches |
| Flow Rate | 5.5 GPM (Gallons Per Minute) |
| UPC | 842708120761 |
Image 3.1: Critical dimensions of the KIBI Cube Floor Mount Tub Filler in inches and millimeters, providing measurements for height, spout reach, and base size.
4. Setup and Installation
This tub filler is designed for floor-mounted installation. Professional installation is recommended to ensure proper function and compliance with local plumbing codes.
Pre-Installation Checklist:
- Ensure all components listed in the 'Included Components' section are present.
- Verify that your floor structure can support the weight of the tub filler and the water it will contain.
- Confirm that hot and cold water supply lines (standard 1/2-inch) are available at the installation point.
- Turn off the main water supply before beginning installation.
Installation Steps (General Guidance):
- Prepare the Floor: Mark the desired location for the tub filler. Ensure the area is clean and level.
- Install Tripod Bracket: Secure the included tripod bracket to the floor using appropriate fasteners. This bracket provides stability for the floor-mounted unit.
- Connect Water Lines: Connect the hot and cold water supply lines to the corresponding inlets on the tub filler base. Use thread sealant tape for a watertight seal.
- Mount the Faucet Body: Carefully place the tub filler body onto the tripod bracket, ensuring it is securely seated and aligned.
- Secure the Base: Fasten the tub filler base to the floor, typically using screws through the base plate into the tripod bracket and floor.
- Test for Leaks: Slowly turn on the main water supply and check all connections for leaks.
For detailed diagrams and specific instructions, please refer to the installation guide provided in the product packaging.
5. Operating Instructions
The KIBI Cube Tub Filler features a single handle for water control and a diverter knob for switching between the spout and hand shower.

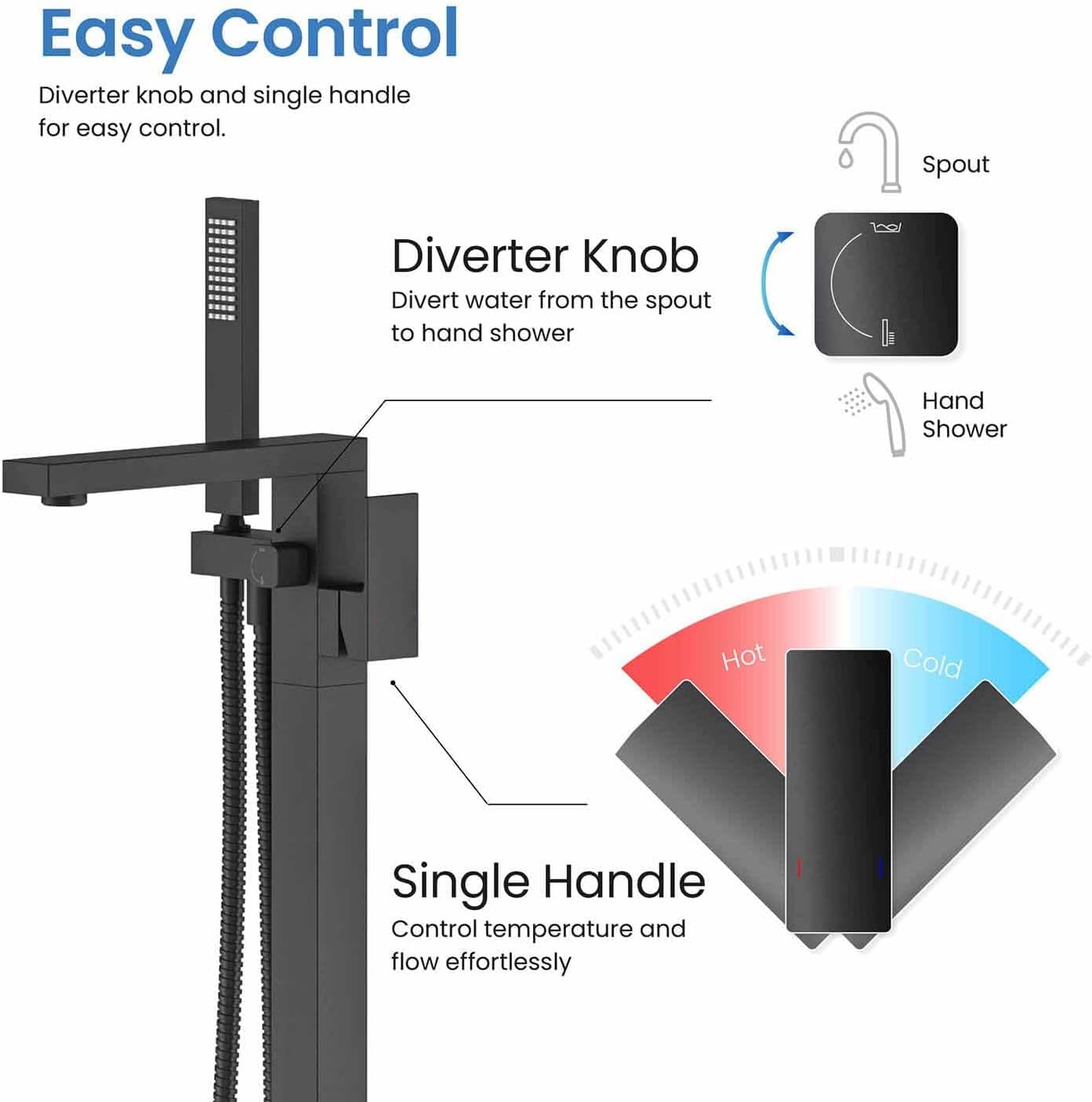

Image 5.1: Diagram illustrating the 'Easy Control' features, including the diverter knob to switch water flow between the spout and hand shower, and the single handle for effortless control of water temperature and flow.
Using the Single Handle:
- Water Flow: Lift the handle to turn on the water and control the flow rate.
- Temperature Control: Move the handle left for hot water and right for cold water. Adjust to achieve the desired temperature.
Using the Diverter Knob:
- The diverter knob is located on the faucet body.
- Turn the knob to direct water flow either to the main tub spout or to the hand shower.
360° Swivel Spout:
- The main spout can be rotated 360 degrees, allowing you to position it as needed for filling the tub or for other uses.
6. Maintenance
Proper care and maintenance will ensure the longevity and appearance of your KIBI Cube Tub Filler.
Cleaning the Finish:
- Clean the matte black finish regularly with a soft, damp cloth and mild soap.
- Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
Hand Shower Nozzle Cleaning:
- The hand shower features speed-clean silicone nozzles. To remove mineral buildup, gently rub the nozzles with your finger or a soft brush.
Cartridge Maintenance:
- The ceramic cartridge is designed for long-lasting, leak-free performance. If you experience persistent drips or leaks, consult a qualified plumber for inspection or replacement of the cartridge.
7. Troubleshooting
This section addresses common issues you might encounter with your tub filler.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed shut-off valves; low water pressure. | Clean the aerator; ensure shut-off valves are fully open; check household water pressure. |
| Leaks from Spout/Handle | Loose connections; worn O-rings or cartridge. | Check and tighten connections; if issue persists, consult a plumber for O-ring or cartridge replacement. |
| Water Temperature Issues | Incorrect hot/cold supply connections; water heater settings. | Verify hot and cold lines are correctly connected; check water heater temperature settings. |
| Diverter Not Working | Debris in diverter mechanism; worn diverter seal. | Flush the system; if issue persists, professional service may be required to inspect or replace the diverter. |
If you are unable to resolve an issue using these troubleshooting steps, please contact KIBI Customer Support.
8. Warranty and Support
Limited Lifetime Warranty:
KIBI products are backed by a limited lifetime warranty, ensuring quality and customer satisfaction. Please refer to the warranty card included with your product for full terms and conditions.
Customer Support:
For any questions, assistance, or technical support, KIBI offers 24-hour customer support. You can reach us through our official website or the contact information provided in your product packaging.
For more information and to explore other KIBI products, visit the KIBI Store.
