PDEEY 21W Power Adapter User Manual

1. Product Overview

The PDEEY 21W Power Adapter is designed as a replacement power cord for various Amazon Echo devices. It features a compact design and built-in safety mechanisms to ensure reliable power delivery.

• Power Output: 21W
• Connector Type: DC barrel tip round connector
• Cable Length: 5 feet
• Safety Features: Built-in smart IC chip, over voltage protection, over current protection, over-heat protection.
• Ease of Use: Plug and play, compact for travel.

Image 1.1: Front view of the PDEEY 21W Power Adapter.

Image 1.2: Side view of the PDEEY 21W Power Adapter, showing the plug and barrel connector.

2. Compatibility

This power adapter is compatible with a range of Amazon Echo devices. Please verify your device's power requirements before use.

• Amazon Echo (1st Generation)
• Amazon Echo (2nd Generation)
• Amazon Echo Show (1st Gen)
• Amazon Echo Show (3rd Gen 2023 Release) with USB-C charging port (Note: This adapter uses a barrel connector, ensure your device supports this input type or use an appropriate adapter if needed for USB-C devices).
• Amazon Echo Plus (1st Gen)
• Amazon Echo Look
• Amazon Fire TV (2nd Generation)
• Amazon Echo Link
• Specific models: SK705DI, XC56PY, MW46WB, DV83YW, PS59CV, PS73BR

Image 2.1: Visual guide illustrating compatible Amazon Echo devices with the PDEEY 21W Power Adapter.

Image 2.2: Comparison showing the 21W power adapter (center) as the correct replacement, distinguishing it from 15W and 30W adapters.

3. What's in the Package

Upon opening your package, you will find the following item:

• 1 x PDEEY 21W Power Adapter Cord

4. Setup Instructions

Follow these steps to set up your PDEEY 21W Power Adapter:

1. Unpack: Carefully remove the power adapter from its packaging.
2. Connect to Device: Insert the barrel connector end of the power adapter into the power input port of your compatible Amazon Echo device. Ensure a secure connection.
3. Connect to Power Outlet: Plug the AC adapter into a standard wall power outlet (100-240V AC, 50/60Hz).
4. Verify Power: Your device should power on automatically or indicate that it is receiving power.

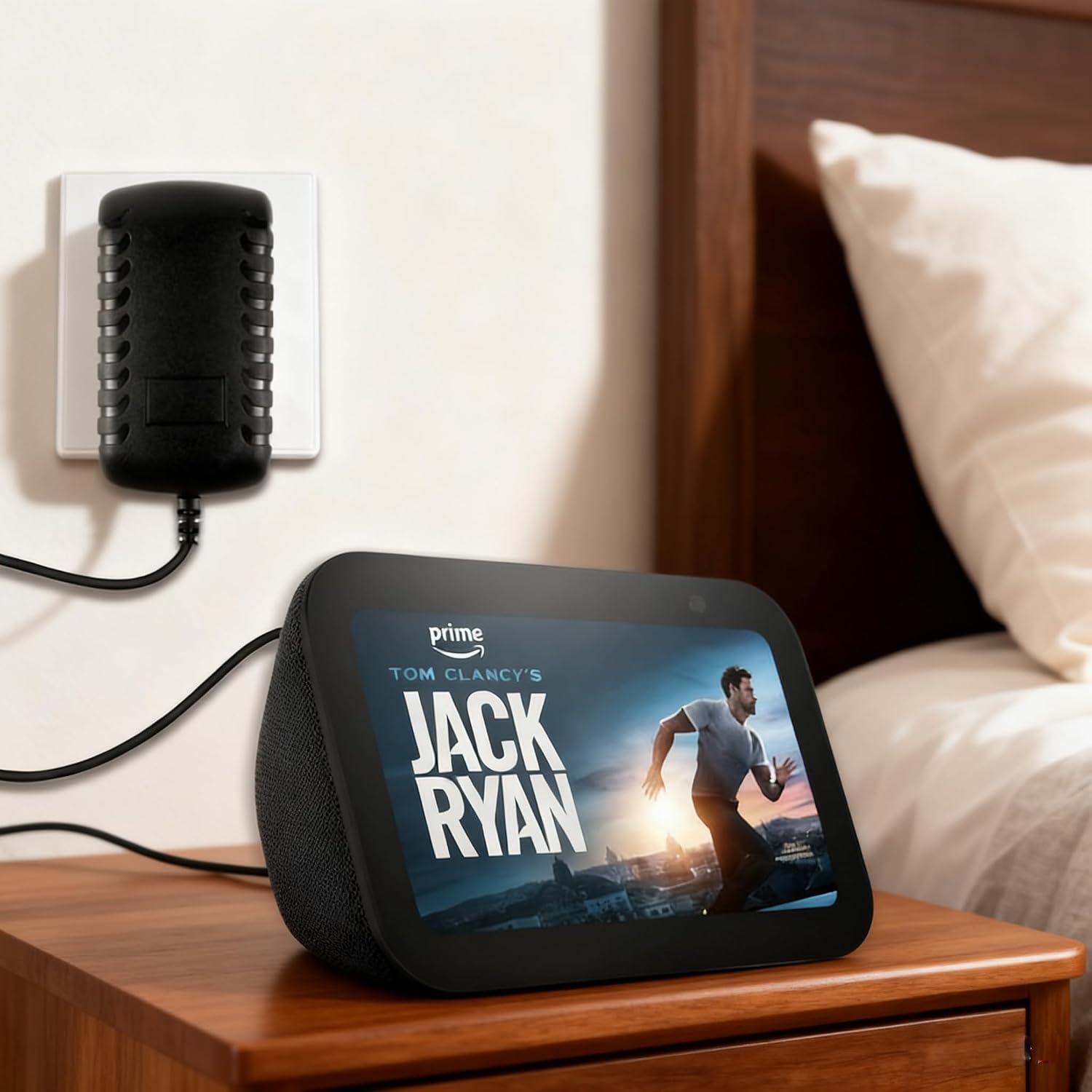

Image 4.1: An Amazon Echo Show device connected to the power adapter and plugged into a wall outlet.

5. Operating Instructions

The PDEEY 21W Power Adapter operates on a "plug and play" principle. Once connected correctly, it will continuously supply power to your device.

• Ensure the adapter is firmly plugged into both the device and the wall outlet for uninterrupted power.
• The adapter is designed for continuous operation.

6. Maintenance

To ensure the longevity and safe operation of your power adapter, follow these maintenance guidelines:

• Cleaning: Disconnect the adapter from the power outlet and your device before cleaning. Use a dry, soft cloth to wipe the exterior. Do not use liquid cleaners or abrasive materials.
• Storage: When not in use, store the adapter in a cool, dry place, away from direct sunlight and moisture. Avoid tightly coiling the cable to prevent damage.
• Cable Care: Do not bend, twist, or pull the cable excessively. Avoid placing heavy objects on the cable.
• Inspection: Periodically inspect the adapter and cable for any signs of damage, such as frayed wires, exposed conductors, or cracked casing. If damage is observed, discontinue use immediately.

7. Troubleshooting

If you encounter issues with your PDEEY 21W Power Adapter, refer to the following common troubleshooting steps:

• Device Not Powering On:
  • Ensure the power adapter is securely plugged into both the device and the wall outlet.
  • Verify that the wall outlet is functional by testing it with another device.
  • Confirm that the power adapter is the correct wattage (21W) and connector type for your specific device model. Refer to the "Compatibility" section.
  • Inspect the cable and adapter for any visible damage. If damaged, discontinue use.
• Intermittent Power:
  • Check all connections for looseness.
  • Ensure the cable is not pinched or bent sharply.
• Adapter Feels Hot:
  • It is normal for power adapters to feel warm during operation. However, if it becomes excessively hot to the touch or emits a burning smell, immediately unplug it from the wall and the device. Contact support if this occurs.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact PDEEY customer service directly. Keep your purchase receipt for warranty claims.

Contact Information:

• Refer to the official PDEEY website or product packaging for the most current support contact details.
