1. Introduction
Thank you for choosing DORTALA Dining Chairs. This manual provides essential information for the safe assembly, operation, and maintenance of your new chairs. Please read these instructions carefully before assembly and retain this manual for future reference.

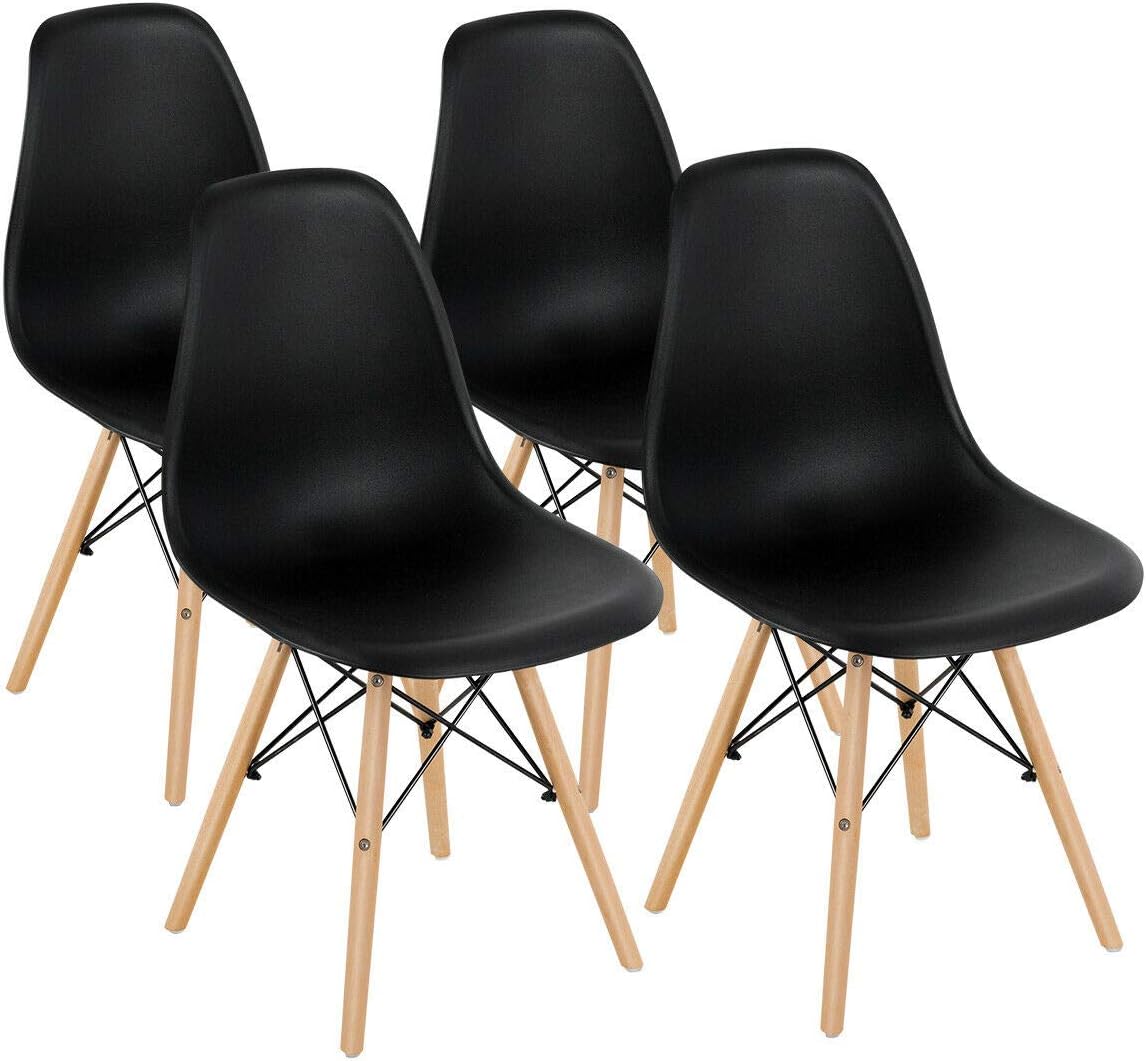

Image 1.1: DORTALA Dining Chairs (Set of 4). These chairs feature black molded plastic seats and sturdy beech wood legs, designed for various indoor settings.
2. Safety Information
- Weight Capacity: Do not exceed the maximum weight capacity of 440 lbs (200 kg) per chair. Exceeding this limit may result in damage to the chair or personal injury.
- Assembly: Ensure all assembly instructions are followed precisely. Incorrect assembly can compromise the stability and safety of the chairs.
- Stability: Verify that all screws and connections are tightened securely before use. Periodically check and re-tighten fasteners as needed.
- Floor Protection: The chairs are equipped with non-slip foot pads. Ensure these pads are properly installed to protect your flooring from scratches and to enhance stability.
- Children: Keep small parts and packaging materials away from children during assembly. Adult supervision is recommended when children are near or using the chairs.
3. Package Contents
Please inspect the package contents to ensure all components are present and undamaged. If any parts are missing or damaged, please contact customer support.
- 4 x Dining Chair Seats (Molded PP Plastic)
- 4 x Leg Frames (Beech Wood with Steel Cross Fixation)
- 1 x Assembly Hardware Bag (containing screws, washers, and Allen wrench)
- 1 x Instruction Manual
4. Setup and Assembly
The DORTALA Dining Chairs are designed for straightforward assembly. Each chair consists of a molded seat and a pre-assembled leg frame. Follow these steps to assemble each chair:
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a soft, clean surface to prevent scratches.
- Identify Parts: Locate one chair seat, one leg frame, and the assembly hardware (screws, washers) from the hardware bag.
- Align Seat and Frame: Place the chair seat upside down. Align the pre-assembled leg frame with the mounting points on the underside of the seat. Ensure the frame is oriented correctly, with the wider part of the frame facing the front of the seat.
- Attach Frame: Insert the four screws with washers through the holes in the leg frame and into the corresponding threaded inserts on the chair seat.
- Tighten Screws: Using the provided Allen wrench, gradually tighten all four screws. Tighten them in a cross pattern (e.g., front-left, rear-right, front-right, rear-left) to ensure even pressure. Do not overtighten.
- Final Check: Once all screws are tightened, turn the chair upright. Gently test its stability. If any wobbling occurs, re-check all connections and tighten as necessary.
Image 4.1: Easy Installation for Time-saving. The diagram illustrates the minimal steps required to assemble the chair, highlighting the pre-assembled leg frame and the simple attachment of the seat.
5. Operating Instructions (Usage)
The DORTALA Dining Chairs are designed for comfortable seating in various indoor environments.
- Intended Use: These chairs are suitable for dining rooms, kitchens, living rooms, meeting rooms, offices, and similar indoor spaces.
- Ergonomic Design: The molded PP seat is designed with a scientific curve to provide support for the back and hip, enhancing seating comfort.
- Placement: Position the chairs on a flat, stable surface to ensure maximum stability and prevent tipping.
Image 5.1: DORTALA Dining Chairs in a dining room setting. The chairs are shown around a table, demonstrating their intended use.
6. Maintenance
Proper maintenance will extend the lifespan and preserve the appearance of your DORTALA Dining Chairs.
- Cleaning: Wipe clean with a damp cloth. For stubborn stains on the plastic seat, use a mild soap solution and then wipe dry. Avoid abrasive cleaners or harsh chemicals, as these can damage the material.
- Wood Care: The beech wood legs can be wiped with a dry or slightly damp cloth. Avoid excessive moisture.
- Regular Inspection: Periodically check all screws and connections to ensure they remain tight. Re-tighten if any looseness is detected.
- Avoid Direct Sunlight: Prolonged exposure to direct sunlight may cause fading or material degradation over time.
7. Troubleshooting
If you encounter any issues with your DORTALA Dining Chairs, refer to the following common solutions:
- Chair Wobbles:
- Ensure all four screws connecting the seat to the leg frame are fully and evenly tightened.
- Verify that the chair is placed on a flat, even surface.
- Check if any of the non-slip foot pads are missing or unevenly installed.
- Difficulty during Assembly:
- Review the assembly steps in Section 4 carefully. Ensure the leg frame is oriented correctly before attaching the seat.
- Do not force screws. If a screw does not easily thread, re-align the parts.
- Scratches on Floor:
- Confirm that all non-slip foot pads are securely attached to the bottom of each leg. Replace any worn or missing pads.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | DORTALA |
| Model Number | DO-HW65771BK-4-CA |
| Color | Black |
| Material | PP Plastic (Seat), Beech Wood (Legs), Alloy Steel (Frame) |
| Overall Chair Dimensions (W x D x H) | 18" x 19" x 33" (45.5 cm x 48.5 cm x 84 cm) |
| Seat Dimensions (W x D) | 18" x 16" (45.5 cm x 40.5 cm) |
| Seat Height | 18" (45.5 cm) |
| Net Weight (Each Chair) | 7.7 LBS (3.49 kg) |
| Maximum Weight Capacity | 440 LBS (200 kg) |
| Special Feature | Ergonomic Design, Non-slip Foot Pads |

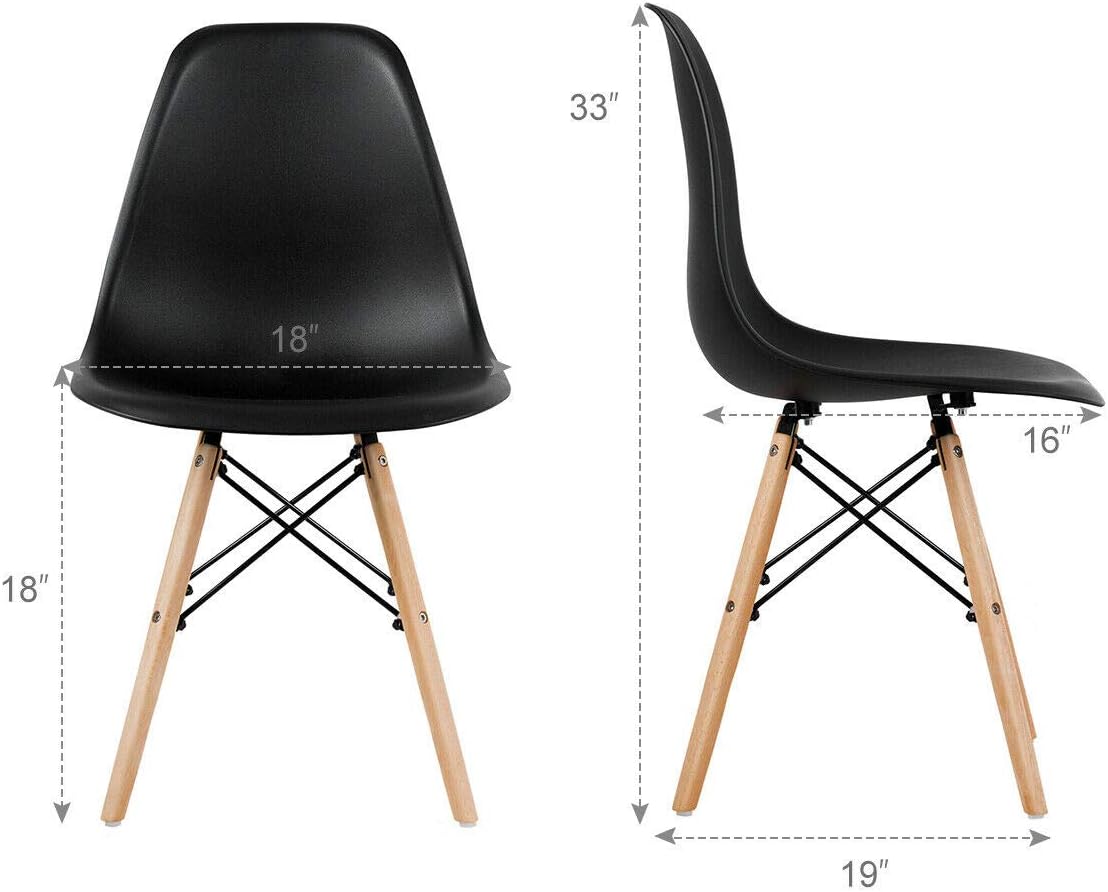

Image 8.1: Chair Dimensions. This image provides a visual representation of the key measurements of the dining chair.
9. Warranty and Support
For warranty information or technical support, please contact DORTALA customer service through the retailer where the product was purchased or visit the official DORTALA website. Please have your model number (DO-HW65771BK-4-CA) and purchase date available when contacting support.
