1. Introduction
This manual provides essential information for the assembly, operation, maintenance, and care of your FDW 32-inch Round Outdoor Patio Dining Table. Please read these instructions carefully before assembly and use to ensure safe and optimal performance of your product. This table is designed for outdoor use, featuring a tempered glass top and a sturdy alloy steel frame.

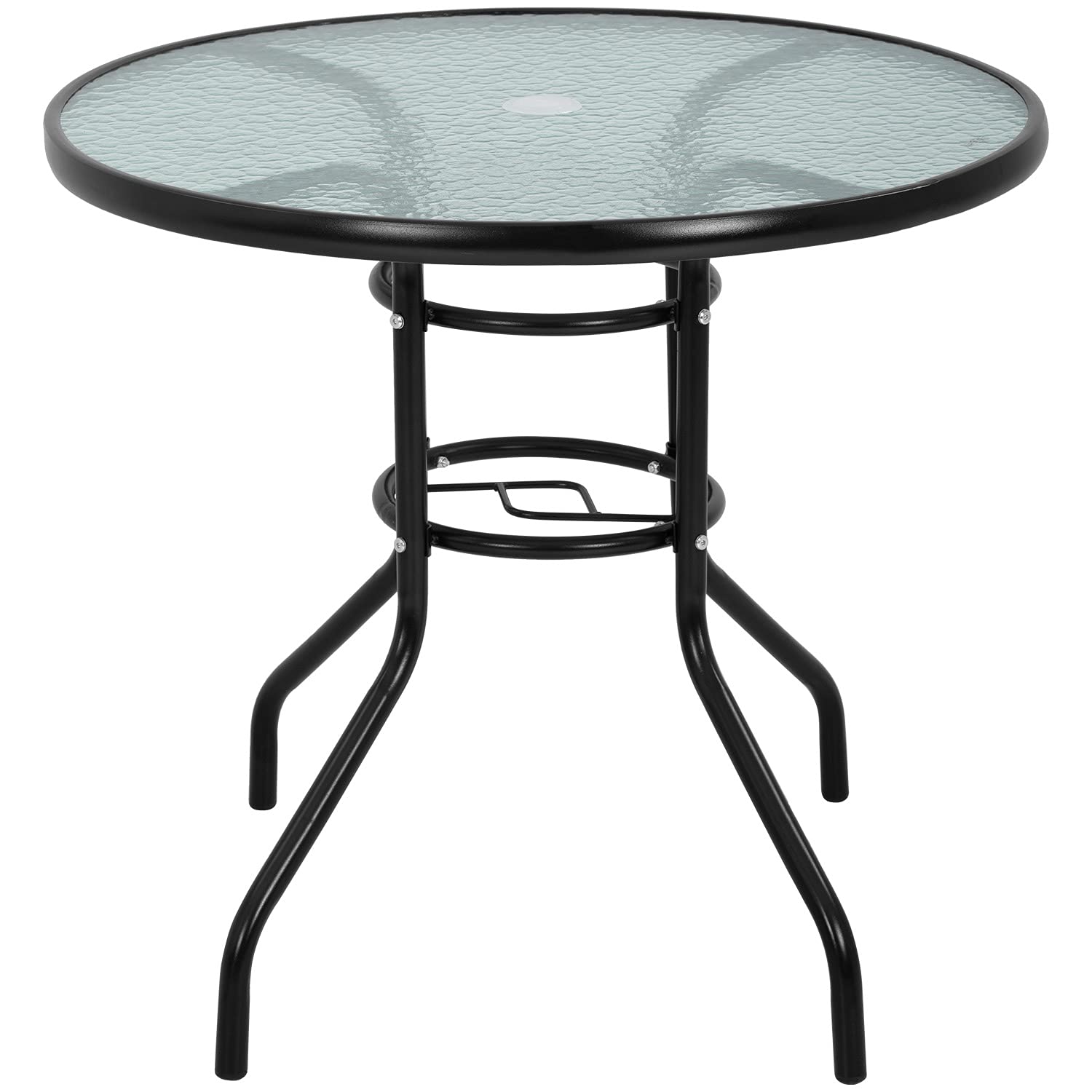

Image 1.1: The FDW 32-inch Round Outdoor Patio Dining Table, showcasing its design suitable for outdoor spaces.
2. Safety Information
Please observe the following safety guidelines to prevent injury or damage to the product:
- Always assemble the table according to the instructions provided.
- Do not exceed the maximum weight recommendation of 176 pounds (80 kg).
- Be cautious when using an umbrella to prevent tipping. Ensure the umbrella is properly secured in a stable base (not included).
- Keep the table on a stable, level surface and away from high-traffic areas to avoid accidental bumps.
- Regularly inspect all bolts and connections to ensure they remain tight.
3. Package Contents
Before beginning assembly, ensure all parts are present and undamaged. The package should contain:
- Assembly Guide
- Table legs (4 pieces)
- Toughened glass table top (1 piece)
- Two iron rings (for leg support)
- Screws and necessary hardware
4. Setup and Assembly
Assembly of the FDW Patio Dining Table is designed to be straightforward. It is recommended that 1 person perform the assembly. A screwdriver is the primary tool required.
- Unpack all components and lay them out on a soft, clean surface to prevent scratches.
- Attach the table legs to the iron rings using the provided screws. Ensure all connections are secure but do not fully tighten yet.
- Carefully place the toughened glass table top onto the assembled leg structure. Align the holes in the glass with the leg frame.
- Secure the glass top to the frame using the remaining screws. Once all screws are in place, gradually tighten all screws evenly until the table is stable.
- Verify the table is stable and all parts are securely fastened before use.
Image 4.1: An illustration showing the assembly process of the table, highlighting the connection points.
Image 4.2: Detailed dimensions of the table, including height and diameter.
5. Operating Instructions
This table is designed for dining and general outdoor use. It features a central umbrella hole for added convenience.
5.1. Umbrella Hole Usage
The table includes a 2.36-inch diameter umbrella hole. To use, remove the protective cap from the center of the table. Insert your patio umbrella pole through the hole. Ensure the umbrella is properly secured in a heavy-duty umbrella base (sold separately) to prevent tipping, especially in windy conditions.
Image 5.1: A close-up view of the umbrella hole, showing how to open and insert an umbrella.
Video 5.1: This video demonstrates the use of the umbrella hole and the overall setup of the FDW outdoor dining table in a patio setting. It shows how an umbrella can be inserted to provide shade, enhancing the outdoor dining experience.
6. Maintenance and Care
Proper maintenance will extend the life and appearance of your patio dining table.
- Cleaning: The tempered glass surface is easy to clean. Simply wipe with a damp cloth to remove stains, grease, or coffee spills. Avoid abrasive cleaners that could scratch the glass or damage the frame's finish.
- Frame Care: The powder-coated alloy steel frame is resistant to rust. However, regular cleaning and inspection for any chips or scratches in the coating can help prevent corrosion. Touch up any damaged areas promptly.
- Storage: During harsh weather conditions or off-season, it is recommended to cover the table or store it indoors to protect it from extreme elements.
Image 6.1: A hand demonstrating the ease of cleaning the water-wave tempered glass tabletop with a cloth.
7. Troubleshooting
If you encounter any issues with your FDW Patio Dining Table, please refer to the following common solutions:
- Table Wobbles: Ensure all screws are fully and evenly tightened. Check that the table is placed on a flat, level surface. Adjust leg levelers if present.
- Difficulty Assembling: Review the assembly guide carefully. Ensure all parts are oriented correctly. Do not overtighten screws until all components are loosely fitted, then tighten gradually.
- Rust Spots: While the frame is powder-coated for rust resistance, prolonged exposure to moisture or damage to the coating can lead to rust. Clean any rust spots with a mild abrasive and apply a rust-inhibiting paint or sealant.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | FDW |
| Model Name | With Umbrella Hole Patio Dining Table |
| Product Dimensions | 32"D x 32"W x 29"H (81.3 cm D x 81.3 cm W x 73.7 cm H) |
| Item Weight | 215 Pounds (97.5 kg) |
| Maximum Weight Recommendation | 176 Pounds (80 kg) |
| Frame Material | Alloy Steel |
| Top Material Type | Tempered Glass (5mm thickness) |
| Color | Black |
| Shape | Round |
| Umbrella Hole Diameter | 2.36 Inches (6 cm) |
| Seating Capacity | 4 people |
| Required Assembly | Yes |
| Recommended Number of People for Assembly | 1 |
| Tools Recommended For Assembly | Screw Driver |
Image 8.1: A close-up showing the thickness and strength of the metal pipes used in the table's construction.
9. Warranty and Support
This FDW product comes with a manufacturer's warranty of 90 days from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical support, please contact FDW customer service through the retailer where the product was purchased.
