1. Introduction
Thank you for choosing the Ledvion Santa Barbara LED Wall Lamp. This manual provides essential information for the safe installation, operation, and maintenance of your new outdoor lighting fixture. This original Ledvion product is crafted from high-quality aluminum and stainless steel, designed for durability and a modern aesthetic. Its robust construction, including 5mm thick glass, ensures an IP54 rating, making it suitable for outdoor environments.
A key feature of this lamp is its GU10 fitting, which allows for replaceable light sources. This provides flexibility, enabling you to easily change bulbs if they fail or if you wish to switch to a different type of light source without replacing the entire fixture.
2. Safety Information
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Electrical Installation: Installation must be performed by a qualified electrician or competent person in accordance with all local and national electrical codes. Always disconnect power at the main circuit breaker before beginning any electrical work.
- Voltage: Ensure the power supply voltage matches the lamp's requirements (230 Volts).
- Outdoor Use: This fixture is rated IP54, meaning it is protected against dust ingress and splashing water from any direction. While designed for outdoor use, avoid direct high-pressure water jets.
- Bulb Type: Use only GU10 LED bulbs. Do not exceed the maximum wattage of 35W per bulb.
- Heat: LED bulbs can still generate heat. Ensure adequate ventilation around the fixture and do not cover it with flammable materials.
- Cleaning: Disconnect power before cleaning. Use a soft, damp cloth. Avoid abrasive cleaners.
3. Package Contents

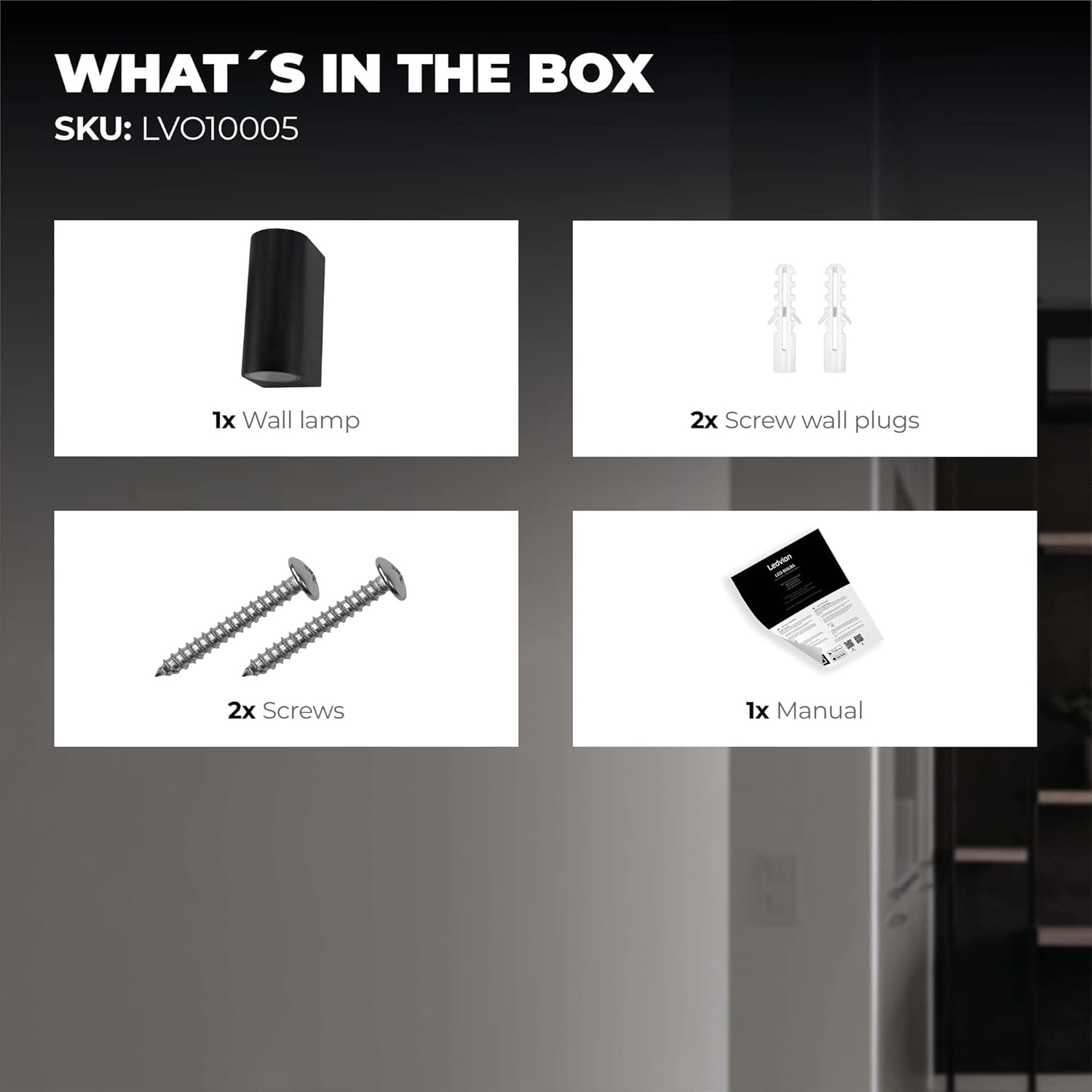

Verify that all components are present before installation:
- 1x Ledvion Santa Barbara LED Wall Lamp
- 2x Screw wall plugs
- 2x Screws
- 1x Instruction Manual
4. Specifications
| Feature | Specification |
|---|---|
| Brand | Ledvion |
| Model Number | LVO10005 |
| Dimensions (L x W x H) | 15 x 6.8 x 15 cm |
| Weight | 490 g |
| Material | Aluminum |
| Color | Black |
| Finish | Lacquered |
| Ingress Protection (IP) Rating | IP54 (Dust-protected, Splash-proof) |
| Bulb Fitting | GU10 (2 bulbs required, not included) |
| Max. Wattage per Bulb | 35W |
| Voltage | 230V |
| Power Source | Mains Powered |
| Light Direction | Up and Down |
| Energy Efficiency | High energy efficiency (with appropriate LED bulbs) |
5. Setup and Installation
This wall lamp is designed for straightforward mounting. However, due to electrical connections, professional installation is recommended.
- Safety First: Before starting, ensure the main power supply to the installation area is switched off at the circuit breaker.
- Choose Location: Select a suitable outdoor wall location, considering desired light distribution and proximity to electrical wiring.
- Mark Drilling Points: Use the lamp's mounting bracket as a template to mark the drilling points on the wall.
- Drill Holes: Drill holes at the marked points. Insert the provided wall plugs into the drilled holes.
- Electrical Connection: Carefully connect the electrical wires from your mains supply to the lamp's terminal block. Ensure correct polarity (Live, Neutral, Earth) according to local regulations. Secure all connections.
- Mount the Fixture: Align the lamp with the wall plugs and secure it using the provided screws. Ensure the fixture is firmly attached to the wall.
- Insert Bulbs: Insert two GU10 LED bulbs (not included) into the lamp's fittings. Ensure they are securely twisted into place.
- Restore Power: Once installation is complete and all connections are secure, restore power at the main circuit breaker.
6. Operating Instructions
The Ledvion Santa Barbara LED Wall Lamp operates via an external wall switch. Once properly installed and connected to your mains power supply, the lamp can be switched on and off using the designated wall switch.
- Switch On/Off: Use the wall-mounted push-button switch (or equivalent) connected to the lamp's circuit to control the light.
- Light Direction: The lamp is designed to cast light both upwards and downwards, creating an ambient and functional illumination pattern.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Ledvion wall lamp.
- Cleaning: Periodically clean the exterior of the lamp to remove dirt, dust, and debris. Use a soft, damp cloth and mild detergent if necessary. Do not use abrasive cleaners or solvents. Always disconnect power before cleaning.
- Bulb Replacement: To replace a GU10 bulb, ensure the power is off. Carefully twist the old bulb counter-clockwise to remove it. Insert the new GU10 bulb by aligning the pins and twisting clockwise until secure.
- Inspection: Occasionally inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
8. Troubleshooting
If you encounter issues with your Ledvion wall lamp, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not light up | No power supply Faulty bulb Loose wiring connection | Check circuit breaker and wall switch. Replace GU10 bulb. Ensure all electrical connections are secure (with power off). |
| Light flickers | Loose bulb Incompatible dimmer (if applicable) Faulty bulb | Ensure bulb is securely seated. Verify dimmer compatibility with LED bulbs. Replace GU10 bulb. |
| Water inside fixture | Improper installation Damage to seal | Ensure proper sealing during installation. If damage is suspected, contact support. |
If the problem persists after attempting these solutions, please contact Ledvion customer support.
9. Warranty and Support
The Ledvion Santa Barbara LED Wall Lamp comes with a 3-year warranty, ensuring peace of mind regarding its quality and durability. The robust aluminum housing is designed for long-lasting performance in outdoor conditions.
For technical support, warranty claims, or any questions regarding your Ledvion product, please refer to the contact information provided on the product packaging or visit the official Ledvion website.
