DORTALA 7-Piece Patio Dining Set Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your DORTALA 7-Piece Patio Dining Set. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your furniture.

The DORTALA 7-Piece Patio Dining Set includes a rectangular dining table and six armchairs, designed for outdoor use. It features a sturdy steel frame, high-quality PE wicker chairs, and an acacia wood table top. The chairs are equipped with soft, removable cushions for comfort.

Image 1.1: Fully assembled DORTALA 7-Piece Patio Dining Set.

2. Package Contents

Your DORTALA 7-Piece Patio Dining Set is shipped in multiple boxes. Please verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, contact customer support.

• 1 x Dining Table
• 6 x Armchairs
• 6 x Seat Cushions
• 1 x Hardware Pack (bolts, washers, nuts, tools)
• 1 x Assembly Instruction Manual

Note: Packages may be delivered at different times.

3. Assembly Instructions

Assembly is required for this patio dining set. It is recommended to have two people for assembly. Please follow the detailed instructions provided in the separate assembly manual included in your package. Ensure all parts are correctly aligned before tightening fasteners.

3.1. Before You Begin

• Clear a spacious, flat area for assembly.
• Unpack all components and lay them out.
• Identify all parts against the parts list in the included manual.
• Do not fully tighten bolts until all components are loosely assembled.

3.2. Table Assembly

1. Attach the table legs to the table frame using the provided hardware.
2. Secure the acacia wood tabletop to the assembled frame.
3. Ensure the umbrella hole is correctly positioned.
4. Once all parts are aligned, fully tighten all bolts.

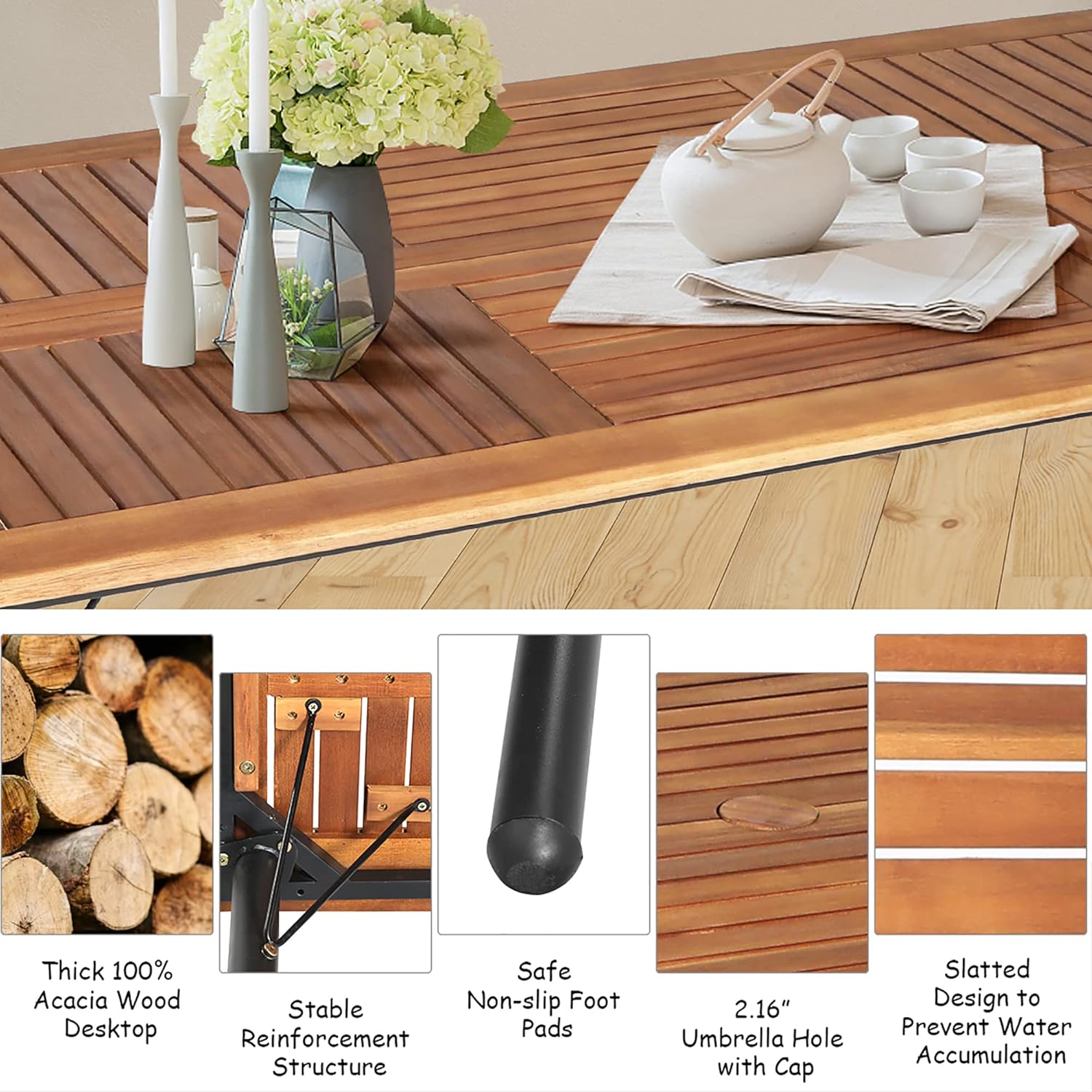

Image 3.1: Details of the table construction, including acacia wood desktop, reinforcement, and umbrella hole.

3.3. Chair Assembly

1. Connect the chair backrest to the seat frame.
2. Attach the armrests to the chair frame.
3. Secure the legs to the chair frame.
4. Repeat for all six chairs.
5. Place the seat cushions onto the chairs.

Image 3.2: Details of chair construction, including PE wicker and cushion.

4. Operating Instructions

Your DORTALA Patio Dining Set is designed for comfortable outdoor dining and relaxation. The table features a 2.16-inch umbrella hole, allowing you to add a patio umbrella for shade (umbrella not included).

• Placement: Position the dining set on a flat, stable surface in your desired outdoor area.
• Umbrella Use: Insert a compatible patio umbrella into the center hole of the table. Ensure the umbrella base is stable and secure, especially in windy conditions.
• Cushions: The soft cushions provide enhanced comfort. They can be easily removed for cleaning or storage.

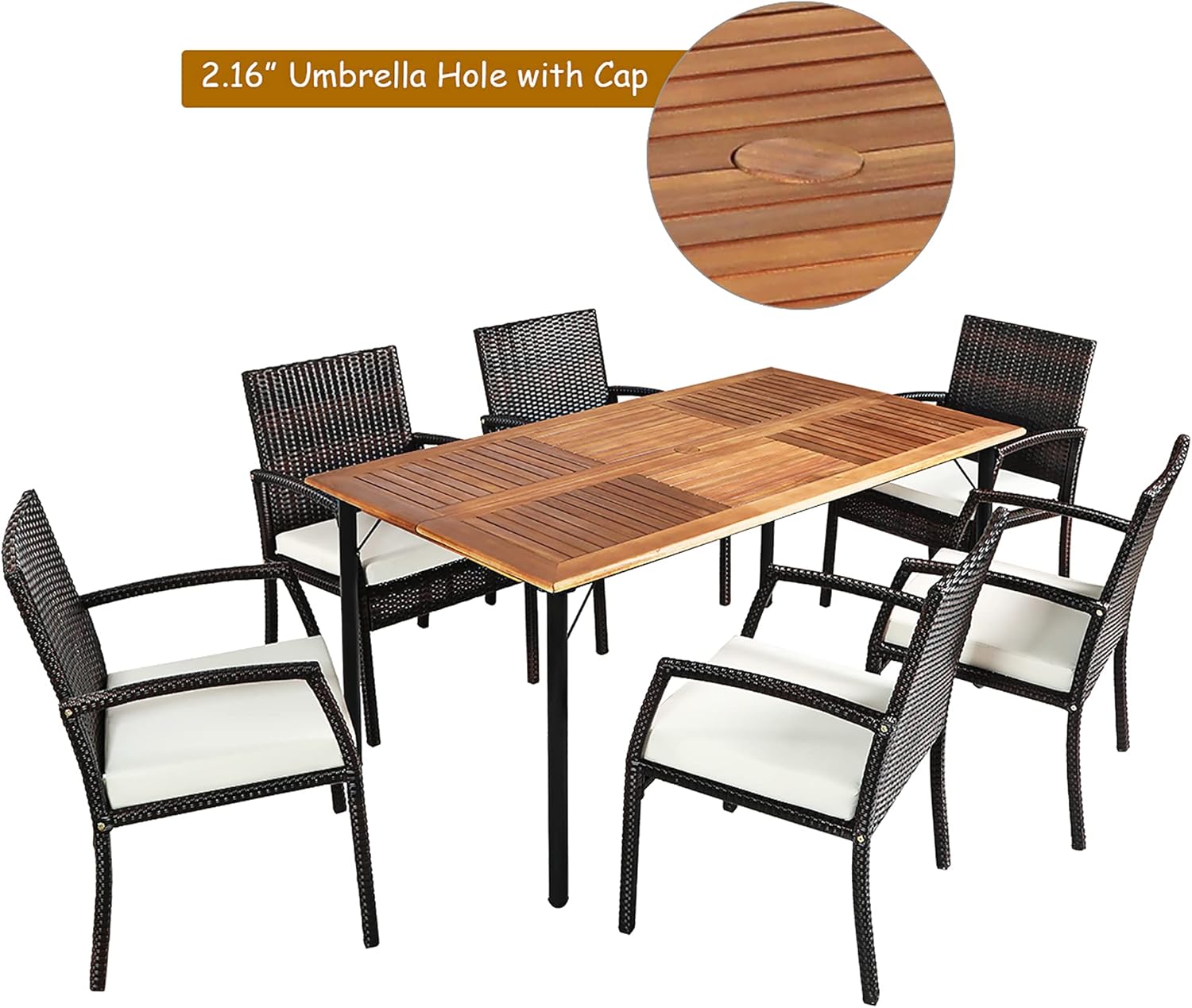

Image 4.1: The dining set highlighting the umbrella hole feature.

5. Maintenance and Care

Proper care will extend the life and appearance of your patio dining set.

• Cleaning the Frame and Table: Wipe the steel frame, PE wicker, and acacia wood tabletop with a damp cloth. For stubborn dirt, a mild soap solution can be used, followed by rinsing with clean water and drying thoroughly.
• Cushion Care: The cushion covers are removable and washable. Unzip and remove the covers for cleaning. Follow the care instructions on the cushion label. Allow cushions to dry completely before re-attaching or storing.
• Weather Protection: While the materials are weather-resistant, it is recommended to cover the set during prolonged periods of harsh weather (heavy rain, snow, intense sun) or when not in use for extended periods. Store cushions indoors during inclement weather.
• Acacia Wood: To maintain the natural beauty of the acacia wood, periodic oiling with outdoor wood oil is recommended, especially if the set is exposed to direct sunlight and rain frequently.

Image 5.1: Overview of the set's weather resistance and durability features.

6. Troubleshooting

This section addresses common issues you might encounter.

Issue: Difficulty during assembly.

Solution: Ensure all parts are correctly oriented as per the assembly manual. Do not overtighten bolts until all components are loosely fitted. If holes do not align, slightly loosen adjacent bolts and try again. Refer to the detailed diagrams in the included instruction manual.

Issue: Cushions do not stay in place.

Solution: While the product description mentions removable cushions, some designs include ties. If your cushions have ties, secure them to the chair frame. If not, ensure the chairs are placed on a level surface to minimize movement. Consider adding non-slip pads under the cushions if needed.

Issue: Wobbling table or chairs.

Solution: Check that all bolts are securely tightened on the affected piece. Ensure the furniture is placed on a flat, even surface. The chairs are equipped with plastic foot pads to protect floors and provide stability.

7. Specifications

Detailed product specifications for the DORTALA 7-Piece Patio Dining Set.

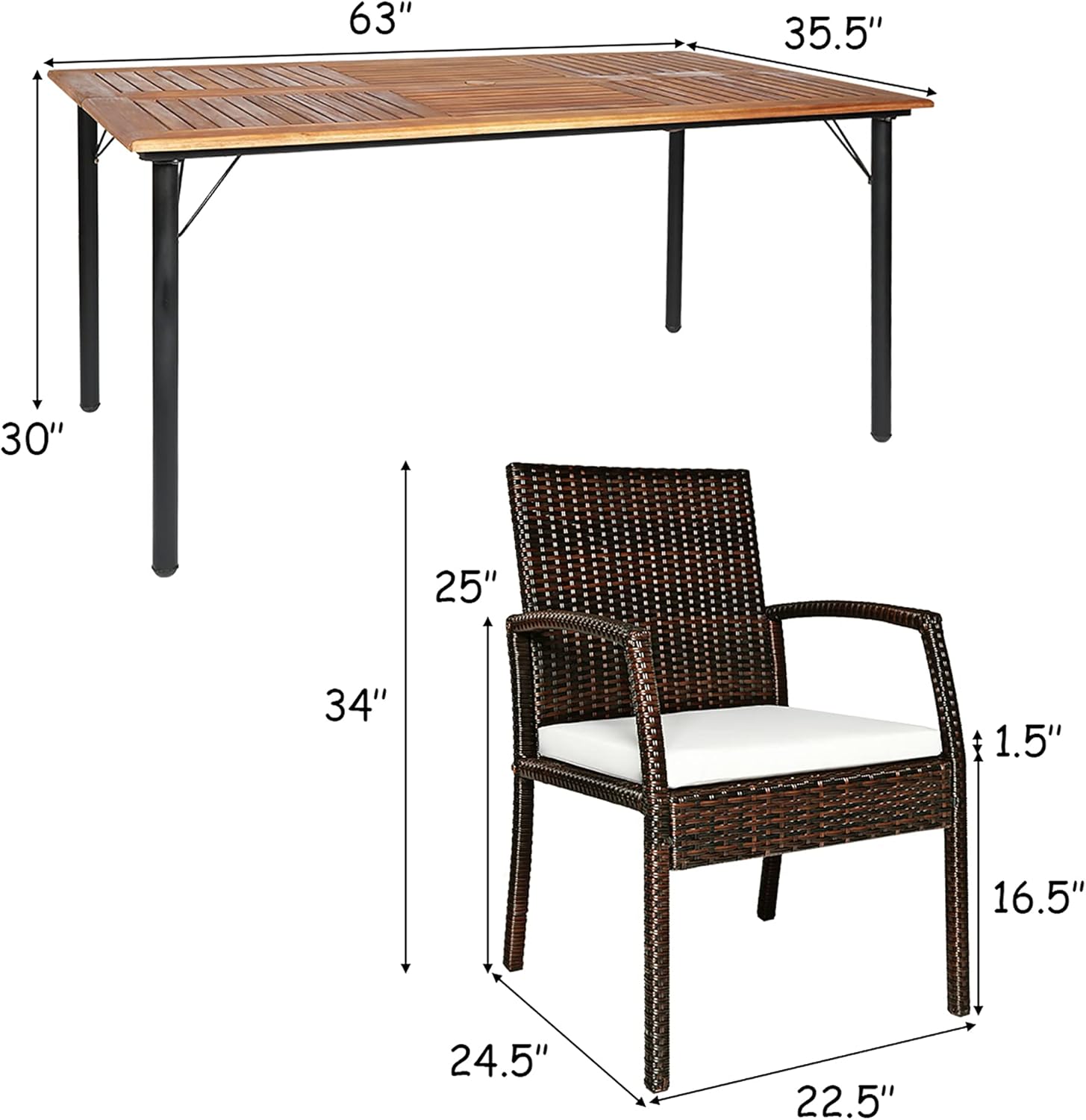

Image 7.1: Dimensional overview of the dining table and armchair.

8. Warranty and Support

For warranty information or customer support regarding your DORTALA 7-Piece Patio Dining Set, please refer to the contact details provided with your purchase documentation or visit the official DORTALA website. Keep your purchase receipt for warranty claims.

If you have questions about assembly, missing parts, or product functionality, please contact DORTALA customer service directly.
