Rotolight Titan X1 Cinematic RGBWW LED Light User Manual

1. Introduction

The Rotolight Titan X1 is a cinematic RGBWW LED light designed for professional studio and on-location shoots. This advanced lighting solution features electronic diffusion technology, a full-color touchscreen display, and extensive color control capabilities. It is engineered to provide precise and versatile lighting for various creative applications.

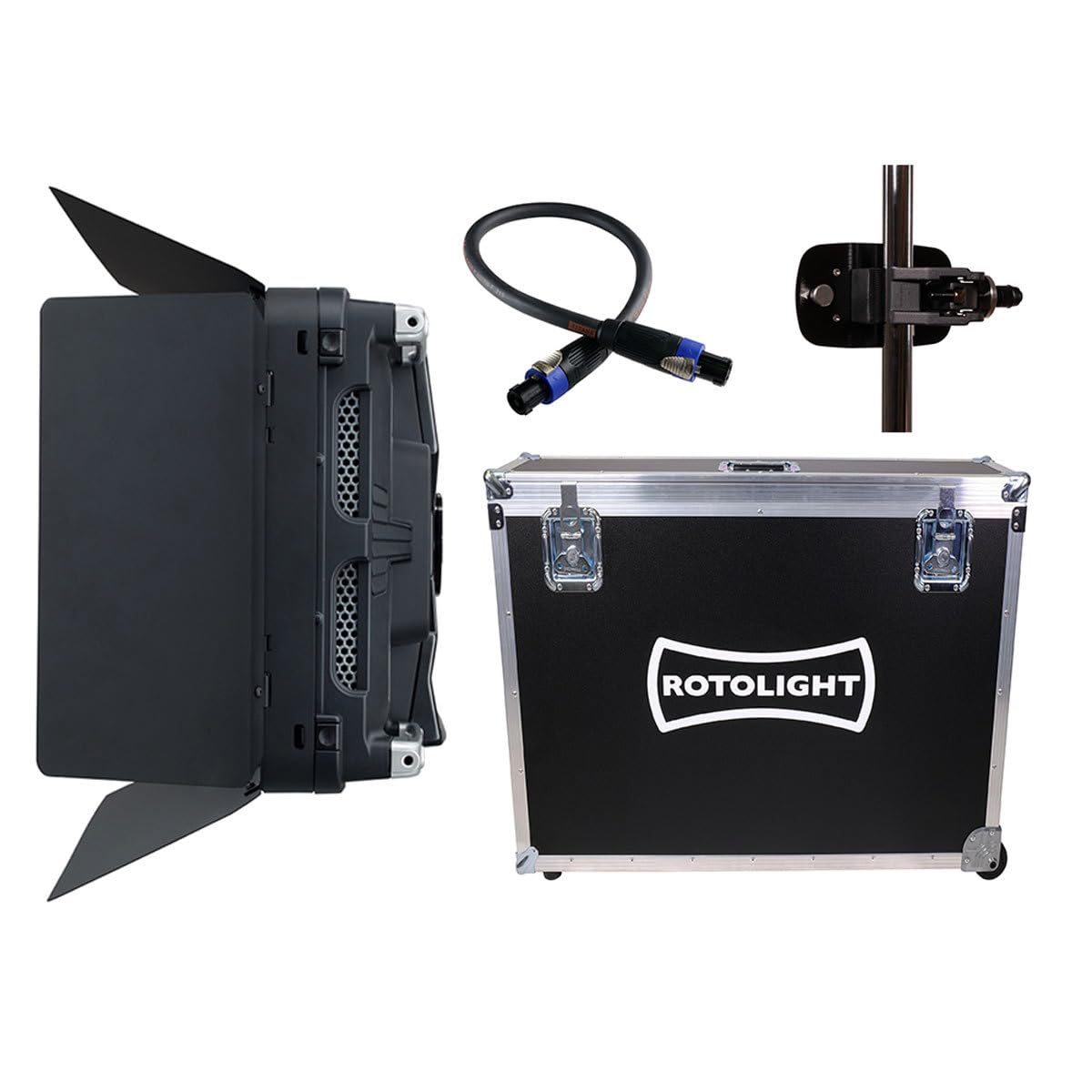

Figure 1: Rotolight Titan X1 Cinematic RGBWW LED Light with standard yoke attached.

2. Safety Information

Please read all safety instructions before using the Rotolight Titan X1. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Electrical Safety: Ensure the power supply matches the specified voltage (AC 110-240V, 50/60 Hz or DC 20.5-26V). Do not operate with damaged cables or power adapters.
• Heat: The light fixture can become hot during prolonged use. Allow adequate ventilation and avoid touching the light panel directly when in operation.
• Mounting: Always secure the light properly to a stand or truss using the provided yoke and appropriate mounting hardware. Ensure the mounting surface can support the weight of the fixture.
• Water Exposure: This product is not waterproof. Do not expose the light to rain, moisture, or high humidity.
• Maintenance: Refer to the maintenance section for cleaning instructions. Do not attempt to disassemble or repair the unit yourself. Contact qualified service personnel.
• Eye Protection: Avoid looking directly into the light source when it is active, as intense light can cause eye strain or damage.

3. What's in the Box

The Rotolight Titan X1 Cinematic RGBWW LED Light Rental Kit typically includes the following components:

• Rotolight Titan X1 LED Light Fixture
• Diffusion system (integrated SmartSoft)
• Standard Yoke
• Fitted Flight Case
• Stand Mount Clamp (28mm Junior Pin compatible)
• Power Supply Unit (AC/DC)
• Power Cable

4. Setup

4.1 Mounting the Light

1. Remove the Titan X1 light fixture from its flight case.
2. Attach the standard yoke to the light fixture if not already assembled.
3. Secure the stand mount clamp to a compatible light stand or truss system using the 28mm Junior Pin receiver on the yoke. Ensure the clamp is tightened securely.
4. Adjust the tilt and pan of the light using the yoke's locking mechanisms to achieve the desired angle.

Figure 2: Multiple Rotolight Titan X1 units positioned on stands for a shoot.

4.2 Power Connection

1. Connect the power cable to the power supply unit.
2. Connect the power supply unit to the Titan X1's power input port. The light supports both AC (110-240 VAC, 50/60 Hz) and DC (20.5-26 VDC) input.
3. Plug the power cable into a suitable electrical outlet.
4. Alternatively, for DC operation, connect a compatible battery pack to the Neutrik SpeakOn battery connection.

5. Operation

5.1 Power On/Off

Locate the power button on the light fixture. Press it once to power on the unit. Press and hold to power off.

5.2 Control Interface

The Titan X1 features a full-color touchscreen display for intuitive control. Navigate through menus and settings using touch gestures and the physical control knobs/buttons.

Figure 3: The Titan X1's touchscreen display and control buttons.

5.3 Lighting Modes

The Titan X1 offers five primary lighting modes, accessible via the touchscreen:

• CCT (Correlated Color Temperature): Adjust the white balance from 3,000K to 10,000K.
• HSI (Hue, Saturation, Intensity): Control the color based on hue, saturation, and brightness.
• RGBW (Red, Green, Blue, White): Directly adjust the intensity of red, green, blue, and white LEDs.
• XY: Precise color control using CIE 1931 color space coordinates.
• Filter: Access a library of over 1400 industry-standard gels and filters.

5.4 SmartSoft Electronic Diffusion

The integrated SmartSoft technology allows for electronic control of diffusion, focus, and spread. Use the touchscreen interface to adjust the softness of the light without needing physical gels.

Figure 4: The Titan X1 providing illumination during a live performance, showcasing its versatility.

5.5 Brightness Control

Adjust the light intensity continuously from 0% to 100% using the dedicated dimmer control on the interface.

5.6 User Presets

The Titan X1 allows for saving up to 50 user-customizable presets. This enables quick recall of frequently used lighting setups.

Figure 5: The Titan X1 integrated into a professional band performance setup.

5.7 Creative Lighting Applications

The extensive color and diffusion controls of the Titan X1 enable a wide range of creative lighting effects for various productions.

Figure 6: Example of creative lighting using the Titan X1's color capabilities.

Figure 7: Dynamic color effects achieved with the Titan X1.

Figure 8: Intense red lighting effect for dramatic visual impact.

6. Maintenance

6.1 Cleaning

• Always disconnect the power before cleaning.
• Use a soft, dry cloth to wipe the exterior of the light.
• For stubborn dirt, a slightly damp cloth with a mild, non-abrasive cleaner can be used, followed by a dry cloth.
• Do not use harsh chemicals, solvents, or abrasive materials, as these can damage the finish or optical components.
• Keep the touchscreen clean and free of smudges for optimal responsiveness.

6.2 Storage

When not in use, store the Rotolight Titan X1 in its fitted flight case in a cool, dry place, away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter issues with your Rotolight Titan X1, refer to the following common problems and solutions:

• Light not powering on:
  • Check if the power cable is securely connected to both the light and the power outlet.
  • Verify that the power outlet is functional.
  • Ensure the power supply unit is correctly connected.
  • If using DC power, check battery charge and connection.
• No light output:
  • Confirm the light is powered on.
  • Check the brightness setting; ensure it is not set to 0%.
  • Verify that no error messages are displayed on the touchscreen.
• Inaccurate color or flickering:
  • Reset the light to factory default settings if possible.
  • Ensure the firmware is up to date (check Rotolight's official website for updates).
  • Check for any external interference.
• Touchscreen unresponsive:
  • Restart the unit.
  • Ensure the screen is clean and dry.

For persistent issues, contact Rotolight customer support.

8. Specifications

9. Warranty and Support

The Rotolight Titan X1 comes with a standard manufacturer's warranty. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Rotolight website. For technical support, service, or replacement parts, please contact Rotolight customer service directly.

Rotolight Official Website: www.rotolight.com
