NiteRider Lumina Max 2500 Headlight User Manual

Introduction

The NiteRider Lumina Max 2500 is a high-performance rechargeable LED headlight designed for MTB, road, and commuter cycling. It features a powerful 2500 lumen output in Boost Mode, an 8-step fuel gauge, and multiple light levels including daylight flash modes. The durable housing is constructed from Dupont® Fiberglass reinforced nylon, meeting FL1 Standards for impact testing and dust/water resistance. This manual provides instructions for setup, operation, and maintenance of your Lumina Max 2500 headlight.

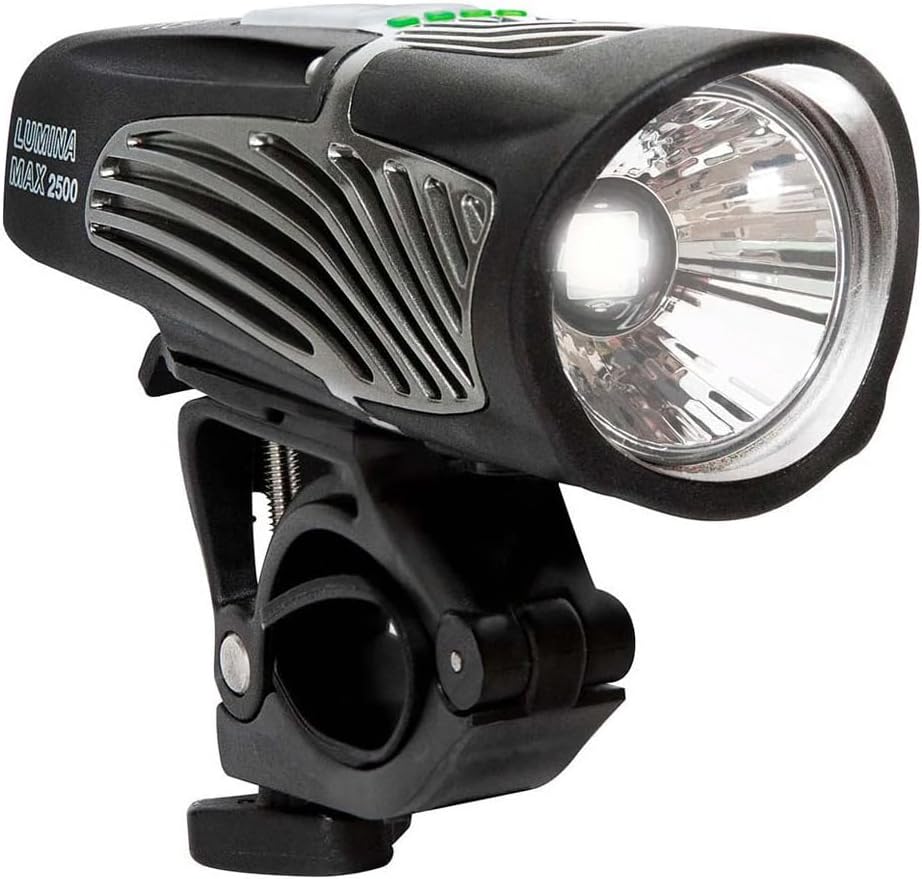

Figure 1: NiteRider Lumina Max 2500 Headlight with handlebar mount.

Setup

1. Unlocking from Travel Lock Mode

The Lumina Max 2500 is set to a travel lock mode at the factory to prevent accidental activation during shipping and storage. To unlock the device for first use:

• Press and hold the power button for 8-10 seconds until the light turns on.
• The light is now unlocked and ready for use.

2. Charging the Battery

Before first use, fully charge the Lumina Max 2500. The light features a USB-C charging port.

• Connect the provided USB-C charging cable to the light and a compatible USB power source.
• A full charge typically takes approximately 3 hours.
• The 8-step fuel gauge will indicate charging progress.

Figure 2: The Lumina Max 2500 features NiteLink Wireless Technology and a USB-C charging port. Typical charge time is 3 hours.

3. Installation

The Lumina Max 2500 comes with a secure handlebar mount and is also helmet mountable (helmet mount sold separately).

• Handlebar Mount: Attach the handlebar mount securely to your bicycle's handlebar. The mount fits standard and oversize 35mm handlebars. Ensure the light is firmly clicked into place on the mount.
• Helmet Mount (Optional): If using a helmet mount, follow the instructions provided with the helmet mount accessory to attach the light securely to your helmet.

Figure 3: A cyclist adjusting the NiteRider Lumina Max 2500 on a handlebar, demonstrating typical mounting position.

Operating Instructions

1. Power On/Off and Mode Selection

• To turn the light ON, press the power button briefly.
• To cycle through the 5 light levels and 3 daylight flash modes, press the power button repeatedly.
• To activate Boost Mode (2500 lumens), press the dedicated Boost Mode button. The power button will light up red and blue to indicate Boost Mode.
• To turn the light OFF, press and hold the power button until the light extinguishes.

Figure 4: The light features an 8-step fuel gauge and color-coded light modes visible through the power button, along with custom optics for a wide beam pattern.

2. NiteLink Wireless Technology

The Lumina Max 2500 features NiteLink Wireless Technology, allowing control of compatible NiteRider taillights (sold separately) from the headlight.

• To pair a compatible NiteLink taillight, ensure both the headlight and taillight are in pairing mode.
• Refer to the taillight's manual for specific pairing instructions.
• Once paired, you can control both lights with a flick of the thumb using the NiteLink Wireless Remote (sold separately) or directly from the headlight.

3. 8-Step Fuel Gauge

The integrated 8-step fuel gauge provides accurate battery power management, allowing you to monitor the remaining charge.

• The gauge lights will indicate the current battery level.
• Refer to the light's specifications for approximate run times at different light levels.

Figure 5: Key performance metrics for the Lumina Max 2500, including 2500 lumens output, typical run times (0:45-18h), and FL1 Standards compliance for water and dust resistance.

Maintenance

1. Cleaning and Care

• Wipe the light housing and lens with a soft, damp cloth. Avoid abrasive cleaners or solvents.
• Ensure the USB-C port cover is securely closed to maintain water resistance (IP64 rating).
• Store the light in a cool, dry place when not in use.

2. Battery Longevity

• For optimal battery life, avoid fully discharging the battery frequently.
• Charge the light regularly, even if not used for extended periods.

Troubleshooting

Specifications

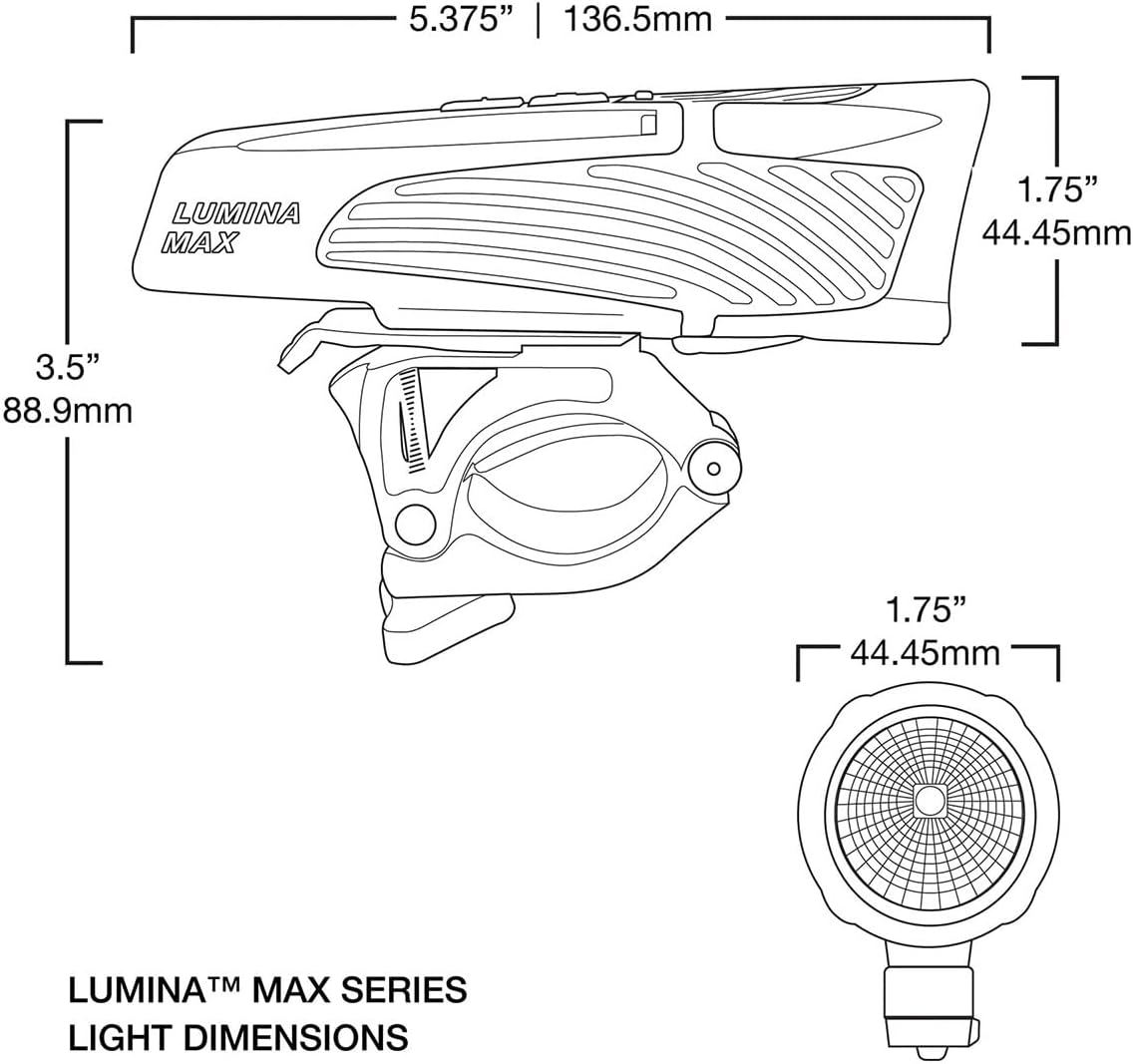

Figure 6: Detailed dimensions of the Lumina Max series headlight.

Warranty and Support

The NiteRider Lumina Max 2500 comes with a Limited Lifetime Warranty. For detailed warranty information, product support, or service inquiries, please refer to the official NiteRider website or contact their customer service.
