Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Feit Electric Smart Flood Security Light. Please read this manual thoroughly before installation and retain it for future reference.

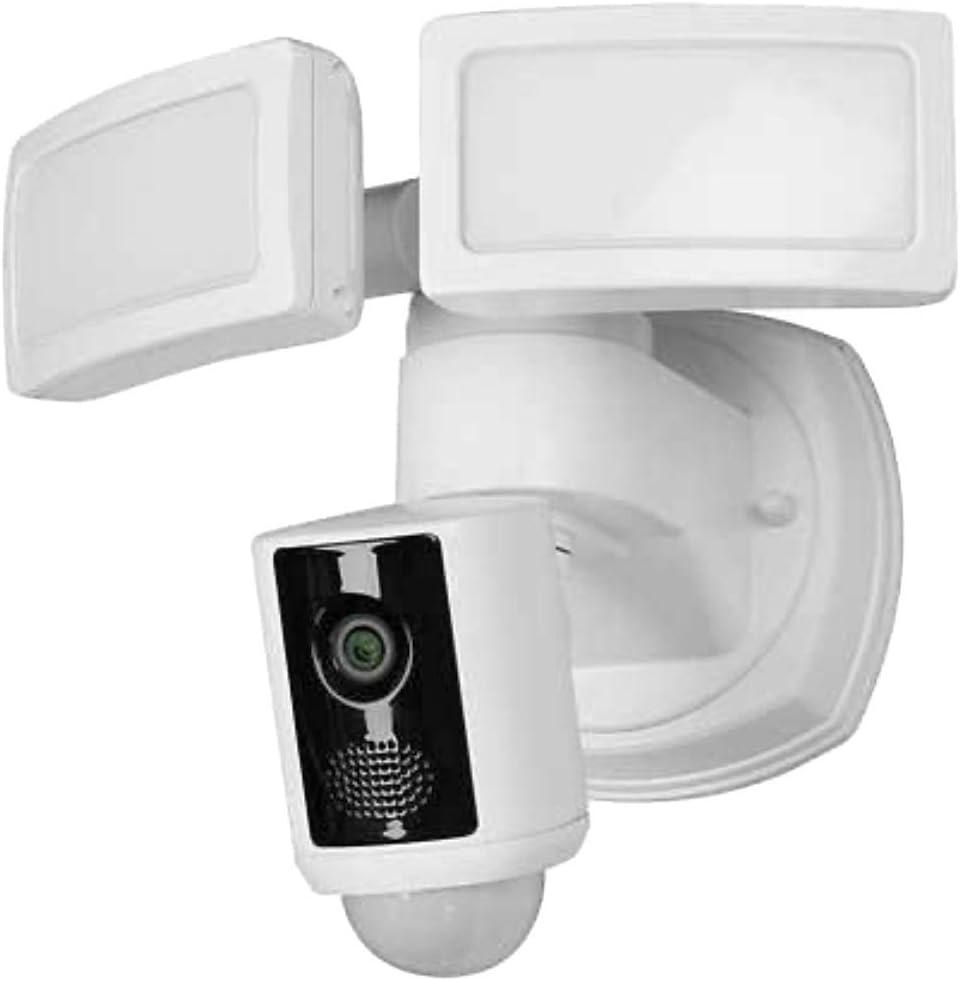

Image: Front view of the Feit Electric Smart Flood Security Light, showing the two adjustable LED floodlights and the central camera unit.
Important Safety Information
- Always turn off power at the circuit breaker before installation or servicing.
- Installation should be performed by a qualified electrician if you are unsure about electrical wiring.
- Ensure all connections are secure and properly insulated.
- This product is designed for outdoor use and must be installed in accordance with local electrical codes.
- Do not connect to a dimmer switch.
Package Contents
Verify that all components are present before beginning installation:
- Feit Electric Smart Flood Security Light (Model: SEC3000/CAM/WIFI)
- Mounting Hardware
- User Manual
- 128 GB microSD card (pre-installed or included separately)
Image: Packaging box for the Feit Electric Smart Flood Security Light, illustrating key features and contents.
Setup and Installation
1. Pre-Installation
- Power Off: Locate your circuit breaker and turn off the power to the existing floodlight or junction box where you plan to install the new unit.
- Existing Fixture Removal: Carefully remove your existing floodlight fixture.
- Wi-Fi Check: Ensure you have a strong 2.4GHz Wi-Fi signal at the installation location. This device only supports 2.4GHz networks.
2. Physical Installation (Flush Mount)
- Mounting Plate: Attach the provided mounting plate to your junction box using the included screws.
- Wiring: Connect the electrical wires:
- Connect the black wire from the fixture to the black (live) wire from the junction box.
- Connect the white wire from the fixture to the white (neutral) wire from the junction box.
- Connect the green (ground) wire from the fixture to the ground wire from the junction box.
- Mount Fixture: Secure the floodlight fixture to the mounting plate. Ensure a tight seal to prevent water intrusion.
- Adjust Lights & Camera: Adjust the two LED light heads and the central camera unit to your desired angles.
3. App Setup and Wi-Fi Connection
- Power On: Restore power at the circuit breaker. The floodlight should illuminate briefly.
- Download App: Download the Feit Electric app from your mobile device's app store.
- Create Account: Open the app and create a new user account or log in if you already have one.
- Add Device: Follow the in-app instructions to add your new Smart Flood Security Light. This typically involves selecting the device type and connecting to your 2.4GHz Wi-Fi network.
- Pairing: The app will guide you through the pairing process, which may involve scanning a QR code on the device or using a sound pairing method.
Operating Instructions
Your Feit Electric Smart Flood Security Light is controlled primarily through the Feit Electric mobile application.
Key Features and Functions:
- 1080P HD Video: View live video streams and recorded footage in high definition.
- Motion Detection: The camera detects motion up to 32 feet and across a 270-degree field of view. You will receive push notifications on your mobile device when activity is detected.
- Night Vision: The camera automatically switches to night vision mode in low-light conditions.
- Two-Way Audio: Use the app to speak through the floodlight's speaker and listen through its microphone, allowing for communication with visitors or deterring intruders.
- 100-Decibel Siren: Activate a loud siren remotely via the app to scare off unwanted guests.
- Adjustable Lighting: Control the ultra-bright 3000-lumen LED lights (5000K color temperature) directly from the app.
- Local Storage: The included 128 GB microSD card stores up to 10 days (240 hours) of continuous recording. Footage is accessible 24/7 via the mobile app. No subscription fees are required for local storage.
- Capture & Share: Capture still images or video clips from live or recorded footage and share them directly from your mobile device.
Image: Close-up view of the Feit Electric Smart Flood Security Light, highlighting the camera lens and LED panels.
Maintenance
- Cleaning: Periodically clean the camera lens and light panels with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Firmware Updates: Ensure your Feit Electric app and device firmware are up to date for optimal performance and security. Updates are typically managed through the app.
- MicroSD Card: The 128 GB microSD card will automatically overwrite older footage once full. If you wish to save specific recordings, download them to your mobile device.
- Water Sealing: Regularly inspect the seal around the mounting area to ensure it remains watertight, especially in areas prone to heavy rain. Applying silicone sealant around the mount can enhance protection against water intrusion.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device not connecting to Wi-Fi | Incorrect Wi-Fi band (only 2.4GHz supported), weak signal, incorrect password. | Ensure you are connecting to a 2.4GHz network. Move the router closer or install a Wi-Fi extender. Double-check your Wi-Fi password. Restart the device and your router. |
| No video recording or playback | MicroSD card issue, app glitch, power cycle needed. | Ensure the microSD card is properly inserted. Power cycle the floodlight (turn off/on at breaker). Check app settings for recording preferences. |
| Motion detection not working | Sensitivity settings too low, obstruction, app settings. | Adjust motion sensitivity in the Feit Electric app. Ensure the camera's view is clear of obstructions. Verify motion detection is enabled in app settings. |
| Lights not turning on | No power, light sensor obstruction, app control. | Check power at the circuit breaker. Ensure the light sensor is not obstructed. Control the lights manually via the Feit Electric app. |
Specifications
- Model: SEC3000/CAM/WIFI
- Brand: Feit Electric
- Video Resolution: 1080P HD
- Field of View: 270 degrees (motion detection)
- Motion Detection Range: Up to 32 feet
- Light Output: 3000 Lumens
- Color Temperature: 5000K (Daylight)
- Energy Used: 39 Watts
- Life Hours: 50,000 hours / 45.7 years
- Voltage: 120 Volts
- Wi-Fi Support: 2.4GHz Networks Only
- Local Storage: 128 GB MicroSD card included (up to 10 days / 240 hours recording)
- Material: Stainless Steel
- Color: White
- Product Dimensions (L x W x H): 8 x 10 x 10 inches
- Item Weight: 3.59 Pounds
- Installation Method: Flush Mount
- Special Features: Motion Sensor, Two-Way Audio, Siren, Night Vision
Warranty Information
Specific warranty details for your Feit Electric Smart Flood Security Light are typically provided with the product packaging or can be found on the official Feit Electric website. Please retain your proof of purchase for warranty claims.
Customer Support
For technical assistance, troubleshooting, or further information regarding your Feit Electric Smart Flood Security Light, please visit the official Feit Electric website or contact their customer support directly. Contact information is usually available in the product packaging or on their website.
