1. Introduction and Overview
This manual provides essential information for the safe and effective use of your Arrow Select 8' x 6' Outdoor Lockable Steel Storage Shed Building. This steel storage building is designed to provide a secure and functional space for storing tools, gardening supplies, and lawn equipment. Constructed from galvanized steel with a blue-grey finish, it offers protection against environmental elements.
This image displays the Arrow Select 8' x 6' outdoor steel storage shed, featuring a blue-grey finish and double swing doors. The shed has a pent roof design and horizontal siding panels.
2. Safety Information
WARNING: This product is intended for outdoor use and may be exposed to harsh weather conditions. Always assemble and install this product according to the manufacturer's instructions, using at least two people and allowing sufficient time (6+ hours). Be aware of potential hazards when handling heavy components and follow all safety guidelines provided in the product documentation. Regularly inspect the product for any signs of wear or damage, and perform necessary maintenance to ensure its continued safety and stability.
Ensure the shed is installed on a level surface. Proper anchoring is crucial to prevent movement or damage due to high winds. Always wear appropriate personal protective equipment (PPE) during assembly, such as gloves and eye protection.
3. Product Features
- Sturdy Construction: 8' x 6' outdoor shed with 71" tall walls, constructed from galvanized steel for protection against elements.
- Durable Finish: Smooth paint textured finish provides resistance against weather, rust, and corrosion.
- Modern Design: Horizontal siding panels contribute to an upscale appearance.
- Easy Access: Sturdy swing doors with a brushed nickel key lock handle for security.
- Functional Storage: Tall 71" walls accommodate larger items and provide ample headroom.
- Ventilation: Vented gables allow for increased air flow within the interior.

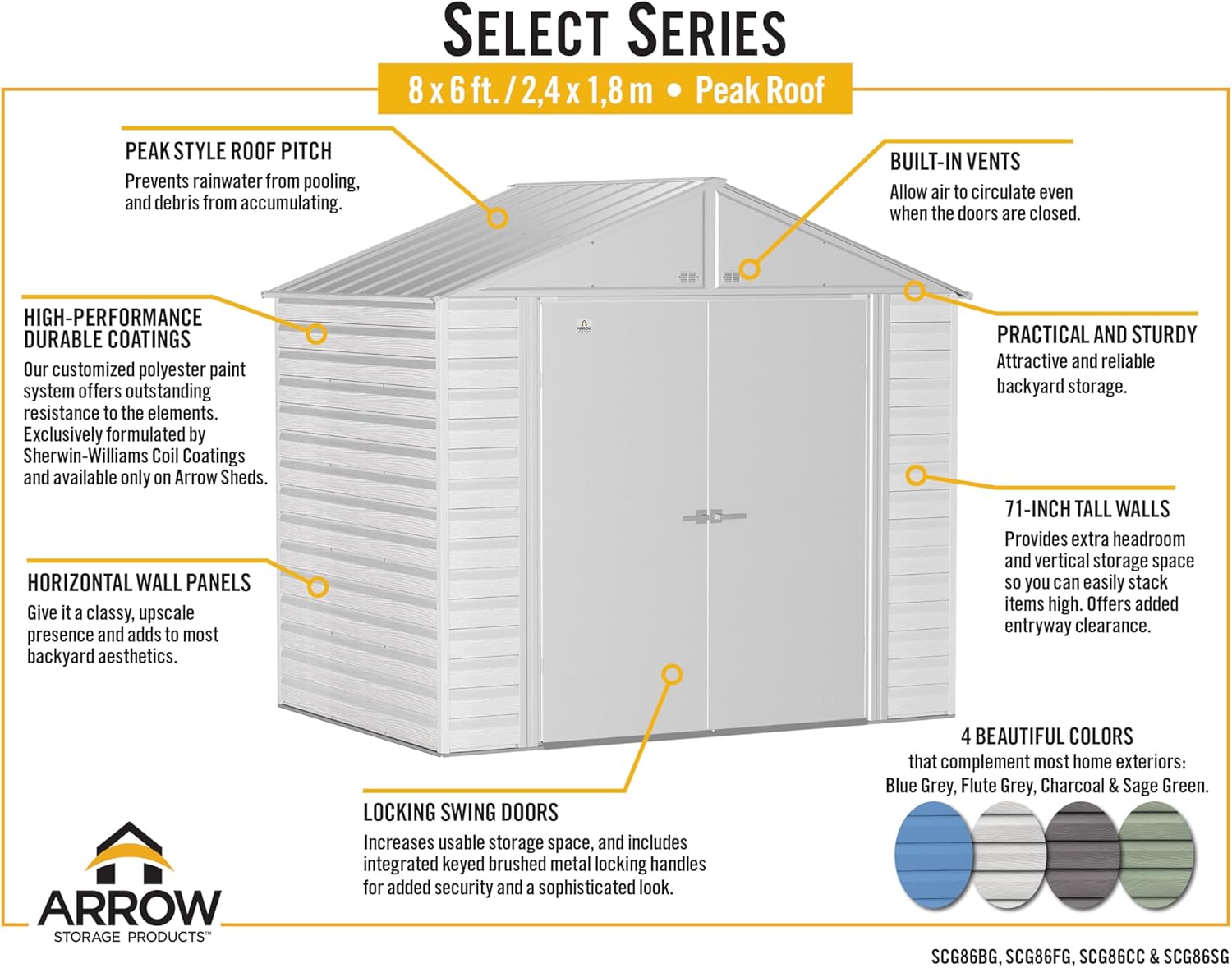

An infographic detailing the main features of the Arrow Select Series shed, including peak style roof pitch, built-in vents, high-performance durable coatings, 71-inch tall walls, horizontal wall panels, and locking swing doors.
A logo indicating that Arrow Storage Products utilize Sherwin-Williams Coil Coatings for enhanced durability and finish.
4. Assembly Instructions (Setup)
The Arrow Select Shed is designed for do-it-yourself assembly with pre-cut and pre-drilled parts. It is recommended that at least two people participate in the assembly process. Please allocate a minimum of 6 hours for complete assembly.
- Preparation: Clear the assembly area of any debris and ensure a level foundation.
- Unpacking: Carefully unpack all components and verify against the parts list provided in the separate assembly guide.
- Base Assembly: Assemble the base frame first, ensuring it is square and level.
- Wall Panel Installation: Attach the horizontal wall panels to the base frame, following the sequence in the guide.
- Roof Structure: Construct the roof frame and attach the roof panels.
- Door Installation: Install the swing doors and the locking mechanism.
- Final Checks: Ensure all fasteners are tightened and the shed is securely anchored to the ground.
A graphic featuring the text 'DIY' with a drill icon, suggesting the product is suitable for do-it-yourself assembly.
5. Operating Instructions
5.1. Door Operation
The shed features wide swing doors for easy access. To open, unlock the door using the provided key and pull the handle. To close, push the doors firmly until they meet, then engage the internal latch mechanism on one door and lock the main handle with the key.
This image focuses on the brushed nickel key lock handle, providing security for the shed's contents. A key is shown inserted into the lock.
An interior shot showing the spring-loaded bolt mechanism that secures the shed doors from the inside, ensuring stability when closed.
5.2. Ventilation
The shed is equipped with gable vents to promote air circulation. These vents are designed to reduce condensation and maintain a more stable internal environment. Ensure they are not obstructed by stored items.
A detailed view of the integrated gable vents located near the roofline, designed to facilitate air circulation within the shed.
6. Maintenance
Regular maintenance will extend the life and appearance of your shed.
- Cleaning: Clean the exterior surfaces periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Inspection: Annually inspect all fasteners, bolts, and anchors to ensure they are tight and secure. Check for any signs of rust or damage to the steel panels.
- Lubrication: Lubricate door hinges and the lock mechanism as needed to ensure smooth operation.
- Drainage: Ensure that water drains away from the shed's base to prevent pooling and potential corrosion.
7. Troubleshooting
This section addresses common issues you might encounter with your storage shed.
- Doors do not close properly: Check if the shed is on a level surface. Uneven ground can cause the frame to twist, affecting door alignment. Adjust the base as necessary. Inspect hinges for damage or misalignment.
- Water leakage: Ensure all roof and wall panels are correctly overlapped and all screws are tightened. Check for any gaps or damaged seals. Verify that the shed is properly anchored and not shifting.
- Condensation inside the shed: Ensure gable vents are clear of obstructions to allow for proper airflow. Avoid storing wet items inside the shed. Consider adding a moisture absorber if the problem persists in humid climates.
- Rust spots: While the shed is galvanized and coated, minor scratches can expose the steel. Address rust spots promptly by cleaning the area, lightly sanding, and applying a rust-inhibiting primer and paint.
8. Specifications
A detailed diagram illustrating the external dimensions of the Arrow Select 8' x 6' storage shed, including width (99.75 in / 253.4 cm), depth (71.25 in / 181 cm), height (91.4 in / 232.1 cm), door width (59.25 in / 150.5 cm), and door height (69 in / 175.3 cm).
| Specification | Detail |
|---|---|
| Brand | Arrow |
| Model Number | SCG86BG |
| Color | Blue Grey |
| Material | Alloy Steel (Galvanized) |
| Product Dimensions (D x W x H) | 71.2" x 99.75" x 91.38" |
| Storage Area | 43 sq. feet |
| Wall Height | 71 inches |
| Door Width | 59.25 inches |
| Door Style | Lockable Swing Doors |
| Assembly Required | Yes (2 people, 6+ hours recommended) |
| Water Resistance Level | Water Resistant |
| Item Weight | 220 pounds |
9. Warranty and Support
Arrow Storage Products offers a 12-year limited warranty for this shed. For any questions, warranty information, or assistance, please contact customer support.
A graphic highlighting the product's 12-year limited warranty and the availability of customer support 7 days a week.
Customer support is available 7 days a week to assist with inquiries, provide warranty details, and offer guidance on online manuals and how-to videos.
