Introduction
Thank you for choosing the Medline Aluminum European Style Foldable Rollator. This lightweight, strong, and easily maneuverable rollator is designed to provide reliable mobility support and a comfortable resting option. Please read this manual thoroughly before assembly and use to ensure safe and proper operation.
Important Safety Information: Always consult with a healthcare professional before using any mobility aid. Ensure all parts are securely assembled and functioning correctly before each use. Do not exceed the maximum weight capacity of 300 lbs.
Product Features
- Lightweight Aluminum Frame: Provides durability and ease of handling.
- Foldable Design: Allows for convenient storage and transport.
- Comfortable Mesh Seat and Backrest: Offers a spacious and sturdy spot for resting, supporting up to 300 lbs.
- Maneuverable Wheels: Strong swivel front wheels and smaller fixed rear wheels for smooth gliding indoors and outdoors.
- Hand Brakes: Located on the handles for controlled stopping and parking.
- Generous Storage Bag: Keeps personal items secure and accessible.
- Cane Holder: Conveniently holds a cane (cane sold separately).
Figure 1: Medline European Style Foldable Rollator with key dimensions highlighted. The rollator features an adjustable height from 34" to 38", a 21" seat height, a depth of 28.5", and a width of 25.25".
Assembly Instructions
Follow these steps to assemble your Medline Rollator. For a visual guide, please refer to the assembly video below.
Video 1: Official Medline assembly guide for the Paradym Euro Rollator. This video demonstrates the step-by-step process of unpacking, unfolding, attaching wheels, adjusting handles, and securing the backrest and storage bag.
- Unpack Components: Carefully remove all parts from the carton. Ensure all components are present: main frame, two front wheels, two rear wheels, two brake handles, backrest, and storage bag.
- Unfold Rollator Frame: Place the folded rollator on a flat surface. Push down on the seat until the frame is fully extended and locked into place. Ensure the frame is stable before proceeding.
- Remove Pre-attached Front Wheels (if applicable): The front wheels may be pre-attached at the bottom of the frame for shipping. To remove them, press the metal button on the side of the wheel tube and pull the wheel from the frame. Repeat for the other side.
- Attach Front Wheels: Press the metal button on the front wheel tube and insert the tube into the designated opening at the front of the rollator frame. Push until the button securely snaps into place. Repeat for the other front wheel.
- Attach Rear Wheels: Ensure the brake shoe on the rear wheel is facing the outside of the rollator. Press the metal button on the rear wheel tube and insert it into the opening at the rear of the frame. Push until the button securely snaps into place. Repeat for the other rear wheel.
- Attach Brake Handles and Adjust Height: With the rollator standing upright, press the metal button on the handle tube and slide the handle into the frame. Adjust the handle to your desired height, ensuring the button snaps into one of the adjustment holes. Repeat for the other handle. Make sure both handles are set at the same height for balanced support.
- Assemble Backrest: Ensure the loop strap on the backrest is on the same side as the cane holder (if present). Slide the ends of the backrest into the designated slots on the frame. Use a screwdriver to tighten the screws on both sides to secure the backrest firmly in place.
- Attach Storage Bag: Open the loops on the sides of the storage bag. Slide these loops onto the frame bars beneath the seat, ensuring the bag is securely attached and positioned for easy access.
Figure 2: The rollator is designed to fold down easily, making it convenient for storage in small spaces or for transport in a vehicle.
Figure 3: This image highlights the integrated cane holder (cane not included) and the spacious storage bag, providing convenience for users.
Operating Instructions
Walking with the Rollator
Stand upright with the rollator in front of you. Place your hands on the handgrips. Push the rollator forward a short distance, then step forward with one foot, followed by the other. Maintain a comfortable pace and keep your body centered within the rollator frame for stability.

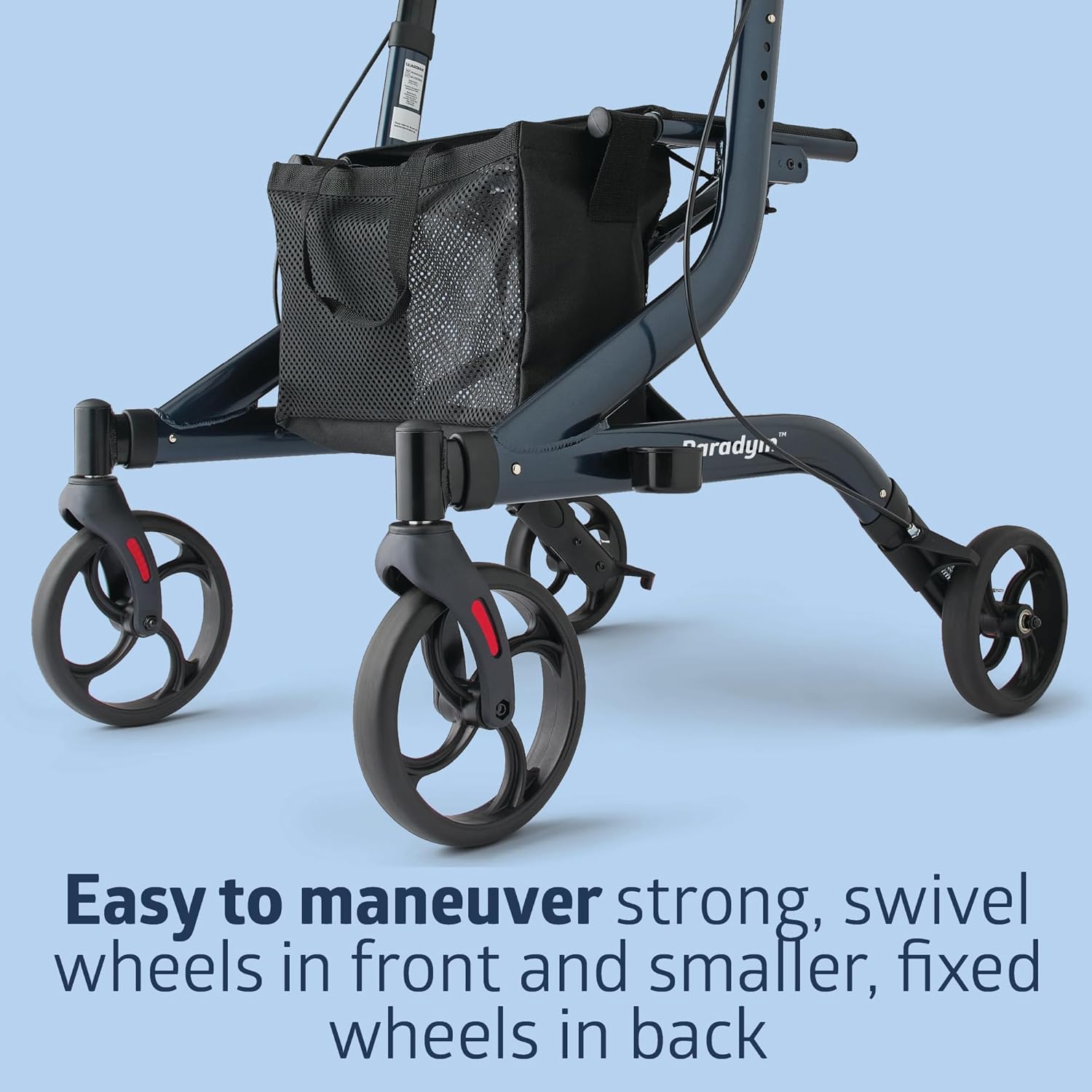

Figure 4: The rollator features strong swivel wheels in the front and smaller, fixed wheels in the back, allowing for easy maneuverability across various surfaces.
Using the Brakes
- To Slow Down: Gently squeeze the brake levers towards the handgrips. Release to resume normal movement.
- To Engage Parking Brakes: Push the brake levers down until they lock into place. This will prevent the rollator from moving. Always engage the parking brakes when sitting or standing still.
- To Release Parking Brakes: Pull the brake levers up until they disengage.
Using the Seat
Before sitting, ensure the rollator is on a flat, stable surface and the parking brakes are fully engaged. Turn around and slowly lower yourself onto the mesh seat. Use the backrest for support. To stand up, lean forward, push off the seat, and use the handgrips for balance. Always disengage parking brakes before moving again.
Figure 5: The rollator's strong mesh seat offers a comfortable and spacious resting area with a width of 26.25 inches and a weight capacity of up to 300 lbs.
Folding for Storage and Transport
To fold the rollator, lift the seat upwards by the strap or handle located in the center of the seat. The frame will collapse inward. Secure any locking mechanisms if present to keep it folded. This compact design makes it easy to store in a closet or car trunk.
Care and Maintenance
- Cleaning: Wipe down the frame and seat regularly with a damp cloth and mild soap. Avoid abrasive cleaners.
- Wheel Inspection: Periodically check the wheels for wear and tear. Ensure they rotate freely and are free of debris.
- Brake Check: Test the brakes regularly to ensure they engage and disengage properly. If brakes feel loose or ineffective, consult a qualified technician.
- Fastener Check: Ensure all screws and fasteners are tight. Do not overtighten.
- Storage: Store the rollator in a dry place away from extreme temperatures.
Troubleshooting Common Issues
| Problem | Possible Cause | Solution |
|---|---|---|
| Rollator does not fold/unfold smoothly. | Obstruction in folding mechanism or frame not fully extended. | Check for debris or objects obstructing the folding mechanism. Ensure the seat is fully pushed down or lifted up until the frame locks. |
| Brakes are not engaging or are too loose. | Brake cable needs adjustment or wear on brake pads. | Consult a qualified technician for brake adjustment or replacement. Do not attempt to repair brakes yourself if unsure. |
| Wheels are not rolling freely. | Debris caught in wheels or worn bearings. | Remove any hair, lint, or debris from around the wheel axles. If the problem persists, professional inspection may be required. |
Product Specifications
| Feature | Detail |
|---|---|
| Model Number | MDS86870ANB |
| Product Dimensions | 28.5"D x 25.25"W x 38"H |
| Item Weight | 18.46 pounds |
| Weight Capacity | 300 lbs |
| Material | Aluminum |
| Seat Height | 21 inches |
| Adjustable Handle Height | 34 - 38 inches |
Warranty and Support
Warranty Information
Medline products are manufactured to high-quality standards. For specific warranty details regarding your rollator, please refer to the documentation included with your purchase or contact Medline customer support directly.
Contact Information
For assistance, questions, or to report any issues, please contact Medline Customer Service:
Phone: 800-633-5463
Website: www.medline.com
