1. Product Overview
The PAXCESS Cordless Robotic Pool Cleaner is an innovative solution designed for efficient and convenient pool maintenance. Featuring a cordless design and advanced wall-climbing capabilities, this automatic pool vacuum is engineered to clean both inground and above-ground pools up to 1614 sq ft. Equipped with an 8600mAh lithium-ion battery, it provides up to 90 minutes of powerful cleaning, utilizing a smart route plan for comprehensive coverage.

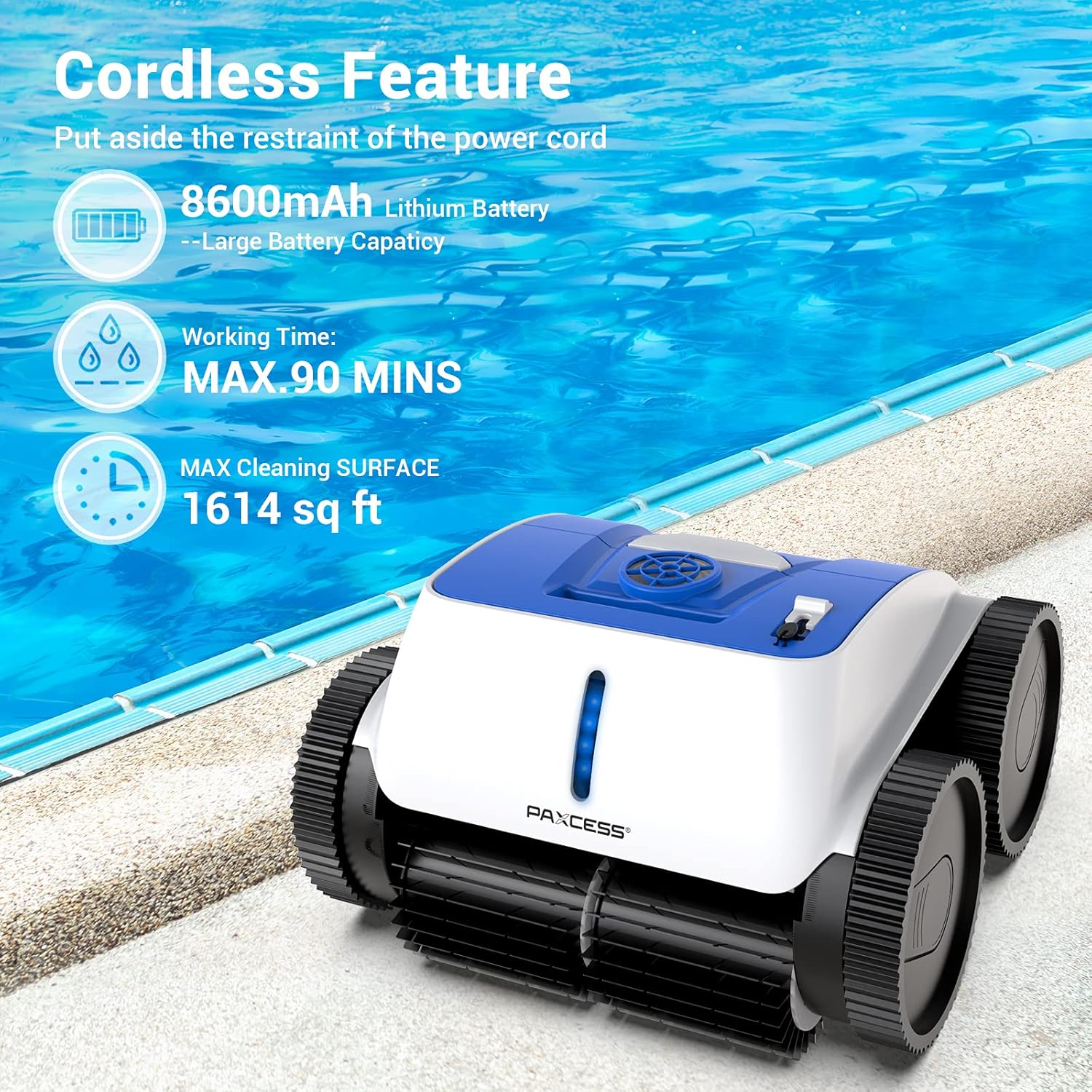

Image: PAXCESS Cordless Robotic Pool Cleaner in operation.
2. Safety Instructions
Please read all instructions carefully before operating the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ensure the charging port is completely dry before connecting the charger to prevent corrosion and damage.
- Do not operate the cleaner if the power cord or plug is damaged.
- Keep the cleaner away from children and pets during operation and charging.
- Only use the original charger provided with the unit.
- Avoid operating the cleaner in pools with extreme water temperatures or chemical imbalances.
- Do not attempt to disassemble or repair the unit yourself. Contact qualified service personnel for assistance.
3. Product Components
The PAXCESS Cordless Robotic Pool Cleaner comes with the following main components:
- Robotic Pool Cleaner Unit
- Charging Adapter
- Floating Handle/Hook (for retrieval)
- Large Top Access Filter Basket
Image: Robotic cleaner with its top access filter basket removed.
4. Setup Guide
- Initial Charge: Before first use, fully charge the robotic cleaner using the provided charging adapter. The charging indicator light will change color (e.g., from red to green) when fully charged.
- Prepare the Pool: Ensure the pool water is balanced and free of large debris that could obstruct the cleaner's movement.
- Place in Pool: Gently lower the cleaner into the pool. Ensure it is fully submerged and any trapped air bubbles are released. The cleaner will sink to the bottom.
Image: The robotic pool cleaner ready for deployment.
5. Operating Instructions
The PAXCESS Robotic Pool Cleaner is designed for autonomous operation:
- Starting Operation: Once fully submerged, the cleaner will automatically begin its cleaning cycle.
- Smart Navigation: The pre-installed smart gyroscope, accelerometer, and advanced three-axis motor enable the cleaner to plan the most efficient route for complete cleaning coverage, avoiding obstacles and dead corners.
- Wall Climbing: The advanced brush provides strong adsorption capacity, allowing the cleaner to climb walls and clean the waterline effectively without falling.
- Automatic Return: When the battery is low or the cleaning cycle is complete, the cleaner will automatically stop alongside the pool shore for easy retrieval.

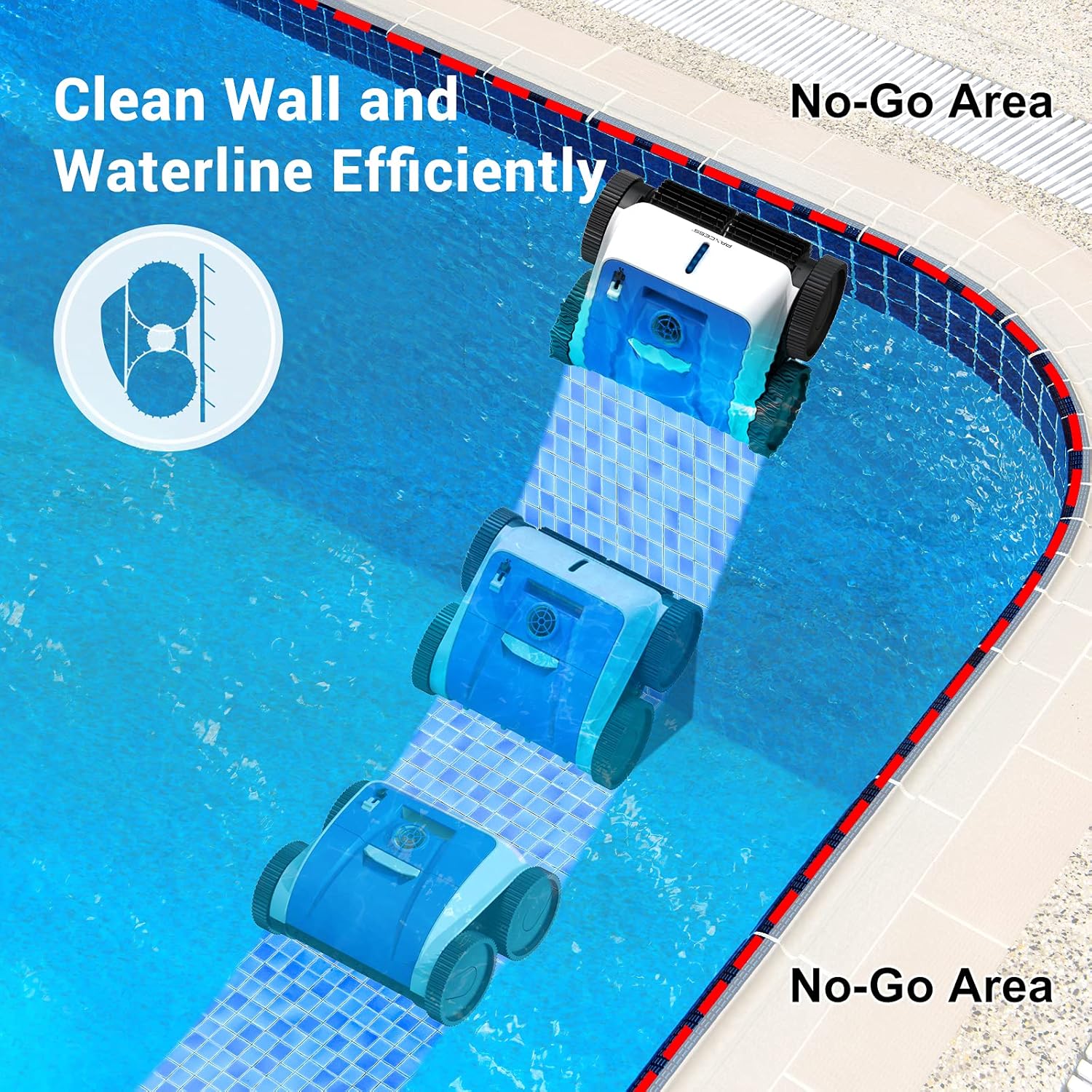

Image: Robotic cleaner demonstrating wall and waterline cleaning.

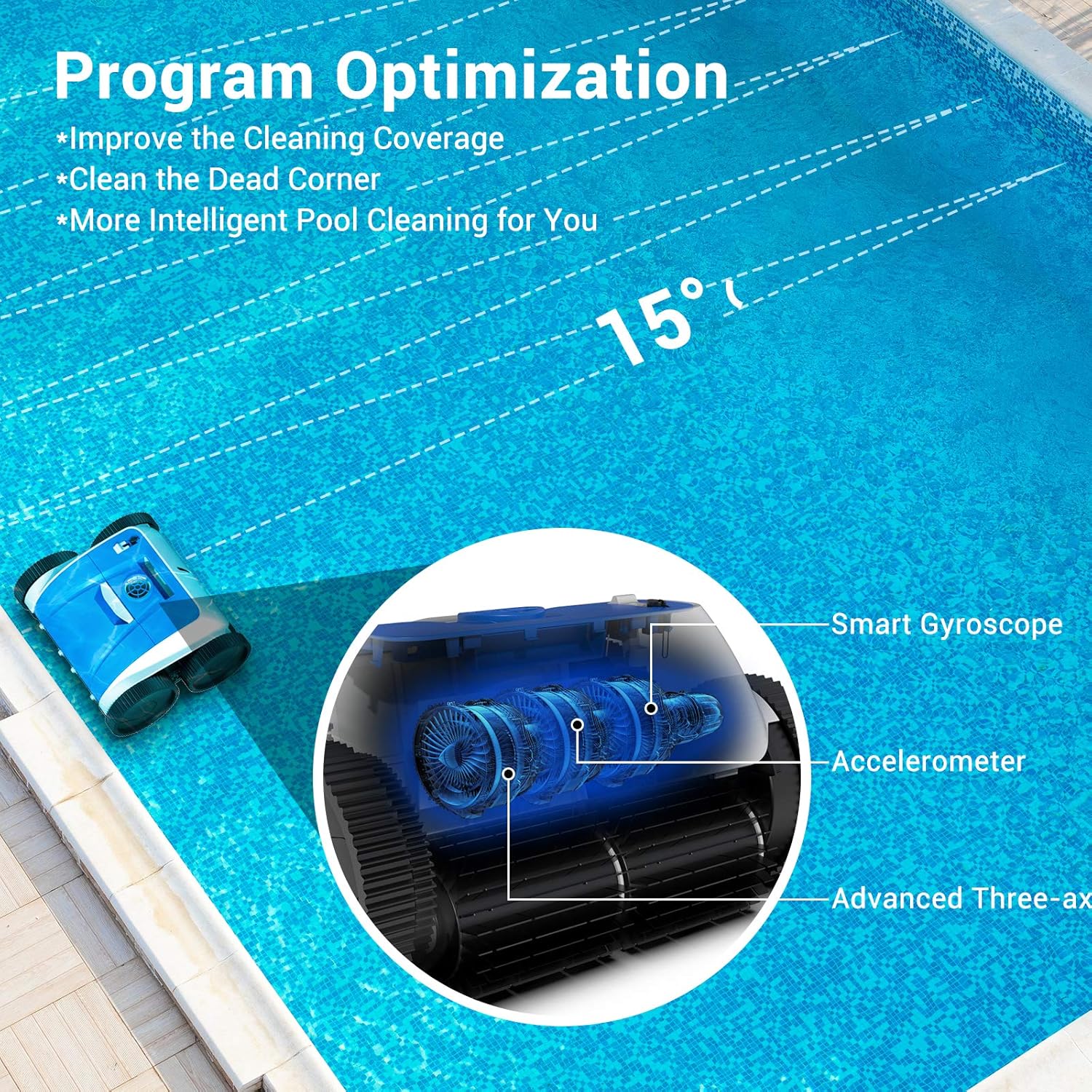

Image: Program optimization for efficient cleaning.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your cleaner:
- Filter Basket Cleaning: After each cleaning cycle, open and remove the large top access filter basket. Rinse it thoroughly with water to remove collected debris.
- Charging Port Care: Always ensure the charging port and pins are completely dry before connecting the charger. Moisture can lead to corrosion.
- Storage: When not in use for extended periods, fully charge the battery and store the cleaner in a cool, dry place away from direct sunlight.

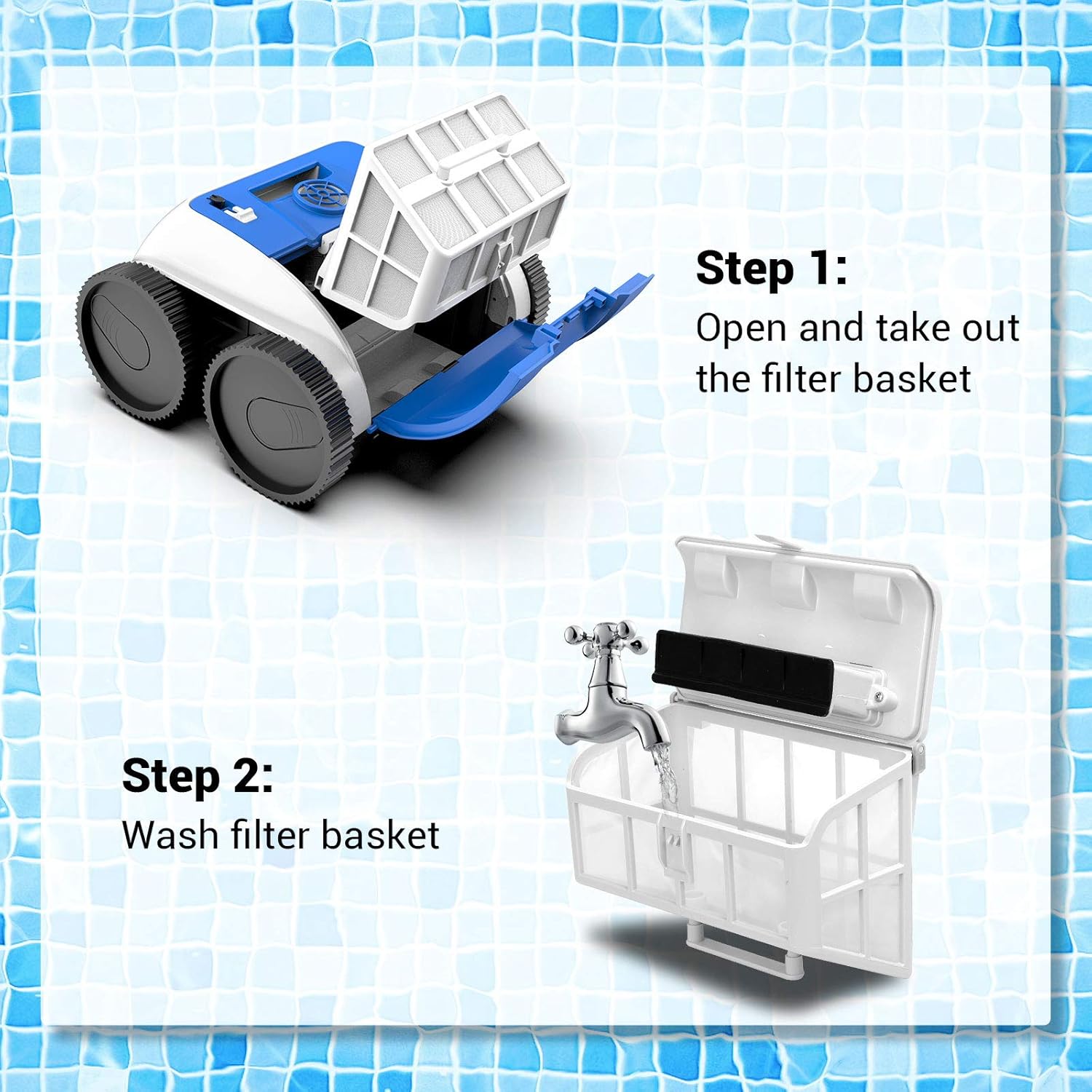

Image: Step-by-step guide for cleaning the filter basket.
7. Troubleshooting
Refer to the following common issues and their solutions:
- Cleaner not moving or stopping prematurely: Check battery level. The intelligent detection technology uses triple color indicators to show status (e.g., yellow light for low battery). Ensure no large debris is obstructing the wheels or brushes.
- Poor cleaning performance: Clean the filter basket thoroughly. Ensure the pool water chemistry is balanced.
- Not climbing walls: Ensure the battery is fully charged. Check for excessive algae or slippery surfaces on pool walls that might reduce traction.

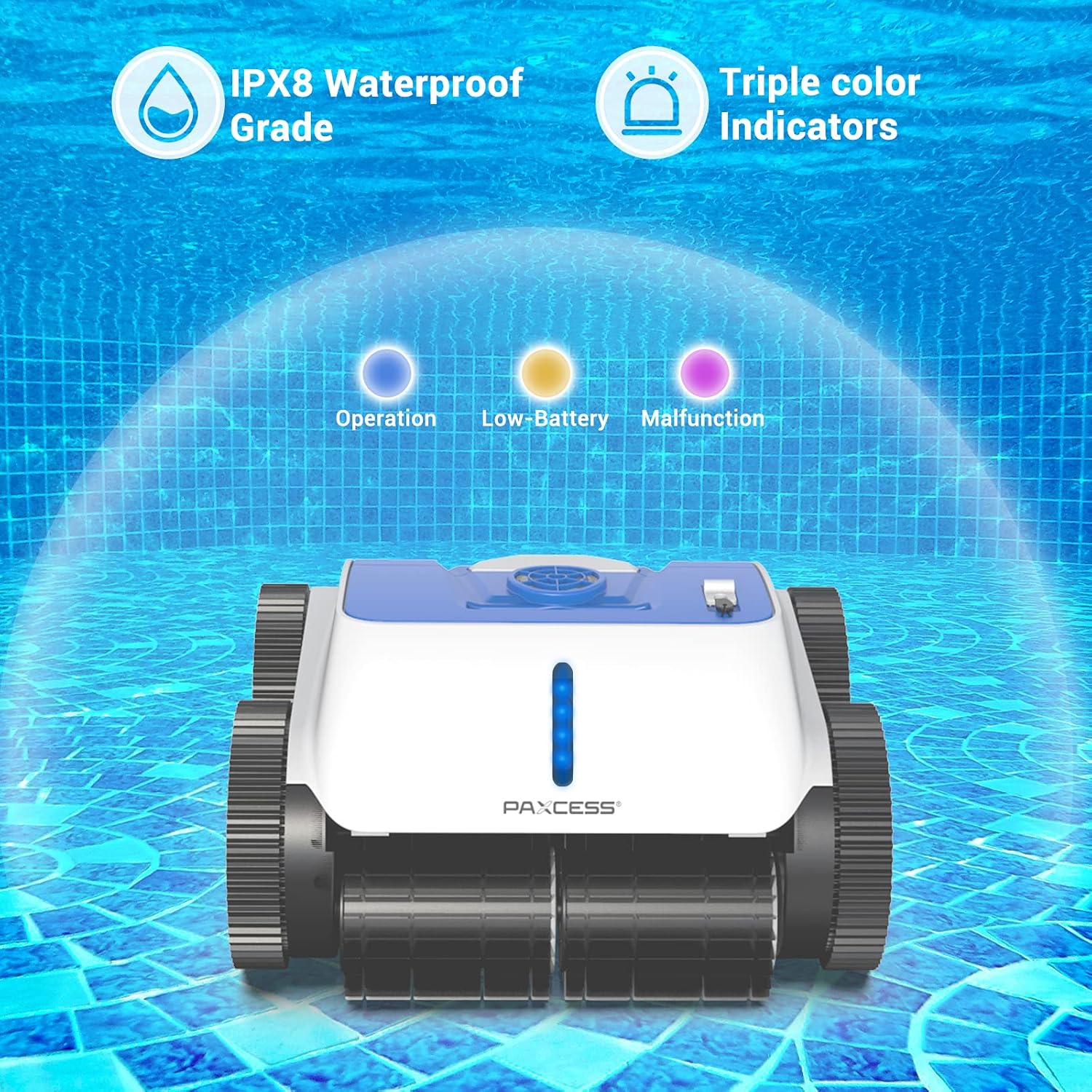

Image: Triple color indicators for operational status.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | PAXCESS |
| Model Name | Automatic Suction Climbing Wall Pool Vacuum Sweeper |
| Special Feature | Cordless |
| Power Source | Battery Powered |
| Battery Type | 8600mAh Lithium-Ion |
| Max Runtime | 90 minutes |
| Max Cleaning Surface | 1614 sq ft |
| Control Method | Remote |
| Item Weight | 23.3 pounds |
| Package Dimensions | 19 x 17 x 11.5 inches |
| Material | Polypropylene, ABS, Aluminum, Stainless Steel |
9. Warranty and Support
The PAXCESS Cordless Robotic Pool Cleaner is backed by an extended 90-day manufacturer’s assurance. For any product inquiries, technical support, or warranty claims, please contact PAXCESS customer service through the official website or your purchase platform. Ensure to provide your model number (B08R3VQK3T) and proof of purchase for efficient service.
