Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your hansgrohe Focus N High Arc Kitchen Faucet with Pull Down Sprayer. Please read all instructions carefully before beginning installation or use to ensure proper function and longevity of your product.
The hansgrohe Focus N faucet features a modern design, a large handle for ease of use, and high-quality mounting components for simple and secure installation. It includes QuickClean technology for easy maintenance and MagFit for secure hand spray docking.
Key Features
- Modern Functionality: Flexible design suitable for various kitchen aesthetics.
- Elegant Finish: Brushed Gold Optic surface for a luxurious look and durability.
- Enhanced Movement: 150° swivel spout for increased access to the kitchen sink.
- Pull-Out Sprayer: Extends reach for targeted rinsing of fruits, vegetables, and sink areas.
- Dual Spray Modes: Easily switch between crystal clear laminar spray and gentle shower spray.
- Magnetic Docking: hansgrohe MagFit ensures the pull-out spray head is securely held in the spout.
- Flexible Hoses: 3/8-inch hoses for quick connection to standard angle valves.
- QuickClean Technology: Allows for easy limescale removal from the spray nozzles.
Setup and Installation
Professional Installation Recommended: hansgrohe recommends that a licensed plumber install this product to ensure proper function and adherence to local plumbing codes.
Installation Overview
The faucet is designed for single-hole deck mount installation. It includes flexible 3/8-inch hoses for connection to standard angle valves.
Image: Faucet dimensions and installation options. Height: 15 3/4 inches, Spout Reach: 8 7/8 inches. Flow Rate: 1.75 GPM (6.6 L/min). Installation options include 1-hole direct installation or multi-hole with a baseplate and/or soap dispenser. Installation Dimensions: Hole Diameter: 1 1/2 inches, Water Connection: 3/8 inch.
Pre-Installation Checks
- Ensure all necessary components are present: Kitchen Faucet, Sprayhead, Supply Hoses.
- Verify the sink hole diameter is 1 1/2 inches.
- Confirm water supply connections are 3/8 inch.
Operating Instructions
Water Flow and Temperature Control
The single handle controls both water flow and temperature. Move the handle left for hot water, right for cold water, and up/down to adjust flow intensity.

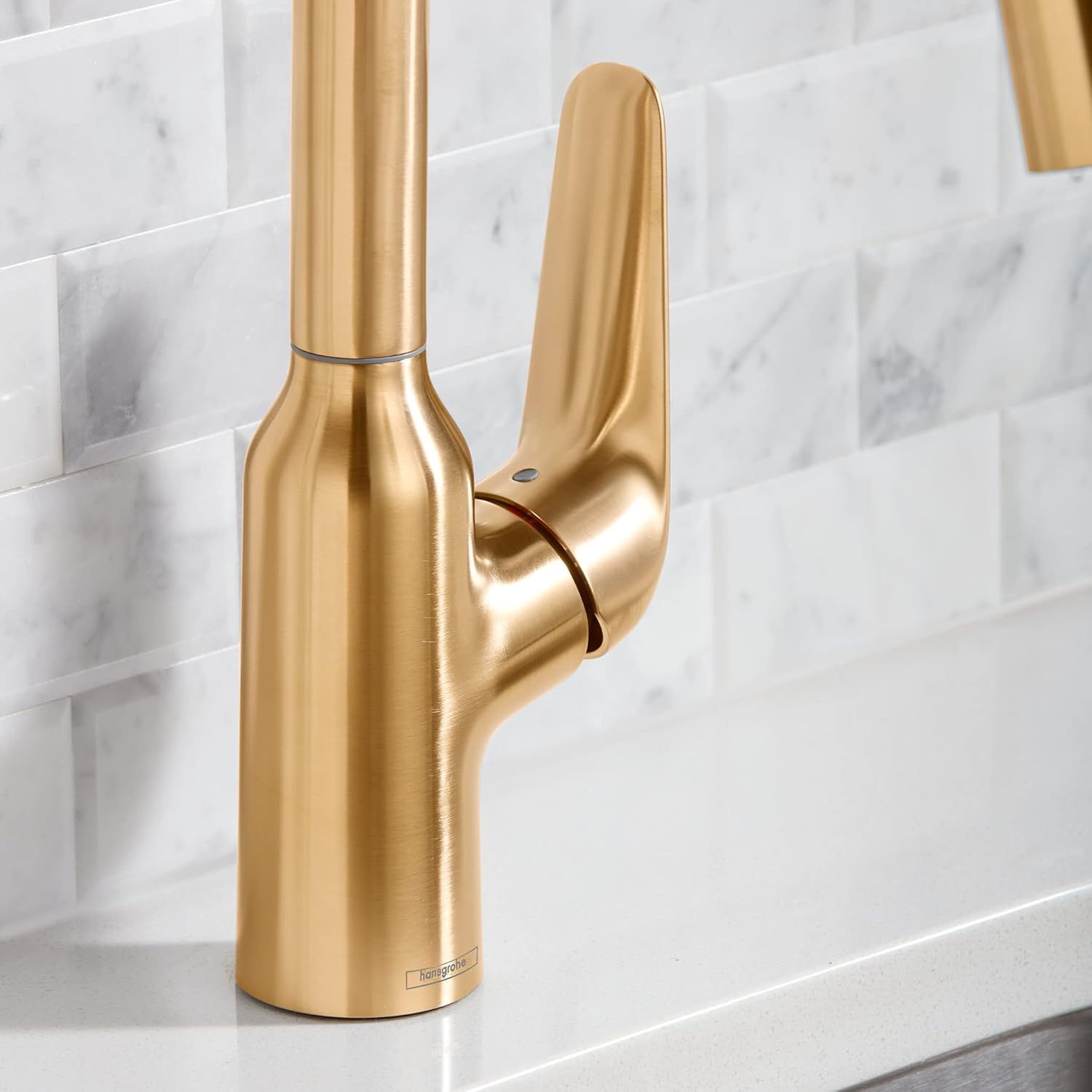

Image: Close-up of the single handle for water flow and temperature control.
Pull-Down Sprayer and Spray Modes
The faucet features a pull-down sprayer for extended reach. To use, simply pull the spray head from the spout. A button on the spray head allows you to switch between two distinct spray modes:
- Laminar Spray: A crystal clear, non-aerated stream ideal for quickly filling pots.
- Shower Spray: A gentle, wider spray suitable for rinsing fruits and vegetables.
Image: The pull-down sprayer showing the laminar and shower spray patterns.
MagFit Magnetic Docking
The MagFit system ensures the pull-out spray head retracts smoothly and docks securely in the center of the faucet spout when not in use.
Video: This video demonstrates the features of the hansgrohe Focus N kitchen faucet, including the laminar and shower spray modes, MagFit docking, and the smooth ceramic cartridge operation.
Maintenance
QuickClean Technology
The spray nozzles are equipped with QuickClean technology, allowing for easy removal of limescale deposits. Simply rub the silicone nozzles with your finger to dislodge any buildup.

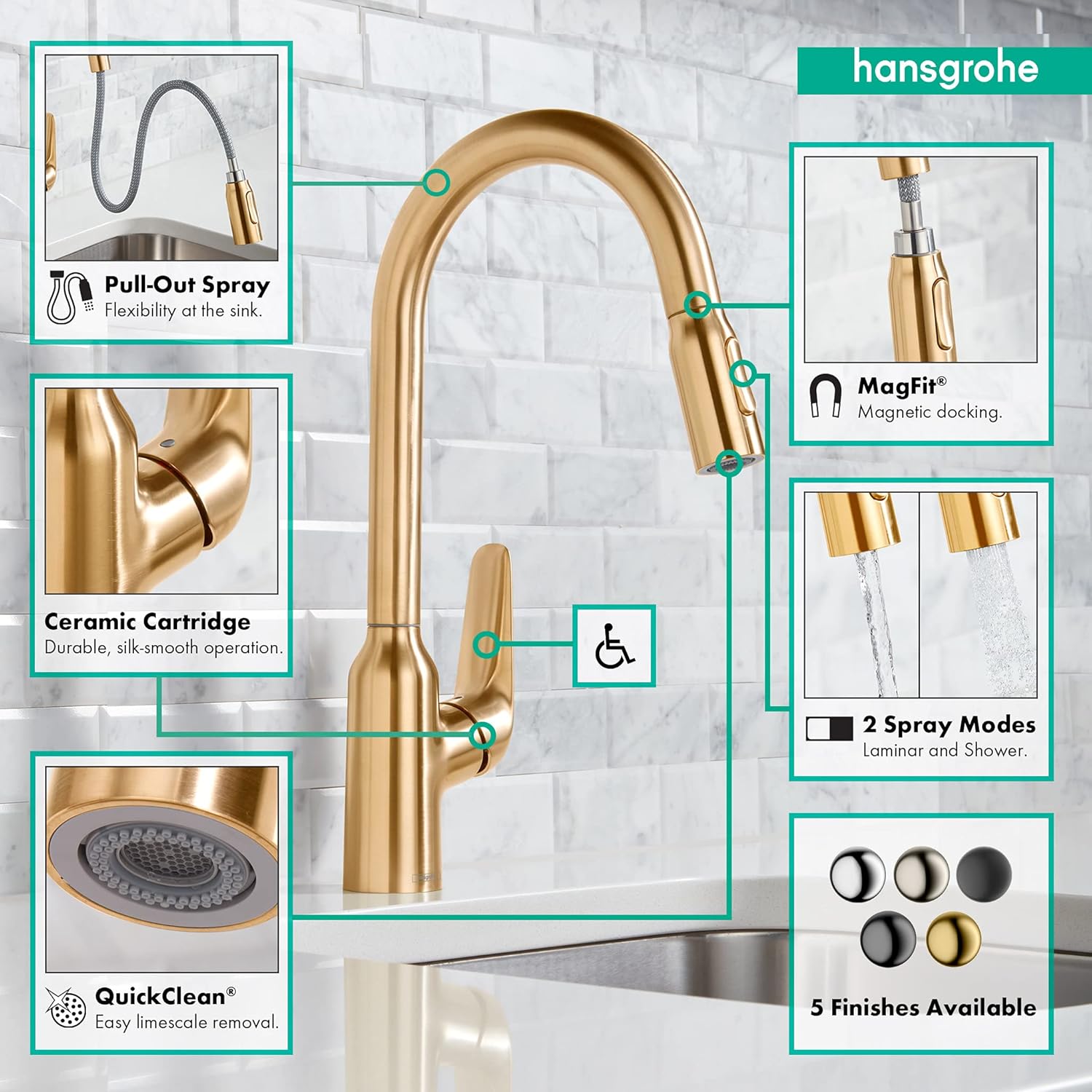

Image: Detail of the spray head showing QuickClean nozzles for easy limescale removal.
General Cleaning
Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water flow | Aerator clogged with debris or limescale. | Remove and clean the aerator. Use QuickClean technology on spray nozzles. |
| Faucet leaks from spray head when using diffuse spray | Internal component issue or debris in the spray head mechanism. | Ensure spray head is properly seated. Clean spray nozzles. If problem persists, contact hansgrohe customer service or a licensed plumber. |
| Water temperature inconsistent | Water heater settings or cartridge issue. | Check water heater settings. If problem persists, the ceramic cartridge may need inspection by a professional. |
| Spray head does not retract fully | Hose obstruction or weight issue. | Check under the sink for any obstructions preventing the hose from retracting. Ensure the counterweight is properly installed and not snagged. |
Specifications
| Feature | Detail |
|---|---|
| Brand | hansgrohe |
| Model Name | hansgrohe Focus N 1-Handle 16-inch Tall Kitchen Faucet with Pull Down Sprayer with QuickClean |
| Model Number | 71800251 |
| Color | Brushed Gold Optic |
| Material | Brass |
| Mounting Type | Single-hole deck mount |
| Number of Handles | 1 |
| Spout Design | High Arc |
| Special Feature | Pull Down Sprayer |
| Maximum Flow Rate | 1.75 Gallons Per Minute |
| Item Weight | 6.72 Pounds |
| Product Dimensions | 9.88 x 4.38 x 15.75 inches |
| Included Components | Kitchen Faucet, Sprayhead, Supply Hoses |
Warranty Information
LIMITED LIFETIME CONSUMER WARRANTY: All hansgrohe products are covered by a limited manufacturer warranty applicable to the original purchaser. Please retain your proof of purchase for warranty claims. For full warranty details, please refer to the official hansgrohe website or contact customer support.
Customer Support
For further assistance, technical support, or warranty inquiries, please visit the official hansgrohe website or contact their customer service department. Contact information can typically be found on the product packaging or the manufacturer's website.
