1. Introduction
Thank you for choosing the KUNPHY 350ml Ultrasonic Cleaner. This device utilizes high-frequency ultrasonic waves (46,000 Hz) to provide thorough and gentle cleaning for various items without causing damage. The ultrasonic vibrations, combined with a gentle water flow, effectively remove hidden dirt and grime from intricate surfaces. This manual provides essential information for the safe and efficient operation of your ultrasonic cleaner.
2. Safety Instructions
- Read all instructions before using the appliance.
- Do not immerse the main unit in water or other liquids.
- Ensure the power cord is not damaged and is properly connected to a grounded outlet.
- Keep out of reach of children.
- Do not operate the cleaner without liquid in the tank.
- Unplug the device when not in use and before cleaning.
- Avoid cleaning scratched or cracked glasses/sunglasses, as ultrasonic cleaning may worsen existing damage.
- Do not disassemble or attempt to repair the unit yourself. Contact customer support for assistance.
3. Product Overview
3.1 Components
- Ultrasonic Cleaner Unit (with 304 stainless steel tank)
- Transparent Lid
- Power Adapter (integrated or separate, depending on model)
- Watch Stand (included for specific items)
3.2 Features
- Effective Ultrasonic Cleaning: 46,000 Hz frequency for deep cleaning.
- Generous Capacity: 350ml stainless steel tank, suitable for various items.
- Simple Operation: One-button ON/OFF control.
- Automatic Shut-off: Device automatically turns off after a cleaning cycle (typically 3 minutes).
- Durable Construction: 304 stainless steel interior for corrosion resistance.
- Stable Design: Non-slip silicone strip on the bottom for stability and noise reduction.
- Versatile Use: Ideal for jewelry, watches, glasses, dentures, electric shaver heads, makeup brushes, combs, and more.
Image 1: KUNPHY 350ml Ultrasonic Cleaner showing its compact design and items it can clean.
Image 2: Versatility of the KUNPHY Ultrasonic Cleaner for various items including watches, dentures, and jewelry.
4. Setup
- Placement: Place the ultrasonic cleaner on a stable, flat, and dry surface. Ensure it is near a power outlet.
- Power Connection: Plug the power adapter into a suitable electrical outlet.
- Fill Tank: Open the lid and fill the stainless steel tank with tap water. Do not exceed the maximum fill line. For enhanced cleaning, a small amount of dish soap or a specialized ultrasonic cleaning solution can be added.

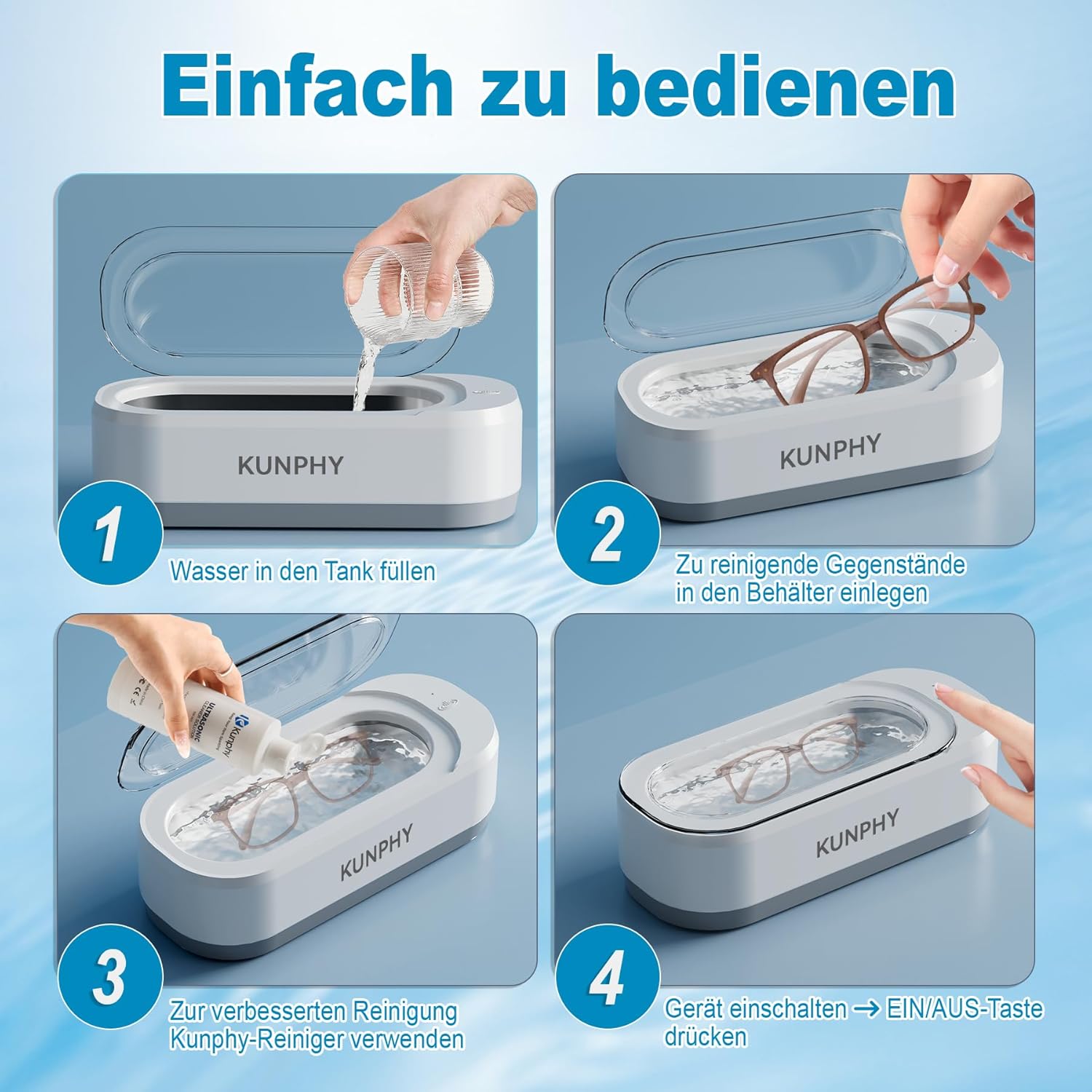

Image 3: Visual guide for filling the tank and placing items.
5. Operating Instructions
- Prepare Items: Ensure items to be cleaned are suitable for ultrasonic cleaning. For watches, use the included watch stand if applicable.
- Place Items: Carefully place the items into the water in the stainless steel tank. Ensure items are fully submerged but not overcrowded.
- Start Cleaning: Close the lid and press the ON/OFF button to start the cleaning cycle. The device will begin operating, and you may hear a gentle humming sound.
- Automatic Shut-off: The cleaner will automatically stop after approximately 3 minutes.
- Inspect and Repeat: After the cycle, open the lid and carefully remove the cleaned items. Rinse them under clean water and dry with a soft cloth. If items are still dirty, you may repeat the cleaning cycle.
- Empty and Clean: After use, unplug the device, empty the water from the tank, and wipe the tank and exterior clean.
Image 4: Demonstration of cleaning effectiveness on glasses.
Image 5: Demonstration of cleaning effectiveness on jewelry.
6. Maintenance
- Cleaning the Tank: After each use, empty the water and wipe the stainless steel tank with a soft cloth. Do not use abrasive cleaners or harsh chemicals.
- Exterior Cleaning: Wipe the exterior of the unit with a damp cloth. Ensure no water enters the electronic components.
- Storage: Store the cleaner in a cool, dry place away from direct sunlight and moisture when not in use.
- Descaling: If mineral deposits build up in the tank, use a mild descaling solution or vinegar diluted with water, run a short cycle, then rinse thoroughly.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power supply. | Check if the power cord is securely plugged into the unit and the wall outlet. Ensure the outlet is functional. |
| Cleaning is not effective. | Insufficient water or cleaning solution; items too dirty; items overcrowded. | Ensure tank is filled to the appropriate level. Add a small amount of cleaning solution. Clean fewer items at a time. Run multiple cycles if necessary. |
| Unusual noise during operation. | Unit not on a flat surface; tank empty. | Place the unit on a stable, flat surface. Ensure the tank is filled with water. |
8. Specifications
- Model Number: Mor-DE-UC-BCM-187
- Manufacturer: SWX
- Capacity: 350ml
- Ultrasonic Frequency: 46,000 Hz
- Power: 18 Watt-hours
- Material: PTFE (Polytetrafluoroethylene), 304 Stainless Steel
- Color: White
- Package Dimensions: 31 x 11.2 x 7.9 cm
- Weight: 680 grams
- Included Components: Ultrasonic cleaner unit, watch stand
- Batteries Required: No
- Date First Available: April 15, 2022
9. Customer Support
For any questions, concerns, or technical assistance regarding your KUNPHY Ultrasonic Cleaner, please contact our customer service. We aim to provide high-quality support to ensure your satisfaction.
