Prolink PRO1501SFCU 1500VA/900W UPS Instruction Manual

1. Product Overview

The Prolink PRO1501SFCU is a 1500VA/900W single-phase output Line-Interactive Uninterruptible Power Supply (UPS) system. It features PROLiNK’s Super-Fast Charging technology, allowing the battery to recharge to 90% capacity within 2-4 hours. An Advanced Early Warning system provides alerts for output overload, high temperature, or low battery conditions. The Intelligent Battery Management system protects against overcharging and deep discharging, enhancing battery performance and reliability. The device includes universal sockets for broad compatibility and supports a wide input voltage range. Automatic shutdown occurs in cases of over temperature and overload to prevent damage.

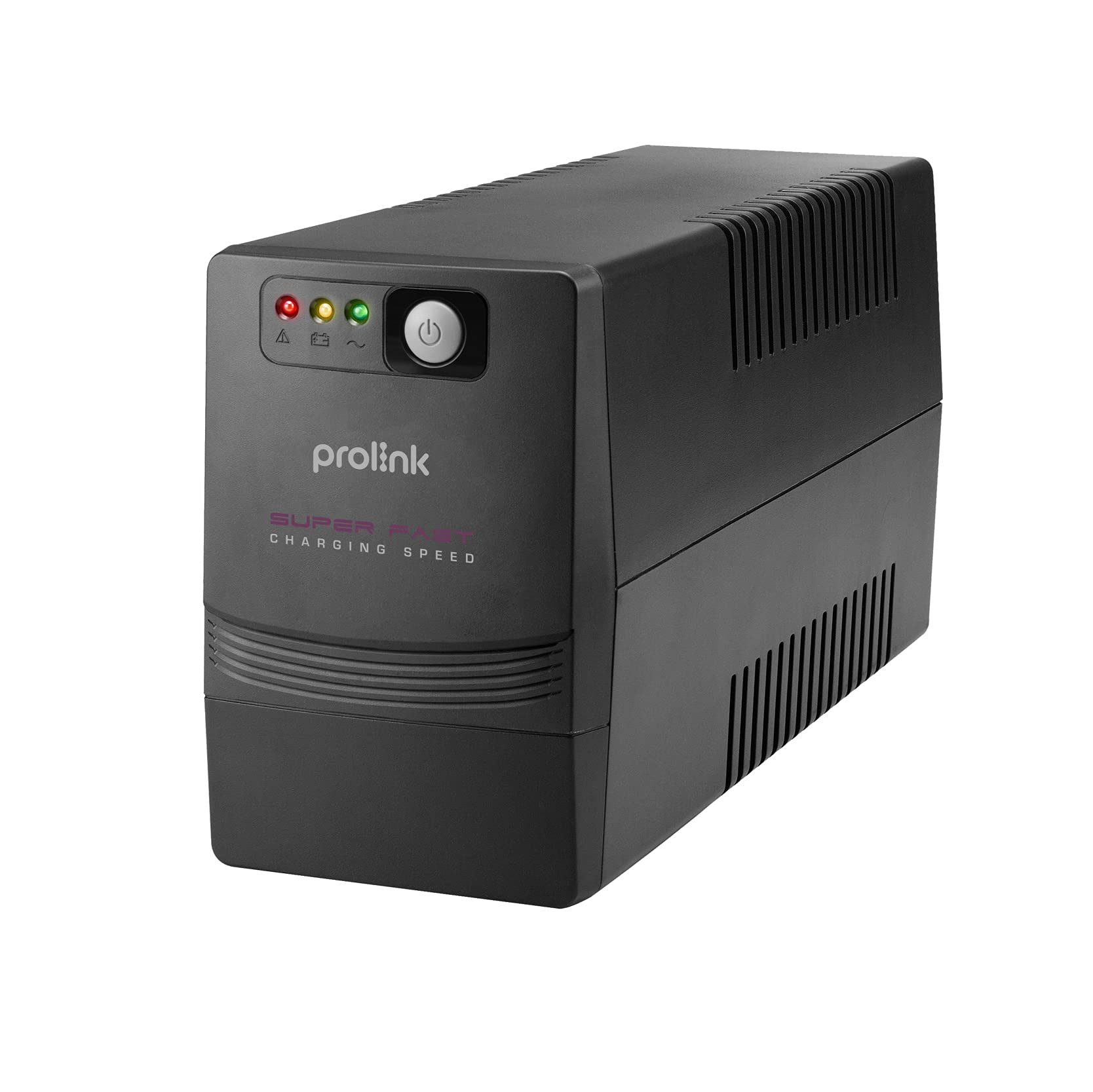

Figure 1: Front and rear view of the Prolink PRO1501SFCU UPS.

Key Features:

• Super-Fast Charging: Recharges battery to 90% capacity within 2-4 hours.
• Microprocessor Control: Ensures high reliability and stable operation.
• Boost and Buck AVR: Provides automatic voltage regulation for stable output.
• Auto Restart: Automatically restarts when AC power is restored.
• Simulated Sine Wave Output: Suitable for various electronic devices.
• Wide Input Voltage Range: Accommodates fluctuating power conditions.
• Universal Sockets: Offers broad compatibility with different plug types.
• Advanced Protection: Includes overload, over-temperature, and short circuit protection.

2. Setup Instructions

Follow these steps to properly set up your Prolink PRO1501SFCU UPS:

1. Unpack the UPS: Carefully remove the UPS from its packaging. Inspect for any shipping damage.
2. Position the UPS: Place the UPS in a well-ventilated area, away from direct sunlight, heat sources, and excessive moisture. Ensure there is adequate space around the unit for airflow.
3. Connect to AC Power: Plug the UPS power cord into a grounded wall outlet. The UPS will begin charging its internal battery. Allow the battery to charge for at least 4 hours before initial use to ensure optimal backup time.
4. Connect Devices: Plug your computer, monitor, modem, router, NAS, or other critical equipment into the universal output sockets on the rear panel of the UPS. Ensure the total load does not exceed the UPS's capacity (900W).
5. Connect USB (Optional): For monitoring and control, connect the USB cable from the UPS to your computer. Install the monitoring software provided by Prolink (if applicable).
6. Power On: Press the power button on the front panel to turn on the UPS. The LCD display will illuminate, showing operational status.

Figure 2: Rear panel connections including AC input, backup outputs, USB port, and RJ45 ports.

3. Operating the UPS

3.1. Front Panel and Indicators

The front panel of the UPS features an LCD display and control buttons for monitoring and managing the unit.

Figure 3: Front panel with power button and status indicators.

3.2. Power On/Off

• To Power On: Press and hold the power button for approximately 2 seconds until the UPS beeps and the LCD display illuminates.
• To Power Off: Press and hold the power button for approximately 2 seconds until the UPS beeps and the LCD display turns off.

3.3. Automatic Voltage Regulation (AVR)

The UPS automatically regulates incoming AC voltage to provide a stable output to connected devices. This protects equipment from voltage fluctuations (sags, surges, under/over voltage) without switching to battery power.

Figure 4: Explanation of 3-step Boost and Buck AVR operation.

3.4. Battery Backup Operation

In the event of a power outage, the UPS will automatically switch to battery power, providing continuous power to connected devices. The LCD display will indicate battery mode, and an audible alarm will sound. The backup time depends on the connected load.

Figure 5: Estimated backup times for different load levels (refer to PRO1501SFCU row for this model).

3.5. Super-Fast Charging

The UPS features Super-Fast Charging technology, significantly reducing the time required to recharge the battery after a power event.

Figure 6: Super-Fast Charging capability, reaching 90% charge in 2-4 hours.

4. Maintenance

Proper maintenance ensures the longevity and optimal performance of your UPS.

• Battery Care: Keep the UPS connected to AC power to ensure the battery remains charged. Avoid frequent deep discharges, which can shorten battery life.
• Cleaning: Regularly clean the exterior of the UPS with a dry cloth. Do not use liquid or aerosol cleaners. Ensure ventilation openings are free from dust and debris.
• Storage: If storing the UPS for an extended period, ensure it is fully charged, then disconnect it from AC power. Recharge the battery every three months to prevent permanent damage.
• Battery Replacement: Batteries have a limited lifespan. If the UPS's backup time significantly decreases, the battery may need replacement. Contact Prolink support for assistance.

5. Troubleshooting

This section addresses common issues you might encounter with your UPS.

6. Technical Specifications

Detailed specifications for the Prolink PRO1501SFCU UPS.

Figure 7: Overview of technical specifications.

7. Warranty and Support

The Prolink PRO1501SFCU UPS comes with a 2-year local manufacturer warranty. For technical support, warranty claims, or service inquiries, please refer to the contact information provided by your local Prolink distributor or the official Prolink website.

For additional resources and support, visit the official Prolink website: www.prolink2u.com
