1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your CIARRA CBBIH3 3-zone built-in induction hob. Please read these instructions carefully before using the appliance and retain them for future reference.
Image Description: The CIARRA CBBIH3 induction hob features a sleek black glass surface with three cooking zones. A frying pan with salmon and lemons is shown on one of the zones, demonstrating its use. The touch control panel is visible at the bottom right.
2. Important Safety Instructions
To reduce the risk of fire, electric shock, injury to persons, or damage when using the appliance, follow basic safety precautions, including the following:
- Ensure the appliance is installed by a qualified electrician in accordance with local regulations.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Child Lock Function: This hob is equipped with a child lock feature to prevent accidental operation by children. Refer to the "Operating Instructions" section for details on how to activate and deactivate this function.
3. Installation
3.1 Unpacking
Carefully remove the appliance from its packaging. Inspect for any damage during transit. Keep packaging materials away from children.
3.2 Required Cutout Dimensions
The CIARRA CBBIH3 induction hob is designed for built-in installation. Ensure your countertop cutout meets the following dimensions:
- Product Dimensions (L x W x H): 59 cm x 52 cm x 5.8 cm
- Cutout Dimensions (L x W): 56 cm x 49 cm

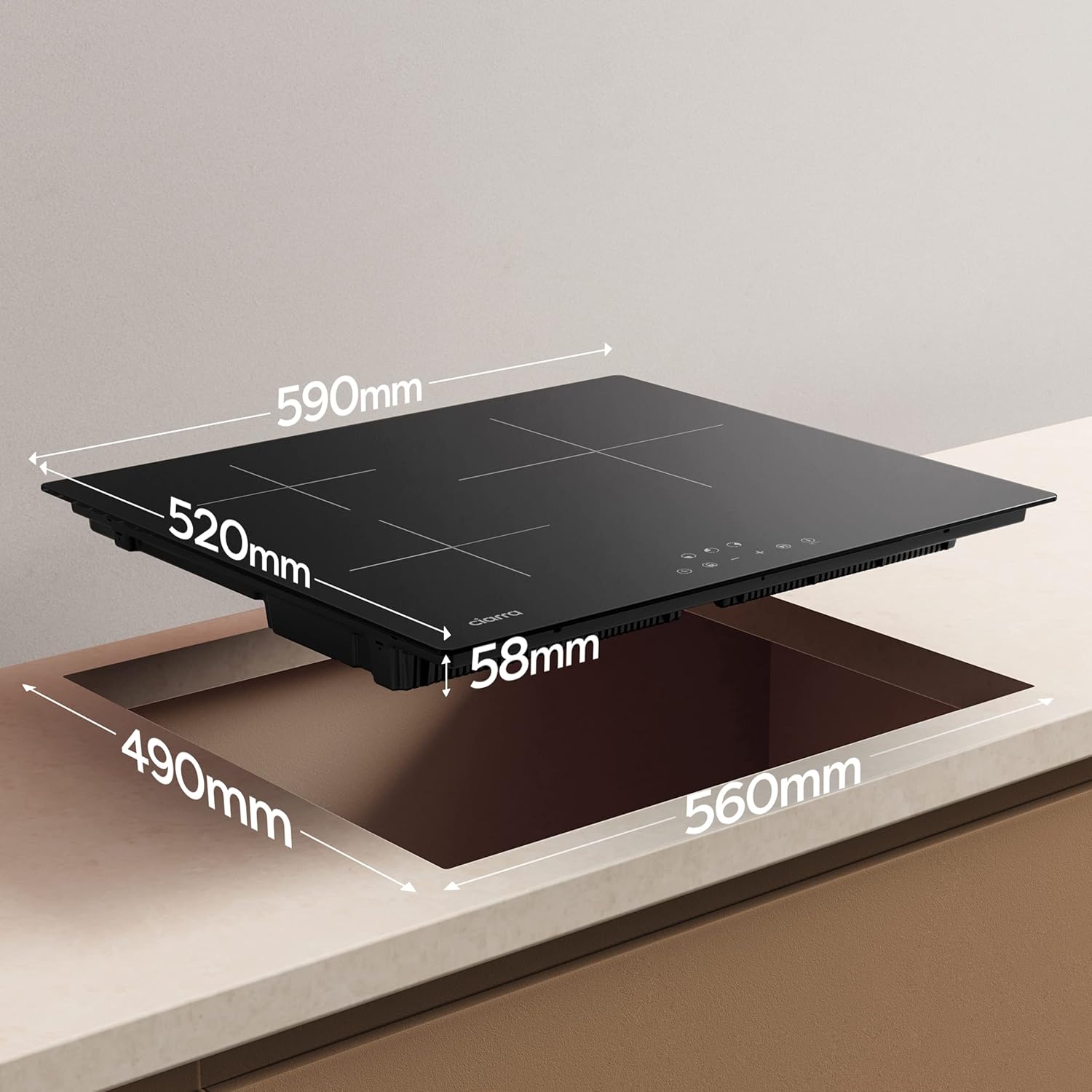

Image Description: A diagram showing the product dimensions (590mm x 520mm x 58mm) and the required cutout dimensions for installation (560mm x 490mm) for the CIARRA CBBIH3 induction hob. This visual aid helps ensure proper fitting into the kitchen countertop.
Installation should be performed by a qualified electrician to ensure proper electrical connection and safety.
3.3 Electrical Connection
The appliance operates on 220 Volts. Ensure the electrical supply is compatible and properly grounded. The hob is supplied with an electric cable for connection; it does not have a standard plug. A secure, permanent connection to the mains supply is required, typically via a dedicated circuit breaker.
4. Operating Instructions
4.1 Overview of Controls
The CIARRA CBBIH3 features a responsive touch control panel with an LED display for easy operation. Each cooking zone can be controlled independently.
Image Description: This image provides a detailed view of the CIARRA CBBIH3 induction hob's touch control panel, showing the LED display and buttons for easily selecting power levels and functions. The controls are clearly labeled for intuitive use.
4.2 Power Levels and Zones
The hob offers 9 power levels for precise cooking control. It has three cooking zones with a total power output of 6100W. The zones are compatible with cookware diameters up to 36cm.
- Zone 1: 1500W, for cookware 12-20cm
- Zone 2: 2000W, for cookware 12-26cm
- Zone 3: 2600W, for cookware 15-36cm
Image Description: An overhead view of the CIARRA CBBIH3 induction hob, detailing the three cooking zones with their respective power levels (1500W, 2000W, 2600W) and compatible cookware diameters. This image visually explains the hob's power distribution and capacity.
4.3 Cookware Compatibility
Induction hobs require cookware with a magnetic base. Compatible materials include:
- Stainless steel with a magnetic bottom
- Magnetic pots
- Cast iron pans
- Cast iron woks
Non-compatible materials include enamel, copper/aluminum, ceramics, and glass.
Image Description: This image displays various types of cookware, indicating which are compatible with the CIARRA CBBIH3 induction hob (stainless steel with magnetic bottom, magnetic pot, cast iron pan, cast iron wok) and which are not (enamel, copper/aluminum, ceramics, glass). This helps users select appropriate cooking vessels.
4.4 Special Functions
- Pause Function: This feature allows you to temporarily pause cooking and resume it later without losing your settings. Simply touch the pause button on the control panel.
- Timer Function: An integrated timer, adjustable up to 99 minutes, assists in precise cooking and prevents overcooking. The timer can be set for individual zones.
- Child Lock: To prevent accidental activation or changes to settings, activate the child lock. Press and hold the child lock button until the indicator light appears. Repeat the process to deactivate.
Image Description: A family, including a child, is shown cooking on the CIARRA CBBIH3 induction hob. The image highlights the 'Stop & Go Function' which allows pausing and restarting cooking with a simple touch, ideal for busy kitchen environments.
5. Maintenance and Cleaning
The vitrocéramique (ceramic glass) surface of the CIARRA CBBIH3 induction hob is designed for easy cleaning and is resistant to stains and scratches.
- Always ensure the hob is cool before cleaning.
- Wipe the surface with a soft cloth and mild detergent.
- For stubborn stains, use a specialized ceramic hob cleaner.
- Avoid abrasive cleaners, scouring pads, or harsh chemicals that could damage the surface.
- Wipe dry with a clean cloth to prevent water spots.
6. Troubleshooting
This section addresses common issues you might encounter with your induction hob. If the problem persists, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Hob does not turn on. | No power supply; Child lock activated. | Check power connection; Deactivate child lock. |
| Cooking zone not heating. | Incompatible cookware; Cookware not centered; Zone not activated. | Use magnetic cookware; Center cookware on zone; Activate desired zone. |
| Display shows an error code. | Internal fault; Overheating. | Refer to specific error code in a more detailed manual (if available) or contact support. Turn off and allow to cool. |
| Unusual noise during operation. | Normal operation (fan, magnetic field); Incompatible cookware. | Some humming/buzzing is normal. Ensure cookware is induction-compatible. |
7. Technical Specifications
- Brand: CIARRA
- Model Number: CBBIH3
- Product Dimensions (L x W x H): 59 cm x 52 cm x 5.8 cm
- Weight: 7.9 kg
- Installation Type: Built-in
- Hob Type: Induction
- Number of Hobs: 3
- Color: Black
- Voltage: 220 Volts
- Total Power: 6200 Watts
- Energy Type Used: Electric
- Material: Glass (Crystal Glass surface)
- Control Type: Touch
- Ignition System Type: Electronic
8. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official CIARRA website. Please have your model number (CBBIH3) and purchase details ready when contacting support.
Spare parts availability information is not provided in the product details. Please contact CIARRA customer service for inquiries regarding spare parts.
