1. Introduction
Welcome to the Lay-Z-Spa 60305 Gazebo Dome instruction manual. This manual provides essential information for the safe and efficient setup, operation, and maintenance of your new gazebo dome. Please read this manual thoroughly before assembly and retain it for future reference.
The Lay-Z-Spa Round Spa Dome is designed to create a private and sheltered environment for your hot tub or pool, protecting you from various weather elements such as rain and sun. It is compatible with Bestway inflatable spas and pools up to 3.66 meters (12 feet) in diameter.
2. Safety Information
Always follow basic safety precautions when using this product to reduce the risk of injury, electric shock, fire, or property damage.
- Ensure the dome is securely anchored to the ground to prevent wind damage.
- Do not use the dome during severe weather conditions, such as strong winds, heavy rain, or lightning.
- Keep all flame and heat sources away from the tent fabric.
- Regularly inspect the dome for any signs of wear or damage. Do not use if damaged.
- Keep children and pets away from the dome during assembly and disassembly.
3. Package Contents
Verify that all components are present before beginning assembly:
- Tent fabric
- Support poles
- Ground pegs (20 pieces)
- Guy ropes
- Carry bag
Refer to the packaging for a complete list of parts.
4. Setup and Assembly
Assembly of the Lay-Z-Spa Gazebo Dome typically takes approximately 15 minutes with two people. Follow these steps for proper setup:
4.1 Site Selection
Choose a flat, level area free from sharp objects and debris. Ensure adequate space around the dome for guy ropes and anchoring.
4.2 Unpacking and Laying Out
Unpack all components from the carry bag. Lay the tent fabric flat on the chosen site, spreading it out evenly.

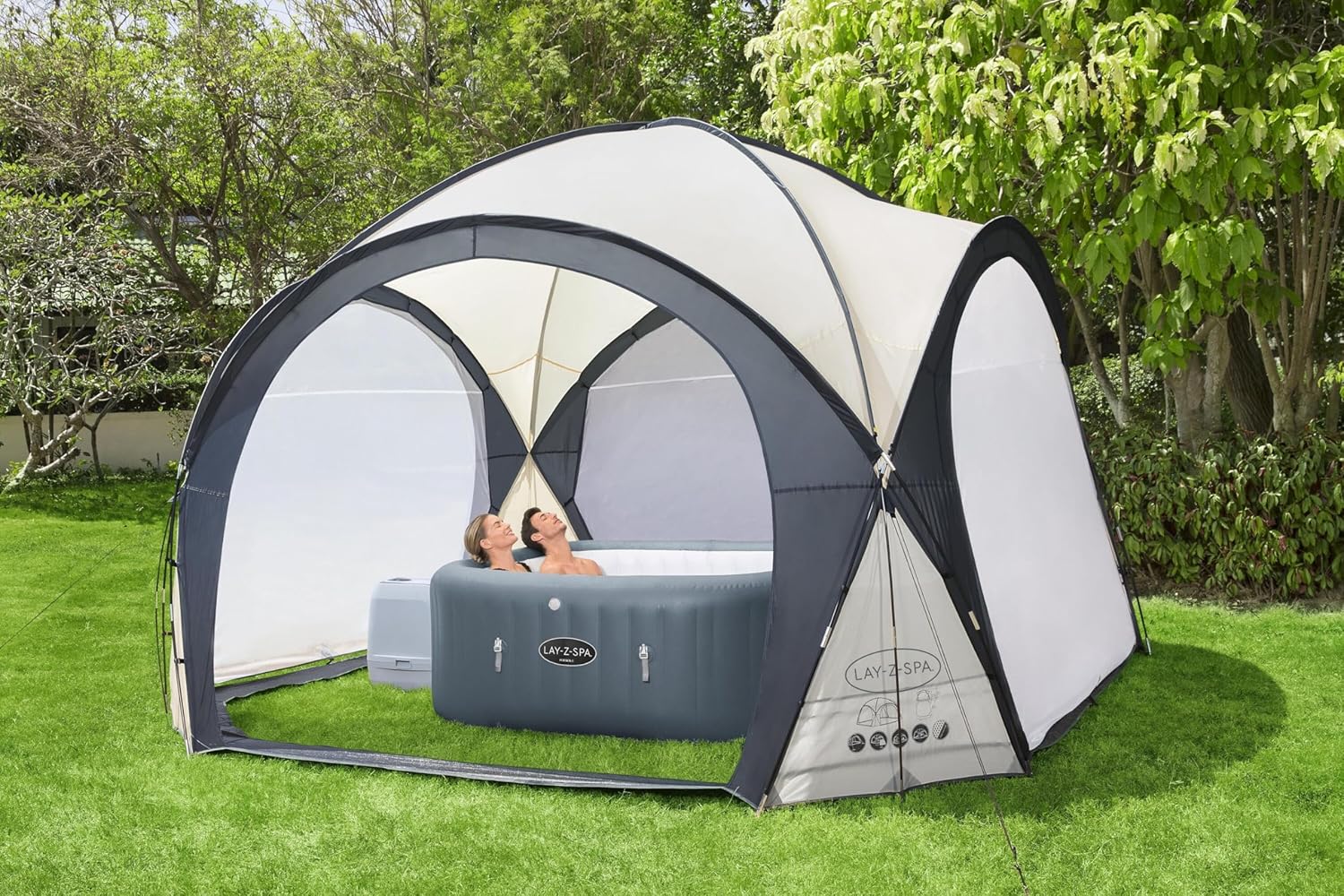

Figure 4.2.1: The Lay-Z-Spa Gazebo Dome fully assembled and in use with a hot tub, demonstrating its size and appearance in a garden setting.
4.3 Assembling the Poles
Connect the support poles according to their color coding. Insert the assembled poles into the corresponding sleeves on the tent fabric. The poles are designed to create the dome's structure.

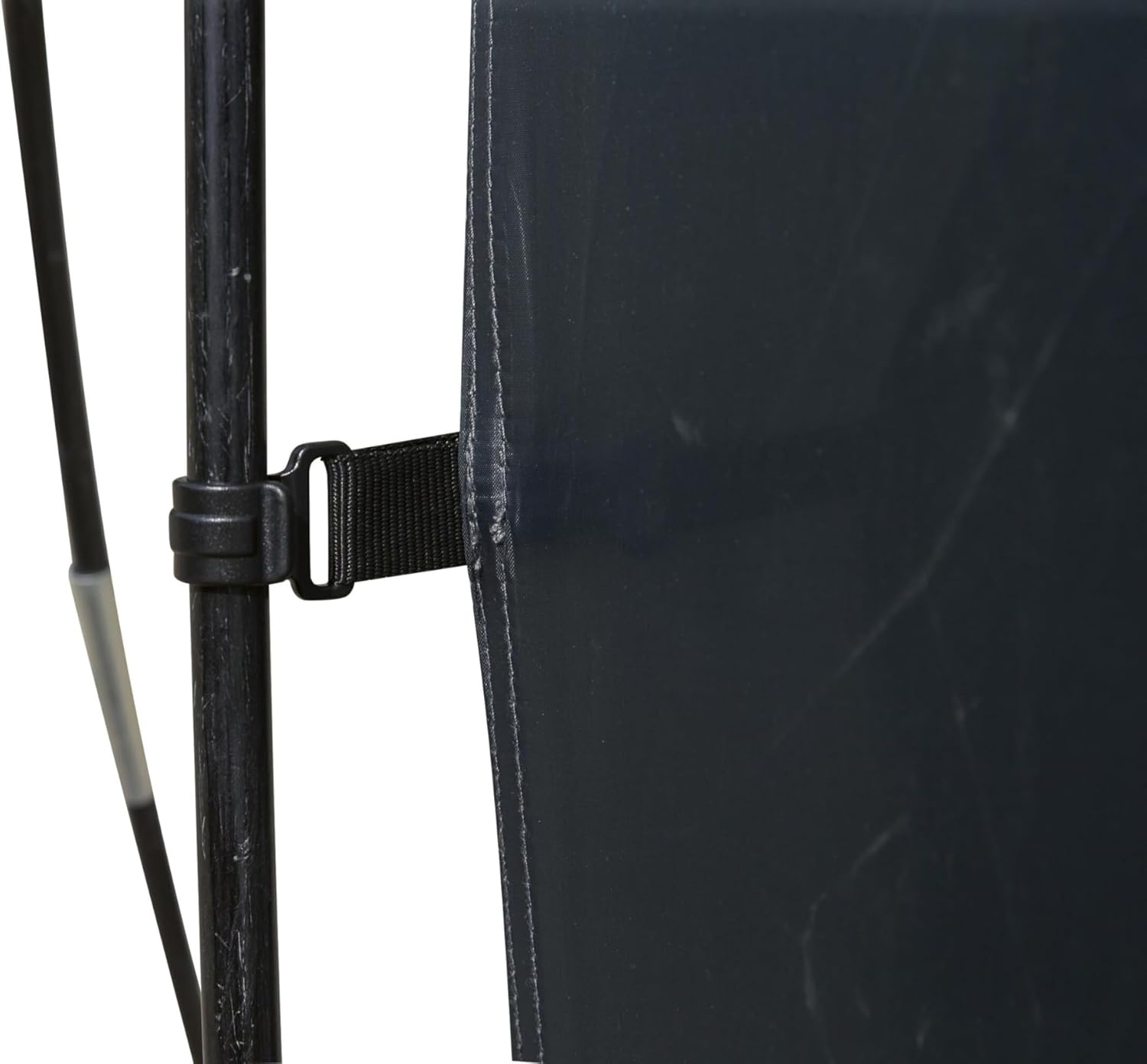

Figure 4.3.1: A close-up view of the tent pole connection point, showing how the pole is secured to the fabric sleeve with a black strap and buckle.

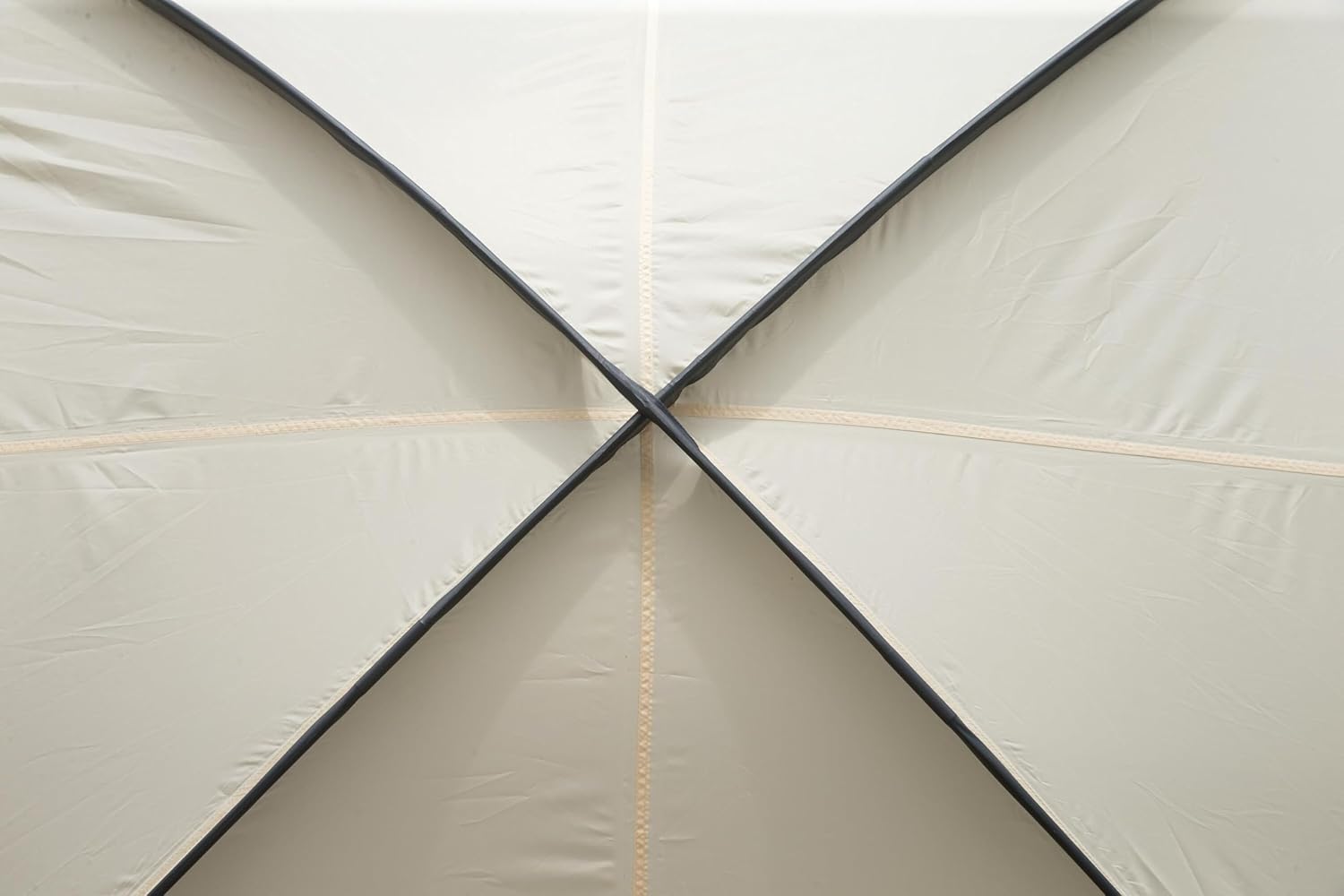

Figure 4.3.2: An interior view of the dome's ceiling, showing the intersecting support poles and the fabric seams, highlighting the structural design.
4.4 Raising the Dome
With assistance, carefully lift the dome structure, guiding the poles into their final positions. Ensure the fabric is taut and evenly distributed.
4.5 Anchoring the Dome
Secure the dome to the ground using the provided pegs and guy ropes. Ensure all anchor points are firmly in place to withstand wind.
Figure 4.5.1: A close-up of a rope attachment point on the tent fabric, showing a black cord tied to a loop, used for securing the dome or its components.
Figure 4.5.2: A close-up of a black buckle strap wrapped around a tent pole, indicating a secure fastening mechanism for the dome's structure.
4.6 Attaching Doors and Features
The dome features 4 detachable fabric and mesh doors. Attach these as desired for privacy or ventilation. Utilize the 4 large internal pockets for storing personal items.
Figure 4.6.1: A close-up of a D-ring attachment point on the interior of the dome, likely used for hanging items or securing internal features.
5. Operating the Gazebo Dome
The Lay-Z-Spa Gazebo Dome is designed for year-round use, providing shelter and privacy for your hot tub or pool.
- Privacy and Shelter: The dome offers protection from sun, rain, and wind, enhancing your outdoor spa experience.
- Ventilation: Use the mesh doors for airflow while keeping insects out.
- Storage: The internal pockets provide convenient storage for towels, drinks, or other small items.
Important: While designed for year-round use, it is recommended to disassemble and store the dome during extreme weather events or prolonged periods of non-use to extend its lifespan.
6. Maintenance and Care
Proper maintenance will ensure the longevity of your Lay-Z-Spa Gazebo Dome.
- Cleaning: Clean the fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Allow to air dry completely before storage.
- Inspection: Regularly inspect poles, fabric, zippers, and seams for any signs of wear, tears, or damage.
- Storage: When not in use, disassemble the dome, clean all components, and store them in the provided carry bag in a cool, dry place away from direct sunlight.
- Repairs: Small tears in the fabric can often be repaired with a tent repair kit. Damaged poles may need to be replaced.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Dome unstable or collapses easily. | Improper anchoring; poles not fully seated; strong winds. | Ensure all pegs are firmly in the ground and guy ropes are taut. Verify poles are correctly assembled and inserted. Disassemble during strong winds. |
| Water pooling on roof. | Fabric not taut enough; improper pole assembly. | Re-adjust poles and tension the fabric to create proper runoff. |
| Difficulty assembling poles. | Poles misaligned; dirt in connectors. | Ensure correct color-coding. Clean connectors if necessary. Apply light lubricant if poles are sticking. |
8. Specifications
- Model: 60305 (BW60305)
- Brand: Lay-Z-Spa (Bestway)
- Dimensions (L x W x H): 390 cm x 390 cm x 255 cm (153 in x 153 in x 100 in)
- Material: Polyurethane
- Color: Gray
- Item Weight: 14.18 kg (31.2 lbs)
- Compatibility: Fits Bestway inflatable spas and pools up to 3.66 m (12 ft) in diameter.
- Features: 4 detachable fabric/mesh doors, 4 internal storage pockets.
9. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Lay-Z-Spa / Bestway website. Keep your proof of purchase for warranty claims.
Manufacturer: Lay-Z-Spa (Bestway)
Website: www.bestwaycorp.com
