1. Introduction
Thank you for choosing the Deerma DX900 2-in-1 Corded Vacuum Cleaner. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.
The Deerma DX900 vacuum cleaner in action, demonstrating its versatility.
2. Safety Instructions
To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using an electrical appliance:
- Read all instructions before using the appliance.
- Do not leave the appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.
- Do not use outdoors or on wet surfaces.
- Do not allow to be used as a toy. Close attention is necessary when used by or near children.
- Use only as described in this manual. Use only manufacturer's recommended attachments.
- Do not use with a damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle plug or appliance with wet hands.
- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not pick up toxic material (e.g., chlorine bleach, ammonia cleaner, drain cleaner).
- Do not use without dust cup and/or filters in place.
- Turn off all controls before unplugging.
- Use extra care when cleaning on stairs.
3. Product Components
The Deerma DX900 vacuum cleaner comes with several components designed for versatile cleaning. Familiarize yourself with each part:
- Main Motor Unit: Contains the 600W motor and dust collection system.
- Extension Tube: Connects the main unit to the floor brush for upright cleaning.
- Floor Brush: Designed for cleaning various floor types.
- Dust Cup: 1.2L capacity for collecting dust and debris.
- Pinhole Steel Mesh Filter: Primary filter for larger particles.
- HEPA Filter: For fine dust filtration.
- 2-in-1 Crevice Tool: For reaching tight spaces and upholstery.
- Power Cord: 4.5M long cord for extended reach.

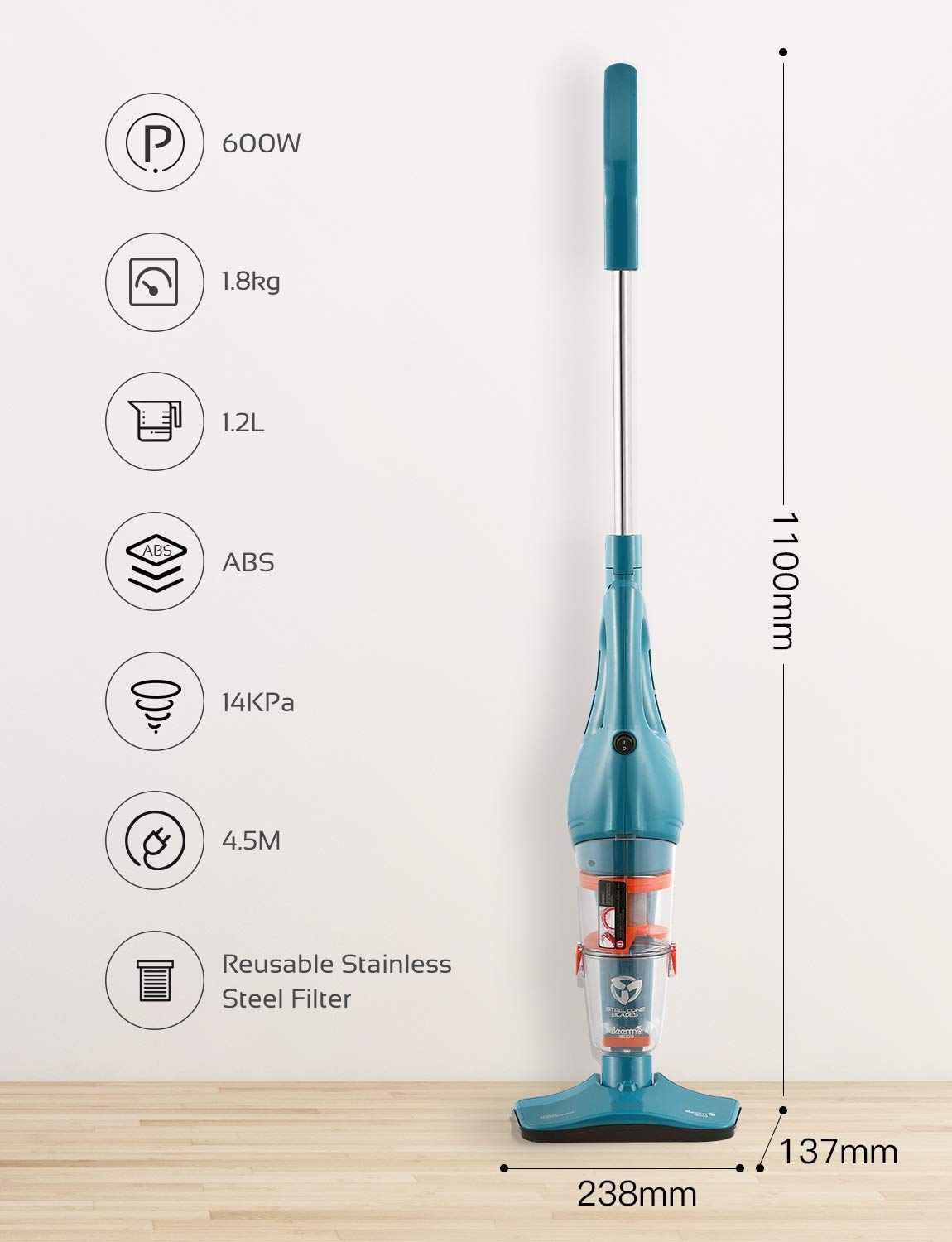

Overview of the Deerma DX900 vacuum cleaner and its approximate dimensions.
Key components: Dust cup, filter, and 2-in-1 crevice tool.
4. Setup and Assembly
The Deerma DX900 is designed for easy assembly and conversion between upright and handheld modes.
4.1. Upright Mode Assembly
- Insert the extension tube into the main motor unit until it clicks securely into place.
- Attach the floor brush to the bottom of the extension tube, ensuring it is firmly connected.
- Ensure the dust cup is properly installed in the main motor unit.
4.2. Handheld Mode Conversion
- Press the release button on the extension tube to detach it from the main motor unit.
- Attach the 2-in-1 crevice tool directly to the main motor unit.
The Deerma DX900 easily converts between upright and handheld configurations.
5. Operating Instructions
Follow these steps for effective cleaning with your Deerma DX900 vacuum cleaner.
5.1. Powering On/Off
- Plug the power cord into a suitable electrical outlet.
- Press the power button located on the handle of the main motor unit to turn the vacuum cleaner on.
- Press the power button again to turn the vacuum cleaner off.
5.2. Upright Cleaning
For general floor cleaning, use the vacuum in upright mode with the floor brush attached.
- The flexible 180° rotation design allows for easy maneuverability around furniture and into tight spaces.
- Suitable for both hard floors and carpets.
Cleaning a hard floor with the Deerma DX900 in upright mode.
The vacuum cleaner effectively cleans carpeted surfaces.
The swivel steering allows for easy cleaning under furniture and in corners.
5.3. Handheld Cleaning
For targeted cleaning of upholstery, stairs, car interiors, or tight corners, convert the vacuum to handheld mode and attach the 2-in-1 crevice tool.
The 2-in-1 crevice tool is ideal for cleaning hard-to-reach areas and delicate surfaces.
5.4. Video Demonstration
This video demonstrates the easy one-click operation, effortless cleansing, and washable dust cup design of the Deerma DX900 vacuum cleaner.
6. Maintenance and Cleaning
Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.
6.1. Emptying the Dust Cup
The 1.2L dust tank should be emptied regularly, especially when the debris reaches the 'MAX' line.
- Ensure the vacuum cleaner is unplugged from the power outlet.
- Press the dust cup release button and carefully remove the dust cup from the main motor unit.
- Open the dust cup and empty its contents into a waste bin.
The separated dust tank allows for easy removal and cleaning.
6.2. Cleaning the Filters

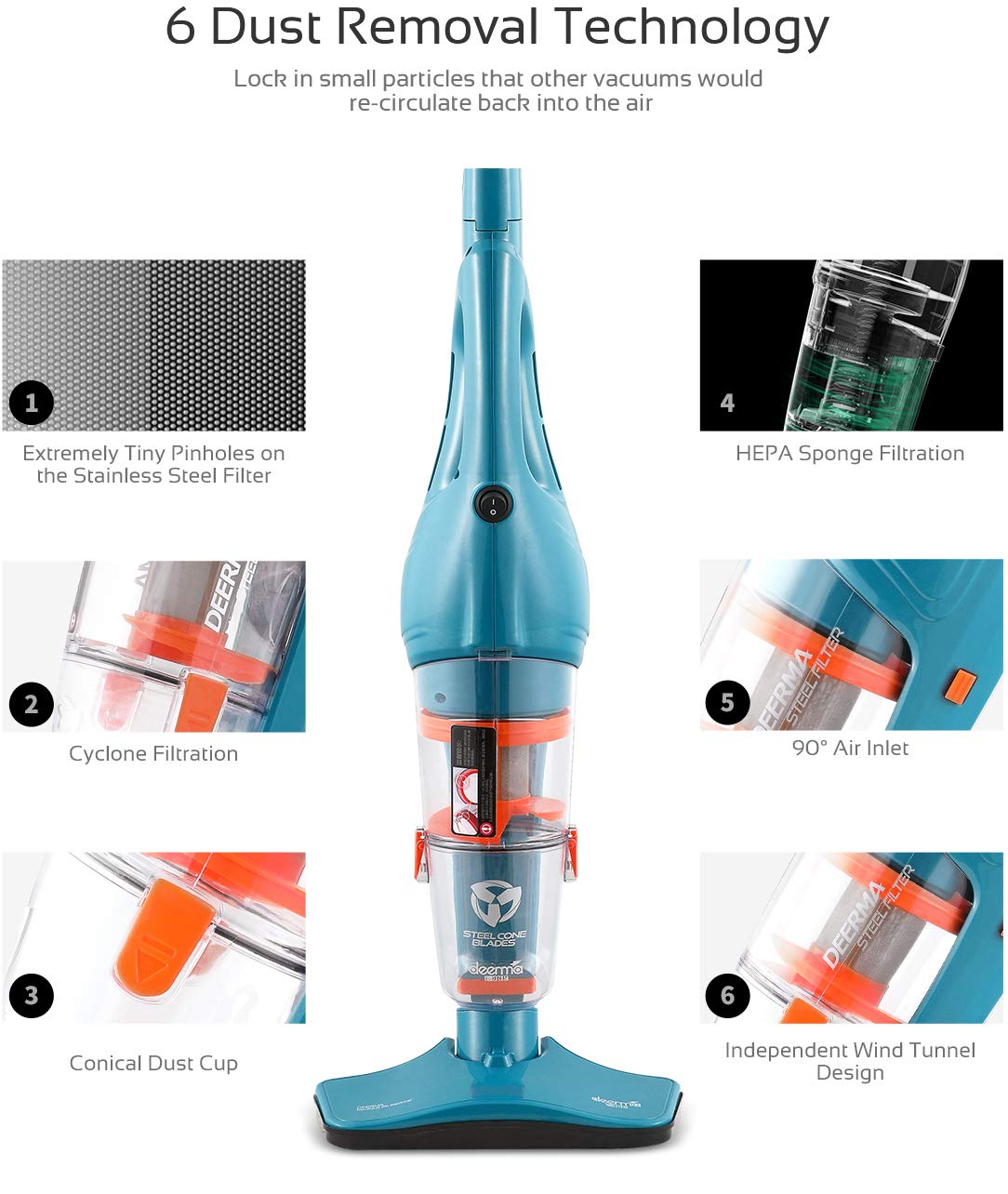

The Deerma DX900 features a 6-stage filtration system, including a Pinhole Steel Mesh Filter and a HEPA filter. Clean these regularly to maintain suction power and prevent secondary pollution.
- After emptying the dust cup, separate the steel mesh filter and HEPA filter.
- Rinse both filters under running water until clean.
- Allow the filters to air dry completely before reassembling them into the dust cup and then back into the vacuum cleaner. Do not use the vacuum with wet filters.
The washable dust cup and filters simplify maintenance.
The HEPA sponge filtration system helps capture fine particles.
7. Troubleshooting
If you encounter issues with your Deerma DX900, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on | Not plugged in; Power outlet malfunction; Power button not pressed | Check power cord connection; Test outlet with another appliance; Press power button firmly |
| Low suction power | Dust cup full; Filters clogged; Nozzle/hose blocked | Empty dust cup; Clean or replace filters; Remove any blockages from nozzle or hose |
| Unusual noise | Blockage in brush roll or hose; Loose part | Inspect and clear any blockages; Check all parts are securely assembled |
| Dust escaping from vacuum | Dust cup not properly installed; Filters missing or damaged | Ensure dust cup is securely latched; Check filters are correctly installed and undamaged |
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
Key technical specifications for the Deerma DX900 vacuum cleaner:
- Brand: Deerma
- Model Name: DX900
- Special Feature: HEPA, Lightweight, Portable
- Filter Type: HEPA Filter
- Included Components: Vacuum Cleaner (main unit, extension tube, floor brush, 2-in-1 crevice tool)
- Is It Cordless?: No (Corded Electric)
- Capacity: 1.2 litres (Dust Tank)
- Wattage: 600 Watts
- Recommended Uses For Product: Indoor, Hard Floor, Carpet
- Form Factor: Upright, Handheld
- Colour: Blue
- Product Dimensions: 110L x 24W x 14H Centimeters
- Noise Level: Approximately 20 Decibels (Quiet operation)
- Item Weight: 1.94 Kilograms
- Connectivity Technology: USB (Note: This refers to internal components, not user-facing connectivity)
9. Warranty and Support
The Deerma DX900 vacuum cleaner comes with a standard manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and conditions.
For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact Deerma customer support through your retailer or the official Deerma website.
