Elechomes Vacuum Sealer User Manual

1. Introduction

Thank you for purchasing the Elechomes Vacuum Sealer. This appliance is designed to preserve food freshness by removing air and sealing food in specialized bags, extending its shelf life significantly. Proper use and maintenance will ensure optimal performance and longevity of your vacuum sealer.

This image illustrates how vacuum sealing can extend food freshness up to 8 times longer compared to traditional preservation methods, such as 2-3 years versus 4-5 months for certain foods.

2. Product Overview

The Elechomes Vacuum Sealer is equipped with features designed for efficient and convenient food preservation.

• Built-in Bag Storage and Cutter: Allows for easy creation of custom-sized bags directly from a roll, keeping the roll protected from dust.
• Powerful Suction: Features an 85KPA turbo motor for strong vacuum sealing results.
• Dry and Moist Modes: Offers specialized settings for optimal sealing of different food types.
• Removable Drip Tray: Collects any moisture, simplifying cleanup and extending the appliance's lifespan.
• Multi-functional Accessory Port: Can be used with external vacuum canisters, garment bags, and wine stoppers.
• Extra-long 11.8-inch Heating Bar: Supports sealing multiple small packages simultaneously.

This image displays the Elechomes Vacuum Sealer along with vacuum-sealed meat, fresh produce, and included accessories like a vacuum roll, hose, and pre-cut bags.

Detailed views of the built-in bag storage compartment, the integrated safe cutter for custom bag sizing, and the easily removable drip tray for cleaning.

This diagram highlights the powerful 85KPA turbo motor suction of the Elechomes vacuum sealer, demonstrating its superior performance compared to a typical 50KPA suction found in other models.

The image illustrates the extra-long 11.8-inch heating bar, which allows for efficient sealing of multiple small packages simultaneously, ideal for bulk operations.

3. Setup

3.1 Unpacking and Contents

Carefully remove all components from the packaging. Verify that all items listed below are included:

• 1x Elechomes Vacuum Sealer Unit
• 1x Extra-long Vacuum Roll Bag (11.5x80in)
• 5x Pre-cut Bags (10x8in)
• 5x Pre-cut Bags (10x6in)
• 1x Vacuum Accessory Hose
• 1x Replacement Foam Gasket
• 1x User Manual (this document)

This image shows all the components included in the full starter kit: the vacuum sealer unit, one extra-long vacuum roll bag, five 10x8in pre-cut bags, five 10x6in pre-cut bags, a vacuum accessory hose, a replacement foam gasket, and the user manual.

3.2 Placement and Power Connection

Place the vacuum sealer on a flat, stable, and dry surface. Ensure there is adequate space around the unit for operation and ventilation. Connect the power cord to a standard electrical outlet. The appliance is now ready for use.

4. Operating Instructions

4.1 Basic Vacuum Sealing Process

1. Prepare the Bag: If using a roll, utilize the built-in cutter to create a custom-sized bag. Ensure the bag is clean and dry.
2. Position the Bag: Place the open end of the bag into the vacuum chamber. Ensure the bag opening is flat and does not cover the air holes.
3. Close and Lock: Press down firmly on both ends of the lid until you hear a click sound, indicating it is securely locked.
4. Select Mode: Use the 'Food' button to toggle between 'Dry' and 'Moist' modes, depending on the food type.
5. Start Operation: Press the 'Vac/Seal' button for vacuum sealing. The machine will automatically remove air and then seal the bag. For sealing only, press the 'Seal' button.
6. Release: Once the indicator light turns off, the process is complete. Press the 'Open' button on the sides to release the lid and remove the sealed bag.

A visual guide demonstrating the four key steps for vacuum sealing: preparing and positioning the bag, closing the lid, selecting the appropriate food mode, and releasing the sealed bag.

4.2 Dual Food Modes

The vacuum sealer offers two distinct modes to optimize preservation for different food consistencies:

• Dry Mode: Ideal for solid items with no moisture, such as nuts, candies, or coffee beans.
• Moist Mode: Suitable for foods containing moisture, like fresh meats, fish, or vegetables. This mode adjusts the sealing time to ensure a secure seal without compromising the food.

This diagram illustrates the two food modes: 'Dry Food' for items like nuts and coffee beans, and 'Moist Food' for items such as meat, fish, and vegetables, ensuring optimal sealing for each type.

4.3 Using the Accessory Port

The accessory port on the top of the machine allows for vacuum sealing with external accessories such as vacuum canisters, marinate bowls, and wine stoppers. Connect the vacuum accessory hose to the port and the accessory, then follow the instructions for the specific accessory.

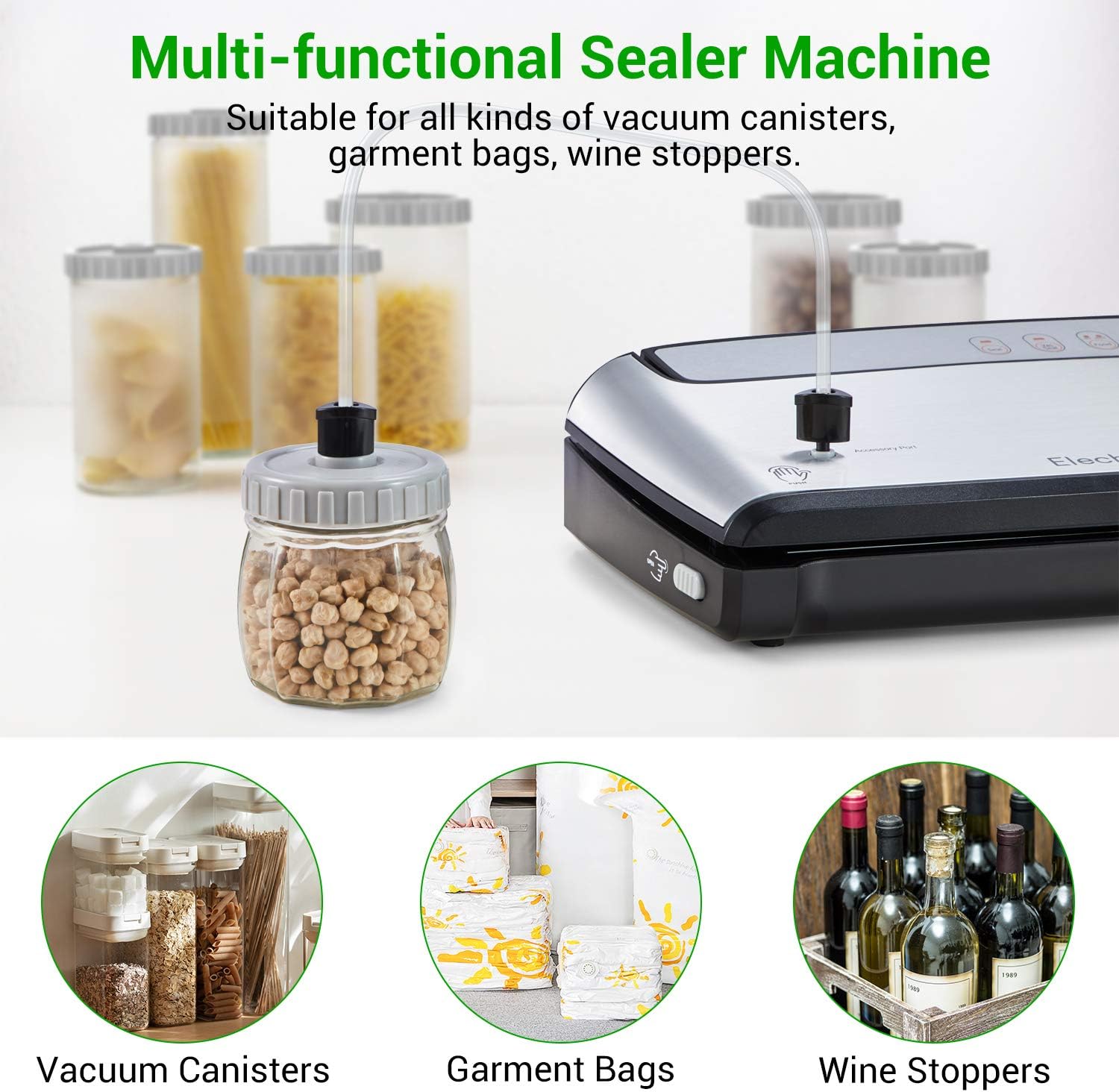

The image demonstrates the versatility of the vacuum sealer, showing its use with vacuum canisters for dry goods, garment bags for space-saving storage, and wine stoppers to preserve opened wine.

5. Maintenance and Cleaning

Regular cleaning and maintenance will prolong the life of your Elechomes Vacuum Sealer and ensure consistent performance.

• Removable Drip Tray: The drip tray collects any overflow liquid. It is dishwasher safe and should be removed and cleaned after each use, especially when sealing moist foods.
• Sealing Strip and Vacuum Channel: Wipe the sealing strip and vacuum channel with a damp cloth after each use to remove any food residue. Ensure these areas are completely dry before closing the lid or storing the unit.
• Exterior: Clean the exterior of the unit with a soft, damp cloth. Do not immerse the unit in water or use abrasive cleaners.
• Foam Gasket: Periodically inspect the foam gasket for any signs of wear or damage. A replacement gasket is included in your starter kit. If the gasket is damaged, replace it to ensure proper sealing.

6. Troubleshooting

If you encounter issues with your vacuum sealer, refer to the common problems and solutions below. For more detailed troubleshooting, please consult the full user manual or contact customer support.

7. Specifications

8. Warranty and Support

Elechomes products come with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact Elechomes customer service through their official website or the contact information provided in your product documentation.

You can visit the official Elechomes store for more information: Elechomes Store
