VIVO Electric 60x24 Inch Stand Up Desk (Model: DESK-KIT-B06C) Instruction Manual

1. Product Overview

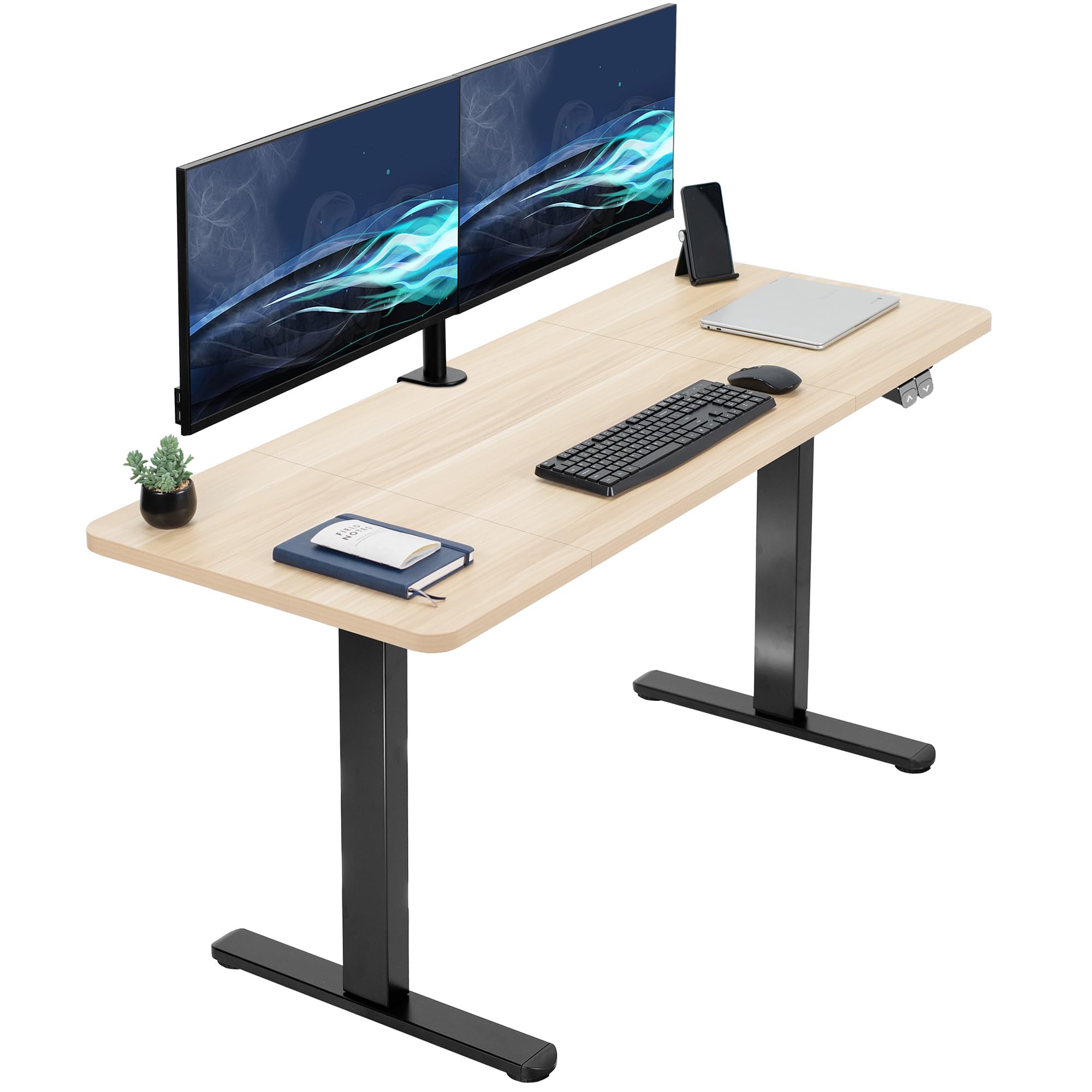

The VIVO Electric 60x24 inch Stand Up Desk (DESK-KIT-B06C) is a height-adjustable workstation designed to provide comfortable viewing angles and customized user heights, allowing for seamless transitions between sitting and standing. It features a spacious 3-piece light wood top and a robust black steel frame.

Key features include:

• Create Instant Active Standing: Go from sitting to standing in one smooth motion with this complete active workstation.
• Spacious 3-Piece 59” Top: Provides ample space for monitors, accessories, and decor. Made of sturdy particle board for a smooth, scratch-resistant surface.
• Powerful Electric Motor: Enjoy a height range of 28.6” to 46.7” with precise telescopic height adjustment.
• Strong Desk Frame Support: All-steel construction supports up to 154 lbs for maximum stability.
• Intuitive Built-In Controller: Easy-to-use 2-button controller for height selection.

2. Safety Information

Please read and understand all safety warnings and instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Ensure proper assembly of all components before use.
• Do not exceed the maximum weight capacity of 154 lbs (70 kg).
• Be cautious when adjusting the height to avoid pinching or crushing hazards. Keep hands and objects clear of moving parts.
• Keep children and pets away from the desk during operation.
• Only use the provided power adapter and controller.
• Avoid placing liquids directly on the desk surface to prevent electrical hazards.
• If any parts are missing or damaged, contact VIVO customer support immediately.

3. Package Contents

Your VIVO Electric Stand Up Desk (DESK-KIT-B06C) package includes the following:

• Electric Desk Frame (Black)
• 60x24 inch Light Wood Tabletop (3-piece)
• 2-Button Controller
• Power Adapter
• Hex Rod
• Side Brackets
• Baffles
• All necessary assembly hardware (screws, wrenches, etc.)

4. Setup & Assembly

Assembly of the VIVO Electric Stand Up Desk requires careful attention to detail. All hardware and instructions are provided. For a visual guide, please refer to the assembly video below.

General Assembly Steps:

1. Attach the Feet to the Legs: Secure the feet to the bottom of each desk leg using the provided screws.
2. Adjust the Crossbar: Extend or retract the crossbar to match the width of your tabletop.
3. Attach the Crossbar: Connect the crossbar to the top of the desk legs.
4. Attach the Hex Rod: Insert the hex rod into the motor and the opposite leg mechanism, ensuring it is securely fastened.
5. Attach the Side Brackets: Secure the side brackets to the desk frame.
6. Attach the Tabletop and Controller: Carefully place the tabletop onto the assembled frame and secure it with screws. Attach the 2-button controller to the underside of the tabletop in a convenient location.
7. Connect the Power Adapter: Plug the power adapter into the desk's control box and then into a power outlet.
8. Attach the Baffles: Install the baffles to manage cables and provide a clean look.

5. Operating Instructions

Your VIVO Electric Stand Up Desk is equipped with an easy-to-use 2-button controller for seamless height adjustments.

1. Adjusting Height: Press and hold the Up Arrow button to raise the desk to your desired standing height. Press and hold the Down Arrow button to lower the desk to your preferred sitting height.
2. Height Range: The desk can be adjusted from a minimum height of 28.6 inches to a maximum height of 46.7 inches.

6. Maintenance

To ensure the longevity and optimal performance of your VIVO Electric Stand Up Desk, follow these maintenance guidelines:

• Cleaning: The tabletop surface is scratch-resistant and easy to clean. Use a soft, damp cloth and mild detergent to wipe down the surface. Avoid abrasive cleaners.
• Regular Checks: Periodically inspect all screws and connections to ensure they are tight. Retighten if necessary.
• Cable Management: Ensure all cables are properly managed and secured to prevent entanglement or damage during height adjustments.
• Motor Care: Avoid overloading the desk beyond its 154 lbs weight capacity to prevent strain on the electric motor.

7. Troubleshooting

If you encounter any issues with your VIVO Electric Stand Up Desk, refer to the following common troubleshooting tips:

• Desk Not Moving: Check if the power adapter is securely plugged into both the desk's control box and a working wall outlet. Ensure no cables are pinched.
• Uneven Height: If the desk appears uneven, perform a reset procedure (refer to VIVO's online support or contact customer service for specific instructions for your model).
• Unusual Noises: Minor motor sounds are normal during operation. If you hear loud grinding or unusual noises, stop operation and inspect for obstructions or loose parts.
• Overload Protection: If the desk stops moving and the controller displays an error, it might be due to an overload. Remove some weight from the desk and try again after a few minutes.

For more complex issues or if troubleshooting steps do not resolve the problem, please contact VIVO Customer Support.

8. Specifications

9. Warranty & Support

Warranty: The VIVO Electric 60x24 Inch Stand Up Desk comes with a 3-year limited manufacturer warranty. This warranty covers defects in materials and workmanship under normal use.

Customer Support: VIVO offers U.S.-based sales and technical support to assist with any questions or issues you may have. For assistance, please visit the VIVO Store on Amazon or refer to the contact information provided in your product packaging.
