Tefal NE 1088

Tefal NE 1088 Meat Grinder Instruction Manual

Model: NE 1088

1. Introduction and Safety Instructions

Thank you for choosing the Tefal NE 1088 Meat Grinder. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read all instructions carefully before first use and keep this manual for future reference.

Important Safety Precautions:

  • Always unplug the appliance from the power outlet before assembling, disassembling, or cleaning.
  • Keep hands and utensils away from moving parts during operation to prevent injury. Use only the food pusher provided.
  • Do not immerse the motor unit in water or any other liquid. Clean with a damp cloth only.
  • This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
  • Do not operate the appliance if the power cord or plug is damaged, or if the appliance malfunctions or has been damaged in any way. Contact authorized service for repair.
  • Avoid grinding bones, nuts, or other hard foods as this can damage the appliance.

2. Product Overview and Components

Familiarize yourself with the parts of your Tefal NE 1088 Meat Grinder before assembly.

Tefal NE 1088 Meat Grinder assembled, side view

Image 1: Side view of the assembled Tefal NE 1088 Meat Grinder. This image shows the main motor unit, the attached grinding head, the food tray, and the food pusher inserted into the feed tube. The power switch is visible on the side of the motor unit.

Tefal NE 1088 Meat Grinder assembled, front view

Image 2: Front view of the assembled Tefal NE 1088 Meat Grinder. This perspective highlights the output of the grinding head, showing the grinding plate and fixing ring. The food tray is positioned above the feed tube.

Components:

  1. Motor Unit: The main body containing the motor and control switch.
  2. Grinding Head: The metal housing where meat is processed.
  3. Feed Tube: The opening on the grinding head where meat is fed.
  4. Food Tray: Sits atop the feed tube to hold meat before grinding.
  5. Food Pusher: Used to guide meat into the feed tube safely.
  6. Grinding Screw (Auger): Transports meat through the grinding head.
  7. Grinding Blade: Cuts the meat against the grinding plate.
  8. Grinding Plates: Discs with different hole sizes for fine, medium, or coarse grinding.
  9. Fixing Ring: Secures the grinding plate and blade to the grinding head.
  10. ON/OFF/Reverse Switch: Controls the appliance's operation.

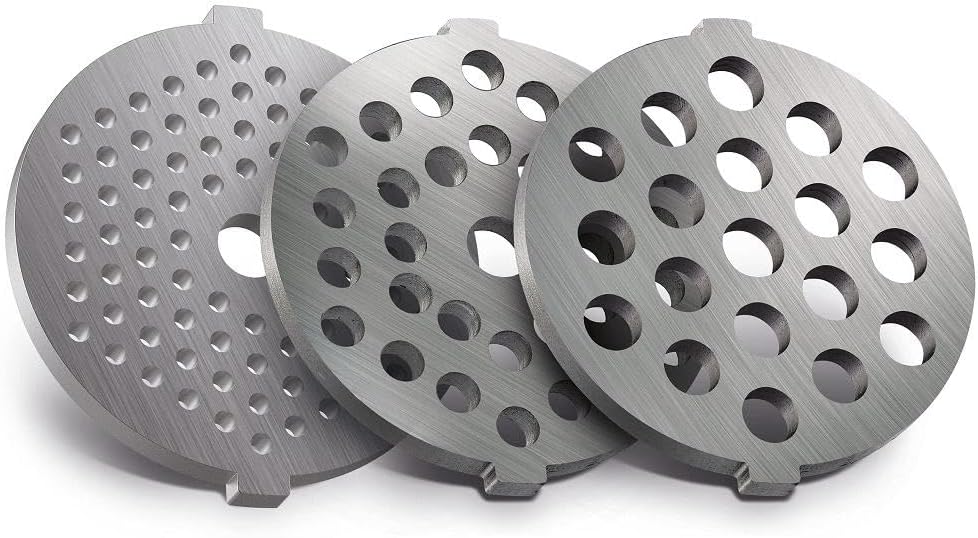

Three different grinding plates for meat grinder

Image 3: Three metal grinding plates with varying hole sizes. From left to right, these typically represent fine, medium, and coarse grinding options, allowing for different textures of ground meat.

3. Setup and Assembly

Follow these steps to assemble your meat grinder before use.

  1. Unpack: Carefully remove all components from the packaging. Wash all parts that will come into contact with food (grinding head, screw, blade, plates, food tray, food pusher) in warm soapy water, rinse thoroughly, and dry immediately.
  2. Assemble Grinding Head:
    • Insert the grinding screw into the grinding head.
    • Place the grinding blade onto the shaft of the screw, ensuring the sharp edges face outwards towards the grinding plate.
    • Select your desired grinding plate (fine, medium, or coarse) and place it over the blade and screw shaft.
    • Screw the fixing ring onto the grinding head until it is hand-tight. Do not overtighten.
  3. Attach Grinding Head to Motor Unit: Insert the assembled grinding head into the opening on the front of the motor unit. Rotate the grinding head counter-clockwise until it locks securely into place.
  4. Place Food Tray: Position the food tray onto the top of the grinding head's feed tube.
  5. Position Appliance: Place the assembled meat grinder on a stable, flat, and dry surface. Ensure there is adequate ventilation around the motor unit.

4. Operating Instructions

Before operating, ensure the appliance is correctly assembled and plugged into a suitable power outlet.

Meat Preparation:

  • Cut meat into small pieces (approximately 2-3 cm cubes) that can easily fit into the feed tube.
  • Remove all bones, gristle, and excessive fat from the meat to prevent damage to the appliance and ensure smooth operation.
  • For best results, chill the meat and the grinding head components in the refrigerator for about 30 minutes before grinding. This helps maintain meat texture and prevents smearing.

Grinding Process:

  1. Place a suitable container under the output of the grinding head to collect the ground meat.
  2. Place the prepared meat pieces into the food tray.
  3. Switch the appliance ON using the ON/OFF/Reverse switch.
  4. Gently feed the meat into the feed tube using the food pusher. Never use your fingers or other utensils to push meat.
  5. Do not force meat into the grinder. Allow the appliance to work at its own pace.
  6. If the appliance becomes jammed, switch it OFF immediately. Use the 'Reverse' function briefly to clear the blockage, then switch OFF again before attempting to clear any remaining blockage manually (after unplugging).
  7. After grinding all the meat, switch the appliance OFF and unplug it from the power outlet.

5. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Tefal NE 1088 Meat Grinder.

  1. Unplug: Always unplug the appliance from the power outlet before cleaning.
  2. Disassemble: Disassemble the grinding head by reversing the assembly steps. Remove the fixing ring, grinding plate, blade, screw, and grinding head from the motor unit.
  3. Clean Parts: Wash all detachable parts (grinding head, screw, blade, grinding plates, food tray, food pusher) immediately after use in warm soapy water. Rinse thoroughly.
  4. Drying: It is crucial to dry all metal parts immediately and thoroughly to prevent rust. You may apply a small amount of cooking oil to the metal parts (especially the grinding plates and blade) after drying to further protect them.
  5. Motor Unit: Wipe the motor unit with a damp cloth. Never immerse the motor unit in water or place it under running water.
  6. Do Not Dishwash: Metal parts are generally not dishwasher safe as harsh detergents and high temperatures can cause discoloration and rust.
  7. Storage: Store the clean, dry appliance and its accessories in a dry place, away from direct sunlight and moisture.

6. Troubleshooting

If you encounter issues with your Tefal NE 1088 Meat Grinder, refer to the following common problems and solutions.

  • Appliance does not start:
    • Ensure the power cord is securely plugged into a working outlet.
    • Check if the ON/OFF/Reverse switch is in the 'ON' position.
    • Verify that the grinding head is correctly assembled and locked onto the motor unit.
  • Meat is not grinding or appliance is jammed:
    • Switch the appliance OFF immediately.
    • Briefly use the 'Reverse' function to try and clear the blockage.
    • If the blockage persists, unplug the appliance, disassemble the grinding head, and carefully remove any lodged meat or gristle. Reassemble and try again.
    • Ensure meat is cut into small pieces and free of bones or tough gristle.
  • Motor overheats or stops:
    • The appliance may have an overheating protection feature. Switch it OFF and unplug it.
    • Allow the motor to cool down for at least 30 minutes before attempting to use it again.
    • Avoid continuous operation for extended periods. Refer to the specifications for maximum continuous operating time.
  • Noisy operation:
    • Ensure all parts are correctly assembled and tightened.
    • Check for any foreign objects in the grinding head.

If the problem persists after following these steps, please contact customer support.

7. Specifications

  • Model: NE 1088
  • Brand: Tefal
  • Power: 1400 W
  • Material: Plastic (housing), Metal (grinding components)
  • Color: Black
  • Manufacturer: Groupe SEB Italia S.p.A.
  • ASIN: B07YLQP3XH

8. Warranty and Support

Your Tefal NE 1088 Meat Grinder is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or the official Tefal website for detailed information regarding warranty terms and conditions.

For technical assistance, spare parts, or service inquiries, please contact Tefal customer support through their official website or the contact information provided in your purchase documentation. When contacting support, please have your model number (NE 1088) and proof of purchase readily available.
