MAGEFESA DYNAMIC 6.3-Quart Fast Pressure Cooker Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and efficient use of your MAGEFESA DYNAMIC 6.3-Quart Fast Pressure Cooker. Please read all instructions carefully before initial use and retain this manual for future reference. The MAGEFESA DYNAMIC pressure cooker is designed for rapid cooking, preserving nutrients and flavors, and is compatible with all stovetops, including induction.

2. Important Safety Information

Always observe basic safety precautions when using a pressure cooker to prevent personal injury and property damage. Failure to follow these instructions may result in serious injury.

• Read All Instructions: Familiarize yourself with the appliance before operation.
• Children and Pets: Keep children and pets away from the pressure cooker during operation.
• Hot Surfaces: The pressure cooker becomes hot during use. Use oven mitts or pot holders when handling hot surfaces.
• Proper Filling: Do not fill the pressure cooker more than two-thirds full. For foods that expand (e.g., rice, dried vegetables), do not fill more than half full.
• Pressure Release: Never force the lid open. Ensure all internal pressure has been released before attempting to open the lid.
• Safety Systems: The MAGEFESA DYNAMIC cooker is equipped with 5 safety systems: Pressure Sensor, Security to Closing, Safety to Open, Work Valve, Safety Valve, and Safety Window. Do not tamper with these safety mechanisms.
• Maintenance: Regularly inspect all safety devices for proper functioning and cleanliness.

Figure 1: Overview of the MAGEFESA DYNAMIC pressure cooker's safety features on the lid.

3. Product Components

Your MAGEFESA DYNAMIC pressure cooker includes the following main components:

• Pressure Cooker Pot (18/10 Stainless Steel)
• Lid with integrated safety systems and handle
• Steam Basket
• Trivet (for steam basket)

Figure 2: MAGEFESA DYNAMIC Pressure Cooker and included accessories.

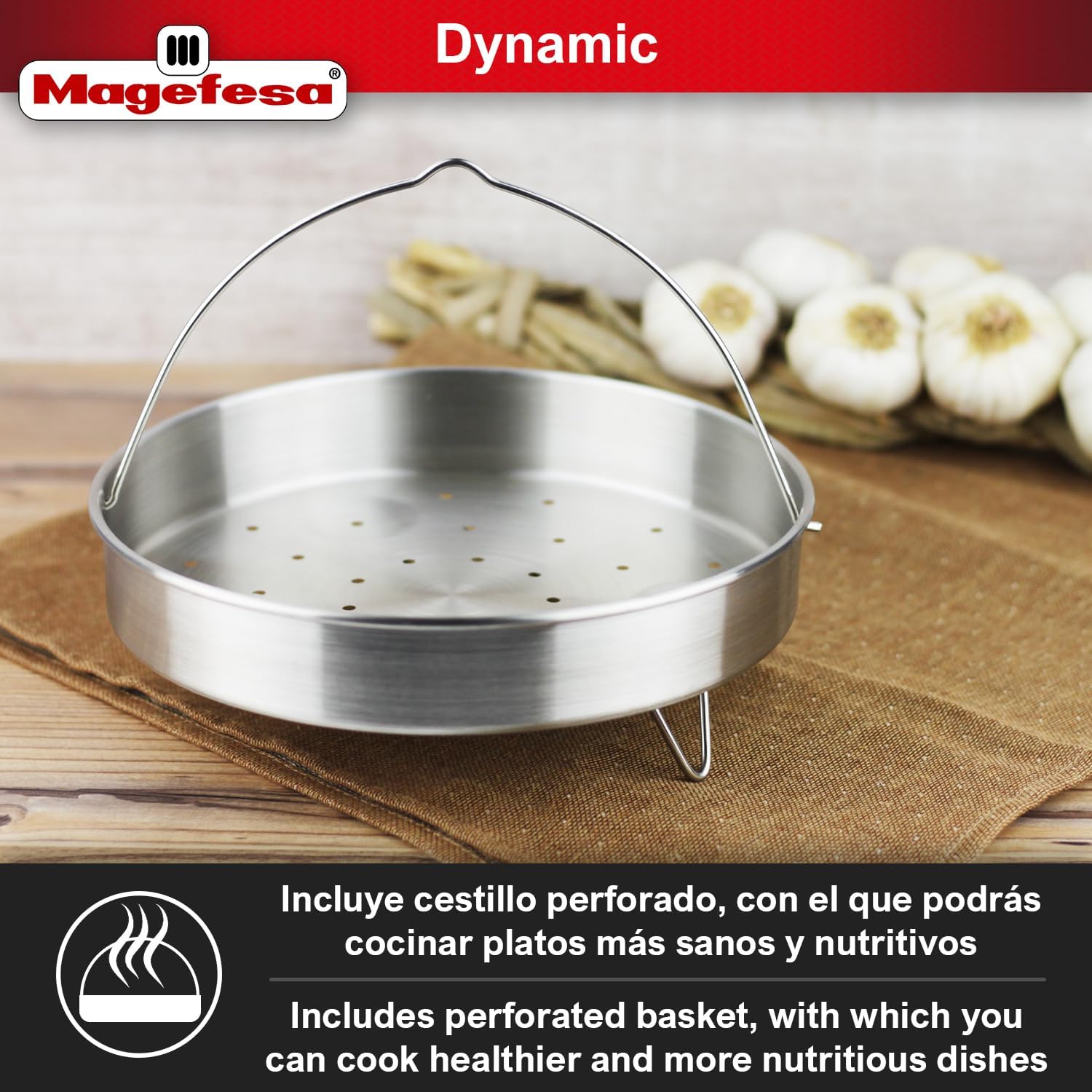

Figure 3: Perforated steam basket for healthier cooking.

4. Setup and First Use

1. Unpack: Carefully remove all components from the packaging.
2. Wash: Before first use, wash the pot, lid, and all accessories with warm, soapy water. Rinse thoroughly and dry.
3. Inspect: Check that all safety valves and the gasket are clean and properly seated.
4. Test Run (Optional but Recommended): Fill the cooker with 2-3 cups of water. Close the lid securely. Place on the stovetop and bring to pressure. Allow it to maintain pressure for 5-10 minutes, then release pressure and open. This helps familiarize you with the cooker's operation.

5. Operating Instructions

5.1. Filling the Cooker

• Add ingredients and liquid to the pot. Ensure the liquid level is at least 1 cup (250ml) to generate sufficient steam.
• Do not exceed the maximum fill lines (typically 2/3 full for most foods, 1/2 full for expanding foods).

5.2. Closing the Lid

• Align the lid with the pot according to the markings.
• Engage the patented opening system to close the lid with minimal effort and maximum safety. Ensure it is securely locked.

5.3. Cooking Under Pressure

1. Place the pressure cooker on a suitable stovetop burner (gas, electric, or induction).
2. Set the heat to high. The working valve will begin to release steam once full pressure is reached.
3. Reduce heat to maintain a steady, gentle release of steam from the working valve.
4. Begin timing the cooking process according to your recipe.

Figure 4: Pressure cooker on an induction stovetop.

5.4. Releasing Pressure

There are generally two methods for releasing pressure:

• Natural Release: Remove the cooker from heat and allow pressure to dissipate naturally. This is suitable for foods that benefit from additional cooking time.
• Quick Release: For faster pressure release, carefully move the working valve to the release position or place the cooker under cold running water (avoiding the lid's safety mechanisms).

Important: Never attempt to open the lid until all pressure has been released and the pressure indicator has dropped.

5.5. Example Cooking Times

Figure 5: Example cooking times for common foods.

6. Maintenance and Cleaning

Proper care ensures the longevity and safe operation of your pressure cooker.

• After Each Use: Wash the pot, lid, and gasket with warm, soapy water. Rinse thoroughly.
• Lid Cleaning: Pay special attention to cleaning the working valve, safety valve, and pressure sensor areas to prevent blockages. Use a small brush if necessary.
• Gasket: Remove the gasket from the lid for cleaning and allow it to dry completely before reinserting. Replace the gasket if it appears cracked, stiff, or damaged.
• Dishwasher Safe: The pot is dishwasher safe. The lid should be hand-washed to protect its delicate components.
• Storage: Store the pressure cooker with the lid inverted or slightly ajar to allow air circulation and prevent odors.

7. Troubleshooting

If you encounter issues with your pressure cooker, refer to the following common problems and solutions:

8. Specifications

Key specifications for the MAGEFESA DYNAMIC 6.3-Quart Fast Pressure Cooker:

Figure 6: Dimensions for various MAGEFESA DYNAMIC pressure cooker capacities.

9. Warranty and Support

For warranty information and customer support, please refer to the official Magefesa website or contact their customer service directly. Details regarding product registration, warranty claims, and service centers can typically be found on the manufacturer's official channels.
