Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Cornat Square Neo TECBW3414 Shower System. This high-quality shower system is designed to enhance your daily showering experience with its combination of comfort, design, and functionality.
The system includes a square shower head and a hand shower, both featuring a single jet type and anti-limescale properties. It is suitable for instantaneous water heaters and offers easy installation with a 1/2 inch thread.
Product Overview
The Cornat Square Neo TECBW3414 Shower System is a complete shower set with a riser, designed for wall-mount installation. It features a chrome-plated finish and brass components for durability and ease of cleaning.

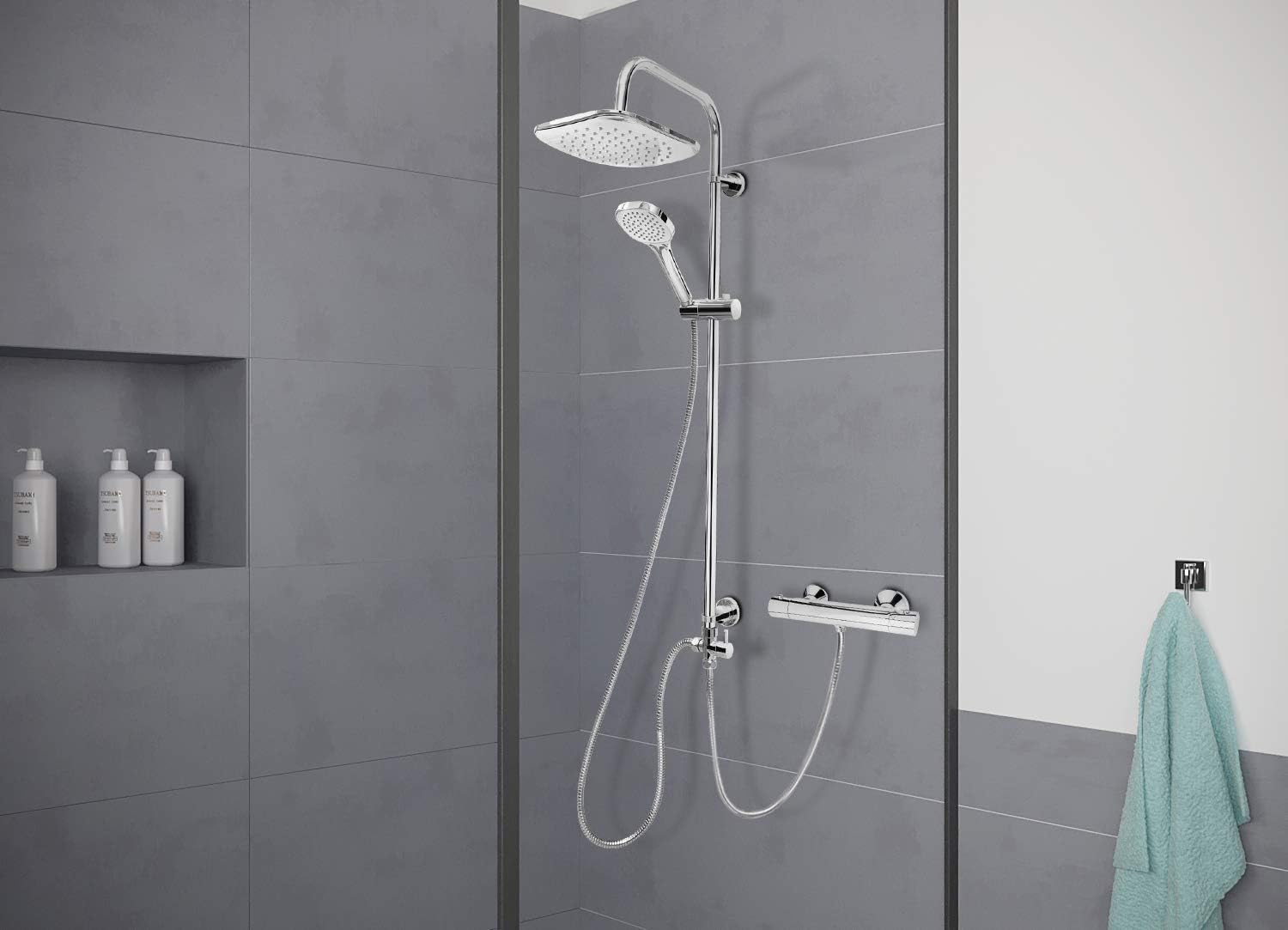

Image: The Cornat Square Neo TECBW3414 Shower System shown installed in a contemporary bathroom setting, highlighting its chrome finish and square design.
Setup and Installation
- Preparation: Ensure all components are present and undamaged. Gather necessary tools for wall mounting.
- Mounting the Riser: The riser features height-adjustable wall brackets for flexible positioning. Securely attach the wall brackets to your desired location on the wall.
- Connecting Water Supply: Connect the shower system to your water supply using the 1/2 inch thread. The connection hose length is 50 cm. Ensure all connections are tight to prevent leaks.
- Attaching Shower Head and Hand Shower: Install the square shower head (225 x 225 mm) and the hand shower. The shower head's tilt is adjustable via a ball joint. The hand shower can be easily hung and adjusted using its push-button slider.
Image: A technical diagram illustrating the key dimensions of the Cornat Square Neo TECBW3414 Shower System, including the riser length (970 mm), shower head size (225 x 225 mm), and output (335 mm).
Note: For optimal performance, ensure proper sealing of all connections. If you are unsure about any installation steps, consult a qualified plumber.
Operating Instructions
- Water Flow Control: Use the integrated diverter to switch between the main shower head and the hand shower.
- Shower Head Adjustment: The square shower head's angle can be adjusted using its ball joint to direct the water flow as desired.
- Hand Shower Adjustment: The hand shower can be moved up or down the riser and secured in place using the push-button slider.
Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your shower system.
- Cleaning Surfaces: The chrome-plated surfaces are corrosion-resistant and easy to clean. Use a soft cloth and mild, non-abrasive cleaning agents. Avoid harsh chemicals or abrasive pads, which can damage the finish. Polish gently for a high-gloss surface.
- Descaling Jet Nozzles: The jet nozzles on both the shower head and hand shower are designed for effortless descaling. Simply rub the nozzles with your fingers to remove any limescale buildup. This should be done regularly, especially in areas with hard water.
- Hose Care: The shower hose length is 150 cm. Periodically check the shower hose for any signs of wear or damage.
Troubleshooting
If you encounter any issues with your Cornat Square Neo TECBW3414 Shower System, please review the following common points:
- Low Water Pressure: Check if the water supply valves are fully open. Ensure the shower head and hand shower nozzles are free from limescale buildup (refer to Maintenance section).
- Leaks: Verify that all connections are securely tightened and that all seals and washers are correctly in place. Do not overtighten connections.
- Difficulty Switching Water Flow: Ensure the diverter handle moves freely. If stiff, gentle cleaning around the mechanism might be required.
For persistent problems or issues not covered here, please contact Cornat customer support.
Specifications
| Feature | Specification |
|---|---|
| Brand | Cornat |
| Model Number | TECBW3414 |
| Color | Chrome-plated |
| Material | Brass |
| Finish Type | Polished |
| Mounting Type | Wall Mount |
| Shower Head Size | 225 x 225 mm |
| Riser Length | 97 cm |
| Output (Projection) | 335 mm |
| Shower Hose Length | 150 cm |
| Connection Hose Length | 50 cm |
| Flow Rate (Shower Head) | 13.7 l/min (at 3 bar) |
| Flow Rate (Hand Shower) | 16 l/min (at 3 bar) |
| Item Weight | 2.5 Kilograms (5.5 pounds) |
| Product Dimensions | 39.29 x 13.31 x 3.31 inches |
Warranty and Support
For warranty information or technical support, please refer to the documentation provided with your purchase or contact Cornat customer service directly. Keep your proof of purchase for any warranty claims.
