1. Product Overview
The GROHE Rainshower SmartActive 130 Hand Shower is designed to enhance your showering experience with multiple spray patterns and a durable chrome finish. This manual provides essential information for the safe and effective installation, operation, and maintenance of your hand shower.

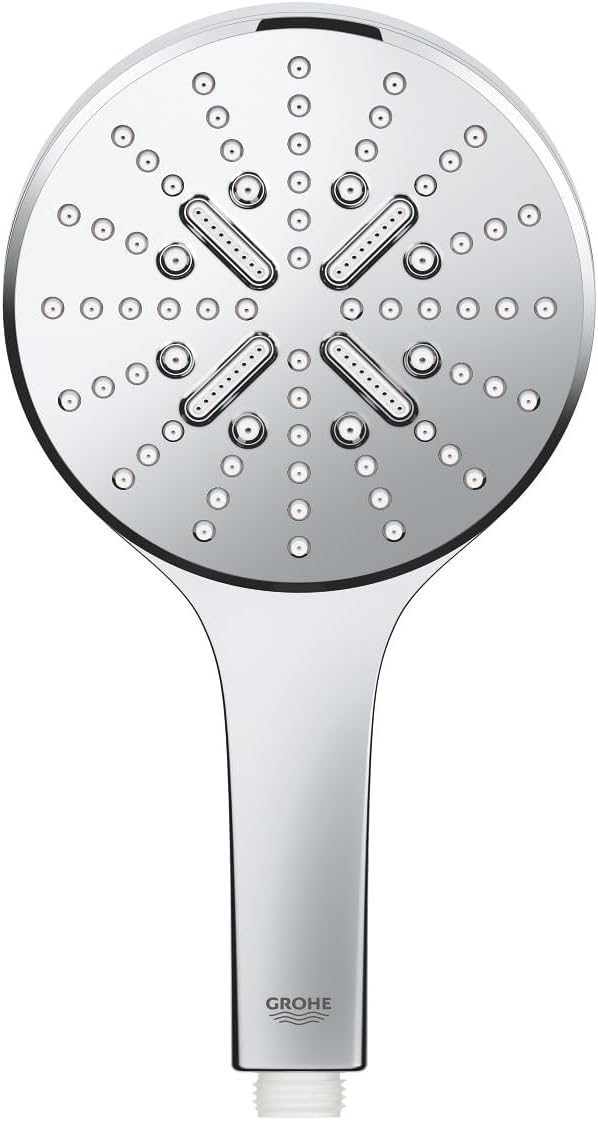

Figure 1: Front view of the GROHE Rainshower SmartActive 130 Hand Shower, showcasing its design and spray plate.
Key features include:
- GROHE SmartTip: Easy selection of three distinct spray patterns with a fingertip.
- GROHE Long-Life Shine: A durable sparkling sheen that is easy to clean.
- SpeedClean Nozzles: Designed for easy removal of limescale deposits.
- GROHE DreamSpray: Ensures a perfect spray pattern for an enjoyable shower.
- GROHE EcoJoy: Reduces water consumption without compromising performance.
2. Safety Information
Please read all instructions carefully before installation and use. Retain this manual for future reference.
- Ensure water supply is turned off before beginning any installation or maintenance.
- Use appropriate tools and follow local plumbing codes.
- Do not overtighten connections, as this may damage the product.
- Avoid using abrasive cleaners or harsh chemicals on the chrome finish.
- This product is designed for domestic use with potable water systems.
3. Package Contents
Verify that all components are present before proceeding with installation:
- GROHE Rainshower SmartActive 130 Hand Shower (Model 26574000)
Note: Shower hose and wall holder are typically sold separately.
4. Installation Instructions
This section outlines the general steps for installing your GROHE Rainshower SmartActive 130 Hand Shower. Professional installation is recommended if you are unfamiliar with plumbing procedures.
- Prepare the Area: Turn off the main water supply to your shower. Ensure the existing shower hose and holder (if applicable) are removed.
- Connect to Shower Hose: Screw the new GROHE Rainshower SmartActive 130 Hand Shower onto your existing shower hose. The connection is a standard G 1/2 thread. Hand-tighten first, then use a wrench to gently tighten, ensuring a watertight seal. Do not overtighten.
- Check for Leaks: Turn the main water supply back on and check all connections for leaks. If leaks occur, gently tighten the connections further.
- Mounting (if applicable): If installing a new wall holder, follow the instructions provided with the holder.
Figure 2: Technical drawing showing the dimensions and G 1/2 connection of the hand shower for proper installation.
5. Operating Instructions
The GROHE Rainshower SmartActive 130 Hand Shower features three distinct spray patterns, easily selectable with the innovative SmartTip control.
Figure 3: Rear view of the hand shower with the SmartTip control for spray selection.
Figure 4: Visual guide to the three spray patterns and SmartTip selection.
5.1. Spray Pattern Selection (GROHE SmartTip)
To switch between spray patterns, simply press the button on the back of the showerhead with your fingertip. The available spray patterns are:
- Rain Spray: A soft and soothing spray, ideal for a relaxing shower.
- ActiveMassage Spray: A pulsating massage spray designed to reduce stress and tension.
- Jet Spray: A powerful and revitalizing spray, suitable for rinsing hair or targeted cleaning.
The GROHE DreamSpray technology ensures a balanced flow from all nozzles for an optimal experience.
5.2. Product Video
Video 1: An overview of the GROHE Rainshower SmartActive hand shower, demonstrating its features and spray patterns. This video highlights the cutting-edge technology and slim design, showcasing the Rain, ActiveMassage, and Jet sprays, as well as features like GROHE DreamSpray, EcoJoy, StarLight, and SpeedClean.
6. Maintenance and Cleaning
Regular cleaning will help maintain the appearance and functionality of your GROHE Rainshower SmartActive 130 Hand Shower.
- Cleaning the Finish: Clean the chrome finish with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots. The GROHE Long-Life Shine finish is designed for durability and easy maintenance.
- Limescale Removal (SpeedClean): The SpeedClean nozzles are made of silicone, allowing for easy removal of limescale. Simply wipe the nozzles with your finger or a soft cloth to dislodge any mineral buildup.
- Filter Maintenance: Periodically check the filter screen (if present in your shower hose connection) for debris and clean as necessary to maintain optimal water flow.
Do not use abrasive sponges, scouring agents, or cleaners containing alcohol, acid, or abrasive particles, as these can damage the finish.
7. Troubleshooting
If you encounter issues with your hand shower, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water pressure | Clogged nozzles or filter screen; low household water pressure. | Clean SpeedClean nozzles. Check and clean the filter screen in the shower hose connection. Consult a plumber if household water pressure is consistently low. |
| Water dripping after use | Residual water in the showerhead. | A small amount of dripping is normal as residual water drains. If excessive, ensure the showerhead is angled downwards to allow proper drainage. |
| Uneven spray pattern | Limescale buildup in nozzles. | Wipe the SpeedClean nozzles to remove limescale. |
| Difficulty changing spray patterns | Debris or limescale affecting the SmartTip mechanism. | Rinse the SmartTip button area with warm water. Gently press the button multiple times to dislodge any minor obstructions. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | GROHE |
| Model Number | 26574000 |
| Product Name | Rainshower SmartActive 130 Hand Shower |
| Color | Chrome |
| Material | Chrome, Plastic, Silicone |
| Finish Type | Chrome Finish (GROHE Long-Life Shine) |
| Installation Type | Wall Mounted (via hose connection) |
| Number of Spray Settings | 3 (Rain, ActiveMassage, Jet) |
| Efficiency | 9.5 LPM (Liters Per Minute), 2.5 GPM (Gallons Per Minute) |
| Product Dimensions | 9.88 x 5.2 x 2.05 inches (approximate) |
| Item Weight | 10.2 ounces |
9. Warranty and Support
GROHE products are manufactured to the highest quality standards and come with a manufacturer's warranty. For specific warranty details, registration, or technical support, please refer to the official GROHE website or contact their customer service directly.
You can find more information and support at: www.grohe.us
